Club 3D Type-C to Dual HDMI MST Adapter CSV-1558

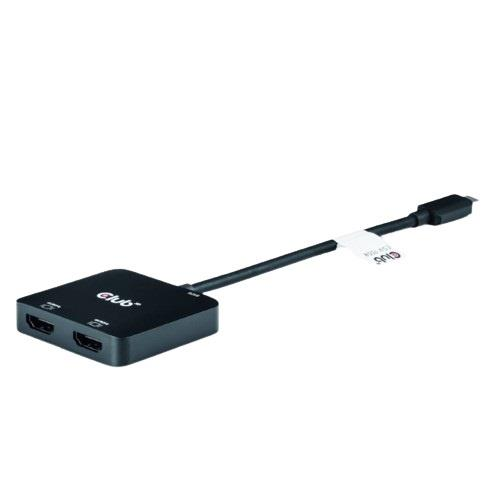

Club 3D Type-C to Dual HDMI MST Adapter

The Club 3D CSV-1558 USB Type-C to Dual HDMI 4K60Hz + PD 100 Watt Charging under DP1.4 Alt mode, allowing to extend the USB Type-C port of the host to 2x HDMI™ displays with ultra high definition max 4K60Hz for each display simultaneously. Supporting MST function, dual displays can be showed with different video contents simultaneously. Besides, it supports PD Charging with max 100 Watt. It can work on all DP™ Alt mode supported USB Type-C or Thunderbolt™ devices (including Phones with an USB Type-C connetion and DP™ Alt modesupport).

Features:

• Support DP1.4™ Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
• Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
• Support DSC1.2
• Support HDCP2.2
• Support HDR
• Support PD 3.0 charging with max 100Watt on separate USB Type-C port

Specifications:

Input:

• 1x Type-C Male (to host)
• Support DP1.4 Alt mode with max 8.1Gbps per lane, 32.4Gbps 4 lanes
• Support reversible connection

Output:

• 2x HDMI Female
• Support to output dual 4K/60Hz with different pictures under MST mode when working on Windows System
• Support to output dual 4K/60Hz with the same picture under SST mode when working on Mac OS System
• Support 8/10/12 bit color depth output
• Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2/ YCbCr4:2:0
• Support DSC1.2
• Support HDCP2.2
• Support HDR
