Club 3D Thunderbolt4 16-in-1 Quadra Displays Docking Station CSV-1583

Club 3D Thunderbolt4 16-in-1 Quadra Displays Docking Station CSV-1583

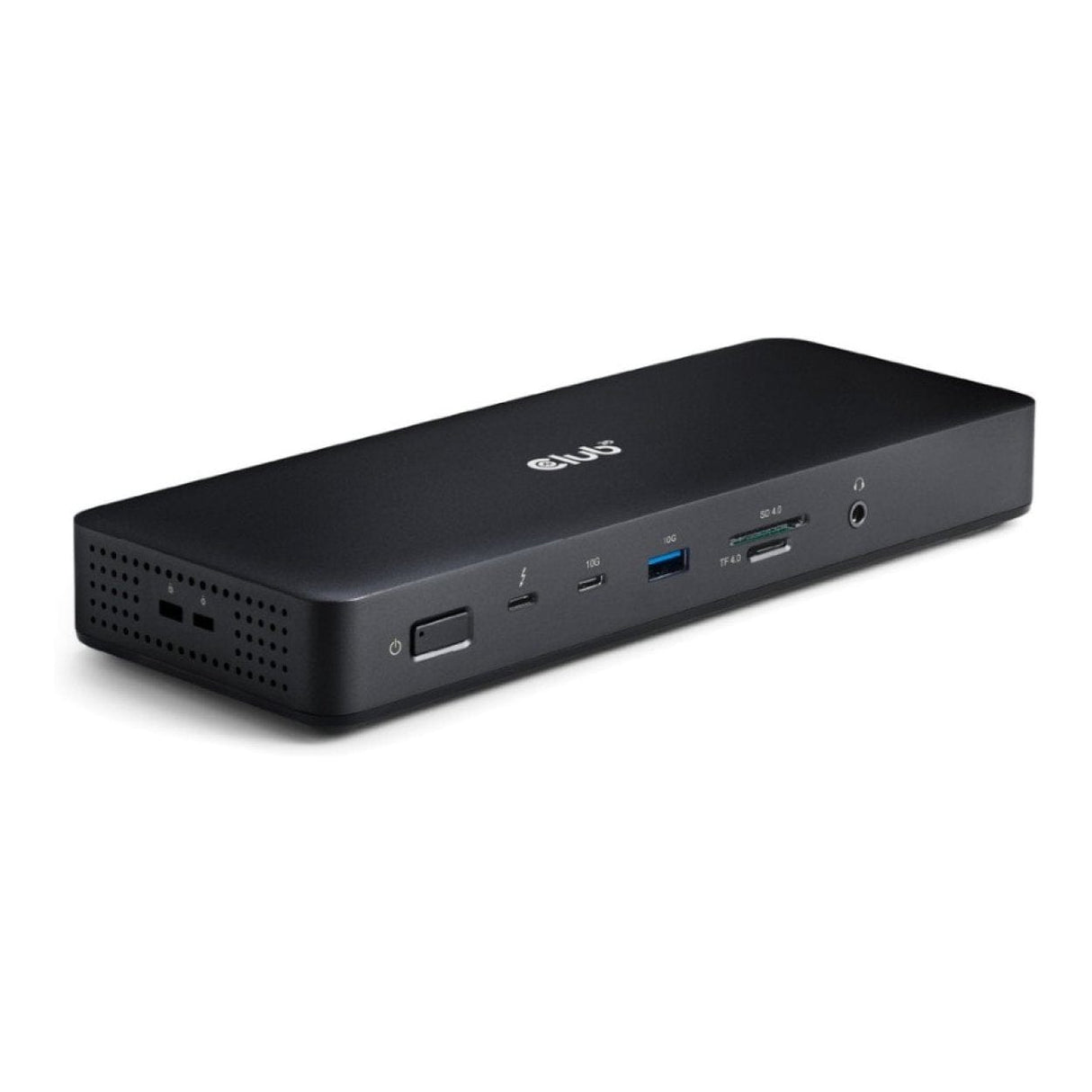

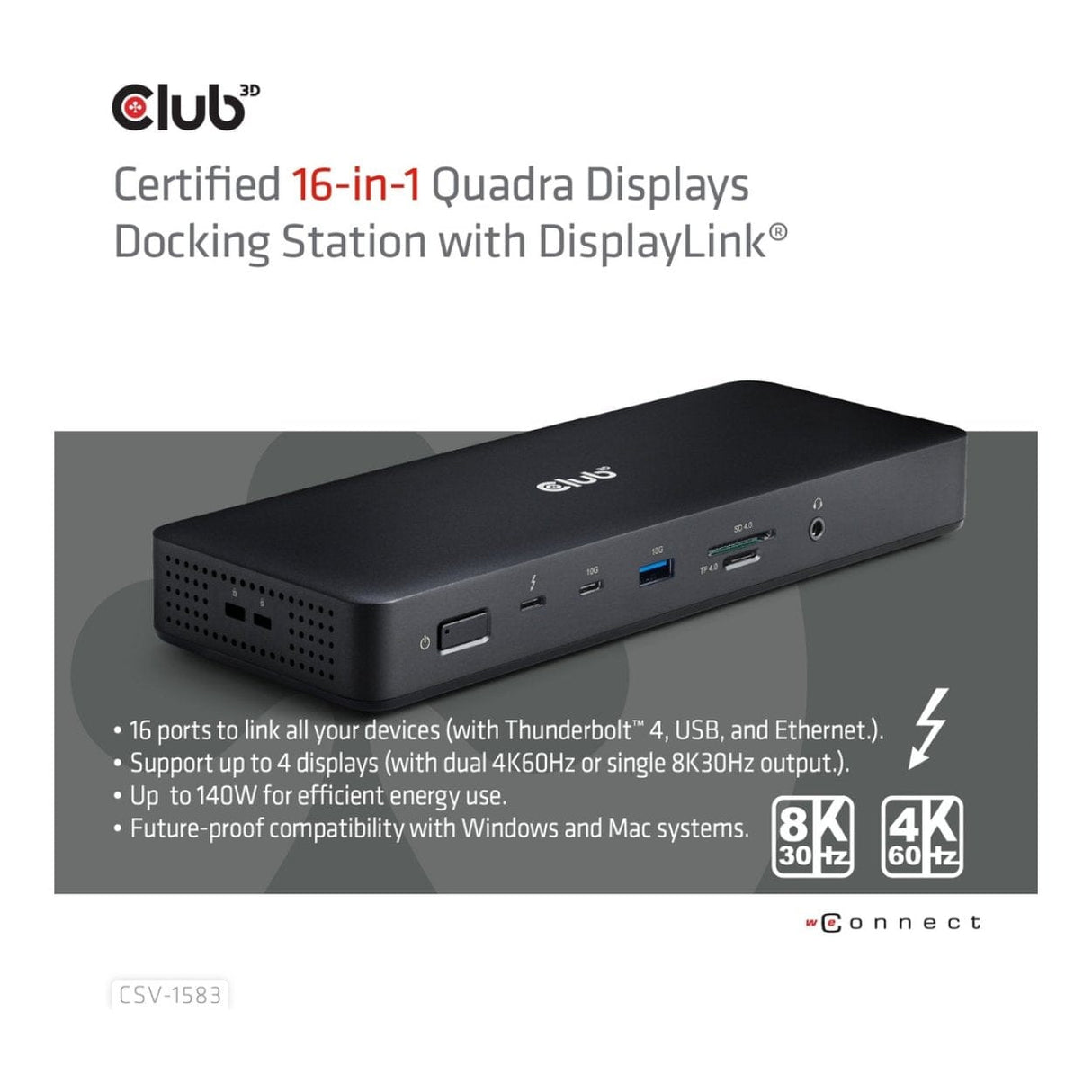

The Club 3D CSV-1583 Thunderbolt4 16-in-1 Quad Display Docking Station is a high-performance connectivity hub designed for power users and professional workstations. It transforms a single Thunderbolt 4 port into a complete desktop solution, supporting up to four displays while delivering data, power, and network connectivity through one cable. Ideal for content creators, engineers, financial traders, and multitasking professionals, this dock provides exceptional expandability, high-speed data transfer, and reliable power delivery for demanding environments.

• Adopting Goshen Ridge solution
• Designed for TBT4/USB4 based PCs and compatible with TBT3/DP-Alt-mode PCs
• Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3, USB4, DPAlt mode, USB protocol

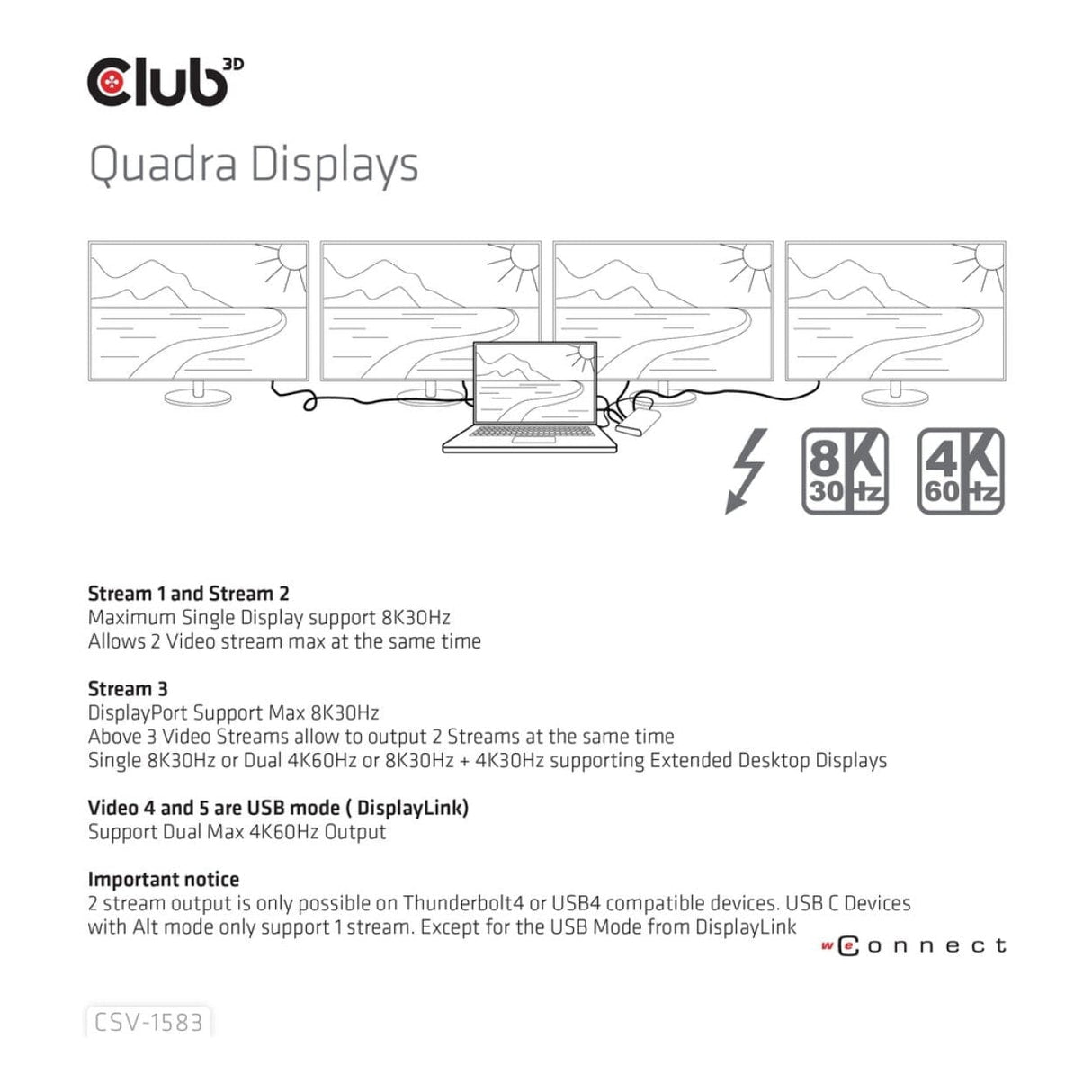

• Among 3 streams, allow to output 2 streams at the same time and allow to output single 8K30Hz or dual 4K60Hz displays in Extended mode on Windows based system
• Among 2 videos (From DisplayLink®) allow to output dual 4K60Hz in Extended mode on both Mac (include M1, M2,M3) and Windows based systems
• Among all 7 video ports, allow to output max 3 videos when connected to M1, M2,M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series and Windows NoteBooks
• RJ45 supports max 2.5G bandwidth
• USB ports support max 10G data transmission
• SD/TF supports SD4.0 with max 312MBps
• Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
• Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
  Compatibility Details:
•  Support TBT4/USB4/TBT3/DP-Alt-mode Hosts
• Support Windows 10 or upwards, Mac 13.5.2 (Limitations may vary on different Apple proprietary Silicon)
• Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)

Specifications

Video Input: Thunderbolt
Video Output: 3 × DisplayPort, 2 × HDMI, Thunderbolt
Host Port: Thunderbolt4
Connectors: 3 × DisplayPort, 2 × HDMI, Thunderbolt4, USB-A 10Gbps, USB-A 5Gbps, USB-C® 10Gbps, MicroSD / SD 4.0, 2.5G Ethernet, Audio/Mic
Power Standard: Power Delivery 3.0
Colour: Black
Features: DisplayLink, Thunderbolt
OS Support: Windows 11, macOS Sequoia (Macs with dual display support only)
Wattage: 100W
Chipset: Goshen Ridge JHL8440 + 6950, CYPD5235, ALC4030U, VL822 + 817 + 162, RTL8156BG, GL3231S, PL2586 + CY7C65219
Maximum Resolution: 8K@30Hz
4-Screen Support: 4K@60Hz
Certified: Thunderbolt

What's in the box

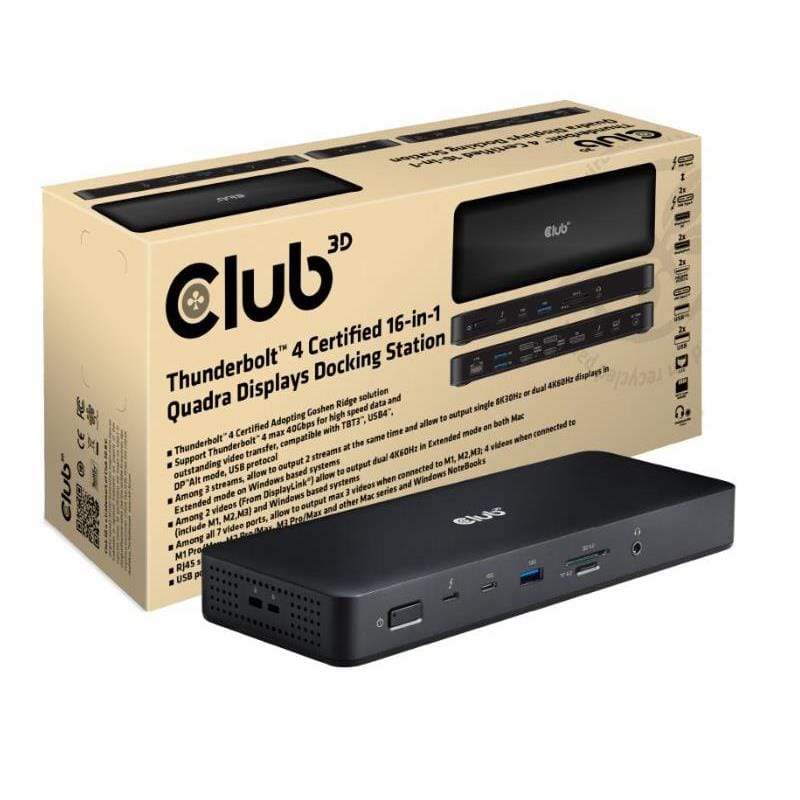

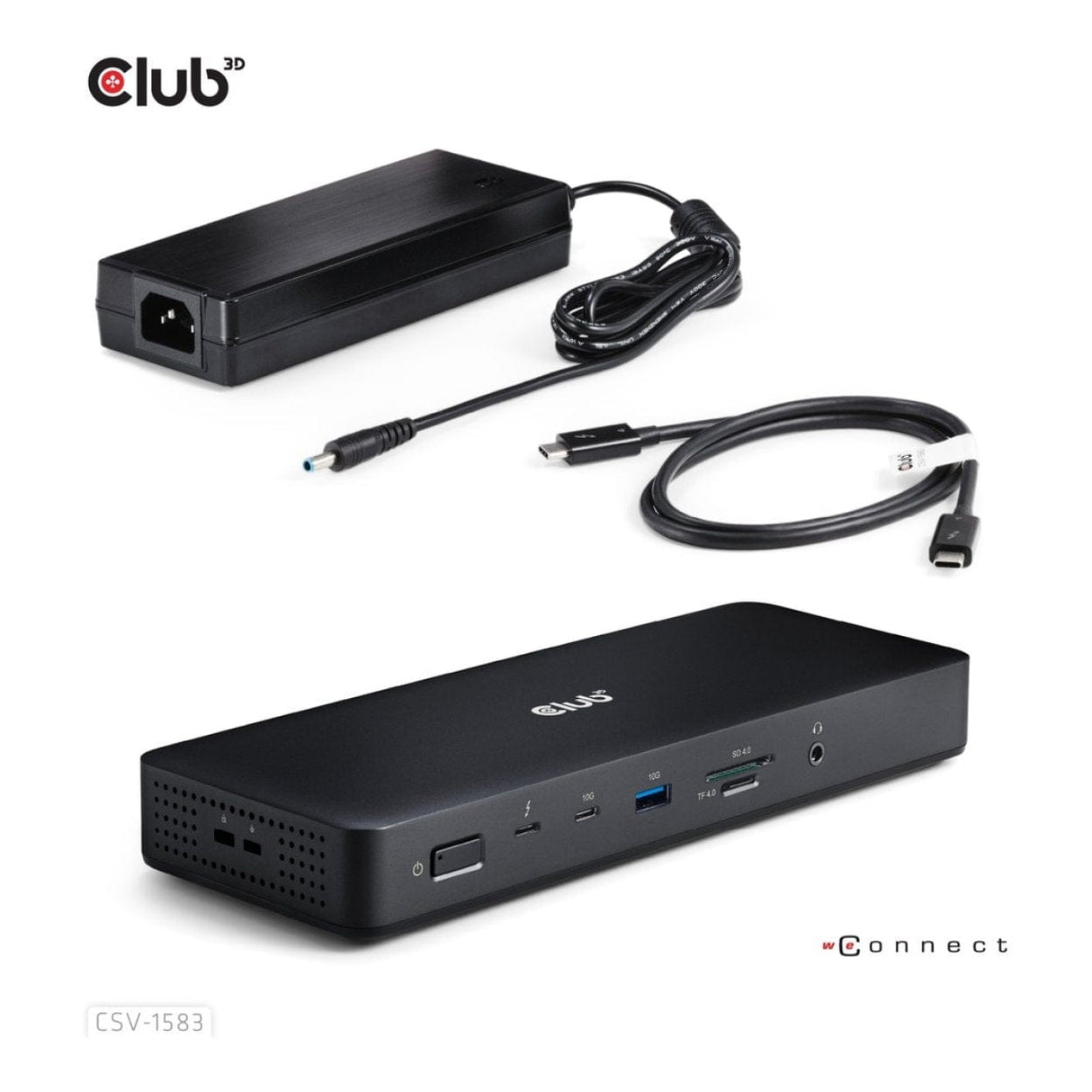

• Thunderbolt Docking Station
• Power Adapter
• Thunderbolt Cable
• User Manual
