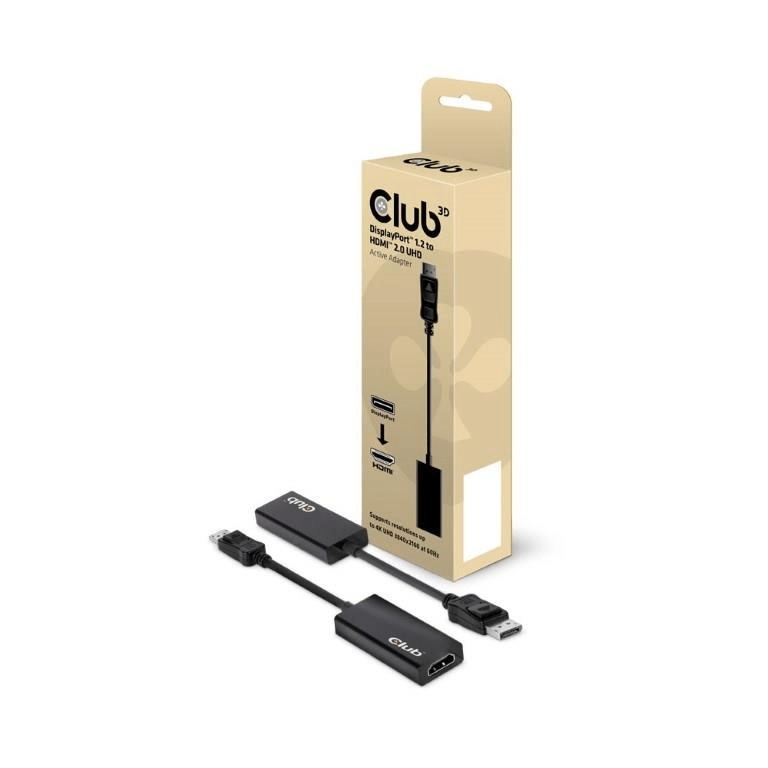

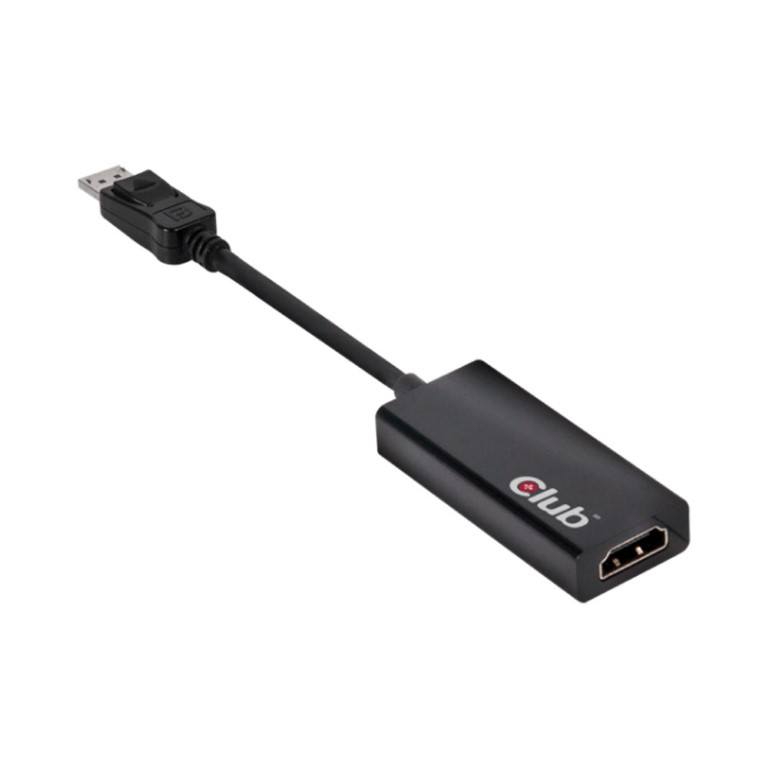

Club 3D DisplayPort 1.2 to HDMI 2.0 Adapter CAC-1070

Club 3D DisplayPort 1.2 to HDMI 2.0 Adapter

The Club 3D CAC-1070 is an active HDMI™ signal converter. The DisplayPort™ 1.2 to HDMI™ 2.0 UHD Adapter is the easiest solution for connecting your DisplayPort™ 1.2 enabled Game PC or recent laptop to an HDMI™ 2.0 enabled 4K UHD Television, monitor or Projector. The adapter is fully compliant to HDMI™ 2.0 specification allowing for 6Gbps TMDS throughput per channel. The interface in the adapter has three lanes for HDMI data, clock, HPD signal and power, offering a total TMDS throughput of 18Gbps.

Supports up to 4K UHD Resolution at 60Hz

The DisplayPort™ 1.2 to HDMI™ 2.0 adapter supports (U)HD resolutions of up to 4K UHD 3840x 2160p @ 60Hz for a clear, sharp picture. The support for 60 frames per second provides exceptionally smooth video or gameplay. Use the adapter to play games, view video or browse the internet from your DisplayPort™ 1.2 enabled device in (Ultra) high- resolution. Supporting up to 8 channels of audio, the adapter provides Ultra High Definition digital audio and video. It is the ideal solution for anyone who wants to enjoy 4K UHD/ 60 gameplay but lacks a native HDMI™ 2.0 output in their system configuration.

Features

• Compliant to DisplayPort™ Specification 1.2 for 1.62Gbps,2.7Gbps and

• 5.4Gbps per lane. Effective video bandwidth 17.28Gbps

• Compliant to HDMI™ Specification 2.0, data rate up to 6Gbps per TMDS channel. Total throughput 18Gbps

• Supports full link training and no link training

• Repeater for HDCP 1.3 and HDCP 2.2

• Supports UHD resolutions up to 4096 x 2160p @ 60Hz, 8Bit BPC

• Supports 3D video support up to 1080p @120Hz

• Supports RGB up to 12 bpc, YCbCr -4:2:2 -4:2:0 up to 12 bpc

• Supports AMD Eyefinity Feature

Connector 1:

DisplayPort™ 1.2 Male

Connector 2:

HDMI 2.0 Female

Compatibility

Supports AMD HD6xxx, Nvidia® Maxwell cards and Intel® Skylake HD 5XX series and newer. Not intended for older architectures (such as Intel Haswell HD 4XXX / NVidia Kepler 5xx series Graphics)
