Club 3D 7-in-1 Type-C to Dual DisplayPort CSV-1598-CLUB3D

Club 3D 7-in-1 Type-C to Dual DisplayPort

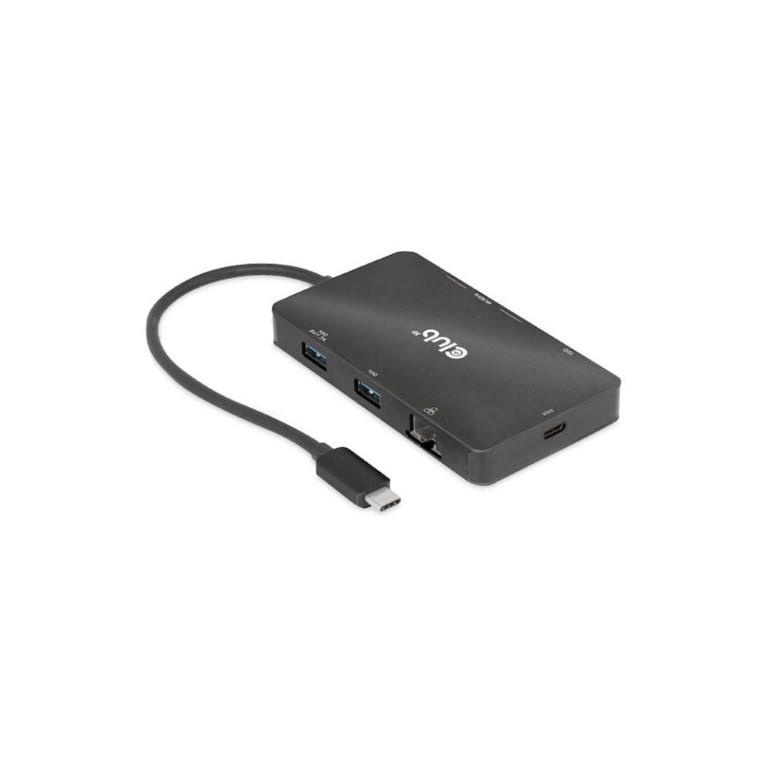

Club3D CSV-1598 | USB Type-C 7-in-1 Dual 4K @60hz MST Port Replicator

The Club3D CSV-1598 USB Gen2 Type-C 7-in-1 Dual 4K @60Hz MST Port Replicator DisplayPort 1.4 Alt mode which provides the most advanced, efficient solution to extend a single USB Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 DisplayPort 4K @60Hz displays simultaneously to enjoy videos on big screen, connect multiple USB devices for data transmission, connect Ethernet source for a PC  to receive super high speed network. It has a PD charging port which supports max. 100W PD charging to support the function of the adapter and charge the host simultaneously. It works on all DisplayPort Alt mode supported USB Type-C hosts.

Features:

• DisplayPort 1.4 Alt mode
• DisplayPort Max. 4K @60Hz per port
• Dual output 4K @60Hz simultaneously under MST mode
• 8/10/12 bit colour depth output
• Output pixel format RGB / YCbCr 4:4:4 / YCbCr 4:2:2 / YCbCr 4:2:0
• HDR
• HDCP 2.2 and 1.4
• Max. 10Gbps Gen2 data transmission per USB port
• Max. 7.5W (5V 1.5A) downstream charging for the USB Type-A port furthest from RJ45
• Gigabit Ethernet, 10/100/1000
• Max. 100W PD charging (15W is dedicated to the functioning of this product, the remaining power (max. 85W) will be passed to charge the host)
• PD3.0 Fast Role Swap, the connected device will not get disconnected while plugging in and out PD Adapter

Specifications:

Input:

• 1× USB Gen2 Type-C Male (Connect to host)
• Supports DisplayPort 1.4 Alt mode
• Note: To get max. bandwidth, the host should support DisplayPort 1.4 Alt mode

Outputs:

• 2× DisplayPort Female
• Supports max. 4K @60Hz
• Supports Dual display DisplayPort max. 4K @60Hz (MST with DSC1.2)
• Note: The max. resolution of the display determined by the computer and the monitor
• 1× USB Gen2 Type-C (next to DisplayPort ports) Female
• Max. 10Gbps data transmission
• Supports max. 4.5W (5V 900mA) downstream charging
• 2× USB Gen2 Type-A and the Type-C share max. 2.4A output
• Supports short-circuit, over-current and over-voltage protection
• 2× USB Gen2 Type-A Female
• Max. 10Gbps data transmission per port
• 1× port supports max. 7.5W (5V 1.5A) downstream charging
• 1× port supports max. 4.5W (5V 900mA) charging
• Both USB Gen2 Type-A ports support short-circuit, over-current and over-voltage protection
• 1× RJ45 Jack
• Supports Gigabit Ethernet, 10/100/1000
• Supports Wake-On-LAN
• Supports full duplex flow control
• Light indicator indicates the state, no light when no Internet connected, orange light turns on when network connection is established, green light flashes when transmitting data
• 1× USB Gen2 Type-C Female (for PD Charger)
• Supports max. 100W PD3.0 charging
• Supports Fast Role Swap, the connected device will not get disconnected while plugging in and out the PD charger. 15W is dedicated to the functioning of this product, the remaining power (max. 85W) will be passed to charge the host

OS Support:

• Windows OS and iOS

In the Box:

• 1× Club3D USB Type-C 7-in-1 Dual 4K @60hz MST Port Replicator
