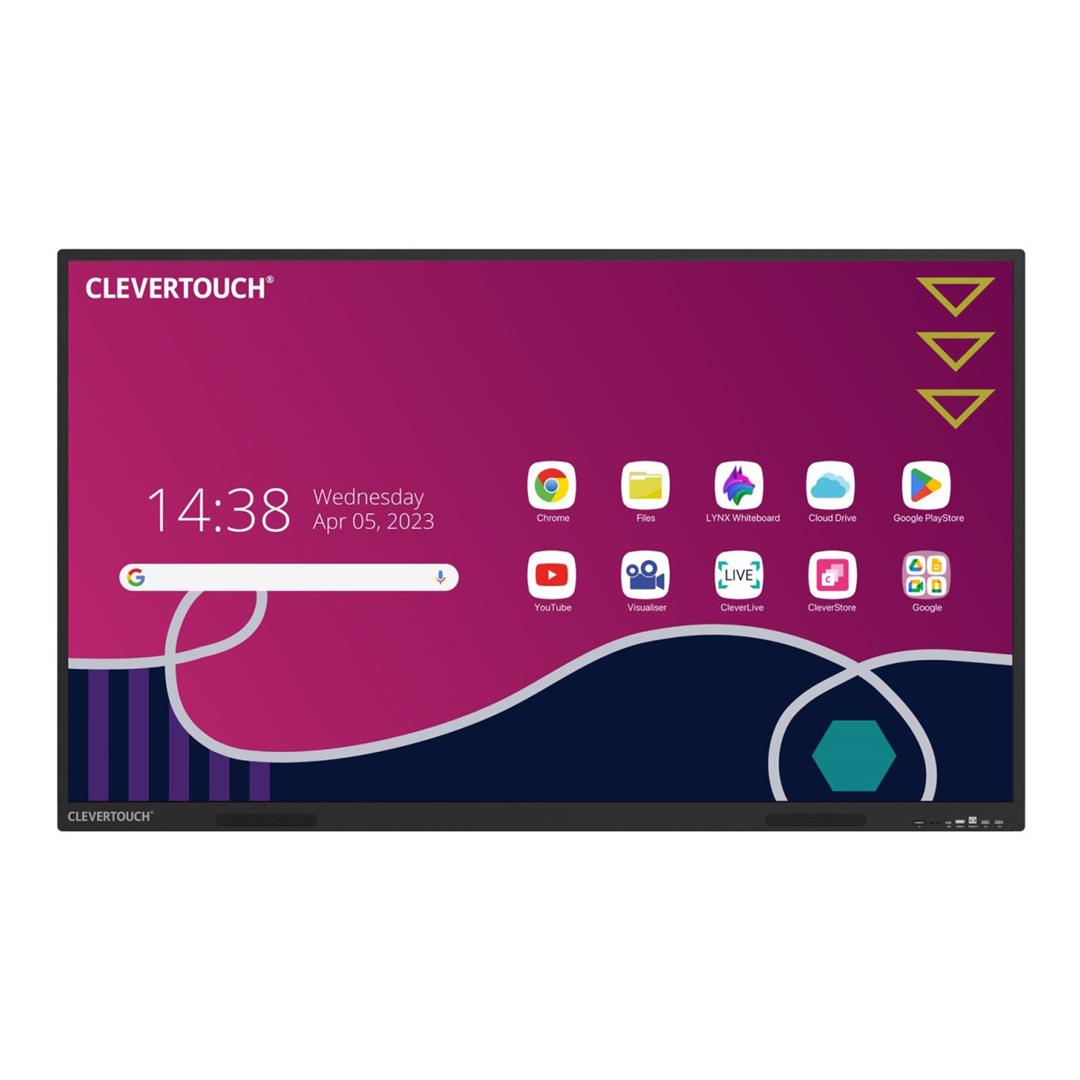

Clevertouch X5 86-inch Interactive Android 14 Display Panel 15486CTX5CH

Clevertouch X5 86-inch Interactive Android 14 Display Panel 15486CTX5CH

Bring interactive learning and collaboration to life with the Clevertouch X5 86-inch Interactive Display. Featuring a 4K UHD touchscreen, 40-point infrared touch and Google EDLA-certified Android 14, it provides an intuitive platform for classrooms, training and presentations. Powered by an MT9679 processor with 8GB RAM and 64GB storage, it includes LYNX Whiteboard, CleverShare wireless presentations and CleverLive digital signage. Wi-Fi 6E, USB-C charging and dual 20W speakers complete its professional features.

Key Features:

• 86-inch 4K UHD interactive display
• 3840 x 2160 resolution at 60Hz
• Direct LED LCD with 400-nit brightness
• 3000:1 native and 5000:1 dynamic contrast
• 40-point high-precision infrared touch
• Anti-glare, Mohs Level 7 tempered glass
• Android 14 with Google EDLA certification
• MT9679 processor, 8GB RAM and 64GB storage
• LYNX Whiteboard collaboration software
• CleverShare wireless screen mirroring
• CleverLive digital signage
• Wi-Fi 6E and Bluetooth 5.2
• 3 x HDMI 2.0 inputs and 1 HDMI output
• USB-C with up to 65W charging
• DisplayPort, VGA, USB and Ethernet connectivity
• 2 x 20W integrated speakers
• Optional OPS computer expansion
• CleverMDM remote device management
• 16/7 operating-hour rating
• VESA 800 x 600mm mounting

Features

86-inch 4K Ultra HD Display

The large 86-inch LCD screen delivers 3840 x 2160 resolution, 400-nit brightness and 178-degree viewing angles for detailed presentations, educational content and multimedia.

40-Point Interactive Touch

High-precision infrared technology supports 40 simultaneous touch points, palm rejection and collaborative writing using fingers or the included dual-recognition stylus pens.

Super Glide Writing Surface

The 3mm anti-glare tempered glass features Mohs Level 7 hardness, helping provide a durable, smooth writing experience with reduced reflections.

Android 14 and Google EDLA

The Google EDLA-certified Android 14 platform provides access to compatible Google Play Store, Google Workspace and Microsoft applications.

Embedded Computing

The MT9679 processor, Mali-G52 MC1 graphics, 8GB RAM and 64GB storage support interactive applications and multimedia content. Storage can be expanded using compatible media.

LYNX Whiteboard

LYNX Whiteboard provides annotation, lesson planning, handwriting recognition, mathematical tools and interactive presentation functions.

CleverShare Wireless Presentations

CleverShare enables compatible computers, smartphones and tablets to share content wirelessly, with touchback support for suitable devices.

CleverLive Digital Signage

CleverLive allows users to publish announcements, information screens and scheduled digital signage content.

Wi-Fi 6E and Bluetooth

Wi-Fi 6E and Bluetooth 5.2 support compatible wireless networks and peripherals, while wired Ethernet provides an additional connection option.

USB-C with 65W Charging

The front USB-C port supports compatible video, audio, touch, networking and up to 65W laptop charging.

Flexible AV Connectivity

Three HDMI inputs, HDMI output, DisplayPort, VGA, USB connections and RS-232 provide integration with computers and audiovisual equipment.

Integrated Stereo Audio

Two built-in 20W speakers provide 40W total audio output for presentations, lessons and multimedia playback.

OPS Expansion

An Intel-standard 80-pin OPS slot supports installation of a compatible optional computer module.

Remote Management

CleverMDM supports remote device configuration and administration. One year of management access is included.

Important Information:

• SKU: 15486CTX5CH.
• The manufacturer specifies Android 14.
• Touch uses infrared technology, not capacitive touch.
• NFC and camera accessories are optional.
• An OPS computer is not included.
• Rated for 16/7 operation, not continuous 24/7 use.
• Online services may require accounts or licences.
• Professional mounting is required.
• Warranty terms depend on the regional supplier.

Technical Specifications:

Specification	Details
Brand / Series	Clevertouch X5
SKU	15486CTX5CH
Display	86-inch Direct LED LCD
Resolution	3840 x 2160, 60Hz
Brightness	400 cd/m²
Contrast	3000:1 Native / 5000:1 Dynamic
Response Time	6.5ms
Viewing Angle	178 Degrees
Touch Technology	40-Point Infrared
Touch Resolution	32768 x 32768
Glass	3mm Anti-Glare, Mohs 7
Operating System	Android 14 / LUX 14
Google Certification	EDLA
Processor / GPU	MT9679 / Mali-G52 MC1
RAM / Storage	8GB / 64GB
Expandable Storage	Up to 576GB Total
Wi-Fi / Bluetooth	Wi-Fi 6E / Bluetooth 5.2
HDMI	3 x HDMI 2.0 In / 1 Out
Other Video Inputs	DisplayPort, VGA, USB-C
USB	USB-A, USB-B Touch, 2 x USB-C
USB-C Charging	Up to 65W
Network / Control	LAN In/Out, RS-232
OPS Expansion	Intel 80-Pin
Speakers	2 x 20W
Operating Hours	16/7
Panel Lifespan	50,000 Hours
VESA Mount	800 x 600mm
Dimensions	1957 x 1159.9 x 97.4mm
Net Weight	53.55kg
Normal Power	97.5W
Warranty	Regional Supplier Terms Apply

What's in the Box:

• Clevertouch X5 86-inch Interactive Display
• 3m HDMI Cable and 5m USB-A to USB-B Cable
• 1.5m USB-C Cable and 3m Power Cable
• Remote Control and 2 Batteries
• 2 Dual-Recognition Stylus Pens
• Clevertouch Wi-Fi Module
• User Guide and Quick Installation Guide
