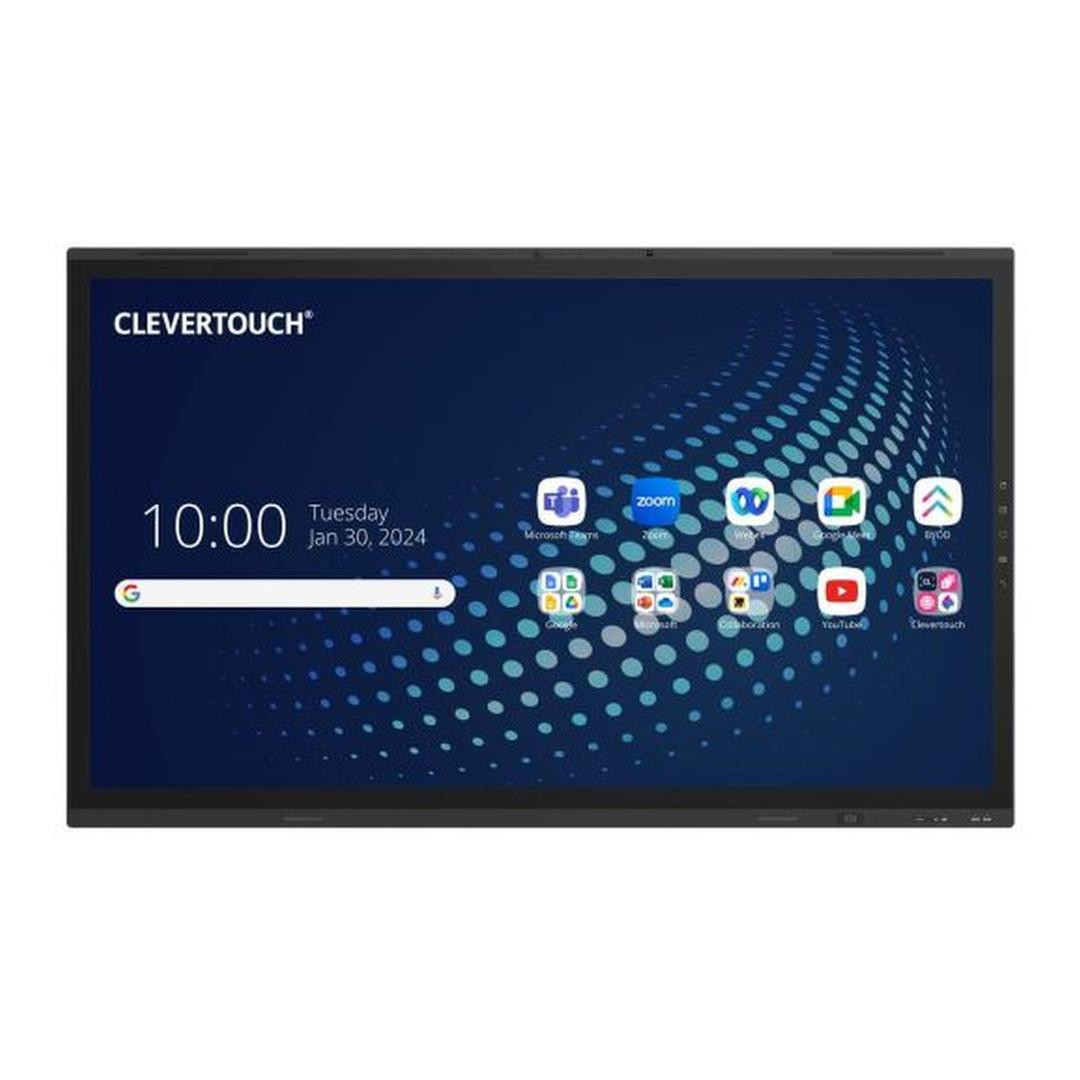

Clevertouch UX Pro Edge 86-inch Interactive Android 15 Display Panel with 4K Camera 15486UXPROEDGE

Clevertouch UX Pro Edge 86-inch Interactive Android 15 Display Panel with 4K Camera 15486UXPROEDGE

Enhance business collaboration with the Clevertouch UX Pro Edge 86-inch Interactive Display. Featuring a 4K UHD touchscreen, 40-point FlatFrog InGlass technology and an integrated Sony 4K camera, it combines video conferencing, digital whiteboarding and wireless presentations. Supporting Android 15 via firmware update, this Google EDLA-certified display features an RK3588 octa-core processor, 8GB RAM and 128GB storage. CleverLive, CleverShare, NFC, Wi-Fi 6 and powerful 60W audio provide an advanced interactive meeting solution.

Key Features:

• 86-inch 4K UHD interactive display
• 3840 x 2160 resolution at 60Hz
• 400-nit brightness and 4000:1 contrast
• 40-point FlatFrog InGlass M5 touchscreen
• Integrated Sony 4K camera with 48MP sensor
• 90-degree camera field of view with ePTZ
• Face detection and automatic tracking
• Android 15 supported via firmware update
• Google EDLA-certified platform
• RK3588 octa-core CPU, 8GB RAM, 128GB storage
• Anti-glare Super Glide tempered glass
• Two dual-recognition stylus pens
• LYNX Whiteboard and CleverLive digital signage
• CleverShare wireless presentations
• Wi-Fi 6, Bluetooth 5.0 and integrated NFC
• 3 HDMI inputs and 1 HDMI output
• USB-C with up to 100W laptop charging
• Optional OPS computer expansion
• 2 x 20W speakers and 2 x 10W subwoofers
• Integrated eight-microphone array
• CleverMDM remote management
• VESA 800 x 600mm mounting

Features

86-inch 4K UHD Display

The large LCD screen delivers 3840 x 2160 resolution, 400-nit brightness, 4000:1 native contrast and 178-degree viewing angles for clear presentations and video meetings.

FlatFrog InGlass Touch

InGlass M5 technology supports 40 simultaneous touch points, palm rejection and precise writing. Two passive dual-recognition stylus pens are included.

Integrated Sony 4K Camera

The built-in camera features a 48MP sensor, 90-degree field of view, electronic pan-tilt-zoom and automatic face tracking for compatible conferencing applications.

Professional Audio

Dual 20W speakers and two 10W subwoofers deliver 60W combined audio output. Eight integrated noise-cancelling microphones support meeting-room communication.

Android 15 and Google EDLA

The Google EDLA-certified platform supports compatible Google Play applications. Android 15 is available through Clevertouch's official firmware upgrade from Android 13.

Powerful Embedded Computing

The RK3588 octa-core processor, Mali-G610 graphics, 8GB RAM and 128GB storage support responsive collaboration and multimedia applications.

LYNX Whiteboard

LYNX provides digital writing, annotation, screen recording and interactive presentation tools for business collaboration.

CleverShare and CleverLive

CleverShare enables wireless presentations from compatible devices. CleverLive supports digital signage, scheduled announcements and information displays.

NFC Personalised Profiles

The integrated NFC reader and writer supports compatible user authentication and personalised display settings.

USB-C with 100W Charging

Front USB-C supports compatible video, audio, touch, networking and up to 100W Power Delivery for connected laptops.

Flexible Connectivity

HDMI, USB, Ethernet and RS-232 interfaces support integration with computers, peripherals and professional audiovisual systems.

OPS Computer Expansion

The Intel-standard 80-pin OPS slot supports an optional compatible computer module for additional computing functionality.

Remote Management

CleverMDM enables supported remote administration and configuration. One year of management access is included.

Important Information:

• SKU: 15486UXPROEDGE.
• Android 15 is available through firmware update; earlier stock may run Android 13.
• Touch technology is FlatFrog InGlass, not infrared.
• The 4K conferencing camera is integrated.
• An OPS computer is optional and not included.
• Online applications may require accounts or licences.
• Professional mounting is required for the 68.85kg panel.
• Warranty terms depend on the regional supplier.

Technical Specifications:

What's in the Box:

• Clevertouch UX Pro Edge 86-inch Display
• 3m HDMI and USB-A to USB-B Cables
• 1.5m USB-C Cable and 3m Power Cable
• Remote Control and 2 Batteries
• 2 Dual-Recognition Stylus Pens
• Clevertouch Wi-Fi Module
• User Guide and Quick Installation Guide
