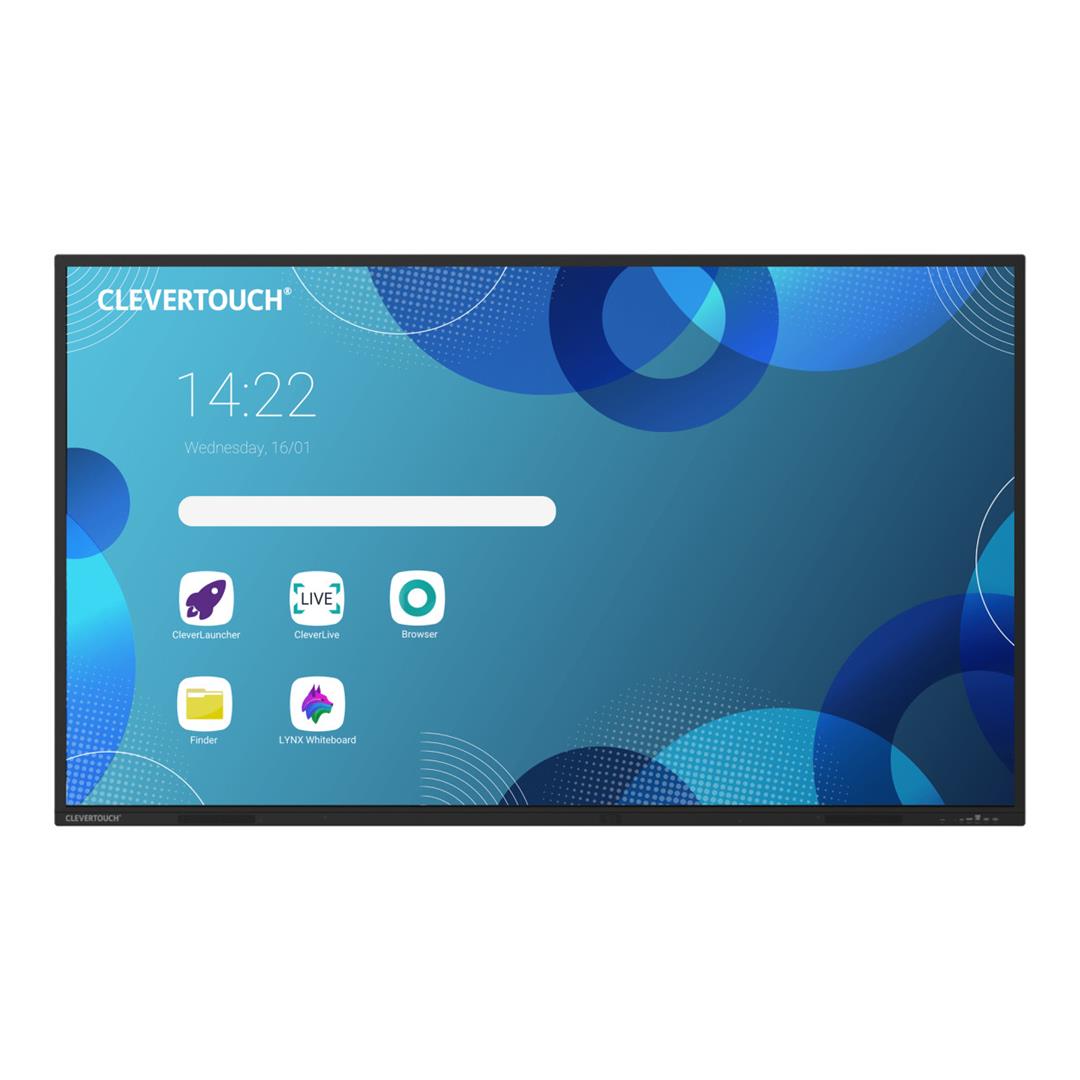

Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Display Panel 15475PROSERIES3LTCH

Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Display Panel 15475PROSERIES3LTCH

Experience large-format interactive collaboration with the Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Display Panel. Featuring a 75-inch VA LCD touchscreen with Direct LED backlighting, 3840 x 2160 Ultra HD resolution, 350-nit typical brightness and 40-point infrared touch technology, this professional display provides a responsive platform for presentations, interactive lessons and teamwork. Its non-OS design allows users to connect their own laptop, desktop computer or compatible optional OPS module and work with familiar applications. With HDMI, USB-C connectivity, up to 65W Power Delivery, dual 20W speakers and anti-glare display technology, the Pro Series 3 Lite delivers flexible interactive functionality for classrooms, training facilities and meeting rooms.

Key Features:

• 75-inch professional 4K interactive touchscreen
• Manufacturer SKU: 15475PROSERIES3LTCH
• 3840 x 2160 Ultra HD resolution at 60Hz
• VA LCD panel with Direct LED backlighting
• 350 cd/m² typical brightness with protective glass
• 5500:1 native contrast ratio
• 178-degree wide viewing angles
• 6.5ms display response time
• Approximately 1.07 billion display colours
• High-precision infrared touch technology
• Supports up to 40 simultaneous touch points
• Touch response time of 10ms or less
• Touch accuracy of ±1.5mm
• Supports compatible passive infrared stylus pens
• Two writing pens included
• Anti-glare display surface
• Non-OS design for external computing
• Compatible with Windows, macOS, Linux, ChromeOS and supported Android devices
• Three HDMI inputs with up to 4K at 60Hz
• HDMI CEC and ARC support on compatible ports
• USB-C with DisplayPort Alt Mode
• USB-C Power Delivery up to 65W
• Four USB 3.2 ports and one USB 2.0 service port
• Two USB touch connections
• Gigabit Ethernet input and output
• RS-232 control interface
• Microphone input and 3.5mm audio output
• Optical SPDIF audio output
• Dual 20W integrated speakers
• OPS expansion support for optional PC module
• 16/7 operating-hour rating
• 50,000-hour minimum panel lifespan
• 800 x 400mm VESA mounting compatibility

Features

Expansive 75-inch 4K Ultra HD Display

The Clevertouch Pro Series 3 Lite features a 75-inch screen with 3840 x 2160 resolution. Its large interactive viewing area displays detailed presentations, diagrams, lesson materials and multimedia content.

VA LCD Display Technology

The VA panel uses Direct LED backlighting and provides a 5500:1 contrast ratio for clear text, detailed graphics and rich image reproduction. Wide 178-degree viewing angles support visibility across classrooms and meeting spaces.

350-Nit Typical Brightness

With typical brightness of 350 cd/m² measured with protective glass, the display supports clear indoor presentations and collaboration. The anti-glare surface helps reduce distracting reflections from surrounding lighting.

40-Point Infrared Touchscreen

High-precision infrared touch technology supports up to 40 simultaneous touch points, enabling multiple participants to write, draw and interact with compatible applications on the same screen.

Responsive Touch Interaction

The touch system provides response times of 10ms or less, with ±1.5mm accuracy. This supports smooth navigation, annotations and interactive activities with compatible connected computers.

Passive Stylus Support

Two writing pens are included for touch-enabled writing and drawing. Compatible applications running on a connected device determine the available pen and annotation tools.

Non-OS Computing Flexibility

The Pro Series 3 Lite does not include a built-in Android or Windows operating system. Instead, users connect their own laptop, desktop computer or optional OPS module to access applications, presentations and familiar workflows.

Broad Computer Compatibility

The touch display supports compatible computers running Windows, macOS, Linux and ChromeOS, along with supported Android devices. Available touch functionality depends on the connected device and application.

USB-C Single-Cable Connectivity

The integrated USB-C connection supports compatible DisplayPort Alt Mode video, USB communication and up to 65W Power Delivery. This allows suitable laptops to connect for presentation and touch functionality using a compatible cable.

Three HDMI Inputs

Three HDMI inputs support video signals up to 4K at 60Hz from compatible computers and media devices. HDMI CEC and ARC capabilities provide additional audiovisual integration options on supported ports.

Dedicated USB Touch Connections

Two USB touch connections allow the display to communicate touch input to compatible external computers. This enables users to control supported software directly from the interactive screen.

USB 3.2 Connectivity

Four USB 3.2 ports, positioned across the front and rear of the display, provide connectivity for supported USB peripherals. A separate USB 2.0 connection is provided for system maintenance.

Dual 20W Integrated Speakers

Two integrated 20W speakers deliver a combined 40W audio output. The stereo sound system supports videos, presentations and other multimedia content without requiring separate speakers for basic use.

Audio Integration

A microphone input, 3.5mm audio output and optical SPDIF connection provide additional audio integration options for compatible conferencing and audiovisual equipment.

Network and Control Connectivity

Gigabit RJ45 input and output connections, together with RS-232 control, support integration into compatible professional audiovisual and network installations.

Optional OPS Computer Expansion

The display supports installation of a compatible optional OPS computer, including the manufacturer's OPS72A module. This provides an integrated computer solution without requiring an external desktop system.

Compatible Video Conferencing Setup

A connected computer and compatible optional USB camera can be used for supported conferencing applications. The display provides a large interactive screen for hybrid meetings and remote collaboration.

Professional 16/7 Operation

The Pro Series 3 Lite is rated for up to 16 hours of operation per day, seven days per week. Its commercial construction supports extended daily use in education and business environments.

Professional Mounting

The 75-inch panel features an 800 x 400mm VESA mounting pattern and measures approximately 1712 x 1022 x 99mm. Its 41.66kg net weight requires suitable mounting hardware and secure installation.

Important Information:

• This listing is for Clevertouch Pro Series 3 Lite, SKU 15475PROSERIES3LTCH.
• This is a non-OS interactive display with no built-in Android operating system.
• It does not include Google EDLA certification or Google Play Store access.
• Applications run on a connected computer or separately purchased OPS module.
• Touch capability uses infrared recognition, not capacitive technology.
• Supports 40 touch points rather than the standard Pro Series 3 model's 50 points.
• The manufacturer's typical brightness rating is 350 nits with glass.
• USB-C Power Delivery supports up to 65W with compatible devices.
• Wireless connectivity and software functions depend on the connected computer or optional accessories.
• An OPS computer and conferencing camera are optional and not included as standard.
• Rated for 16/7 operation, not continuous 24/7 operation.
• Wall-mounting brackets or mobile stands may be supplied separately.
• Professional installation is recommended.
• Warranty coverage varies according to region and supplier.

Technical Specifications:

Specification	Details
Brand	Clevertouch
Series	Pro Series 3 Lite
Product Code	15475PROSERIES3LTCH
Product Type	Interactive Flat Panel Display
Screen Size	75-inch
Panel Type	VA LCD
Backlighting	Direct LED
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Display Response Time	6.5ms
Typical Brightness	350 cd/m² (With Glass)
Minimum Brightness	300 cd/m² (With Glass)
Contrast Ratio	5500:1
Viewing Angle	178 Degrees
Display Colours	1.07 Billion (10-bit)
Colour Gamut	72% NTSC
Display Surface	Anti-Glare
Touch Technology	Infrared Recognition
Touch Points	40 Simultaneous
Touch Accuracy	±1.5mm
Touch Response Time	10ms or Less
Touch Resolution	32768 x 32768
Minimum Touch Object Size	3mm
Writing Height	2mm or Less
Included Pens	2 x Passive Writing Pens
Built-In Operating System	None (Non-OS Display)
Built-In RAM / Storage	Not Applicable
Compatible Systems	Windows, macOS, Linux, ChromeOS, Supported Android Devices
HDMI Inputs	3, Up to 4K at 60Hz
HDMI CEC / ARC	CEC Supported; ARC on One Compatible Input
USB 3.2	4 Ports (2 Front, 2 Rear)
USB 2.0	1 Service Port
USB-C Input	1, DisplayPort Alt Mode and USB 2.0
USB-C Power Delivery	Up to 65W
USB Touch Ports	2 (Front and Rear)
Microphone Input	1
Audio Output	3.5mm Jack
Optical Audio	SPDIF PCM Output
Ethernet	RJ45 Input and Output, 10/100/1000Mbps
RS-232	1, 9600 Baud
Speakers	2 x 20W Stereo (40W Total)
Audio Configuration	2.0 Channel
OPS Expansion	Yes, Optional Compatible OPS Module
Optional PC Module	OPS72A
Operating Schedule	16/7
Panel Lifespan	50,000 Hours Minimum
VESA Mount	800 x 400mm
VESA Screws	M8 x 25mm
Dimensions (W x H x D)	1712 x 1022 x 99mm
Net Weight	41.66kg
Package Dimensions	1863 x 185 x 1148mm
Package Weight	53.71kg
Power Requirements	100-240V AC, 50/60Hz, 4.0A
Typical Power Consumption	167W
Maximum Power (With OPS)	396W
Operating Temperature	0°C to 40°C
Operating Humidity	10% to 90% RH
Warranty	Regional Manufacturer / Supplier Terms Apply

What's in the Box:

• 1 x Clevertouch Pro Series 3 Lite 75-inch Interactive Display Panel
• 2 x Writing Pens
• 1 x Remote Control
• 1 x Power Cable

The Clevertouch Pro Series 3 Lite 75-inch 4K Interactive Display Panel 15475PROSERIES3LTCH combines a large Ultra HD VA screen, 40-point infrared touch, flexible external computing and integrated 40W stereo audio. Its non-OS design and extensive wired connectivity provide a practical interactive platform for professional presentations, classroom activities and collaborative workspaces.
