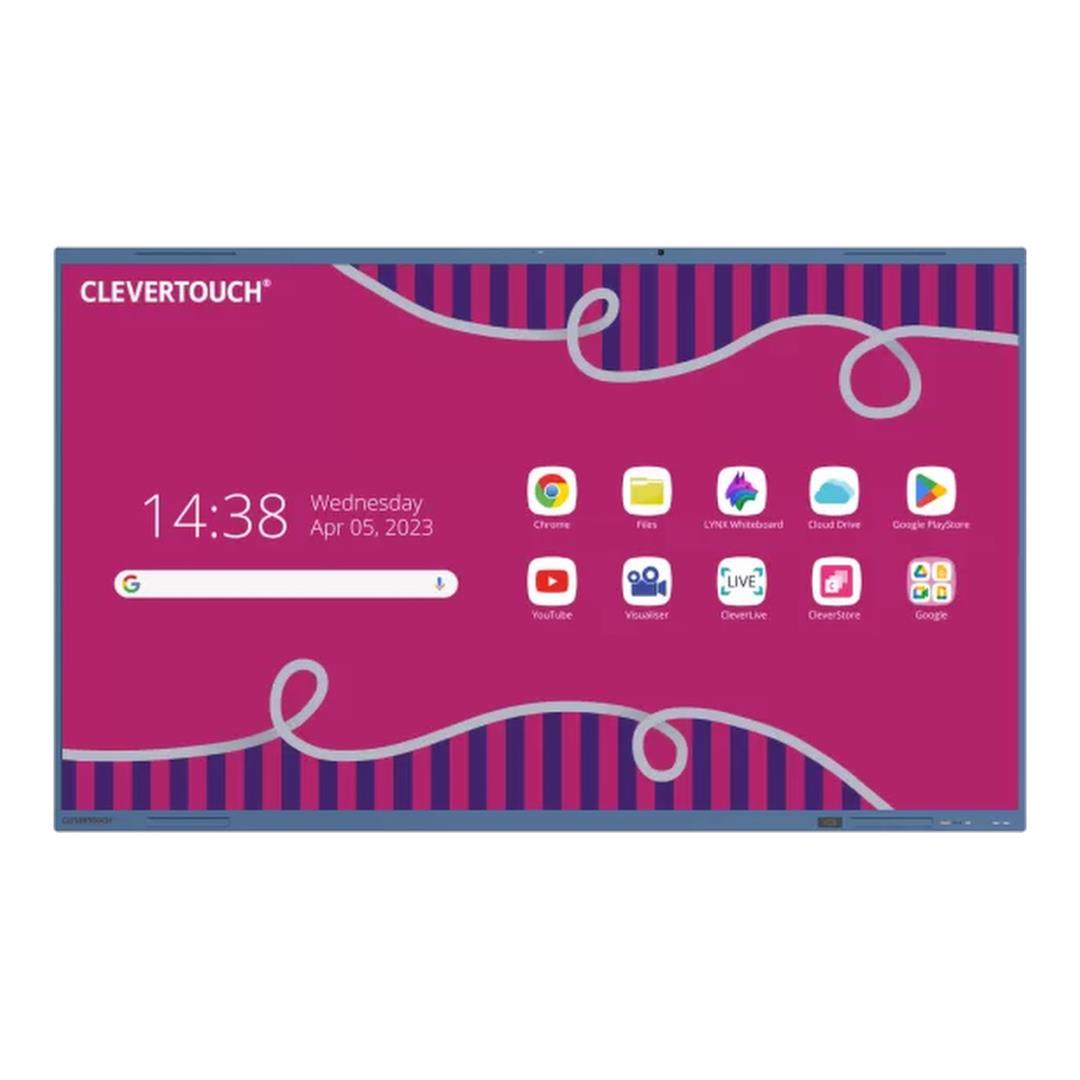

Clevertouch IMPACT LUX 2 86-inch 4K Interactive Android 16 Display Panel 15486IMPACTLUX2AH

Clevertouch IMPACT LUX 2 86-inch 4K Interactive Android 16 Display Panel 15486IMPACTLUX2AH

Transform classrooms and meeting rooms with the Clevertouch IMPACT LUX 2 86-inch 4K Interactive Display Panel. Featuring a large 3840 x 2160 Ultra HD touchscreen, 500-nit brightness, 50-point infrared touch and Google EDLA certification, this professional display supports immersive teaching, presentations and collaboration. Powered by Android 15 with a Rockchip RK3588 octa-core processor, 8GB RAM and 128GB storage, it integrates LYNX Whiteboard, CleverLive digital signage, CleverShare wireless presentations and Google Play Store access. Wi-Fi 6E, Bluetooth 5.2, integrated NFC, an eight-microphone array and powerful 60W speaker system complete its advanced interactive capabilities.

Key Features:

• 86-inch professional 4K interactive display
• Manufacturer SKU: 15486IMPACTLUX2AH
• 3840 x 2160 Ultra HD resolution at 60Hz
• 500 cd/m² brightness and 5500:1 contrast ratio
• 178-degree wide viewing angles
• Google EDLA-certified Android 15 system
• Rockchip RK3588 octa-core processor
• 8GB RAM and 128GB internal storage
• High-precision infrared touch technology
• Up to 50 simultaneous touch points
• 400Hz or higher touch scanning rate
• Intelligent palm rejection and material recognition
• Two Super Cool Stylus 2.0 pens included
• Antibacterial, anti-glare tempered glass
• Low-parallax, zero-air-gap construction
• DC dimming for flicker-free brightness adjustment
• Integrated LYNX Whiteboard software
• Google Play Store and Google Workspace access
• Built-in CleverLive digital signage
• CleverShare wireless screen mirroring
• Integrated NFC reader and writer
• Wi-Fi 6E and Bluetooth 5.2 connectivity
• USB-C with up to 100W Power Delivery
• 3 x HDMI inputs and 1 x HDMI output
• DisplayPort input and OPS expansion slot
• 2 x 20W speakers and 2 x 10W subwoofers
• Integrated eight-microphone array
• Ambient light and proximity sensors
• CleverMDM remote management support
• VESA 800 x 600mm mounting compatibility
• 5-year standard manufacturer warranty, subject to regional terms

Features

Expansive 86-inch 4K Display

The IMPACT LUX 2 provides an 86-inch interactive viewing area with 3840 x 2160 resolution. Its 500-nit brightness and 5500:1 contrast ratio support detailed presentations, teaching materials, diagrams and multimedia content.

50-Point Interactive Touch

High-precision infrared technology supports up to 50 simultaneous touch points, allowing multiple participants to write, draw and interact with on-screen content together.

Intelligent Palm Rejection

Material classification technology helps distinguish between fingers, pens and resting hands. This provides a more natural writing experience with fewer accidental marks.

Super Cool Stylus 2.0

Two included dual-recognition stylus pens feature 3mm and 7mm tips. Magnetic pen holders provide convenient storage, while supported pen recognition allows intuitive writing and annotation.

Antibacterial Anti-Glare Glass

The 3mm heat-tempered protective glass features an antibacterial treatment, anti-glare finish and Mohs Level 7 hardness rating. Low-parallax construction reduces the visible distance between the pen tip and displayed ink.

Comfortable DC Dimming

DC dimming helps minimise display flicker when adjusting brightness, contributing to comfortable viewing during lengthy lessons and presentations.

Android 15 and Google EDLA

The Google EDLA-certified Android 15 platform provides access to supported Google services, the Google Play Store and compatible educational and productivity applications directly from the interactive display.

Powerful Embedded Processing

The Rockchip RK3588 processor combines four Cortex-A76 and four Cortex-A55 CPU cores with Mali-G610 MC4 graphics. Together with 8GB RAM and 128GB storage, it supports responsive embedded applications and collaboration tools.

LYNX Whiteboard Collaboration

LYNX Whiteboard enables interactive writing, annotation, lesson preparation and presentation activities. Built-in tools include timers, screen recording, voting, mathematics utilities and supported multimedia functions.

CleverShare Wireless Presentations

CleverShare allows compatible laptops, tablets and smartphones to share content wirelessly. Supported touchback functionality enables users to interact with compatible shared content directly from the touchscreen.

Integrated CleverLive Digital Signage

CleverLive allows organisations to schedule announcements, digital posters, video content and information screens using the display's built-in signage capabilities.

NFC Personalised Access

The integrated NFC reader and writer supports compatible user authentication and personalised profiles, simplifying access to supported accounts and settings on shared displays.

Wi-Fi 6E and Bluetooth 5.2

Wi-Fi 6E provides wireless connectivity with compatible networks, while Bluetooth 5.2 enables connection to supported peripherals. Gigabit Ethernet connectivity is also available.

USB-C with 100W Power Delivery

The front USB-C port supports compatible video, audio, touch, networking and up to 100W laptop charging. Additional USB-C interfaces provide connectivity for supported devices and camera accessories.

Professional AV Connectivity

Three HDMI inputs, HDMI output, DisplayPort input, USB-A ports, USB touch ports and RS-232 allow the display to integrate with compatible computers, presentation equipment and audiovisual systems.

OPS Computing Expansion

An Intel-standard 80-pin OPS slot supports installation of a compatible optional OPS computer, allowing additional computing functionality without a separate external desktop unit.

Powerful Integrated Audio

Two 20W front-facing speakers and two 10W subwoofers provide a combined 60W speaker output, supporting clear speech and multimedia audio in larger classrooms and meeting spaces.

Eight-Microphone Array

The integrated noise-cancelling microphone array supports audio pickup at distances up to 8m under suitable conditions, helping capture speech for compatible conferencing applications.

Remote Management

CleverMDM enables authorised administrators to manage, configure and troubleshoot compatible Clevertouch displays remotely. A one-year management licence is included.

Professional Installation

The 86-inch IMPACT LUX 2 measures approximately 1957 x 1178 x 99mm and weighs 61.25kg. Its VESA 800 x 600mm mounting pattern supports suitable heavy-duty mounting hardware and secure installation.

Important Information:

• This listing is for SKU 15486IMPACTLUX2AH.
• The manufacturer currently specifies Android 15, not Android 16.
• This is an interactive infrared touchscreen, not a capacitive display.
• Google applications and cloud services may require compatible accounts and internet connectivity.
• The OPS expansion slot does not include an OPS computer.
• A camera is optional and not included as standard.
• USB-C features depend on compatible connected equipment and cables.
• The display requires suitable mounting hardware rated for its weight.
• Professional installation is recommended.
• Warranty terms and service availability depend on the supplying region.

Technical Specifications:

Specification	Details
Brand	Clevertouch
Series	IMPACT LUX 2
Product Code	15486IMPACTLUX2AH
Product Type	Interactive Flat Panel Display
Screen Size	86-inch
Display Technology	LCD
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Response Time	5ms
Brightness	500 cd/m²
Contrast Ratio	5500:1
Dynamic Contrast	6000:1
Viewing Angle	178°
Display Colours	1.07 Billion (10-bit)
Colour Gamut	72% NTSC
Protective Glass	3mm Antibacterial Anti-Glare Tempered Glass
Glass Hardness	Mohs Level 7
Touch Technology	High-Precision Infrared
Touch Points	50 Simultaneous
Touch Resolution	32768 x 32768
Touch Accuracy	±1mm
Touch Response	5ms or Less
Touch Scan Rate	400Hz or Higher
Included Styluses	2 x Super Cool Stylus 2.0
Operating System	Android 15
Google Certification	Google EDLA
Processor	RK3588, 4 x Cortex-A76 + 4 x Cortex-A55
Graphics	Mali-G610 MC4
Memory	8GB RAM
Internal Storage	128GB
Wi-Fi	Wi-Fi 6E
Bluetooth	5.2
NFC	Integrated Reader / Writer
HDMI Inputs	3
HDMI Output	1
DisplayPort Input	1
USB-A Ports	3 x USB 2.0; 4 x USB 3.0
USB-B Touch Ports	3
USB-C	Front, Side, Top and Output Connections
USB-C Power Delivery	Up to 100W (Front Port)
Ethernet	RJ45 LAN Input and Output
Additional Connectivity	RS-232, Audio In, Optical Out, 3.5mm Headphone
OPS Expansion Slot	Intel 80-Pin Standard
Integrated Speakers	2 x 20W Front-Facing + 2 x 10W Subwoofers
Microphone Array	8 Microphones, Noise Cancelling
Microphone Pickup Range	Up to 8m
Software	LYNX Whiteboard, CleverLive, CleverShare, CleverMDM
VESA Mount	800 x 600mm
Dimensions (W x H x D)	1957 x 1178 x 99mm
Net Weight	61.25kg
Package Dimensions	2110 x 225 x 1304mm
Package Weight	72.8kg
Power Requirements	100-240V AC, 50/60Hz
Normal Power Consumption	116.75W
Standby Consumption	0.3W or Less
Panel Lifespan	50,000 Hours
Operating Temperature	0°C to 40°C
Warranty	5-Year Standard Manufacturer Warranty, Subject to Regional Terms

What's in the Box:

• 1 x Clevertouch IMPACT LUX 2 86-inch Interactive Display
• 1 x 3m HDMI Cable
• 1 x 3m USB-A to USB-B Cable
• 1 x 1.5m USB-C Cable
• 1 x 3m Regional Power Cable
• 1 x Remote Control
• 2 x Remote Control Batteries
• 2 x Super Cool Stylus 2.0 Pens
• 1 x User Guide
• 1 x Quick Installation Guide
• 1 x Wi-Fi Module 2.0 with WAP
• 1 x NFC Card

The Clevertouch IMPACT LUX 2 86-inch Interactive Display Panel 15486IMPACTLUX2AH combines expansive 4K UHD visuals, Google EDLA-certified Android 15, precise 50-point touch interaction and integrated collaboration software. With its advanced wireless connectivity, NFC authentication, powerful speakers and remote management capabilities, it supports engaging classroom instruction and professional business collaboration.
