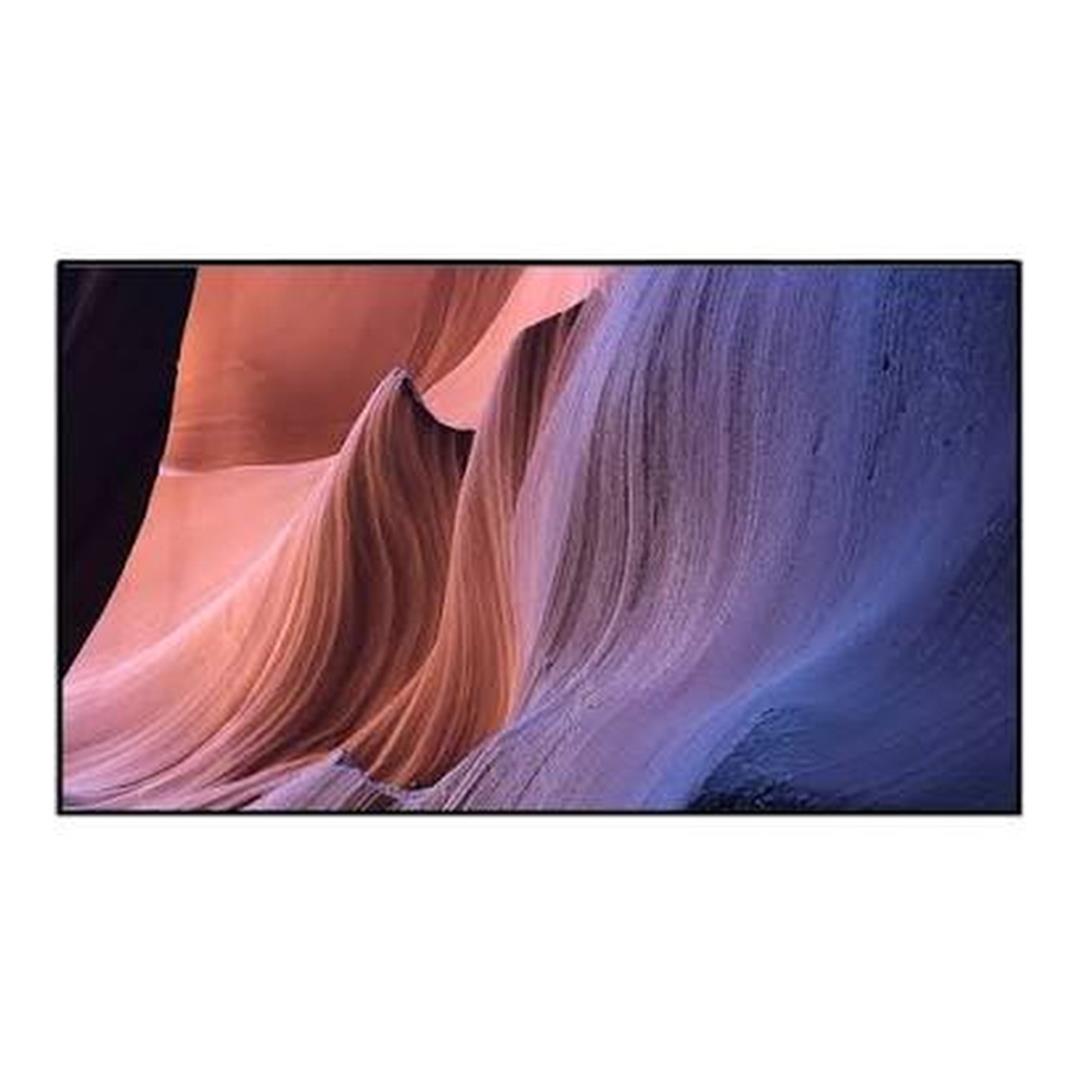

Clevertouch CM Series 49-inch Commercial Display Panel CTL-49DS4KV

Clevertouch CM Series 49-inch Commercial Display Panel CTL-49DS4KV

Enhance professional visual communication with the Clevertouch CM Series 49-inch Commercial Display Panel. Designed for business presentations, digital signage and information displays, this commercial-grade screen features 4K Ultra HD resolution, Edge LED backlighting, 500-nit brightness and wide 178-degree viewing angles. Powered by Android 7.1.2 with integrated CleverMessage digital signage, wireless display functionality and USB media playback, it provides flexible content management without requiring a separate media player for supported applications. With 16/7 commercial operation, three HDMI inputs, dual 8W speakers and landscape or portrait mounting support, the CTL-49DS4KV is suitable for offices, retail stores, hospitality venues and reception areas.

Key Features:

• 49-inch professional commercial display
• Model: CTL-49DS4KV
• 4K Ultra HD resolution of 3840 x 2160
• Edge LED backlighting
• 500 cd/m² display brightness
• 1200:1 native contrast ratio
• 50,000:1 dynamic contrast ratio
• 60Hz refresh rate and 6ms response time
• 178-degree wide viewing angles
• 16.7 million display colours
• Non-touch commercial display panel
• Designed for 16/7 commercial operation
• Android 7.1.2 operating system
• 8GB embedded eMMC storage
• Integrated CleverMessage digital signage
• Scheduled signage content and announcements
• USB JPEG and MP4 media playback
• Automatic media playback support
• Compatible wireless screen sharing
• Dual-band 2.4GHz and 5GHz Wi-Fi
• 3 x HDMI 2.0 inputs
• 1 x HDMI output
• HDMI daisy-chaining support
• VGA input for compatible computers
• USB, Ethernet and RS-232 connectivity
• Integrated dual 8W speakers
• Optical SPDIF and headphone outputs
• HDMI CEC and ARC functionality
• Landscape and portrait installation
• Optional OPS computer expansion
• Built-in power scheduling
• VESA 200 x 200mm mounting compatibility

Features

49-inch 4K Ultra HD Display

The Clevertouch CM Series features a 49-inch screen with a 3840 x 2160 resolution. Its detailed 4K visuals are suitable for presentations, corporate announcements, promotional content and professional information displays.

Edge LED Backlighting

The display uses Edge LED backlighting to produce bright, detailed images while maintaining a slim commercial display design. This supports flexible installation in professional environments.

500-Nit Brightness

With brightness of 500 cd/m², the CTL-49DS4KV provides clear visual content in suitably lit indoor locations, including retail environments, meeting rooms, reception areas and offices.

High-Contrast Image Quality

The panel features a 1200:1 native contrast ratio and a dynamic contrast ratio of 50,000:1. These capabilities help reproduce detailed images, presentations and video content.

Wide 178-Degree Viewing Angles

The wide viewing angles help keep information visible to audiences positioned at different locations within a room, making the display suitable for shared spaces and professional presentations.

Professional 16/7 Operation

The CM Series is designed for commercial use up to 16 hours per day, seven days per week. This supports extended daily operation for scheduled digital signage and business information displays.

Integrated CleverMessage Digital Signage

CleverMessage provides built-in digital signage functionality for supported posters, announcements and media content. The embedded platform allows businesses to manage basic signage without a separate media player.

Scheduled Content Playback

The integrated scheduling functionality helps control when supported content is displayed. Businesses can organise announcements and promotional material according to their operating hours.

USB Media Playback

Compatible USB storage devices can be used to play supported JPEG images and MP4 videos. Automatic playback simplifies basic digital signage installations.

Android 7.1.2 Platform

The embedded Android 7.1.2 operating system provides the platform for compatible signage applications and display management features. Integrated 8GB eMMC storage supports the operating system and associated functions.

Wireless Display Connectivity

Compatible computers can share presentation content wirelessly using supported display functions. Wireless availability and performance depend on the connected device, network and software configuration.

Dual-Band Wi-Fi

The display supports 802.11ac wireless networking on compatible 2.4GHz and 5GHz networks, offering flexibility for network-connected signage and wireless presentation functions.

Three HDMI 2.0 Inputs

Three HDMI inputs allow compatible laptops, computers and media players to connect to the display. HDMI 2.0 connectivity supports suitable 4K video signals from external equipment.

HDMI Output and Daisy-Chaining

An integrated HDMI output provides additional audiovisual installation flexibility and supports compatible HDMI daisy-chain configurations.

VGA Connectivity

The built-in VGA input supports compatible legacy computers and presentation equipment, making the display useful for organisations with mixed audiovisual hardware.

Dual 8W Integrated Speakers

Two built-in 8W speakers provide a combined 16W audio output for basic presentations, announcements and multimedia playback.

RS-232 and Ethernet Control

Ethernet and RS-232 connectivity provide supported control and management options for integration into compatible professional audiovisual installations.

Landscape and Portrait Mounting

The screen supports landscape and portrait orientations. This enables conventional horizontal presentations and vertical promotional or information displays.

OPS Expansion Capability

An integrated OPS expansion slot supports compatible optional computing modules for applications requiring additional computer-based functionality.

Power Management Scheduling

Built-in scheduling functions allow the display to operate according to configured power settings, helping reduce unnecessary operation outside business hours.

VESA Wall-Mounting Support

The display supports a 200 x 200mm VESA mounting pattern. Its slim 63mm depth allows installation using compatible commercial display mounting hardware.

Important Information:

• This listing is for the original Clevertouch CM Series CTL-49DS4KV.
• It is not the CM Pro, CL Pro or CL Pro 2 series.
• This is a non-touch commercial display.
• The 49-inch model uses Edge LED backlighting.
• Rated for 16/7 operation, not continuous 24/7 operation.
• The operating system is Android 7.1.2.
• The 4K display resolution is supported through compatible external inputs; embedded signage capabilities may operate at a lower resolution.
• Wireless functionality requires compatible devices and network configuration.
• The OPS slot does not include an OPS computer.
• Wall-mounting brackets and stands are not confirmed as included.
• Professional installation is recommended.
• Warranty coverage depends on the regional manufacturer or supplier terms.

Technical Specifications:

Specification	Details
Brand	Clevertouch
Product Series	CM Series
Model	CTL-49DS4KV
Product Type	Commercial Digital Signage Display
Screen Size	49-inch
Backlight Technology	Edge LED
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Response Time	6ms
Brightness	500 cd/m²
Native Contrast Ratio	1200:1
Dynamic Contrast Ratio	50,000:1
Viewing Angle	178 Degrees
Colour Depth	8-bit, 16.7 Million Colours
Touchscreen	No
Operating Schedule	16 Hours per Day, 7 Days per Week
Rated Panel Lifespan	50,000 Hours
Operating System	Android 7.1.2
Internal Storage	8GB eMMC
Digital Signage	CleverMessage
USB Media Playback	JPEG / MP4 with Autoplay
Wireless Display	Supported with Compatible Devices
Wi-Fi	802.11ac, 2.4GHz / 5GHz
HDMI Inputs	3 x HDMI 2.0
HDMI Output	1
VGA Input	1
USB Connectivity	USB 2.0; Internal USB Connectivity
Ethernet	RJ45 LAN
RS-232 Control	9-Pin D-Sub
Audio Input	RCA Stereo Audio
Audio Outputs	3.5mm / Optical SPDIF / Headphone
Integrated Speakers	2 x 8W (16W Total)
HDMI Daisy-Chaining	Supported
HDMI CEC / ARC	Supported
OPS Expansion Slot	Yes
Display Orientation	Landscape / Portrait
VESA Mount	200 x 200mm
Dimensions (W x H x D)	1099 x 632 x 63mm
Net Weight	16kg
Package Dimensions (W x H x D)	1195 x 780 x 154mm
Package Weight	20kg
Power Requirements	100-240V AC, 50/60Hz
Typical Power Consumption	85W
Active Standby Power	13W
Standby Power	0.5W or Less
Operating Temperature	0°C to 40°C
Warranty	Regional Manufacturer / Supplier Terms Apply

What's in the Box:

• 1 x Clevertouch CM Series 49-inch Commercial Display Panel CTL-49DS4KV
• Remote Control
• Power Cable
• Product Documentation

The Clevertouch CM Series 49-inch Commercial Display Panel CTL-49DS4KV combines detailed 4K UHD visuals, integrated digital signage, 500-nit brightness and flexible connectivity in a professional non-touch display. Its 16/7 commercial operating rating, media playback features and versatile installation options support effective business communication across indoor commercial environments.
