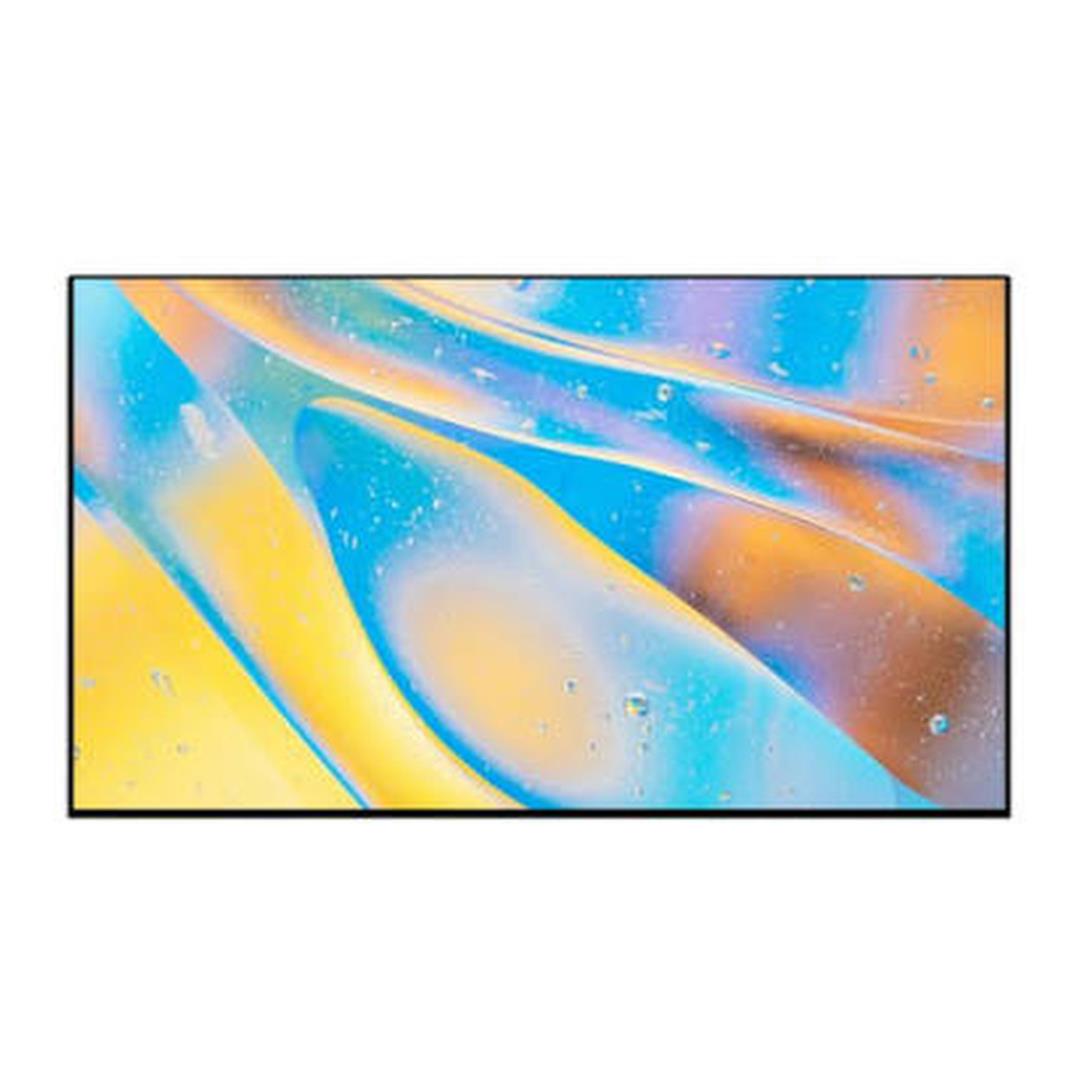

Clevertouch CM Series 43-inch Commercial Display Panel CTL-43DS4KV

Clevertouch CM Series 43-inch Commercial Display Panel CTL-43DS4KV

Enhance visual communication with the Clevertouch CM Series 43-inch Commercial Display Panel CTL-43DS4KV. Designed for professional digital signage, meeting rooms and business environments, this 43-inch non-touch display features 4K Ultra HD resolution, IPS panel technology, Direct LED backlighting and 400-nit brightness. Powered by Android 7.1.2, the CM Series incorporates digital signage functionality, wireless display connectivity, USB media playback and integrated content scheduling. With 16/7 commercial operation, landscape and portrait orientation support, three HDMI inputs, dual 8W speakers and network management capabilities, it provides a versatile visual communication platform for offices, retail environments, hospitality venues and information displays.

Key Features:

• 43-inch professional commercial display panel
• Model: CTL-43DS4KV
• 4K Ultra HD resolution of 3840 x 2160
• IPS LCD panel with Direct LED backlighting
• 400 cd/m² brightness
• 1000:1 native contrast ratio
• 40,000:1 dynamic contrast ratio
• 60Hz refresh rate and 6ms response time
• 178-degree wide viewing angles
• 16.7 million display colours
• Non-touch commercial display
• Rated for 16/7 commercial operation
• Android 7.1.2 operating system
• 8GB embedded eMMC storage
• Integrated CleverMessage digital signage application
• Supports full-screen posters and video playback
• Built-in content scheduler
• USB media playback with autoplay functionality
• Wireless display connectivity
• Dual-band Wi-Fi connectivity
• 3 x HDMI 2.0 inputs
• 1 x HDMI output
• HDMI daisy-chain functionality
• VGA input for compatible computers
• USB, Ethernet and RS-232 connectivity
• Optical SPDIF and headphone audio outputs
• Dual 8W integrated speakers
• Landscape and portrait display orientations
• OPS expansion slot
• Power management scheduling
• HDMI CEC and ARC support
• VESA 200 x 200mm mounting compatibility

Features

43-inch 4K Ultra HD Display

The Clevertouch CM Series features a 43-inch display with a 3840 x 2160 resolution. Its detailed 4K visuals provide clear presentation of digital signage, business announcements, promotional material, presentations and multimedia content.

IPS Panel Technology

The IPS LCD panel provides consistent image reproduction and wide 178-degree viewing angles. Direct LED backlighting supports clear visuals across professional display applications.

400-Nit Display Brightness

With a typical brightness of 400 cd/m², the display provides clear content in suitably lit indoor environments, including meeting rooms, offices, reception areas and retail spaces.

Professional Contrast and Image Quality

A 1000:1 native contrast ratio and 40,000:1 dynamic contrast ratio help reproduce detailed graphics and video content. The 60Hz refresh rate supports smooth everyday presentation and signage playback.

Designed for 16/7 Operation

The CM Series is designed for commercial use up to 16 hours per day, seven days per week. This supports scheduled digital signage, information screens and extended daily business operations.

Integrated Digital Signage

Built-in CleverMessage signage functionality allows users to display posters, videos and other visual content without requiring a separate external media player for supported playback functions.

Full-Screen Media Playback

The integrated media player supports compatible JPEG images and MP4 videos. Businesses can use the screen for promotional announcements, informational displays and multimedia presentations.

Built-In Content Scheduling

The integrated scheduler allows supported content and display functions to operate according to configured schedules. This helps automate signage playback and reduce manual display management.

USB Media Playback

Connect compatible USB storage devices to display supported media content. Autoplay functionality provides convenient playback options for supported digital signage files.

Android 7.1.2 Operating System

The embedded Android 7.1.2 platform provides access to supported signage applications and integrated display functionality. Built-in 8GB eMMC storage supports the operating system and compatible media applications.

Wireless Display Connectivity

Wireless display capabilities allow compatible computers to share presentation content without a direct video cable. Available features depend on the connected device, software and network configuration.

Dual-Band Wireless Networking

Support for compatible 2.4GHz and 5GHz Wi-Fi connections provides flexible networking options for signage and supported wireless applications. Wired Ethernet connectivity is also available.

Three HDMI Inputs

Three HDMI 2.0 inputs allow compatible computers, media players and audiovisual equipment to connect to the display. This provides flexibility for commercial installations with multiple sources.

HDMI Output and Daisy-Chaining

The HDMI output supports compatible display chaining and audiovisual configurations. This allows selected content to be passed to another supported display as part of a professional installation.

VGA Connectivity

An integrated VGA input provides compatibility with supported computers and older presentation equipment, making the display suitable for environments using a mixture of modern and legacy devices.

Dual 8W Speakers

Two integrated 8W speakers deliver a combined 16W audio output for video playback, presentations and announcements, reducing the need for separate audio equipment in basic installations.

RS-232 and Ethernet Control

RS-232 and LAN connectivity provide integration options for compatible audiovisual control and device-management systems. These interfaces help support managed commercial display installations.

HDMI CEC and ARC Support

HDMI Consumer Electronics Control and Audio Return Channel functionality provide additional integration options for compatible audiovisual equipment and control systems.

Landscape and Portrait Installation

The CM Series supports both landscape and portrait display orientations. This allows flexible positioning for traditional presentation screens, vertical advertisements and information displays.

OPS Expansion Capability

The built-in OPS expansion slot supports compatible optional OPS computing modules, providing flexibility for installations requiring additional computer-based applications.

Power Management Scheduling

Integrated power-management and scheduling functions help administrators control operating hours and reduce unnecessary energy use when the screen is not required.

VESA Wall-Mounting Support

The 43-inch display supports a 200 x 200mm VESA mounting pattern. It can be installed using a compatible commercial wall bracket or display mounting solution with suitable structural support.

Important Information:

• This listing is for Clevertouch CM Series model CTL-43DS4KV.
• This is the original CM Series, not the CM Pro, CL Pro or CL Pro 2.
• The display is non-touch.
• Rated for 16/7 operation, not continuous 24/7 operation.
• Uses Android 7.1.2, not Android 11 or Android 14.
• The embedded operating system does not provide the full 4K rendering capability available through compatible external HDMI sources.
• Wi-Fi availability may depend on the installed wireless hardware and regional configuration.
• Wireless presentation requires compatible devices and software.
• The OPS expansion slot does not include an OPS computer.
• A suitable wall-mounting bracket or display stand may be required separately.
• Professional mounting and installation are recommended.
• Warranty coverage depends on the regional distributor.

Technical Specifications:

Specification	Details
Brand	Clevertouch
Series	CM Series
Model	CTL-43DS4KV
Product Type	Commercial Digital Signage Display
Screen Size	43-inch
Panel Type	IPS LCD
Backlight Type	Direct LED
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Response Time	6ms
Brightness	400 cd/m²
Native Contrast Ratio	1000:1
Dynamic Contrast Ratio	40,000:1
Viewing Angle	178 Degrees
Display Colours	16.7 Million (8-bit)
Touchscreen	No
Operating Schedule	16 Hours per Day, 7 Days per Week
Rated Panel Life	30,000 Hours
Operating System	Android 7.1.2
Embedded Storage	8GB eMMC
Digital Signage	CleverMessage
USB Media Playback	JPEG / MP4 with Autoplay
Wireless Display	Supported with Compatible Devices
Wi-Fi	802.11ac, 2.4GHz / 5GHz
HDMI Inputs	3 x HDMI 2.0
HDMI Output	1
VGA Input	1
USB Connectivity	USB 2.0 / Internal USB 3.0
Ethernet	RJ45 LAN
RS-232 Control	9-Pin D-Sub
Audio Input	Stereo Audio Input
Audio Output	Headphone / Optical SPDIF
Integrated Speakers	2 x 8W (16W Total)
HDMI Daisy-Chaining	Supported
HDMI CEC / ARC	Supported
OPS Expansion Slot	Yes
Orientation	Landscape / Portrait
VESA Mount	200 x 200mm
Dimensions (W x H x D)	966 x 557 x 106mm
Weight	Approximately 10.3-10.5kg
Package Dimensions (W x H x D)	1050 x 718 x 178mm
Power Supply	110-240V AC, 50/60Hz
Standby Power	0.5W or Less
Operating Temperature	0°C to 40°C
Warranty	Regional Manufacturer / Supplier Terms Apply

What's in the Box:

• 1 x Clevertouch CM Series 43-inch Commercial Display Panel CTL-43DS4KV
• Remote Control
• Power Cable
• Product Documentation

The Clevertouch CM Series 43-inch Commercial Display Panel CTL-43DS4KV combines detailed 4K UHD visuals, integrated digital signage, wireless presentation capabilities, professional connectivity and flexible installation options. Its 16/7 commercial operating rating, compact 43-inch design and built-in media playback make it suitable for a wide range of indoor business communication applications.
