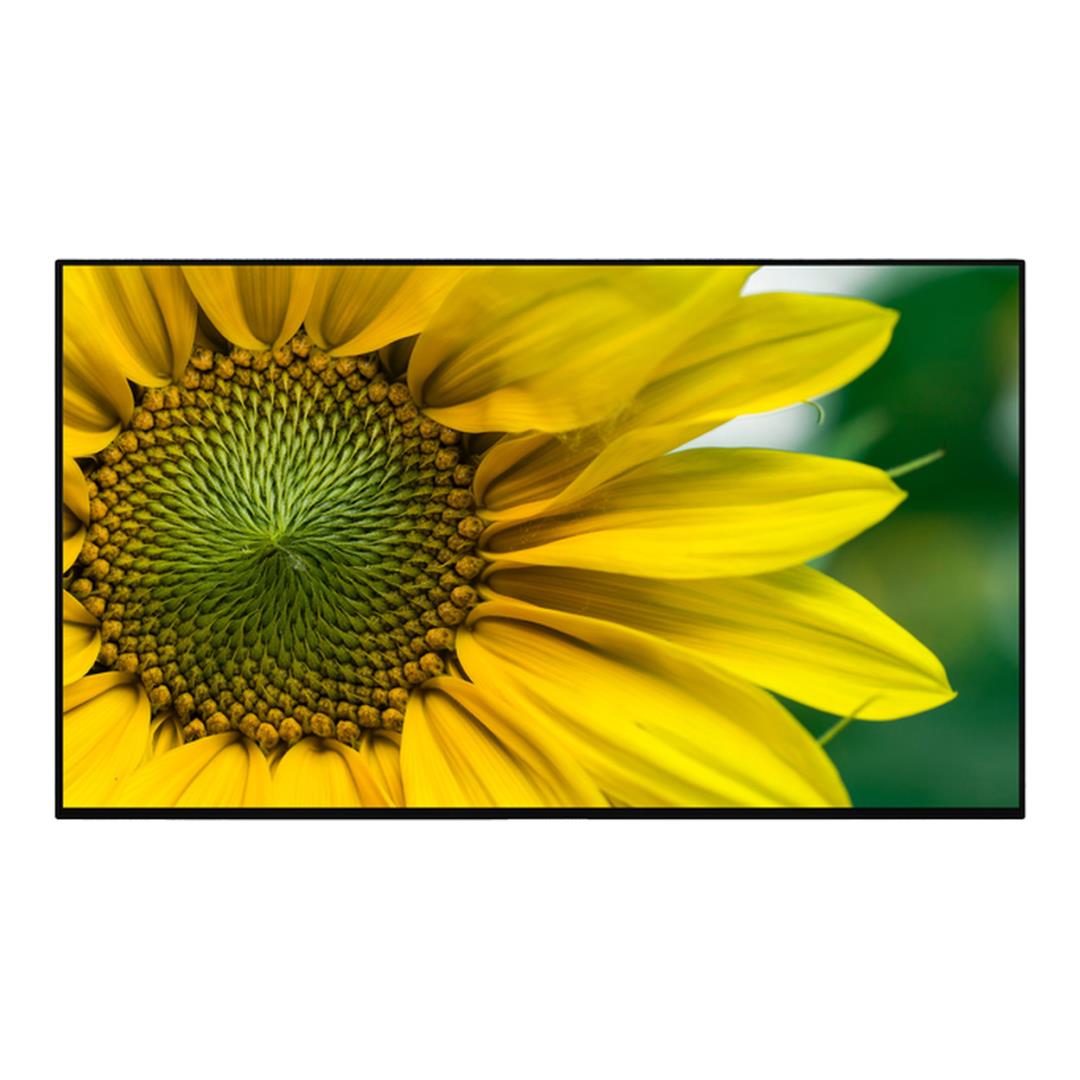

Clevertouch CM Pro Extra 32-inch Commercial Display Panel CTL-32DS924KV2

Clevertouch CM Pro Extra 32-inch Commercial Display Panel CTL-32DS924KV2

Deliver professional digital signage with the Clevertouch CM Pro Extra 32-inch Commercial Display Panel. Designed for continuous 24/7 operation, this commercial-grade screen features a 32-inch Full HD IPS display, Direct LED backlighting, 450-nit brightness and wide 178-degree viewing angles. Powered by Android 9 with 2GB RAM and 16GB internal storage, it integrates CleverLive digital signage, wireless networking, scheduled media playback and remote device management. With landscape and portrait installation, dual HDMI inputs, Gigabit Ethernet and built-in stereo speakers, the CM Pro Extra provides a versatile visual communication platform for retail stores, hospitality venues, corporate offices and information displays.

Key Features:

• 32-inch professional commercial display panel
• Model: CTL-32DS924KV2
• Full HD resolution of 1920 x 1080
• IPS LCD panel with Direct LED backlighting
• 450 cd/m² brightness
• 3000:1 native contrast ratio
• 45,000:1 dynamic contrast ratio
• 60Hz refresh rate and 9.5ms response time
• 178-degree horizontal and vertical viewing angles
• 16.7 million display colours
• 3H screen surface hardness
• 3% screen haze level
• Designed for continuous 24/7 operation
• Non-touch commercial display
• Android 9 operating system
• Quad-core ARM Cortex-A55 processor
• Mali-G31 MP2 graphics processor
• 2GB DDR4 RAM and 16GB eMMC storage
• Built-in CleverLive digital signage platform
• Full-screen digital posters and video playback
• Content scheduling and remote updates
• One-touch messaging and broadcasting
• Remote mobile device management support
• One-year MDM access included
• Dual-band 2.4GHz and 5GHz Wi-Fi
• 2 x HDMI 2.0 inputs and 1 x HDMI output
• USB 2.0 and USB 3.0 connections
• 10/100/1000Mbps Ethernet connection
• RS-232 control connection
• Dual 6W built-in speakers
• USB media autoplay
• Landscape and portrait orientation support
• Power scheduling and HDMI wake-up functionality
• Panel lock and pixel-shift technology
• VESA 200 x 200mm mounting compatibility

Features

32-inch Full HD Display

The Clevertouch CM Pro Extra features a 32-inch screen with a native resolution of 1920 x 1080 pixels. Its Full HD display provides clear visuals for promotional messages, information screens, presentations and digital signage content.

IPS Display Technology

The IPS LCD panel combines Direct LED backlighting with wide viewing angles and consistent image reproduction. This makes it suitable for commercial spaces where viewers approach the display from different positions.

Bright 450-Nit Panel

With 450 cd/m² typical brightness, the CM Pro Extra delivers clear content in suitably lit indoor environments, including reception areas, retail stores, offices and hospitality spaces.

High-Contrast Image Quality

The panel features a 3000:1 native contrast ratio and 45,000:1 dynamic contrast ratio, supporting detailed graphics, clear text and professional digital signage presentations.

Continuous 24/7 Commercial Operation

The CM Pro Extra is engineered for continuous 24-hour operation, seven days a week. This supports digital signage installations that require extended or around-the-clock information display.

Integrated CleverLive Digital Signage

Built-in CleverLive digital signage allows organisations to create and display supported digital posters, videos and announcements without requiring a separate external media player for basic signage functions.

Content Scheduling

CleverLive supports scheduled content playback, allowing businesses to organise messages and promotional material according to specific times. This simplifies signage administration across daily operating schedules.

One-Touch Messaging and Broadcasting

Supported CleverLive features allow authorised users to trigger predefined messages and announcements. This helps organisations communicate time-sensitive information through their display network.

Android 9 Operating System

The integrated Android 9 platform is powered by a quad-core ARM Cortex-A55 processor with Mali-G31 MP2 graphics, 2GB DDR4 memory and 16GB eMMC storage. This supports the display's embedded signage and management applications.

Remote Device Management

Remote MDM functionality enables supported device administration, technical assistance and application updates without requiring administrators to be physically present at every display. A one-year MDM licence is included.

Dual-Band Wi-Fi Connectivity

Support for 2.4GHz and 5GHz wireless networking provides flexible connections to compatible networks for signage content delivery and remote management.

Gigabit Ethernet Networking

The built-in RJ45 Ethernet connection supports 10/100/1000Mbps network speeds, providing a reliable wired connection for compatible signage and device-management environments.

Multiple HDMI Connections

Two HDMI 2.0 inputs allow compatible computers, media players and presentation sources to connect directly to the display. An HDMI output offers additional flexibility for supported audiovisual installations.

USB Media Playback

USB 2.0 and USB 3.0 connections allow compatible media and peripherals to be connected. The integrated USB autoplay feature supports convenient local signage playback.

Built-In Stereo Speakers

Two integrated 6W speakers deliver a combined 12W audio output for promotional videos, announcements and multimedia content, reducing the need for separate speakers in basic installations.

Landscape and Portrait Installation

The CM Pro Extra supports landscape and portrait orientations. This allows the screen to be positioned horizontally for presentations or vertically for signage, menus and information displays.

Power Management and HDMI Wake-Up

Power scheduling and active standby with HDMI wake-up support allow administrators to manage display operation according to business requirements. Deep standby power consumption is rated at 0.5W or less.

Panel Lock and Pixel Shift

Panel lock functionality helps prevent unauthorised changes to display settings, while pixel-shift technology helps manage the effects of prolonged static image display.

Professional Wall-Mounting Support

The 32-inch CM Pro Extra features a VESA 200 x 200mm mounting pattern, M6 mounting requirements and a compact enclosure measuring 734 x 435 x 78mm. Its design supports installation using suitable commercial mounting hardware.

Important Information:

• This listing is for model CTL-32DS924KV2.
• The 32-inch model has Full HD 1920 x 1080 resolution, not 4K UHD.
• This is a non-touch commercial display.
• Rated for continuous 24/7 operation.
• Designed for indoor installation.
• Uses Android 9 with 2GB RAM and 16GB eMMC storage.
• The 32-inch model does not feature an OPS expansion slot.
• The 32-inch model does not include the audio inputs or microSD slot available on certain larger models.
• External computer or media-player compatibility depends on supported HDMI formats.
• Wireless and remote management features require suitable network connectivity.
• Additional MDM licensing may be required after the included first year.
• A compatible wall mount or display stand may be required separately.
• Professional installation is recommended.
• Warranty coverage depends on the regional supplier.

Technical Specifications:

Specification	Details
Brand	Clevertouch
Series	CM Pro Extra
Model	CTL-32DS924KV2
Product Type	Commercial Digital Signage Display
Screen Size	32-inch
Panel Technology	IPS LCD
Backlighting	Direct LED (D-DLED)
Resolution	1920 x 1080 (Full HD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Response Time	9.5ms
Brightness	450 cd/m²
Native Contrast Ratio	3000:1
Dynamic Contrast Ratio	45,000:1
Viewing Angle	178° Horizontal / Vertical
Display Colours	16.7 Million
Screen Hardness	3H
Haze Level	3%
Touchscreen	No
Operating Schedule	24/7
Panel Lifespan	Minimum 50,000 Hours
Operating System	Android 9
Processor	Quad-Core ARM Cortex-A55
GPU	Mali-G31 MP2
RAM	2GB DDR4-2666
Internal Storage	16GB eMMC
Digital Signage	Built-In CleverLive
Remote Management	MDM, 1-Year Access Included
Wi-Fi	2.4GHz / 5GHz Dual-Band
Ethernet	10/100/1000Mbps RJ45 LAN
HDMI Inputs	2 x HDMI 2.0
HDMI Output	1
USB 2.0	1 Port
USB 3.0	1 Port
RS-232	3.5mm Jack
Service Connection	RJ12
Integrated Speakers	2 x 6W (12W Total)
OPS Expansion Slot	No
MicroSD Slot	No
Orientation	Landscape / Portrait
VESA Mount	200 x 200mm
Mounting Screws	M6
Bezel Width	6mm Top/Left/Right; 9mm Bottom
Dimensions (W x H x D)	734 x 435 x 78mm
Net Weight	10.5kg
Package Dimensions (W x H x D)	795 x 530 x 128mm
Package Weight	14.3kg
Power Requirements	110-240V AC, 50/60Hz
Typical Power Consumption	42W
Deep Standby Power	0.5W or Less
Operating Temperature	0°C to 40°C
Operating Humidity	10-90%
Warranty	Regional Manufacturer / Supplier Terms Apply

What's in the Box:

• 1 x Clevertouch CM Pro Extra 32-inch Commercial Display Panel
• 1 x Power Cable
• 1 x IR Extender Cable
• 1 x Remote Control
• 2 x AAA Batteries
• 1 x Quick Start Guide

The Clevertouch CM Pro Extra 32-inch Commercial Display Panel CTL-32DS924KV2 combines Full HD IPS display technology, integrated CleverLive digital signage, Android 9 and continuous 24/7 operation. Its compact design, flexible connectivity and remote management functionality make it suitable for professional indoor signage and business communication applications.
