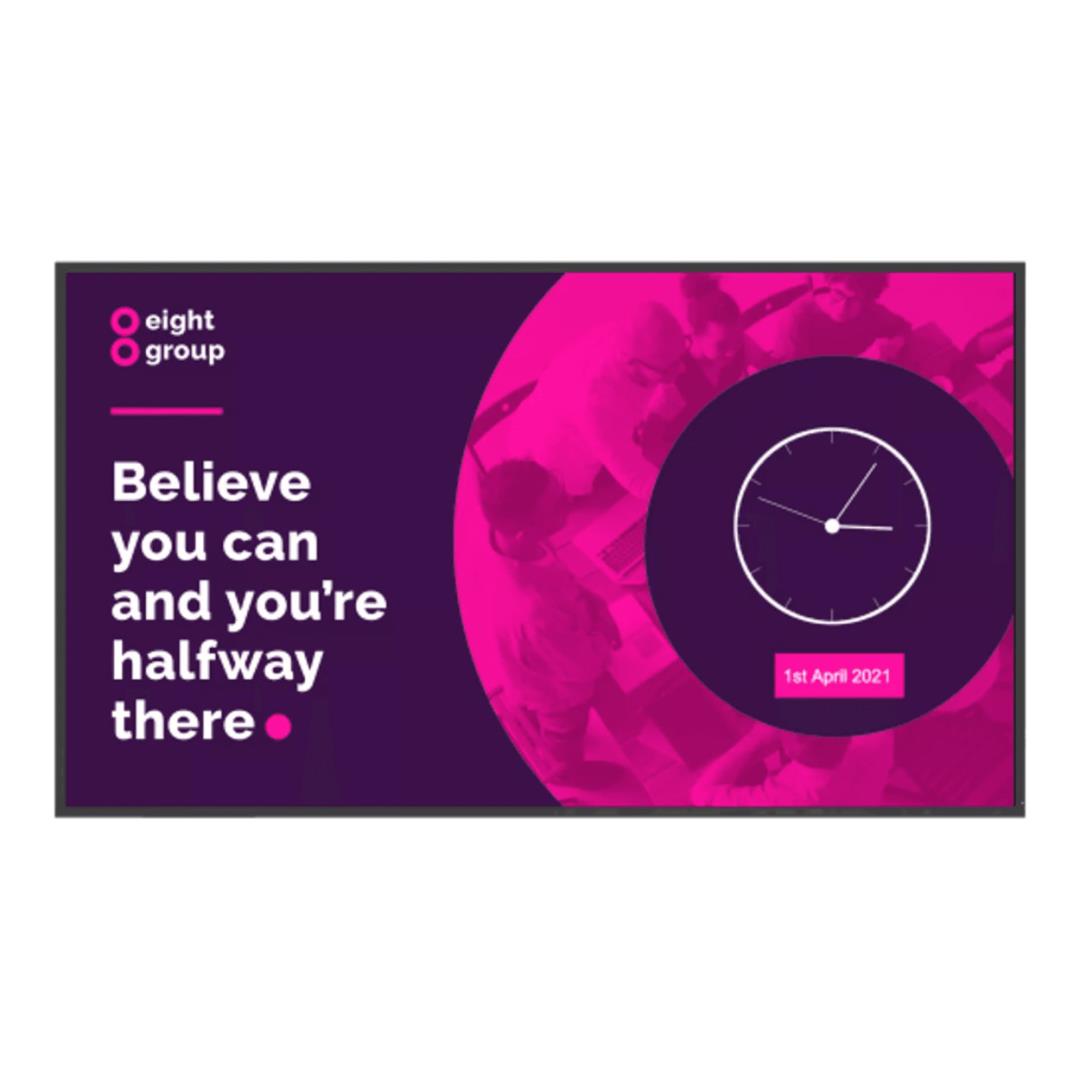

Clevertouch CL Pro 86-inch Commercial Display Panel 12986CLPRO

Clevertouch CL Pro 86-inch Commercial Display Panel 12986CLPRO

Enhance business communication with the Clevertouch CL Pro 86-inch Commercial Display Panel. Designed for professional digital signage, meeting rooms and corporate presentations, this large-format commercial display features a 4K Ultra HD resolution of 3840 x 2160, ADS LCD technology, Direct LED backlighting and 450-nit brightness. Powered by Android 11 with 4GB RAM and 32GB internal storage, the CL Pro combines built-in CleverLive digital signage, CleverShare wireless screen sharing, Wi-Fi 6 connectivity and dual 16W front-facing speakers. Supporting 16/7 commercial operation, landscape and portrait installation, and OPS expansion, it delivers a flexible visual communication solution for offices, conference rooms, retail environments and hospitality venues.

Key Features

• 86-inch professional commercial display panel
• Product SKU: 12986CLPRO
• 4K Ultra HD resolution of 3840 x 2160
• ADS LCD panel with Direct LED backlighting
• 450 cd/m² brightness and 1200:1 contrast ratio
• 60Hz refresh rate and 8ms response time
• 178-degree wide viewing angles
• Approximately 1.07 billion display colours
• Non-touch commercial display
• Designed for 16/7 commercial operation
• Android 11 operating system with LUX 11
• Quad-core ARM Cortex-A55 processor
• 4GB RAM and 32GB internal storage
• Built-in CleverLive digital signage platform
• Multi-zone content layouts and scheduled playback
• CleverShare wireless screen sharing for up to nine devices
• Miracast, AirPlay and Chromecast compatibility
• Wi-Fi 6 and Bluetooth 5.0 connectivity
• 3 x HDMI inputs and 1 x HDMI output
• USB-A and USB-C connectivity
• USB-C supporting up to 65W Power Delivery
• RJ45 Ethernet input and output
• RS-232 control interface
• OPS expansion slot for compatible computing modules
• Dual 16W front-facing speakers
• Landscape and portrait display orientations
• Integrated CleverMDM remote management
• One-year CleverMDM management licence included
• Wake-on-LAN and power scheduling
• Quiet fanless construction
• VESA 800 x 600mm mounting compatibility

Features

86-inch 4K Ultra HD Display

The Clevertouch CL Pro provides a large 86-inch screen with 3840 x 2160 resolution, delivering detailed visuals for presentations, digital signage, information displays and professional multimedia content.

ADS LCD Panel Technology

The ADS panel uses Direct LED backlighting and offers a 1200:1 native contrast ratio. Wide viewing angles support consistent picture visibility across meeting rooms, reception areas and other commercial spaces.

Bright 450-Nit Display

With brightness of 450 cd/m², the display presents clear content in appropriately lit indoor environments. Its large screen is suitable for professional communication where information must be visible to a wider audience.

Professional 16/7 Operation

The CL Pro is designed for operation up to 16 hours per day, seven days per week. This commercial operating rating supports extended daily use for scheduled signage, presentations and business information.

Integrated CleverLive Digital Signage

CleverLive allows organisations to create, manage and display digital signage without a separate external media player. Present announcements, videos, photographs, promotional content and information directly through the integrated platform.

Multi-Zone Digital Signage

Create layouts containing multiple content zones, including videos, images, clocks, information feeds and scrolling messages. These capabilities allow different information to appear simultaneously on the display.

Flexible Content Scheduling

Built-in content scheduling helps administrators display selected information at designated times. This simplifies the management of announcements and promotional campaigns throughout operating hours.

CleverShare Wireless Screen Sharing

CleverShare enables compatible laptops, smartphones and tablets to share content wirelessly. Support for up to nine simultaneous screen-sharing connections makes the display suitable for collaborative meetings and group presentations.

Miracast, AirPlay and Chromecast

The CL Pro supports popular wireless presentation technologies, including Miracast, Apple AirPlay and Chromecast, providing convenient casting options with compatible devices and network configurations.

Android 11 Operating System

The display runs Android 11 with Clevertouch LUX 11. A quad-core ARM Cortex-A55 processor, 4GB RAM and 32GB internal storage support built-in signage, presentation and management applications.

Wi-Fi 6 and Bluetooth Connectivity

Integrated Wi-Fi 6 offers wireless network connectivity for compatible applications and services, while Bluetooth 5.0 supports selected peripheral connections. Ethernet connectivity is available for wired installations.

Three HDMI Inputs

Three HDMI inputs allow compatible computers, media players and presentation systems to connect to the display. An HDMI output provides additional flexibility for supported audiovisual configurations.

USB-C with 65W Power Delivery

The USB-C connection supports compatible video, audio and network-sharing functionality with up to 65W Power Delivery, allowing supported laptops to use a convenient single-cable connection.

OPS Expansion Slot

The integrated OPS slot supports a compatible optional OPS computing module. This provides additional flexibility for meeting-room computing and supported collaboration applications.

Dual Front-Facing Speakers

Two built-in 16W front-facing speakers deliver a combined 32W audio output for presentations, announcements and multimedia playback.

Landscape and Portrait Installation

The CL Pro supports landscape and portrait mounting orientations, making it suitable for horizontal presentations, vertical promotional content and professional information displays.

CleverMDM Remote Management

CleverMDM provides supported remote device-management functions, including configuration, monitoring and maintenance. A one-year CleverMDM licence is included with the original CL Pro series.

Power Management and Quiet Operation

Integrated power scheduling and Wake-on-LAN allow administrators to manage display operation. The fanless design supports quiet use in offices and meeting rooms.

Professional Wall-Mounting Support

The display features an 800 x 600mm VESA mounting pattern with M8 mounting screws. Its 86-inch screen and 43.15kg net weight require a suitable commercial mounting solution and secure structural support.

Important Information

• This listing is for the original CL Pro, SKU 12986CLPRO.
• It is not the newer CL Pro 2 model.
• The display is non-touch, not an interactive touchscreen.
• Rated for 16/7 commercial operation, not continuous 24/7 use.
• Uses Android 11 / LUX 11.
• Features an ADS panel with 450-nit brightness.
• The OPS expansion slot does not include an OPS computer.
• Wireless screen sharing requires compatible devices and network settings.
• USB-C Power Delivery depends on connected-device compatibility.
• Wall mounts and stands are not included unless specifically supplied as a bundle.
• Professional installation is required for safe mounting.
• Warranty coverage varies according to region and distributor.

Technical Specifications

Specification	Details
Brand	Clevertouch
Model	CL Pro 86-inch
Product Code	12986CLPRO
Product Type	Commercial Digital Signage Display
Screen Size	86-inch
Panel Technology	ADS LCD
Backlight	Direct LED
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Refresh Rate	60Hz
Response Time	8ms
Brightness	450 cd/m²
Contrast Ratio	1200:1
Viewing Angle	178 Degrees
Display Colours	1.07 Billion (10-bit)
Colour Gamut	72% NTSC
Touchscreen	No
Operating Hours	16 Hours/Day, 7 Days/Week
Panel Lifespan	50,000 Hours
Operating System	Android 11 / LUX 11
Processor	Quad-Core ARM Cortex-A55
Graphics Processor	Mali-G52 MP2
RAM	4GB
Internal Storage	32GB
Digital Signage	CleverLive
Wireless Screen Sharing	CleverShare, Up to 9 Devices
Wireless Casting	Miracast, AirPlay, Chromecast
Wi-Fi	Wi-Fi 6 (802.11ax)
Bluetooth	5.0
HDMI Inputs	3
HDMI Output	1
USB Type-A	1 x USB 2.0, 1 x USB 3.0
USB Type-C	Video, Audio, Network Sharing
USB-C Power Delivery	Up to 65W
Ethernet	RJ45 LAN Input and Output
RS-232	Yes
Audio Outputs	Optical SPDIF, 3.5mm Headphone
Built-In Speakers	2 x 16W Front-Facing
Display Orientation	Landscape / Portrait
OPS Expansion Slot	Yes
VESA Mount	800 x 600mm
VESA Screws	M8 x 25mm
Bezel Width	15.9mm
Dimensions (W x H x D)	1930.8 x 1101.8 x 81.6mm
Net Weight	43.15kg
Package Dimensions	2110 x 225 x 1227mm
Package Weight	60.75kg
Power Input	100-240V AC, 50/60Hz, 5.0A
Normal Power Consumption	168.3W
Standby Power	0.5W or Less
Operating Temperature	0°C to 40°C
Warranty	Regional Manufacturer / Supplier Terms Apply

What's in the Box:

• 1 x Clevertouch CL Pro 86-inch Commercial Display Panel
• 1 x Regional Power Cable
• 1 x HDMI Cable
• 1 x Remote Control
• Batteries for Remote Control
• 1 x Clevertouch Wi-Fi Module
• 1 x Quick Installation Guide

The Clevertouch CL Pro 86-inch Commercial Display Panel 12986CLPRO combines a large 4K UHD ADS display, integrated CleverLive digital signage, CleverShare wireless presentations and Android 11 functionality. With professional 16/7 operation, OPS expansion and flexible installation options, it provides an effective platform for business communication and commercial digital signage.
