Clearline Single Port Gigabit Inline Protector 12-00967
R 46000
Unit price
/
Available Now
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

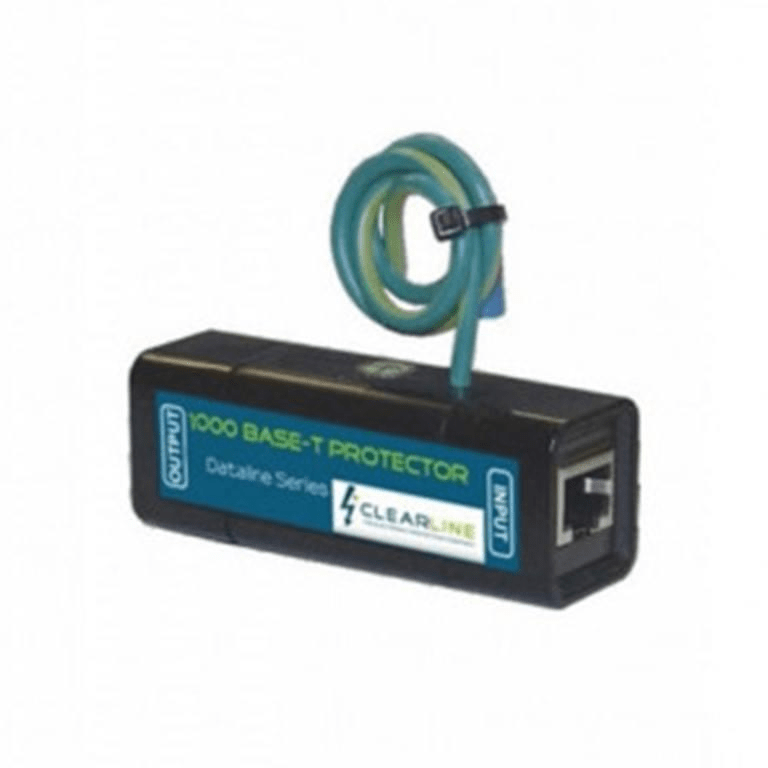

Clearline Single Port Gigabit Inline Protector 12-00967
Protects fast gigabit ethernet LAN equipment such as hubs, switches and network interface cards from induced lightning and electrostatic discharge. The devise is designed for indoor or outdoor use, inside a weatherproof enclosure.
Features
- All 8 lines protected
- Each pair supports 250 Mbits/s
- Negligible insertion loss
- Compatible to 100Base-T and 1000Base-T
- Compliant to IEEE 802.3u and IEEE 802.3 ab/af
Applications: network, data line
Technical Specification
Clamping Voltage - Data Lines: <5V
Maximum discharge current - coarse protection: 2kA (8/20)
Maximum discharge current - fine protection: 40A (8/20)
Pairs protected: 1-2, 3-6, 4-5, 7-8
Standards compliance: IEEE 802.3u & IEEE 802.3ab/af
Data rate: 1000Mbits/s (250Mbits/s per pair)
Bandwith (3dB) per pair: >350MHz
