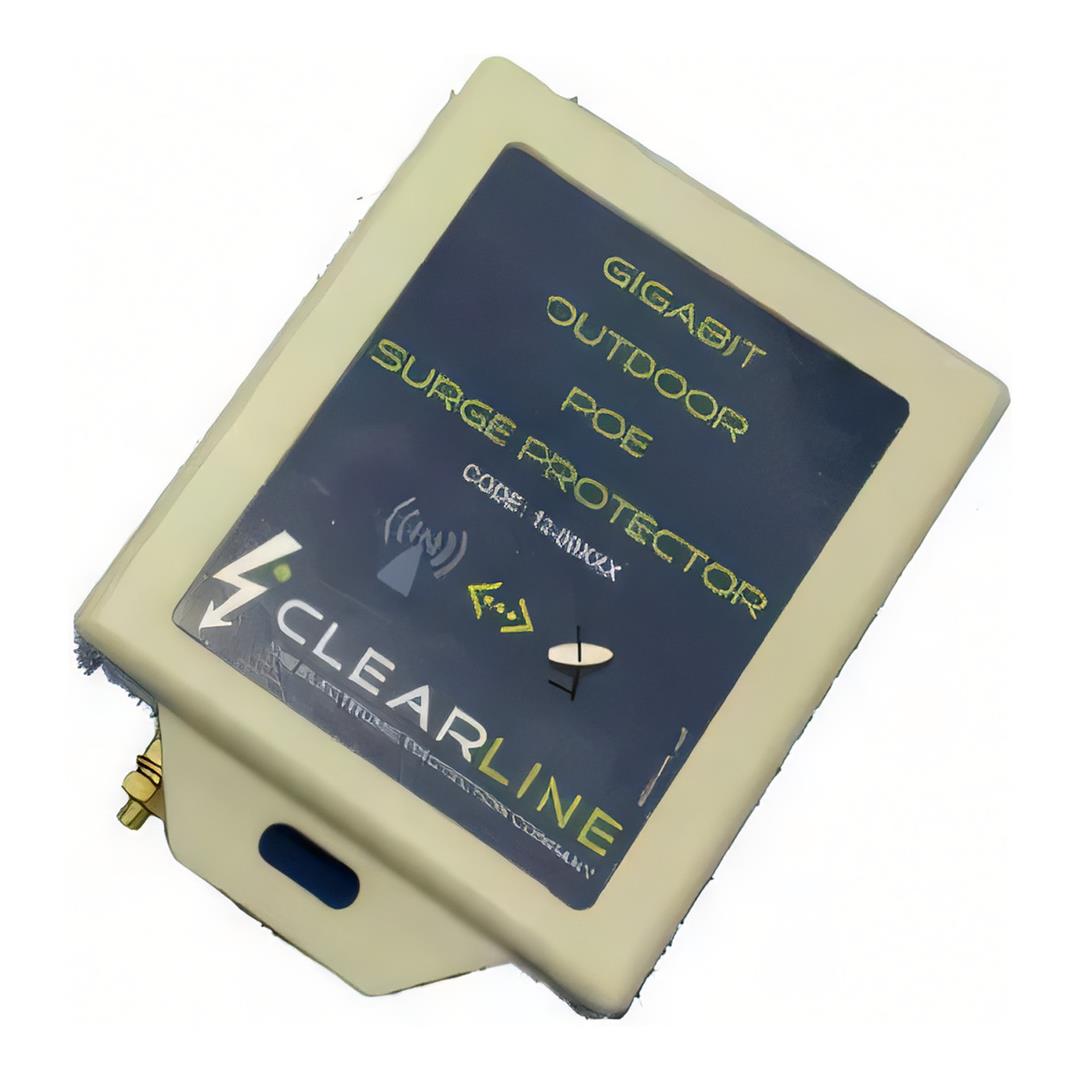

Clearline Outdoor Single Port POE RJ45 Surge Arrestor POE-GB

Clearline Outdoor Single Port POE RJ45 Surge Arrestor POE-GB

The Clearline Outdoor Single-Port PoE RJ45 Surge Arrestor (CL-POE-GB / 12-00131) is designed to protect sensitive network and data-processing equipment against transient overvoltages carried over Ethernet cabling. Suitable for both PoE and non-PoE network devices, it supports 10/100/1000BASE-T Gigabit Ethernet and IEEE 802.3af Power over Ethernet Mode B. Its IP54-rated enclosure makes it suitable for protected outdoor networking installations, while solid-state silicon-avalanche diode technology with internal TVS protection provides high-speed surge and ESD protection with low clamping voltage and capacitance.

Key Features

• Gigabit Ethernet Protection: Supports 10/100/1000BASE-T Ethernet connections with data rates above 1000Mbit/s.
• PoE Compatible: Designed for IEEE 802.3af Power over Ethernet Mode B applications.
• PoE & Non-PoE Support: Can protect compatible powered and standard Ethernet network devices.
• Single-Port Protection: Designed to protect one RJ45 Ethernet connection.
• All Four Ethernet Pairs Protected: Provides protection across pairs 1-2, 3-6, 4-5 and 7-8.
• Surge Protection: Protects sensitive network equipment against transient overvoltages entering through Ethernet cabling.
• ESD Protection: Provides high-speed data-line electrostatic discharge protection.
• Solid-State Protection: Uses silicon-avalanche diodes with internal transient voltage suppression technology.
• 2.5kA Coarse Surge Capability: Rated for a maximum coarse line-to-earth discharge current of 2.5kA using an 8/20µs waveform.
• 40A Fine Surge Capability: Maximum fine line-to-line discharge current is rated at 40A using an 8/20µs waveform.
• Low Residual Voltage: Data-line residual voltage is rated below 5V, while PoE-line residual voltage is below 60V.
• CAT5e Gigabit Support: Designed for Gigabit CAT5e network infrastructure.
• IP54 Enclosure: Provides protection against limited dust ingress and splashing water for suitable outdoor installations.
• Wide Operating Temperature: Designed for operation from -20°C to +70°C.
• Compact Design: Measures only 91 × 79 × 45mm and weighs approximately 110g.

Network & PoE Specifications

Surge Protection Specifications

Alternative B Pin Configuration

Physical & Environmental Specifications

Technical Specifications

Typical Applications

• Outdoor IP surveillance cameras
• Wireless access points and outdoor radios
• PoE-powered network equipment
• Gigabit Ethernet network links
• Outdoor telecommunications installations
• Network equipment exposed to surge and lightning-induced transient risks

What's Included:

• 1 × Clearline Outdoor Single-Port PoE RJ45 Surge Arrestor (12-00131 / CL-POE-GB)

Please Note: MiRO lists this product under SKU CL-POE-GB, while the actual Clearline manufacturer part number is 12-00131. The manufacturer's datasheet specifies IEEE 802.3af PoE Mode B / Alternative B. Compatibility with other PoE standards or powering arrangements should therefore not be assumed unless separately confirmed. Correct grounding and installation are essential for surge protection equipment to operate as intended.

The Clearline Outdoor Single-Port PoE RJ45 Surge Arrestor (CL-POE-GB / 12-00131) provides compact surge and ESD protection for Gigabit Ethernet infrastructure, combining CAT5e Gigabit support, IEEE 802.3af Mode B PoE compatibility, all-pair protection and an IP54-rated enclosure for suitable outdoor network deployments.
