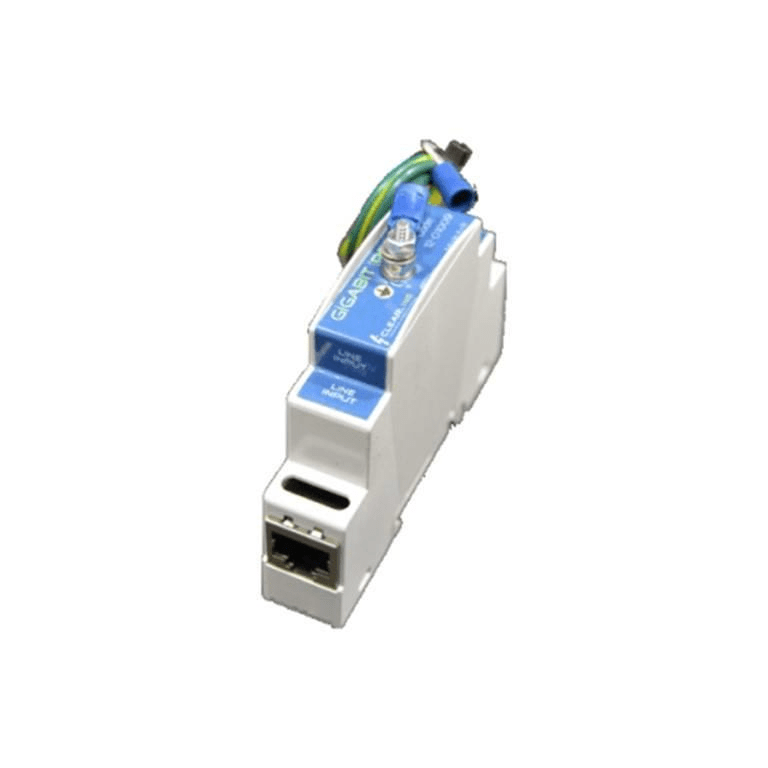

Clearline DIN Rail Gigabit Inline PoE Mode A and B 12-01009

Clearline DIN Rail Gigabit Inline PoE Mode A and B 12-01009

Protects Gigabit POE ethernet LAN equipment such as hubs switches, network interface cards, IP POE cameras and wireless AP from induced lightning and electrostatic discharge. PDs must support BOTH Mode A and Mode B to be compliant with the 802.3af standard. The Clearline Din Rail unit protects both Modes (Mode A & Mode B configurations).
Backward compatible to 100Base-T.

Features

• All 8 lines protected
• Protection for Mode A+B
• Each pair supports 250Mbits/s
• Negligible insertion loss
• Good transmission rate
• Din Rail mountable

Applications: POE camera, POE ethernet, LAN equipment

Technical Specification

• Data lines: 1-2, 3-6, 4-5, 7-8
• POE Mode A lines: 1-3, 1-6, 2-3, 2-6
• POE Mode B lines: 4-7, 4-8, 5-7, 5-8
