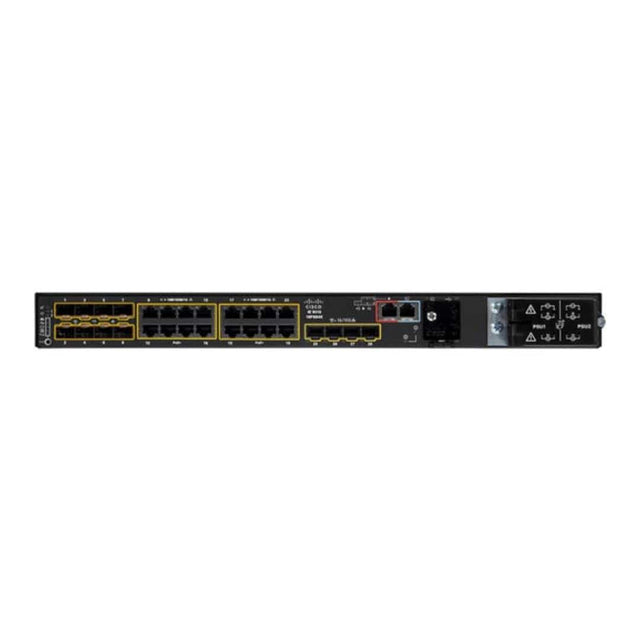

Cisco Catalyst IE-9310-16P8S4X-E Rugged 28-Port PoE+ Industrial Ethernet Switch

Cisco Catalyst IE-9310-16P8S4X-E Rugged 28-Port PoE+ Industrial Ethernet Switch

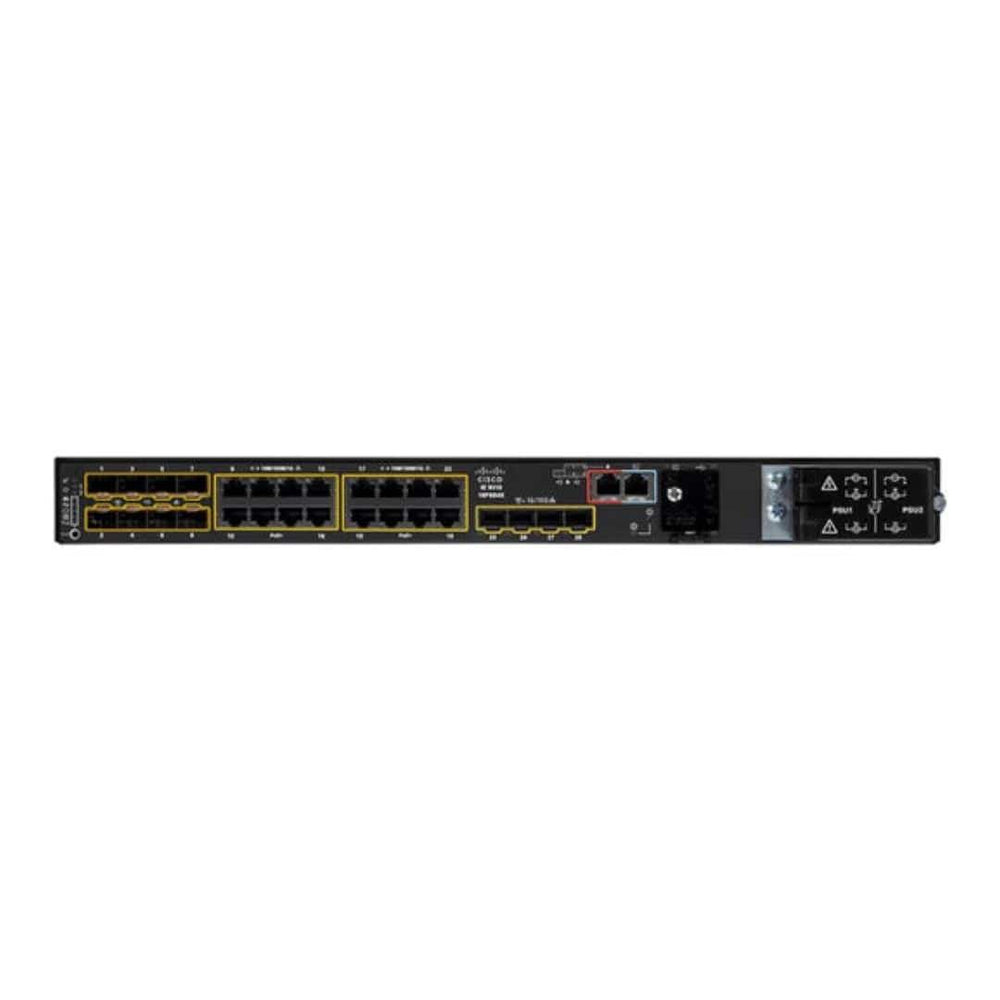

The Cisco Catalyst IE-9310-16P8S4X-E is a fully managed, ruggedised 1RU Ethernet switch built for demanding industrial and extended-enterprise networks. Its combination of 16 Gigabit PoE+ copper ports, eight Gigabit SFP ports and four 1/10 Gigabit SFP+ uplinks provides flexible connectivity for powered edge devices, fibre links and high-speed network infrastructure.

Designed for manufacturing, energy, transport, mining, smart-city and oil-and-gas environments, the fanless switch operates across extended temperature ranges and is hardened against shock, vibration, surge and electrical noise. Cisco IOS XE, hardware-anchored trust and industrial redundancy technologies help organisations build manageable and resilient operational networks.

Flexible Copper, Fibre and High-Speed Connectivity

The switch provides 28 Ethernet interfaces in a mixed-media configuration. Sixteen 10/100/1000 Mbps RJ-45 PoE+ ports can connect and power compatible devices such as IP cameras, wireless access points and IP phones. Eight 100/1000 Mbps SFP downlinks support fibre connectivity, while four 1/10 Gigabit SFP+ uplinks provide higher-bandwidth connections to the wider network.

Key Features:

• 28-port mixed-media configuration: combines 16 Gigabit PoE+ copper ports, eight Gigabit SFP downlinks and four 1/10 Gigabit SFP+ uplinks.
• Industrial PoE+ connectivity: carries network data and electrical power to compatible endpoints over the same Ethernet cable, helping reduce separate power cabling.
• Rugged fanless construction: convection cooling and no moving fan parts support deployment in harsh industrial environments.
• Extended operating range: designed for operation from -40°C, with the maximum supported temperature determined by the cabinet configuration.
• Industrial network resilience: supports REP, REP Fast, PRP, HSR, MRP and other technologies for resilient network designs.
• Built-in platform security: Cisco IOS XE includes Secure Boot, image signing and a hardware-based Cisco Trust Anchor module.
• Simplified deployment: supports Zero-Touch Provisioning, Cisco Plug and Play, WebUI and open, model-driven interfaces.

Engineered for Industrial Environments

The IE9300 Rugged Series is designed for locations where ordinary enterprise switches may not be suitable. The IE-9310-16P8S4X-E supports dual AC/DC power inputs and includes alarm connections for integration with external monitoring equipment. Its fanless 1RU chassis is hardened for vibration, shock and electromagnetic disturbances.

Operating limits may be affected by the installation, selected SFP modules and applicable safety approvals. Cisco states that non-industrial SFP modules require temperature derating.

PoE Power Budget

The available PoE budget varies with the number and wattage of the installed Cisco rugged power supplies. This allows the power configuration to be selected according to the number and requirements of connected PoE devices.

The final PoE capacity depends on the installed power supplies. Confirm the supplied power configuration and endpoint power requirements before deployment.

Performance and Management

• Up to 95.23 million packets per second forwarding rate, measured using 64-byte packets.
• 64 Gbps forwarding bandwidth and 128 Gbps full-duplex switching bandwidth.
• Support for up to 24,000 unicast MAC addresses with the applicable Cisco IOS XE release.
• Support for 4,096 VLAN IDs and up to 1,024 active VLANs.
• Cisco Catalyst Center management support, with the appropriate optional licence.
• WebUI for browser-based configuration and monitoring.
• Automation through YANG, NETCONF, RESTCONF, Plug and Play and Zero-Touch Provisioning.
• Industrial protocol support including EtherNet/IP and PROFINET.

Technical Specifications:

Important Configuration Information

• SFP and SFP+ transceiver modules must be selected separately to suit the required media type, distance and operating environment.
• The available PoE budget depends on the installed power-supply configuration.
• The optional USB device and SD card are not shipped with the switch by default.
• Cisco Catalyst Center functionality requires the appropriate optional licensing.
• Power supplies and other included accessories should be confirmed against the specific supplied configuration before purchase.
