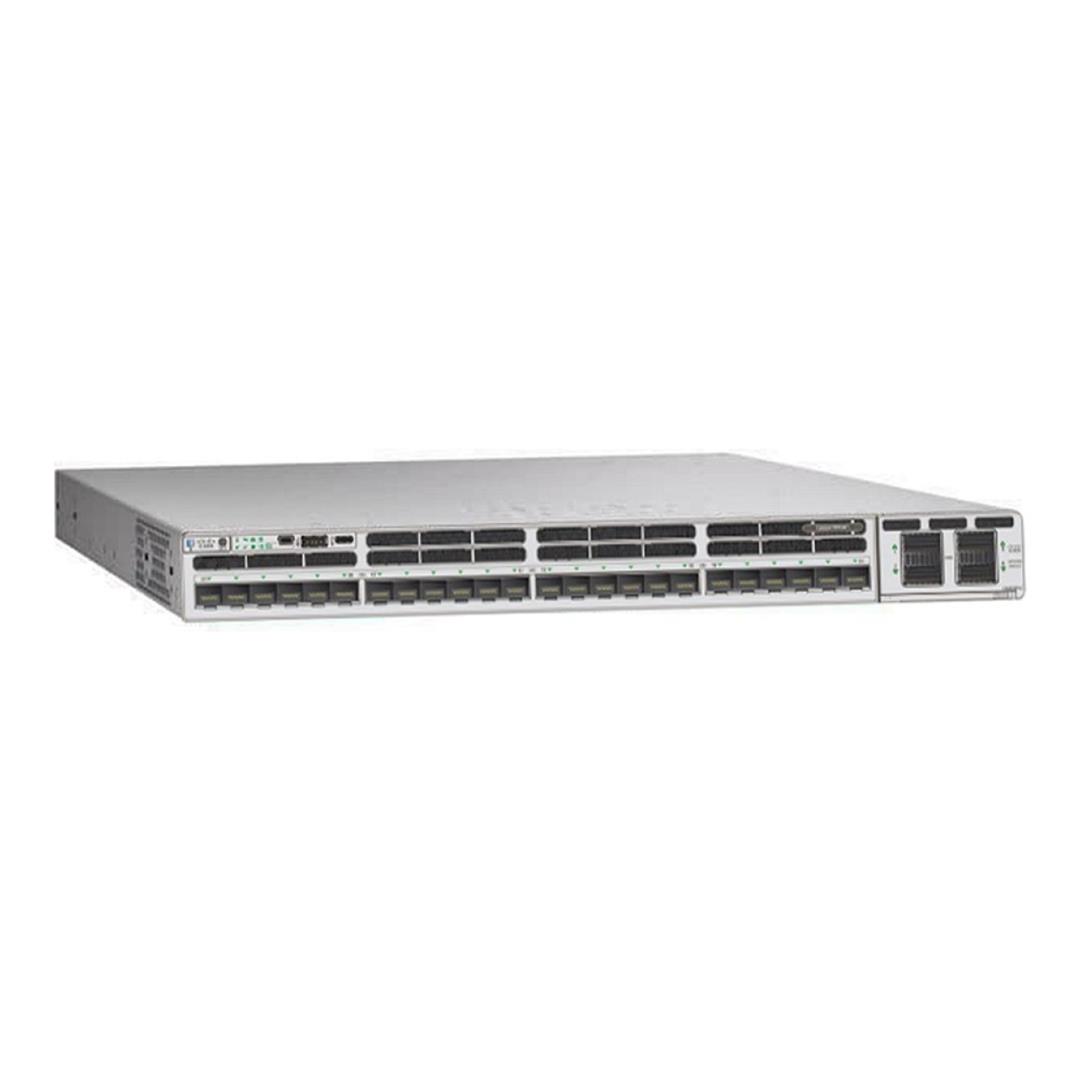

Cisco Catalyst 9300X 24-Port 25G/10G/1G SFP28 Fibre Switch with Modular Uplinks Network Essentials C9300X-24Y-E

The Cisco Catalyst 9300X C9300X-24Y-E is a high-performance enterprise fibre switch designed for high-density access, aggregation and core network deployments. It provides 24 multi-rate SFP28 ports supporting 1GbE, 10GbE and 25GbE connectivity, combined with modular high-speed uplinks, StackWise-1T stacking and Cisco Network Essentials software capabilities. Its flexible fibre architecture makes it well suited to organisations requiring scalable, high-bandwidth network infrastructure.

Key Features

• 24 x multi-rate 25G/10G/1G SFP28 fibre ports.
• Modular uplink architecture for flexible high-speed connectivity.
• Supports up to 4 x 100Gbps uplink capacity with an appropriate uplink module.
• StackWise-1T technology provides up to 1Tbps local stacking bandwidth.
• 16GB DRAM and 16GB flash memory.
• 32MB packet buffer for high-bandwidth network applications.
• Supports jumbo frames up to 9,198 bytes.
• Dual-ASIC architecture designed for high-performance fibre networking.
• Network Essentials software licence.
• 1U rack-mount enterprise switch design.

High-Density 25GbE Fibre Connectivity

The C9300X-24Y provides 24 SFP28 fibre ports capable of operating at 1Gbps, 10Gbps or 25Gbps with appropriate supported transceivers and cabling. This multi-rate design provides flexibility when migrating existing fibre infrastructure to higher network speeds while supporting demanding enterprise applications and high-bandwidth network connections.

Flexible Modular Uplinks

A modular uplink architecture allows the switch to be configured for different network requirements using compatible Cisco Catalyst 9300X network modules. Depending on the selected module, the platform can support high-speed uplink configurations including 10GbE, 25GbE, 40GbE and 100GbE connectivity.

The uplink network module is optional and is not included in the default switch configuration unless specifically supplied as part of the configured bundle.

StackWise-1T Stacking

Cisco StackWise-1T technology provides up to 1Tbps of local stackable switching bandwidth on Catalyst 9300X models. Compatible switches can be combined into a stack to simplify management and provide a scalable switching architecture for growing enterprise networks.

Enterprise Network Platform

The Catalyst 9300X platform combines high-speed fibre connectivity with enterprise switching capabilities, substantial memory and advanced hardware forwarding. The C9300X-24Y uses a dual-ASIC architecture and provides a 32MB packet buffer, helping the switch accommodate demanding high-bandwidth network environments.

Network Essentials

The C9300X-24Y-E is supplied as the Network Essentials variant of the Catalyst 9300X-24Y platform. Available networking capabilities depend on the installed Cisco software release, licensing and network configuration, so features requiring Network Advantage or additional licences should not be assumed to be included with this SKU.

Power and Serviceability

The C9300X-24Y uses a 715W AC default power supply and supports field-replaceable power supply and fan modules. The platform can support redundant power configurations when appropriately equipped, helping organisations design network infrastructure around their required availability and serviceability requirements.

Compatibility

• Compatible Cisco SFP/SFP+/SFP28 transceivers and supported fibre connectivity
• Compatible Catalyst 9300X modular uplink network modules
• Cisco StackWise-1T supported Catalyst 9300X configurations

Transceivers, fibre cables and the modular uplink network module are configuration-dependent and should not be assumed to be included with the base switch unless specifically stated in the supplied bundle.

Technical Specifications

Build scalable high-bandwidth enterprise fibre infrastructure with the flexible 25GbE connectivity, modular uplinks and StackWise-1T architecture of the Cisco Catalyst 9300X C9300X-24Y-E.
