Description
Description

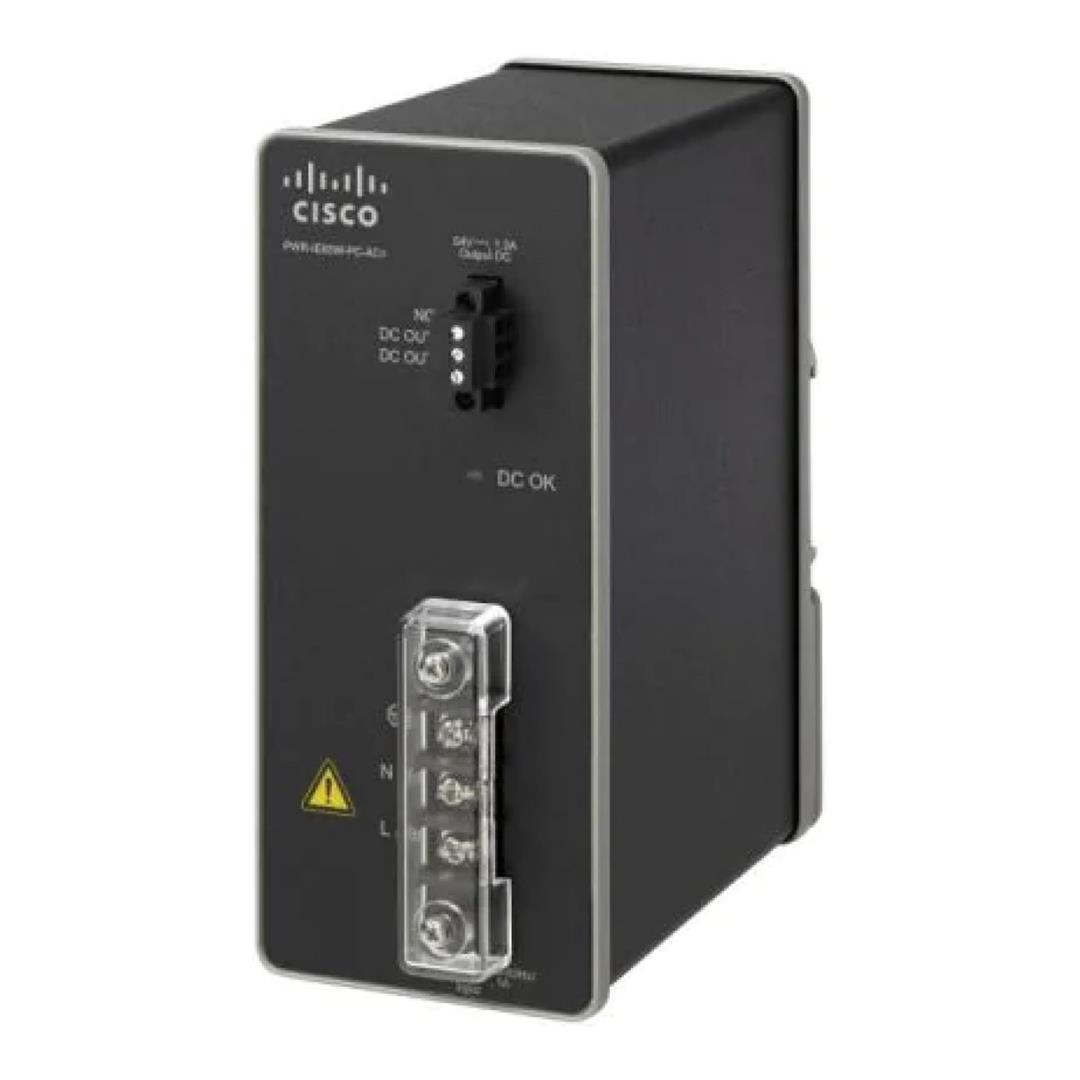

The Cisco PWR-IE65W-PC-AC= is a rugged 65W industrial DIN-rail power module designed to provide DC power for compatible Cisco Industrial Ethernet switches and PoE applications. Supporting either AC or high-voltage DC input and delivering a regulated 54V DC output, the module is suited to industrial networking installations requiring reliable power in demanding operating environments.
Key Features
- Genuine Cisco Industrial Ethernet power module.
- Cisco part number PWR-IE65W-PC-AC=.
- 65W maximum output power.
- 54V DC, 1.2A output.
- Supports PoE and PoE+ applications.
- Accepts 100–240V AC or 125–250V DC nominal input.
- Hardwired input connection for industrial installations.
- DIN-rail mountable design.
- Wide -40°C to +75°C operating temperature range.
- Approved for Class I, Division 2 / Zone 2 hazardous-location installations.
65W PoE Power
The PWR-IE65W-PC-AC= provides a 54V DC, 1.2A output with up to 65W of available power. It is designed to support compatible Cisco Industrial Ethernet switches and their PoE requirements, allowing network devices and connected powered equipment to operate from a rugged industrial power solution.
Flexible AC or High-Voltage DC Input
The module supports a nominal input of 100–240V AC at 50–60Hz or 125–250V DC. Its supported operating range extends from 90–264V AC or 106–300V DC, providing flexibility for deployment across different industrial power environments.
Designed for Industrial Installations
The compact power module mounts directly to a DIN rail and uses a hardwired input connection suitable for industrial control cabinets and networking installations. Its wide operating temperature range and industrial approvals make it suitable for demanding environments where conventional office power adapters are inappropriate.
Compatibility
- Cisco Industrial Ethernet 2000 Series
- Cisco Industrial Ethernet 3000 Series
- Compatible Cisco Industrial Ethernet PoE applications requiring the PWR-IE65W-PC-AC= power module
Confirm the switch model, required PoE power budget and Cisco power-supply compatibility before installation. The total power required by the switch and connected PoE devices must remain within the available power budget.
What's in the Box
- 1 × Cisco PWR-IE65W-PC-AC= 65W Industrial PoE Power Module
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Cisco |
| Manufacturer Part Number | PWR-IE65W-PC-AC= |
| Product Type | Industrial PoE power module |
| Power Conversion | AC-to-DC or high-DC-to-DC |
| Maximum Output Power | 65W |
| Nominal AC Input | 100–240V AC, 1.4A, 50–60Hz |
| Nominal DC Input | 125–250V DC, 1.0A |
| Supported AC Input Range | 90–264V AC |
| Supported DC Input Range | 106–300V DC |
| Output | 54V DC, 1.2A |
| PoE Support | Yes |
| Typical Efficiency | 85% |
| Hold-Up Time | 10ms at 100% load |
| Input Connection | Hardwired |
| Mounting | DIN rail |
| Operating Temperature | -40°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | Up to 95% RH, non-condensing |
| Dimensions | Approximately 66 × 150 × 117mm |
| Weight | Approximately 1.24kg |
| Hazardous Location Approval | Class I, Division 2 / Zone 2 |
| Compatibility | Cisco Industrial Ethernet IE2000 / IE3000 Series and compatible Cisco industrial PoE applications |
| Warranty | Cisco 5-Year Limited Warranty |
Power compatible Cisco Industrial Ethernet switches and PoE applications with the rugged Cisco PWR-IE65W-PC-AC= 65W DIN-rail power module.
