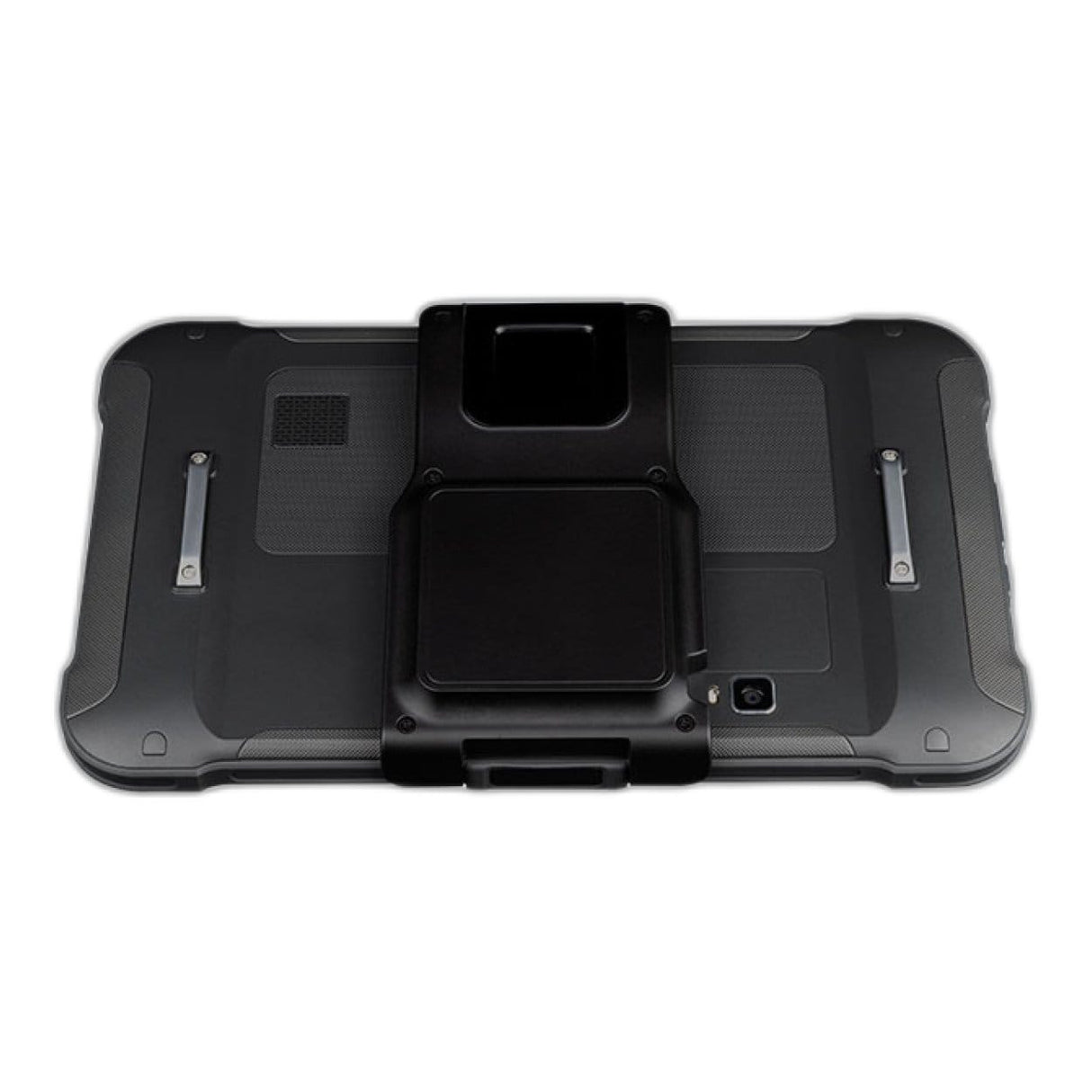

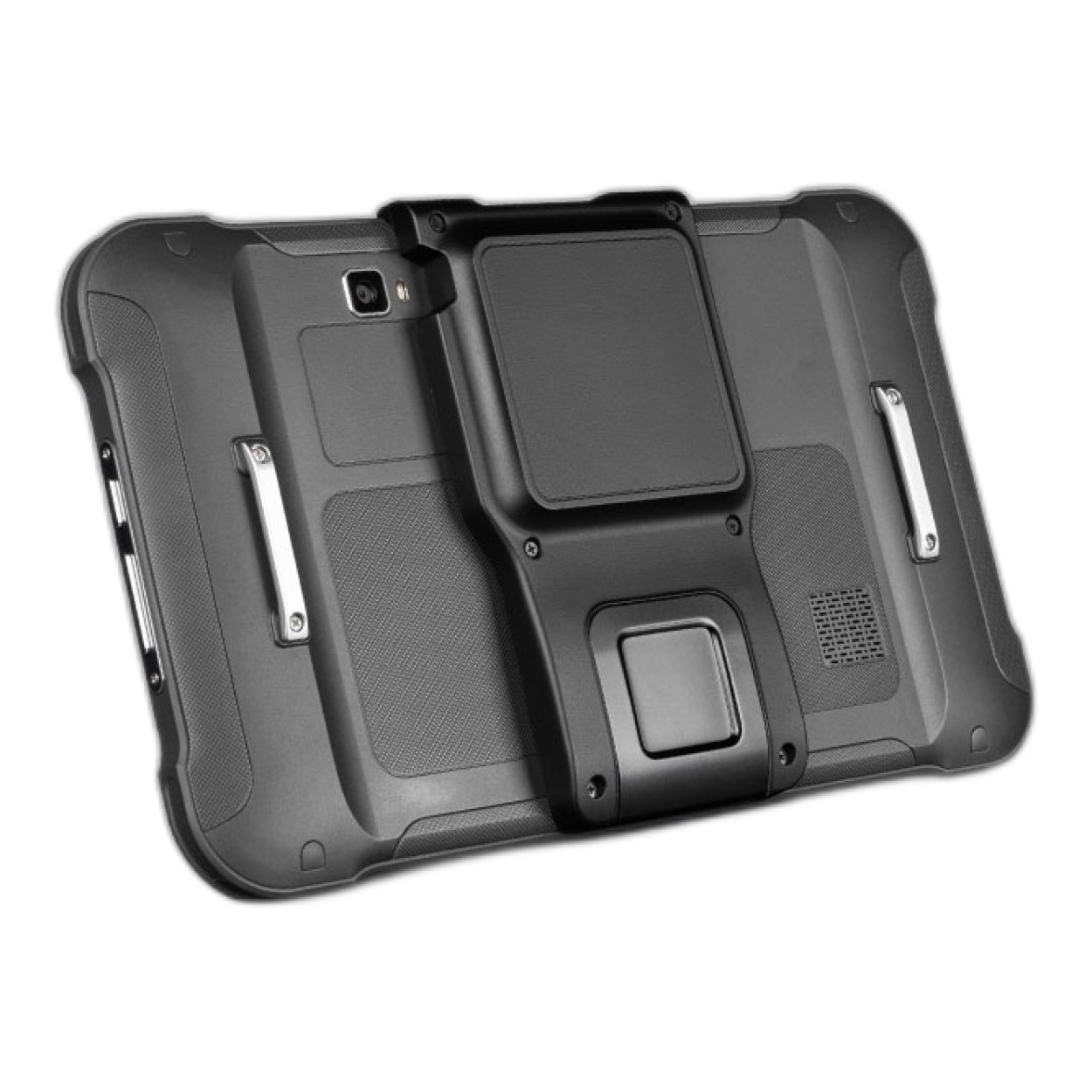

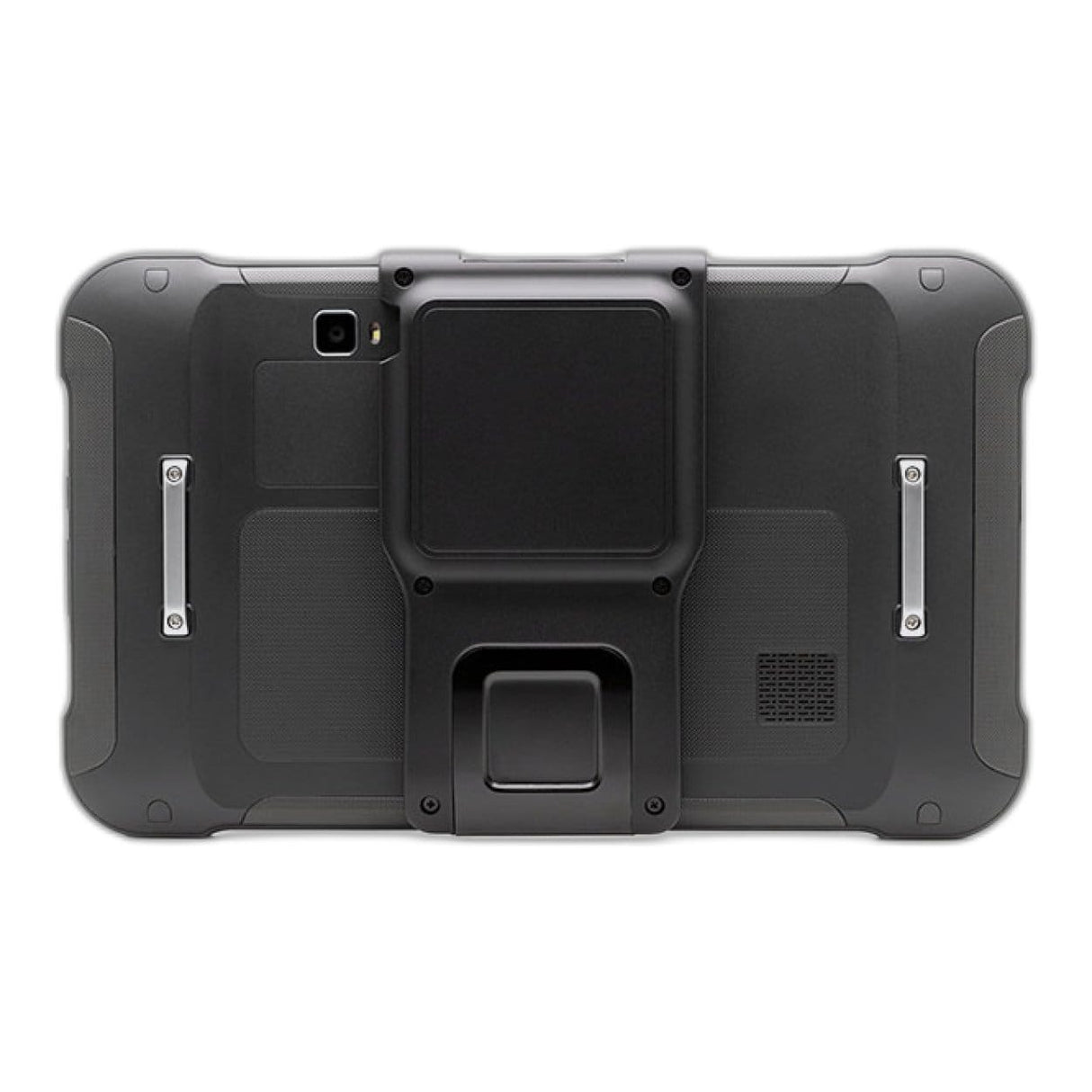

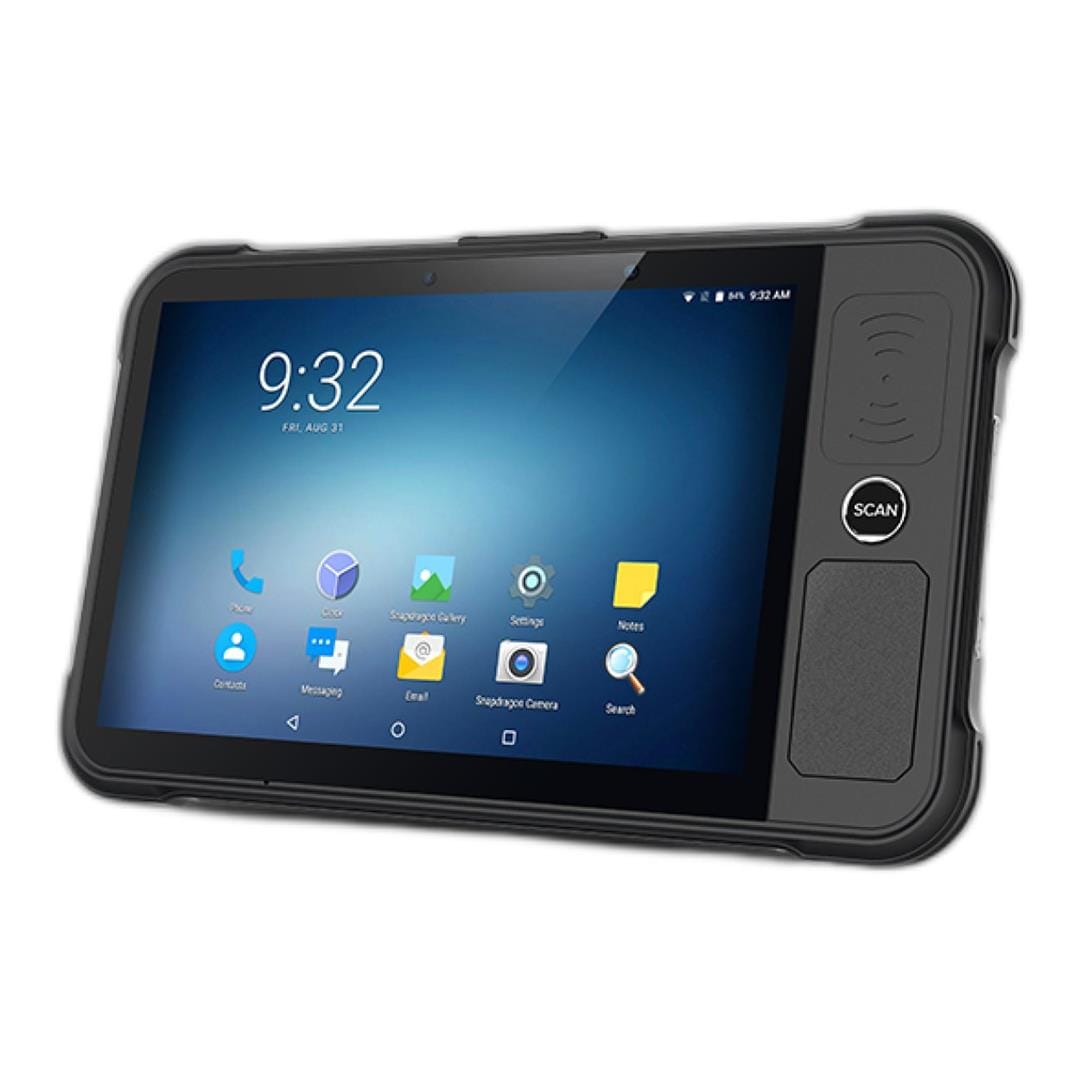

Chainway P80 8-inch Rugged Tablet - Octa-core 64GB ROM 4GB RAM LTE Android 13

Chainway P80 8-inch Rugged Tablet - Octa-core 64GB ROM 4GB RAM LTE Android 13

This 8-inch rugged Android tablet is a fully integrated enterprise mobility device designed for biometric identification, barcode scanning, and field data capture. Combining a 2.0GHz octa-core processor, high-resolution display, and advanced modules such as SE4710 barcode scanning, it is ideal for industries requiring secure, high-performance mobile computing.

Features

• 2.0GHz Octa-core Processor – Reliable performance for enterprise applications
• 8-inch IPS Display (1920 × 1200) – Clear, high-resolution viewing in field environments
• Flexible Memory Configuration – RAM and storage variants available (commonly 3GB–8GB RAM)
• Android OS Platform – Typically Android 10–13 depending on configuration
• Zebra SE4710 2D Scanner – High-speed, accurate barcode capture
• Full Connectivity Suite – 4G LTE, Wi-Fi, Bluetooth, NFC, and GPS
• Dual Cameras – 5MP front and 13MP rear autofocus for documentation
• MicroSD Expansion – Supports additional storage for data-intensive tasks
• 8000mAh Battery – Long-lasting power for extended field operations
• Rugged Design (IP65) – dust, water, and industrial use

This rugged tablet platform is designed to deliver multi-functional data capture in a single device, combining barcode scanning, RFID/NFC, and biometric verification. Devices in this class (e.g. industrial 8-inch rugged tablets such as the P80 series) integrate high-capacity batteries, IP65 sealing, and enterprise-grade components to support continuous use in demanding environments.

The 1920 × 1200 IPS display provides sharp visibility for applications such as field service, inspection reporting, and asset tracking, while the 8000mAh battery ensures full-shift operation without frequent recharging.

A key differentiator is the integration of Zebra’s SE4710 scan engine, enabling rapid and reliable scanning of both 1D and 2D barcodes, even in challenging conditions. Combined with NFC and optional UHF RFID, the device supports multiple data capture methods for logistics and inventory workflows.

The addition of optical fingerprint recognition (CBM-E3 / Morpho module) enhances security and enables use cases such as identity verification, access control, and field authentication, making it suitable for government, healthcare, and financial service applications.

Technical Specifications:

Physical Characteristics
Dimensions: 250.8 x 152.0 x 15.0 mm
Weight: 680 g
Display: 8" IPS LTPS, 1920 x 1200
Touch Panel: Corning Gorilla Glass, Multi-Touch Panel, Gloves and Wet Hands Supported
Power:

• Main Battery: Li-Ion, Rechargeable, 8700 mAh
• Standby Time: Over 500 Hours
• Continuous Use: Over 10 Hours (Depending on User Environment)
• Charging Time: 5 to 7 Hours (With Standard AC Adapter and USB Cable)
  Notification: Sound, LED Indicator
  Expansion Slot:
• 1 x Micro SIM Card Slot
• 1 x Micro SIM / TF Card Slot
• Optional Dual PSAM Card Slots
  Interfaces: USB 2.0 Type-C, OTG
  Audio:
• 1 x Microphone
• 1 x Speaker
  Keypad:
• 1 x Front Key
• 1 x Volume Key
• 1 x Power Key
• Optional Direction Key
  Sensors: Gravity Sensor, Gyroscope, Geomagnetic Sensor, Light Sensor, Proximity Sensor

Communication
WLAN: 802.11 a/b/g/n/ac/d/e/h/i/k/r/v, 2.4 GHz and 5 GHz Dual-Band, IPv4, IPv6
WWAN:

• 2G: 850/900/1800/1900 MHz, GPRS, EDGE
• 3G: CDMA EVDO BC0, WCDMA B1/B2/B5/B8
• 4G: TDD-LTE B34/B38/B39/B40/B41, FDD-LTE B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B28
  Bluetooth: Bluetooth 5.1
  Vo-LTE: Supports Vo-LTE HD Video Voice Calls
  GNSS: GPS/A-GPS, GLONASS, BeiDou, Galileo, Internal Antenna

Developing Environment
Operating System: Android 13, GMS & AER, 90-Day Security Updates, FOTA, SOTI MobiControl and SafeUEM Supported
SDK: Chainway Software Development Kit
Language: Java
Tool: Eclipse, Android Studio

Performance
CPU: Octa-Core 2.0 GHz, GMS & AER
RAM + ROM: 4 GB + 64 GB
Expansion: Supports Up to 256 GB MicroSD Card

User Environment
Operating Temperature: -20 °C to 50 °C
Storage Temperature: -40 °C to 70 °C
Humidity: 5% RH to 95% RH Non-Condensing
Drop Specification: Multiple 1.5 m Drops to Concrete Across the Operating Temperature Range
Tumble Specification: 500 x 0.5 m Falls at Room Temperature
Sealing: IP65 per IEC Sealing Specifications
ESD: ±15 kV Air Discharge, ±8 kV Conductive Discharge

Barcode Scanning
Scan Engine: Zebra SE4710, Honeywell HS7
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS and More
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Data Matrix, QR Code, Micro QR Code, Aztec, MaxiCode, US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) and More
Note: Optional Function

UHF RFID
Engine: Based on Impinj E Series Chips
Frequency: 865-868 MHz, 920-925 MHz, 902-928 MHz
Impinj Gen2X: Supported
Protocol: EPC C1 GEN2, ISO18000-6C
Antenna: Circular Polarisation
Power:

• 1 W (30 dBm, Adjustable from +5 dBm to +30 dBm)
• Optional 2 W (33 dBm) for Latin America and Other Regions
  Fastest Read Rate: 900+ Tags per Second (Circular Polarisation)
  Max Read Range: Up to 10 m (Open Outdoor Environment with Impinj MR6 Tag)
  Note:
• Ranges and Rates Depend on Tags and Environment
• Optional Function

Camera
Front Camera: 5 MP
Rear Camera: 13 MP Autofocus with Flash

NFC
Frequency: 13.56 MHz
Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2 and More
Chips: M1 Card (S50, S70), CPU Card, NFC Tags and More
Range: 0 to 4 cm
