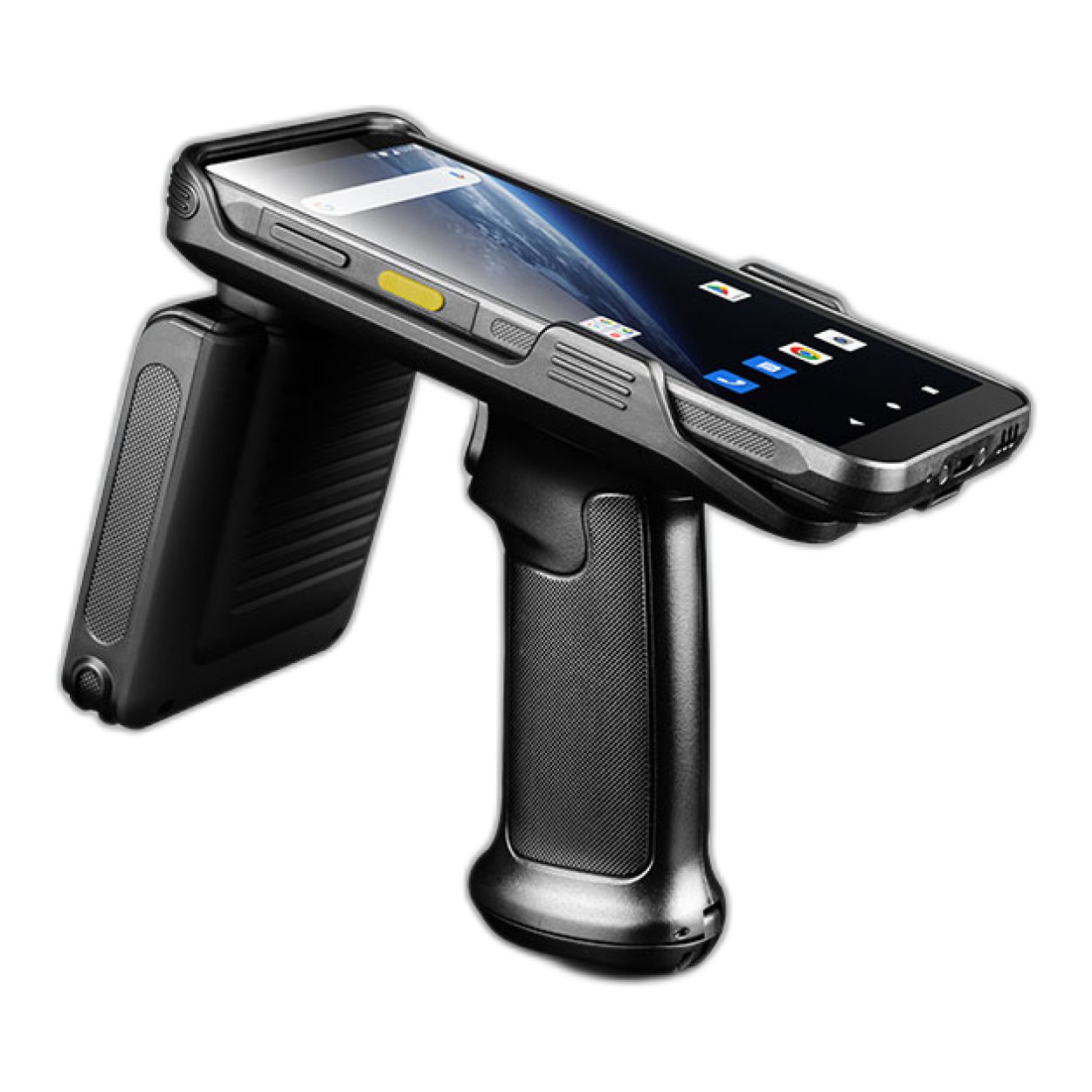

Chainway MC51 Mobile Rugged Scanner - 8GB RAM 128GB ROM MC51E-2CM-N-4A14-8-128GB

Chainway MC51 Mobile Rugged Scanner - 8GB RAM 128GB ROM MC51E-2CM-N-4A14-8-128GB

The Chainway MC51 redefines mobile productivity with flagship specs and long-term reliability. Equipped with a powerful octa-core processor, a vivid 6-inch HD display, and fast, stable connectivity through 5G and Wi-Fi 6E, it delivers uncompromising performance across a wide range of enterprise applications. With device supply guaranteed through 2031 and service support beyond 2033, MC51 is a future-ready solution built to grow with your business.

Features:

• High-Performance Octa-Core 2.4 GHz (4nm Technology)
• UFS (Universal Flash Storage)
• Android 14 (Upgradable to Android 18+)
• 5G WWAN, Global Frequency Bands
• Wi-Fi 6E with 2x2 MIMO and Fast Roaming
• 6-inch Display, Optional 2160x1080 Resolution
• 5000mAh Removable Smart Battery with Hot-Swap
• IP67 & 1.5m / 5ft. Drop

Functions

• Multiple Scan Engine Options Including Long Range
• Supports NFC
• 16MP Rear Camera with HD Front and Rear Imaging
• Optional RFID Capabilities

Technical Specifications:

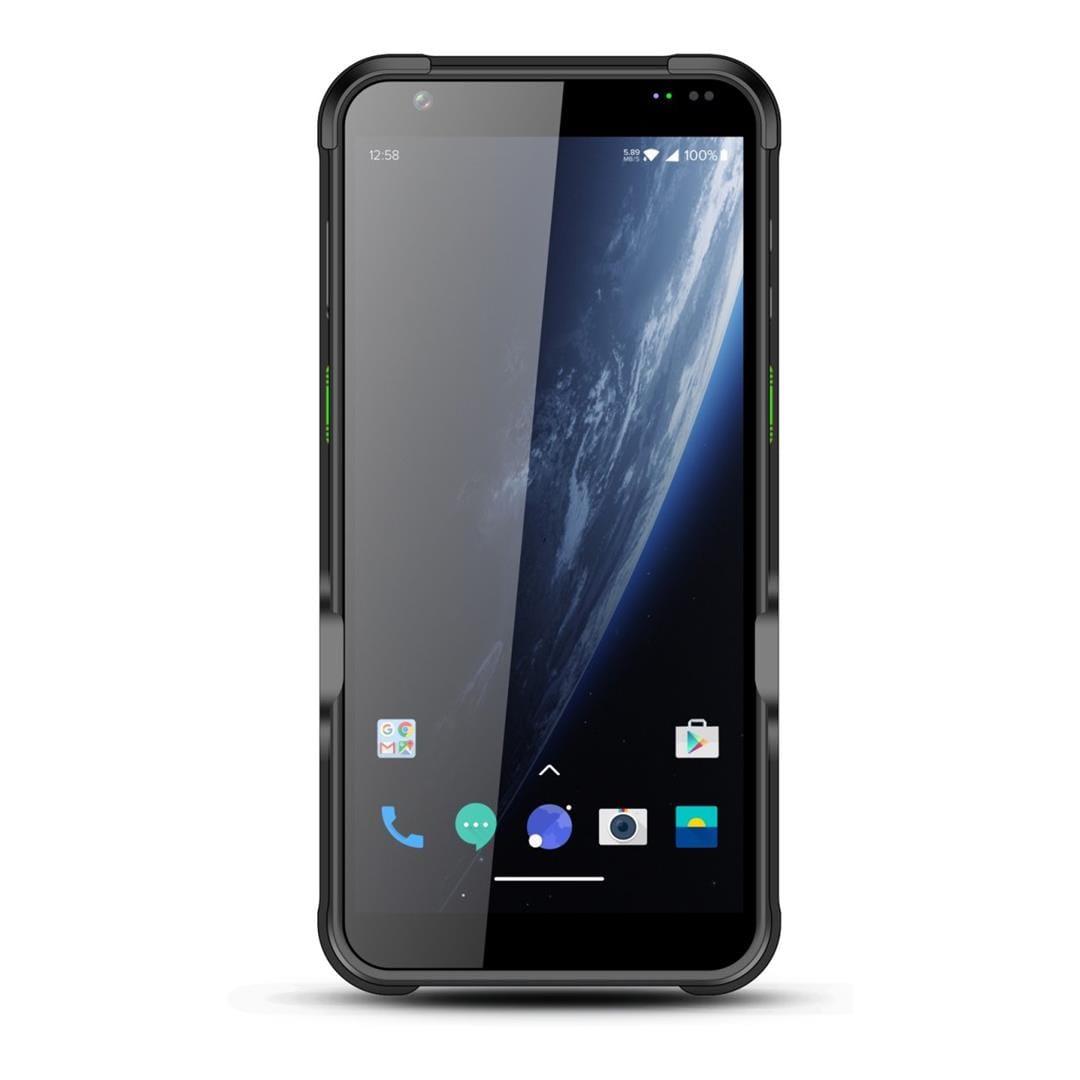

Display
Display Size: 6 Inch
Display Resolution: 1440 × 720
Display Type: High-Definition Display (18:9)
Touch Panel: Corning Gorilla Glass Multi-Touch Panel
Glove Support: Yes
Wet Hand Operation: Yes

Performance
Operating System: Android 14
CPU: Qualcomm Octa-Core
CPU Frequency: 2.4 GHz

RAM: 8 GB
Storage Capacity: 128 GB
Optional Memory Configuration: 8 GB RAM + 256 GB Storage
Storage Type: UFS
Memory Expansion: Supports TF Cards up to 256 GB
MicroSD Support: Supports Extreme MicroSD Cards up to 512 GB

Battery
Battery Type: Removable 5000 mAh Rechargeable Battery
Quick Charge Support: QC 3.0
RTC Support: Yes
Battery Management System: Supported
Hot-Swap Battery Backup: Supported

Physical Specifications
Dimensions: 161.0 × 77.8 × 15.5 mm
Weight: 297 g (Including Battery)

Audio and Notifications
Notifications: Sound, LED Indicator, Vibrator
Audio:

• 2 × Microphones (Including Noise Cancellation Microphone)
• 1 × Speaker
• 1 × Receiver

Interfaces and Input
Interfaces:

• USB Type-C
• USB 3.1
• OTG

Card Slots:

• 1 × SIM Card Slot
• 1 × SIM Card or TF Card Slot

eSIM Support: Optional

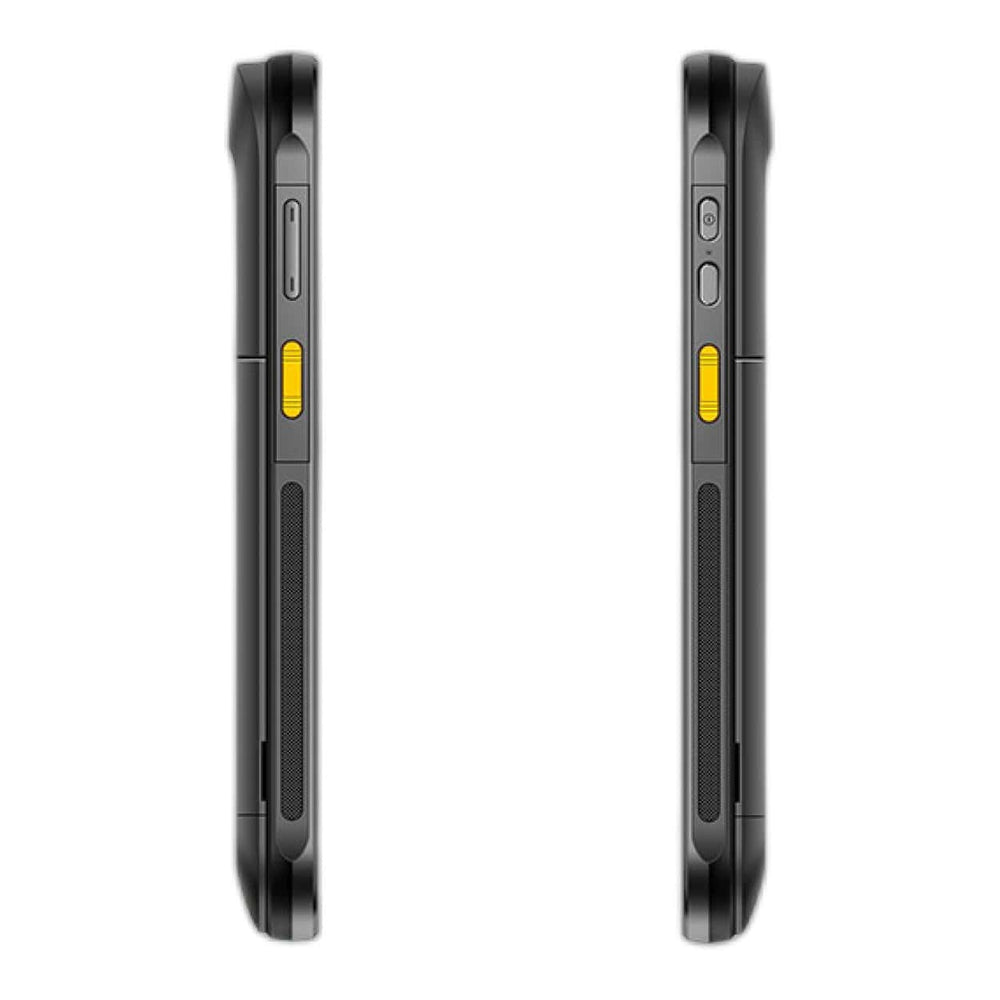

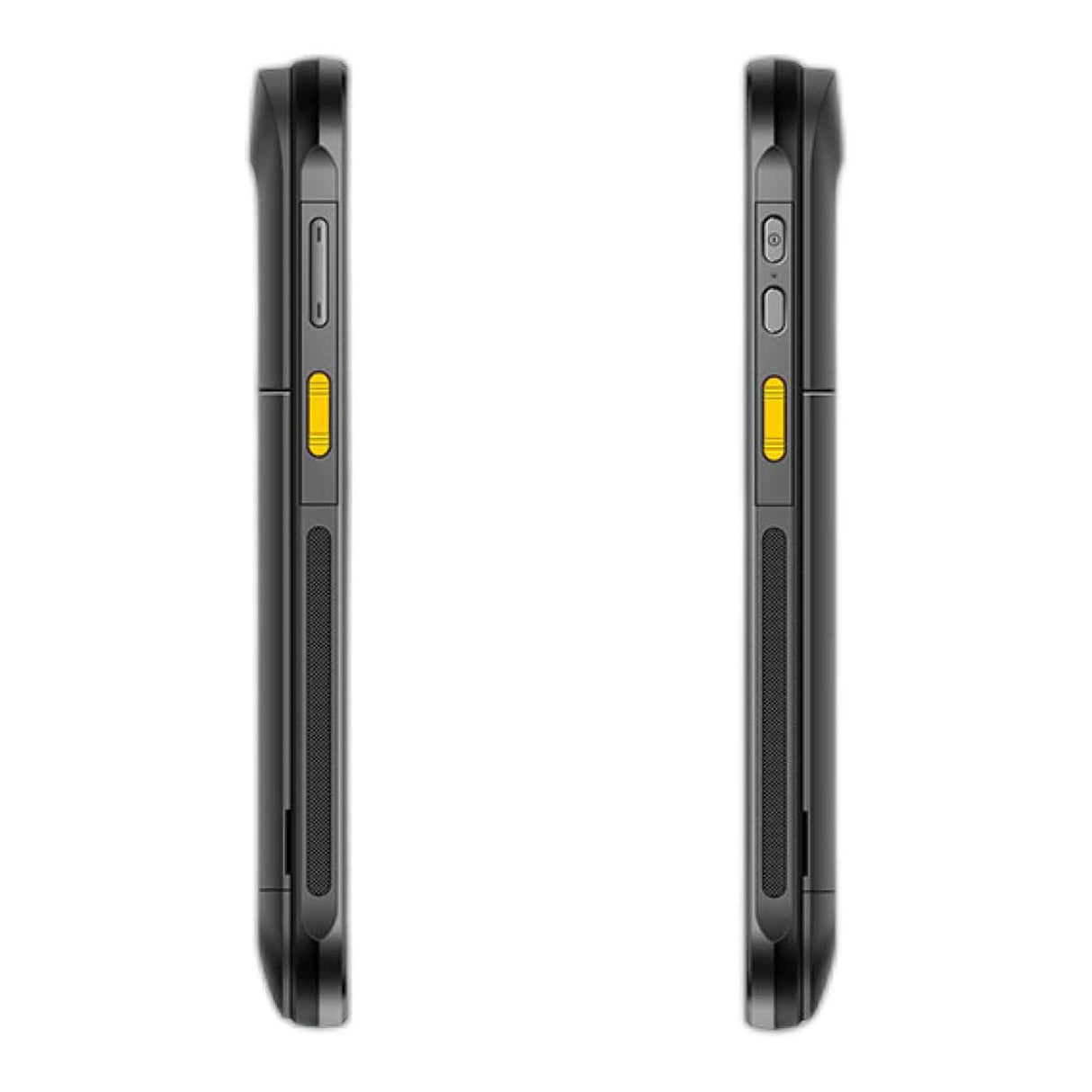

Keypad:

• Power Key
• 2 × Scan Keys
• Volume Up/Down Keys
• 1 × Multifunction Key

Sensors:

• G-Sensor
• Proximity Sensor
• Light Sensor
• Geomagnetic Sensor
• Gyroscope

Wireless Connectivity

WLAN
Wi-Fi Standards: IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Frequency Bands: 2.4 GHz / 5 GHz Tri-Band
IP Support: IPv4, IPv6
MIMO: 2 × 2 MIMO Antennas

Fast Roaming Support:

• PMKID Caching
• 802.11r
• OKC

Security and Encryption:

• WEP
• WPA/WPA2-PSK (TKIP and AES)
• WAPI-PSK
• EAP-TTLS
• EAP-TLS
• PEAP-MSCHAPv2
• PEAP-TLS
• PEAP-GTC
• WPA3-Enterprise
• WPA3-Enhanced Open
• WPA3 Easy Connect
• WPA3-Personal

WWAN (Europe and Asia)
2G Bands: GSM/EDGE/GPRS 850/900/1800 MHz
3G Bands: WCDMA B1, B5, B8
4G Bands:

• FDD-LTE: B1, B3, B5, B7, B8, B20, B28A, B28B
• TDD-LTE: B34, B38, B39, B40, B41

5G Bands:

• N1
• N3
• N5
• N7
• N8
• N20
• N28
• N38
• N40
• N41
• N77
• N78
• N79

WWAN (America)
2G Bands: GSM/EDGE/GPRS 850/1900 MHz
3G Bands: WCDMA B2, B4, B5
4G Bands:

• FDD-LTE: B2, B4, B5, B7, B12, B13, B25, B26, B28
• TDD-LTE: B38, B41

5G Bands:

• N2
• N3
• N5
• N7
• N12
• N13
• N25
• N26
• N28
• N38
• N41
• N77
• N78

Bluetooth Version: 5.2
VoLTE: HD Voice and Video Calling Supported
GNSS: GPS, A-GPS, GLONASS, BeiDou, Galileo
GNSS Antenna: Internal

Development Environment
SDK: Chainway Software Development Kit
Programming Language: Java
Development Tools: Eclipse, Android Studio

Environmental
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% to 95% RH (Non-Condensing)

Drop Resistance: Multiple 1.5 m Drops to Concrete Across Operating Temperature Range
MIL-STD-810H: Multiple 1.5 m Drops to Concrete (SGS Tested)
Tumble Resistance: 1000 × 0.5 m Falls at Room Temperature
Sealing Rating: IP67
ESD Protection: ±15 kV Air Discharge, ±8 kV Conductive Discharge

Barcode Scanning (Optional)
2D Scanner Options:

• Zebra SE4710
• Zebra SE55
• CM60

Supported 1D Symbologies

• UPC/EAN
• Code 128
• Code 39
• Code 93
• Code 11
• Interleaved 2 of 5
• Discrete 2 of 5
• Chinese 2 of 5
• Codabar
• MSI
• RSS

Supported 2D Symbologies

• PDF417
• MicroPDF417
• Composite
• RSS
• TLC-39
• Data Matrix
• QR Code
• Micro QR Code
• Aztec
• MaxiCode

Supported Postal Codes

• US PostNet
• US Planet
• UK Postal
• Australian Postal
• Japan Postal
• Dutch Postal (KIX)

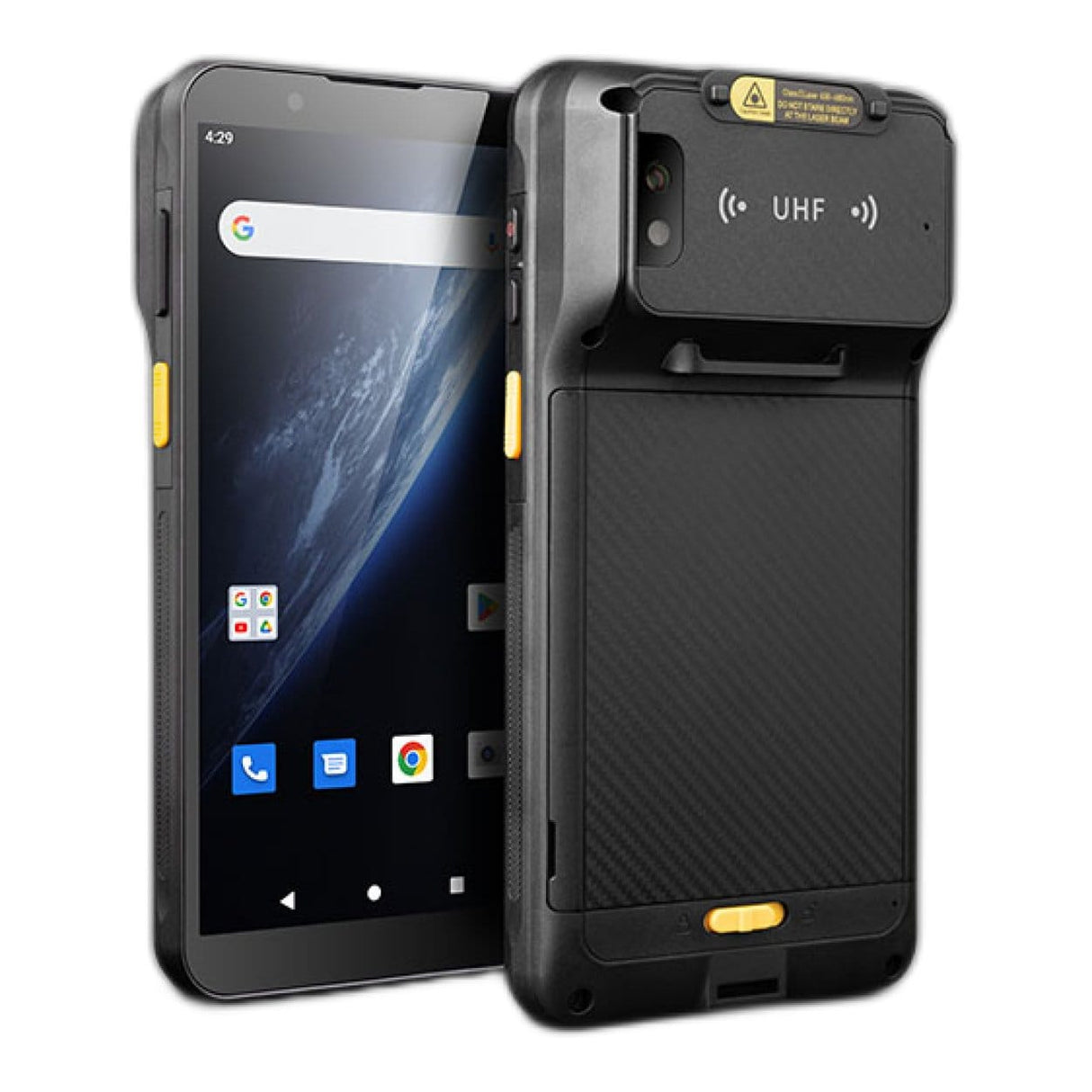

UHF RFID
UHF RFID: Optional

Camera
Front Camera: 5 MP
Rear Camera: 16 MP Autofocus with Flash

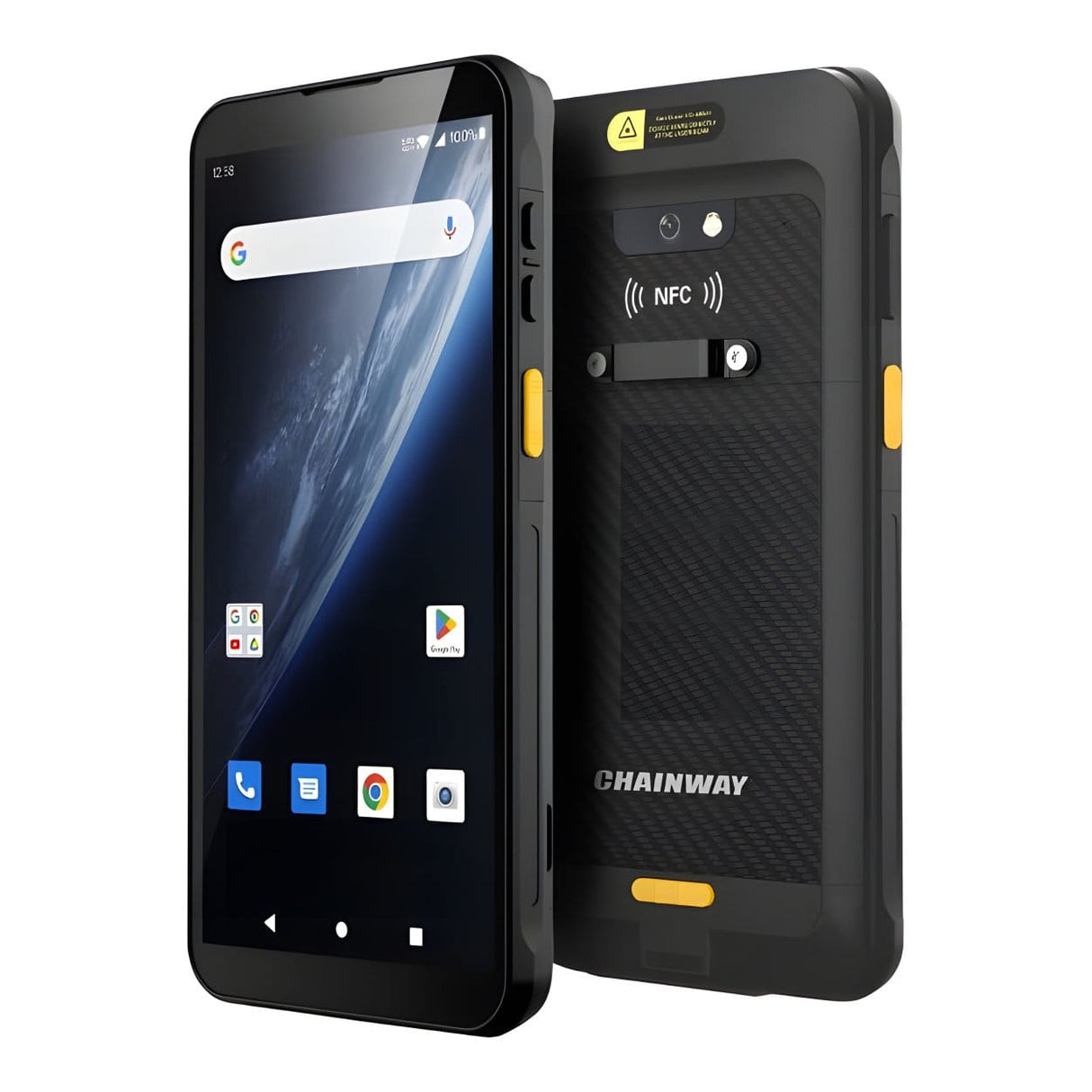

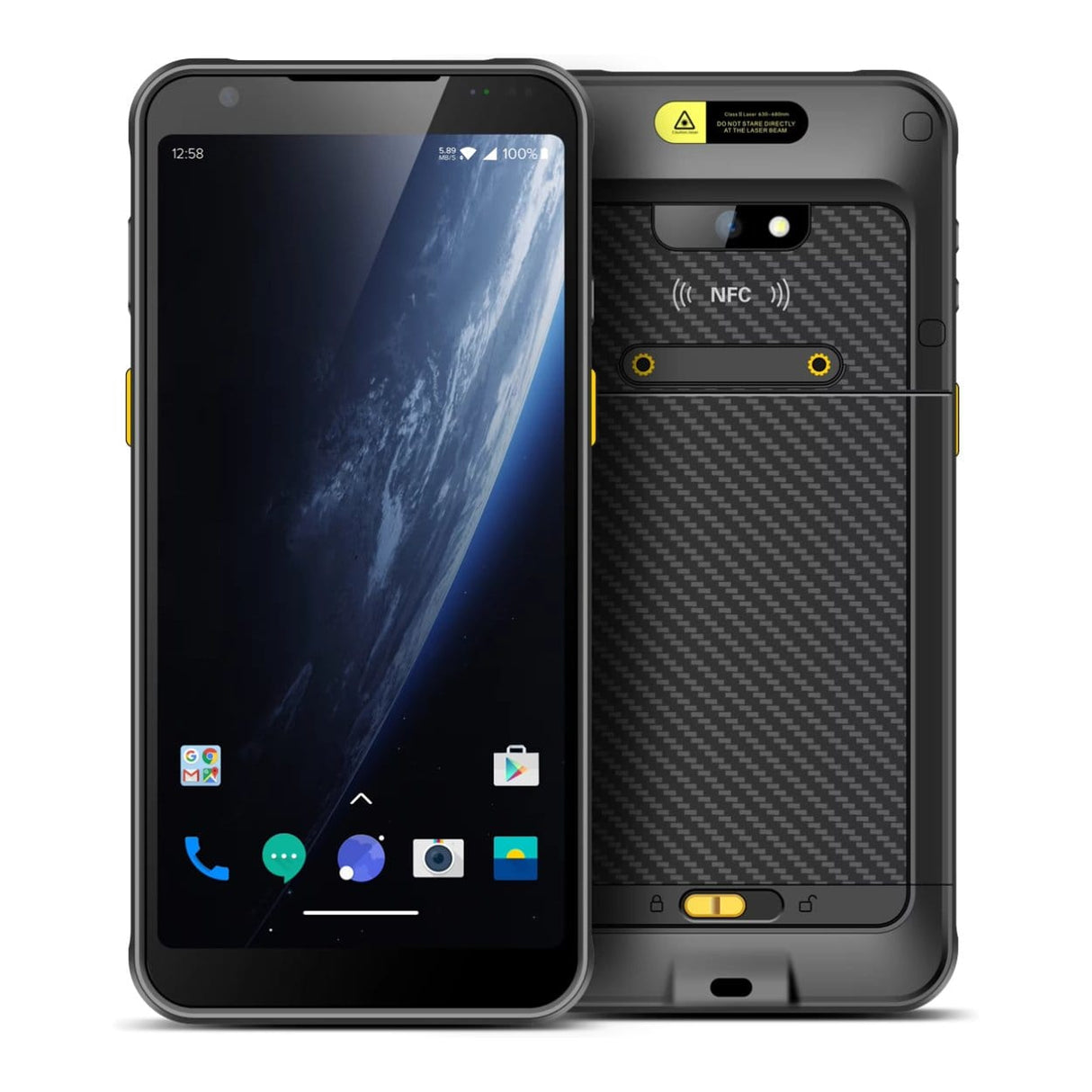

NFC
Frequency: 13.56 MHz
Protocols:

• ISO14443A/B
• ISO15693
• NFC-IP1
• NFC-IP2

Supported Chips:

• M1 Card (S50, S70)
• CPU Card
• NFC Tags

Read Range: 2 to 4 cm

Optional Accessories
Accessories:

• USB Cable
• Power Adapter
• Charging Cradle
• Rugged Rubber Boot
• Additional Accessories Available in Accessory Guide
