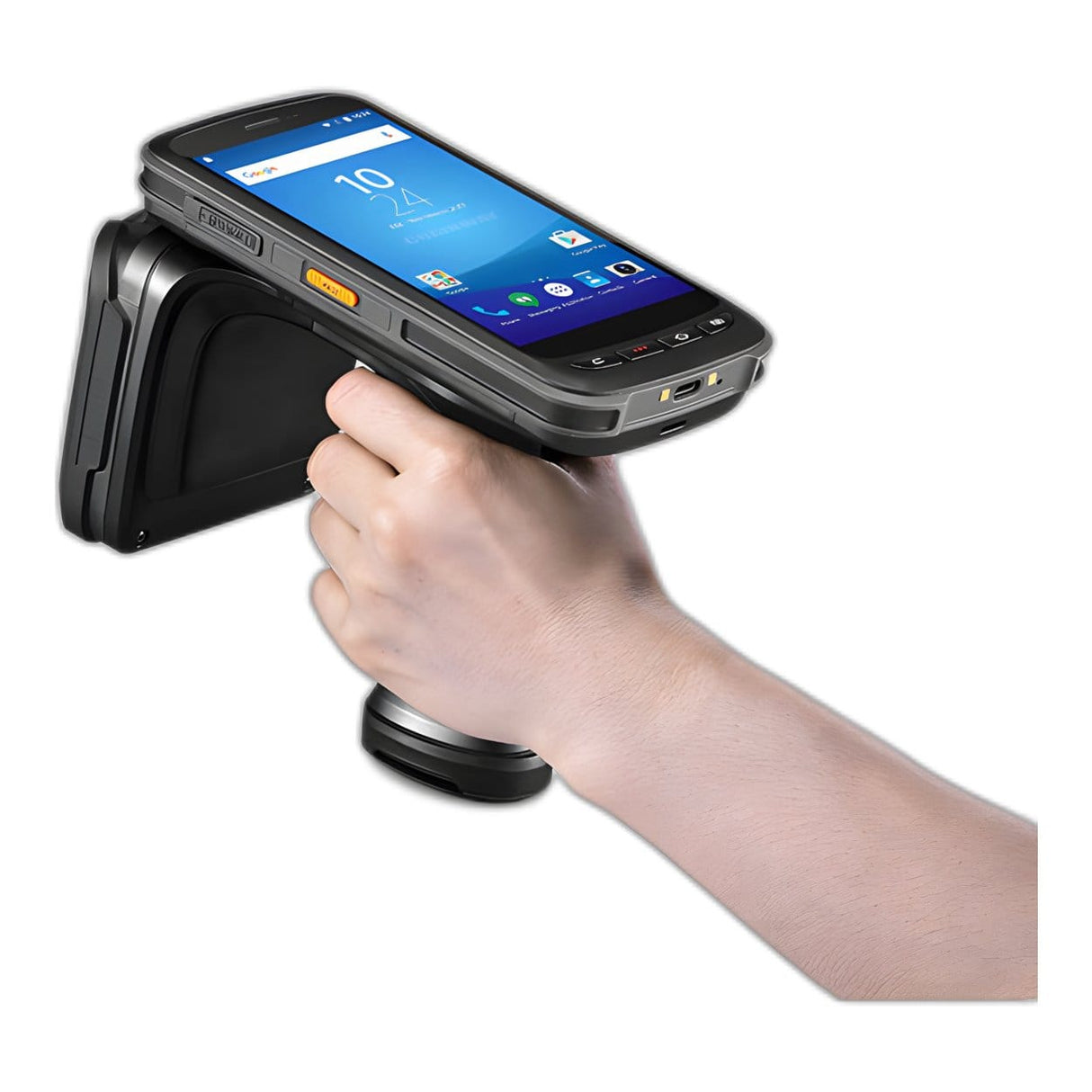

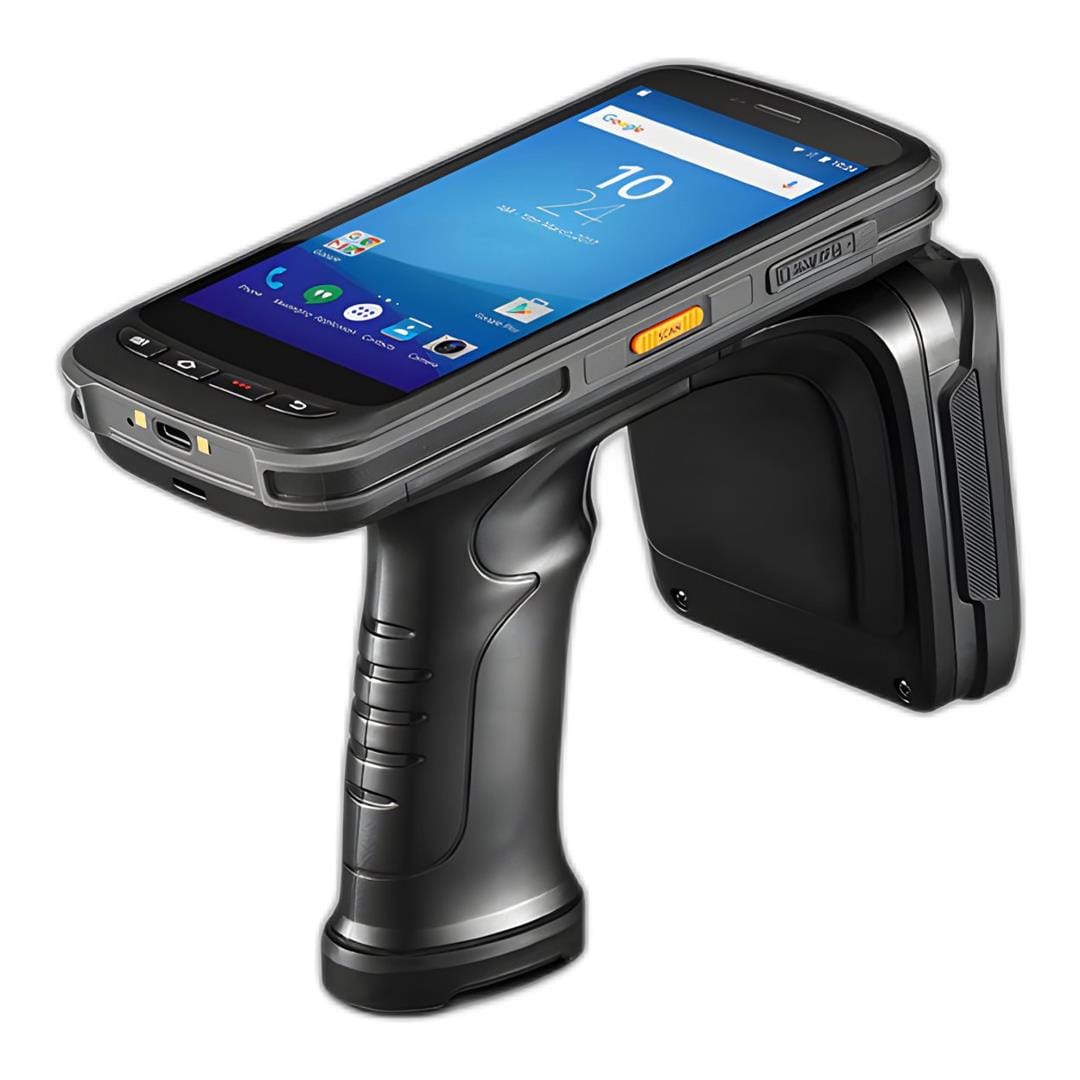

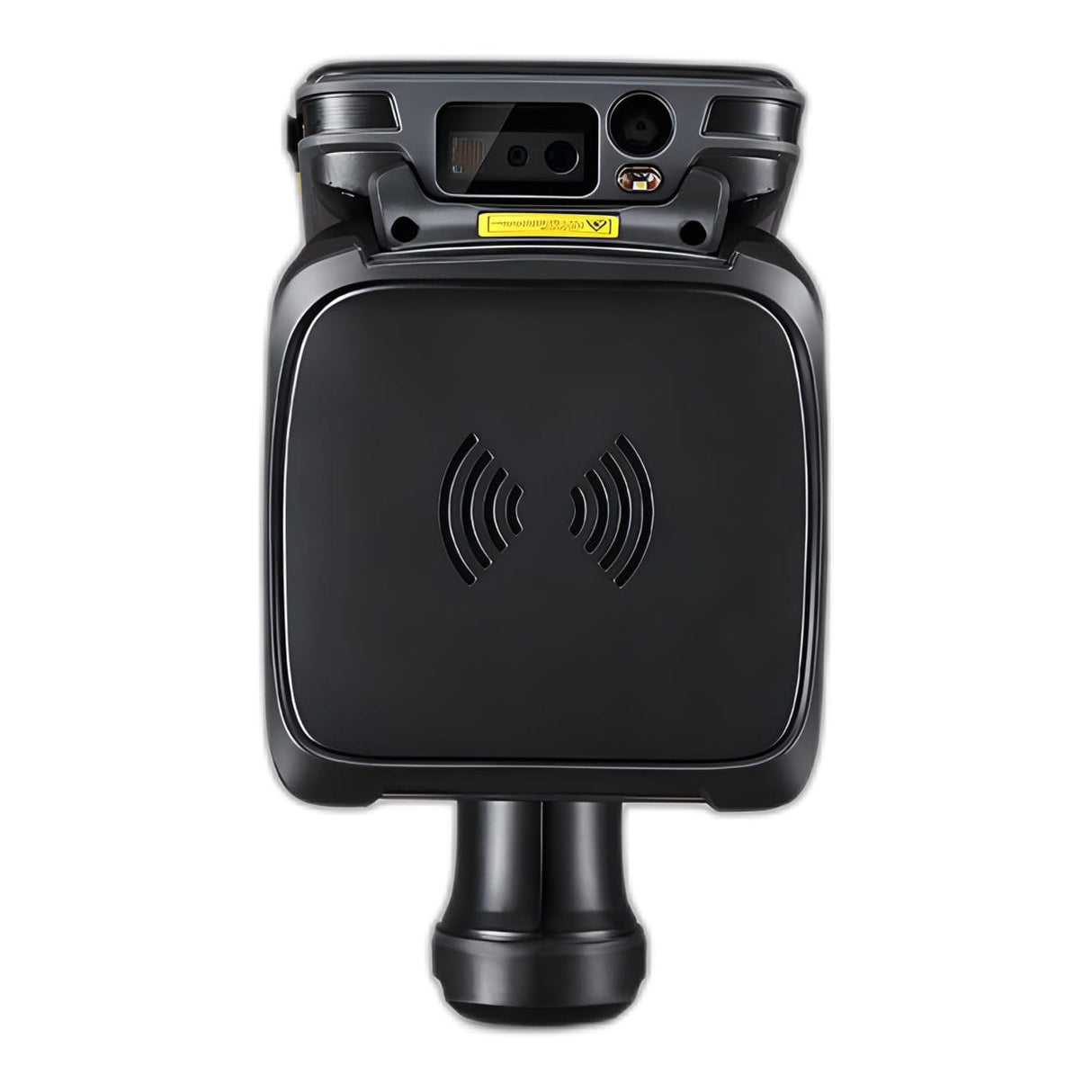

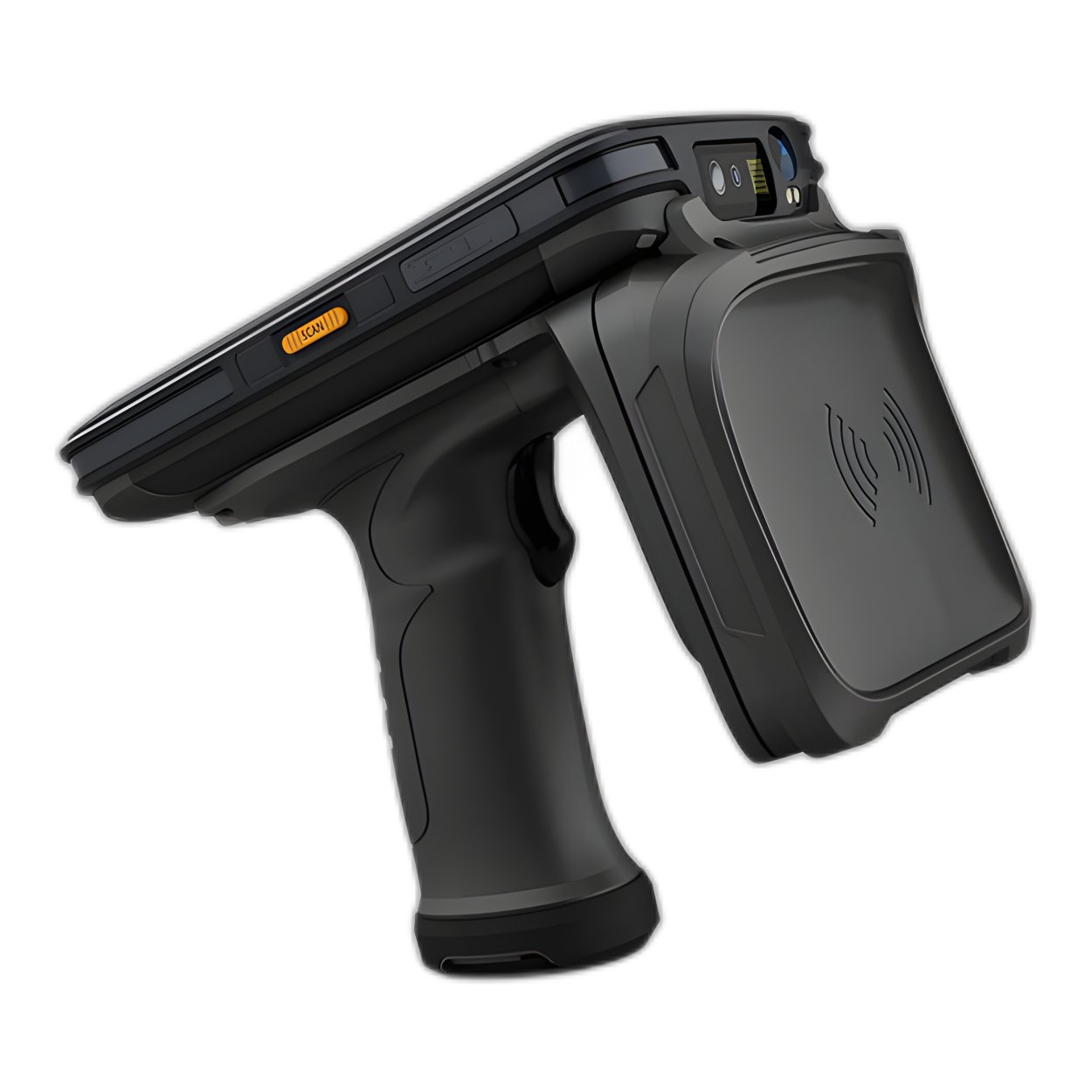

Chainway C72 UHF 4G RFID Reader Android 11 Rugged Handheld Scanner C72AL-2SE-N-PCC8R4A13

Chainway C72 UHF 4G RFID Reader Android 11 Rugged Handheld Scanner C72AL-2SE-N-PCC8R4A13

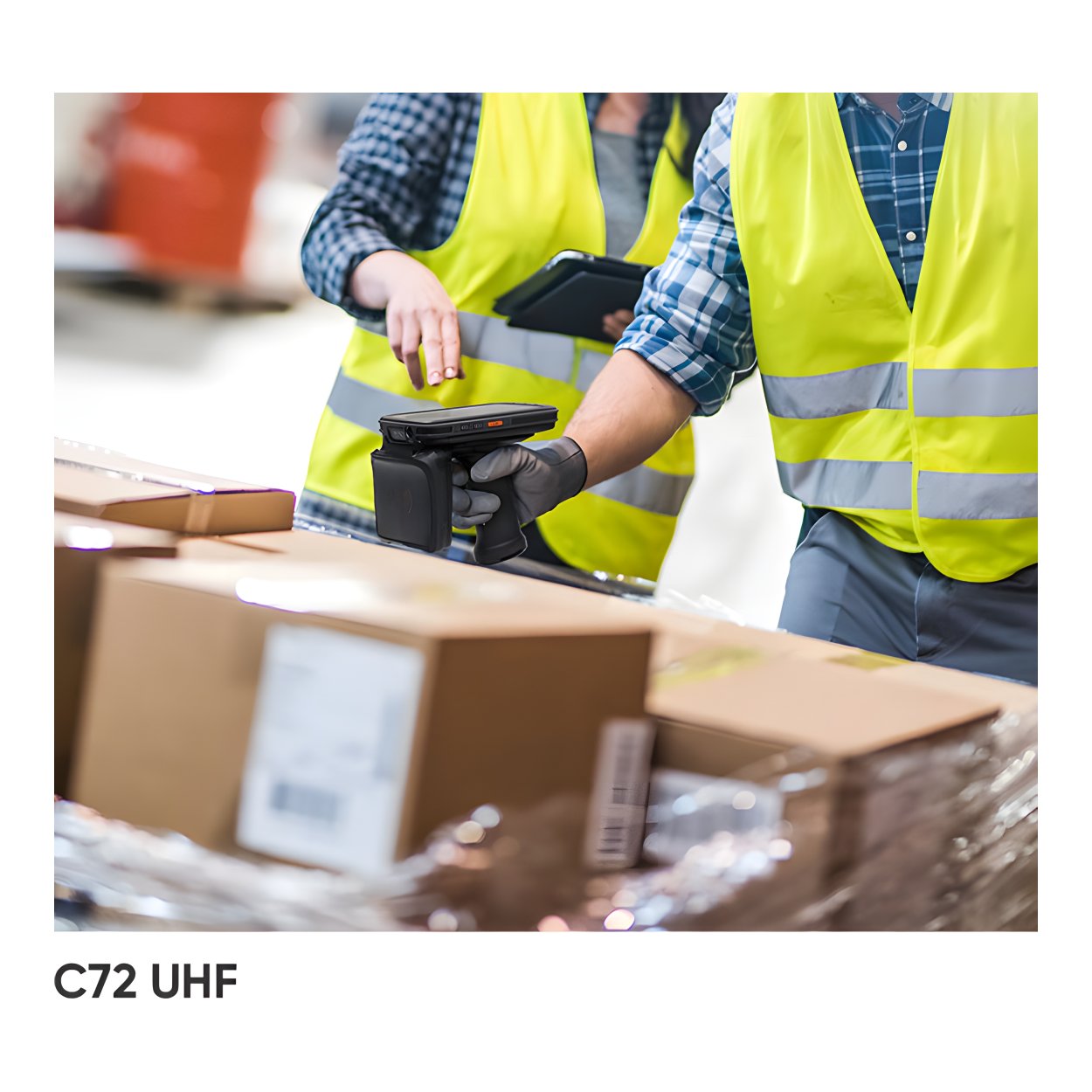

Chainway C72 is an Android rugged RFID reader that boasts best-in-class UHF RFID capability. Built with embedded Impinj E Series chips and supports Impinj Gen2X, it enables more than 30m read distance and more excellent performancs. The RFID reader features optional barcode scanning, Octa-Core processor and 8000mAh powerful battery to perfectly meet demands in intensive applications, especially in asset management, retail, warehousing, apparel inventory, expressway toll, fleet management, finance, etc.

Features:

• Best-Selling Handheld RFID Reader
• High-Performance Octa-Core 2.3GHz
• 8000mAh Battery
• Host IP65 & 1.5m / 5ft. Drop

Functions:

• Self-Developed UHF Module Based on Impinj E Series chips
• Impinj Gen2X for Enhanced UHF Performance
• 1300+ Tags/s Read Rate
• 30m+ / 100ft.+ Read Range
• Barcode, NFC, and More
• Supports Precise RFID Tag Positioning

Technical Specifications:

Physical Characteristics

Dimensions
Dimensions: 166.2 × 81.1 × 24.1 mm
Dimensions with UHF Handle: 177 × 88.6 × 145.8 mm

Weight
Weight: 375 g (Host)
Weight with UHF Handle: 654 g

Display
Display: 5.2-inch IPS LTPS Display
Resolution: 1920 × 1080

Touch Panel
Touch Panel: Corning Gorilla Glass Multi-Touch Panel
Glove Support: Yes
Wet-Hand Operation: Yes

Power
Battery Type: Rechargeable Li-Ion Battery
Battery Capacity: 8000 mAh
Standby Time: Over 500 Hours
Continuous Use: Over 12 Hours
Charging Time: 3–4 Hours

Notifications
Notifications: Sound, LED Indicator

Expansion & Interfaces
Expansion Slot: 1 × Nano SIM Slot, 1 × Nano SIM or TF Card Slot
Interfaces: USB Type-C 2.0, OTG, Type-C Headphone Support

Audio
Microphone: 1
Speaker: 1
Receiver: Yes

Keypad

• 4 × Front Keys
• 1 × Power Key
• 2 × Scan Keys
• 1 × Multifunction Key

Sensors

• Light Sensor
• Proximity Sensor
• Gravity Sensor

Communication

WLAN
Wireless Standards: IEEE 802.11a/b/g/n/ac
Frequency Bands: 2.4 GHz, 5 GHz Dual-Band
Antenna Type: Internal

WWAN
2G Bands:

• GSM 850
• GSM 900
• DCS 1800
• PCS 1900

3G Bands:

• WCDMA B1, B2, B4, B5, B8
• CDMA2000 EVDO BC0
• TD-SCDMA A/F

4G Bands:

• B1
• B2
• B3
• B4
• B5
• B7
• B8
• B12
• B13
• B17
• B20
• B28A
• B28B
• B34
• B38
• B39
• B40
• B41

WWAN Support: Country ISP Dependent

Bluetooth
Bluetooth Version: 5.0

GNSS
GNSS Support: GPS, A-GPS, GLONASS, BeiDou
Antenna Type: Internal

Development Environment

Operating System
Operating System: Android 11 / Android 13
Features: GMS, 90-Day Security Updates, Zero-Touch, FOTA, SOTI MobiControl, SafeUEM Support

SDK
SDK: Chainway Software Development Kit

Programming Language
Language: Java

Development Tools
Tools: Eclipse, Android Studio

Performance

Processor
CPU: Octa-Core 2.3 GHz

Memory
RAM: 3 GB
Storage: 32 GB
Optional Memory Configuration: 4 GB RAM + 64 GB Storage

Storage Expansion
MicroSD Support: Up to 256 GB TF Card

Environmental Specifications

Operating Environment
Operating Temperature: -20°C to 50°C
Storage Temperature: -40°C to 70°C
Operating Humidity: 5% to 95% RH (Non-Condensing)

Durability
Drop Specification: Multiple 1.5 m Drops to Concrete Across Operating Temperature Range
Tumble Specification: 1000 × 0.5 m Falls at Room Temperature
Ingress Protection Rating: IP65
ESD Protection: ±15 kV Air Discharge, ±6 kV Conductive Discharge

Barcode Scanning

1D Linear Scanner
Scanner Option: Honeywell N4313

2D Imager Scanner
Scanner Options:

• Zebra SE4710
• Zebra SE4750SR
• Zebra SE4750MR
• Zebra SE4750DP
• Honeywell N6603
• CM60

1D Symbologies

• UPC/EAN
• Code 128
• Code 39
• Code 93
• Code 11
• Interleaved 2 of 5
• Discrete 2 of 5
• Chinese 2 of 5
• Codabar
• MSI
• RSS

2D Symbologies

• PDF417
• MicroPDF417
• Composite
• RSS
• TLC-39
• Data Matrix
• QR Code
• Micro QR Code
• Aztec
• MaxiCode
• US PostNet
• US Planet
• UK Postal
• Australian Postal
• Japan Postal
• Dutch Postal (KIX)

Note: Barcode Scanning Function is Optional

UHF RFID

RFID Engine
Engine: Based on Impinj E Series Chips

RFID Specifications
Frequency: 865–868 MHz / 920–925 MHz / 902–928 MHz
Impinj Gen2X: Supported
Protocol: EPC C1 GEN2 / ISO18000-6C
Authentication Support: GS1 EPC Gen2v2 Authenticate, ISO/IEC 29167-11
Antenna Type: Circular Polarisation

RF Output Power
Output Power: 1 W (30 dBm, Adjustable from +5 dBm to +30 dBm)
Optional Output Power: 2 W (33 dBm)

Performance
Maximum Read Rate: 1300+ Tags per Second

Read Range

• Up to 26 m (Impinj MR6 Tag, 70 × 15 mm)
• Up to 28 m (Impinj M750 Tag, 70 × 15 mm)
• Up to 30 m (Alien H3 Anti-Metal Tag, 130 × 42 mm)

Note: Performance and Range May Vary Depending on Tags and Environmental Conditions.
Note: UHF RFID Function is Optional.

Camera
Camera: 13 MP Autofocus Camera with Flash

NFC

NFC Specifications
Frequency: 13.56 MHz
Protocols:

• ISO14443A/B
• ISO15693
• NFC-IP1
• NFC-IP2

Supported Chips:

• M1 Card (S50, S70)
• CPU Card
• NFC Tags

Read Range: 2–4 cm
