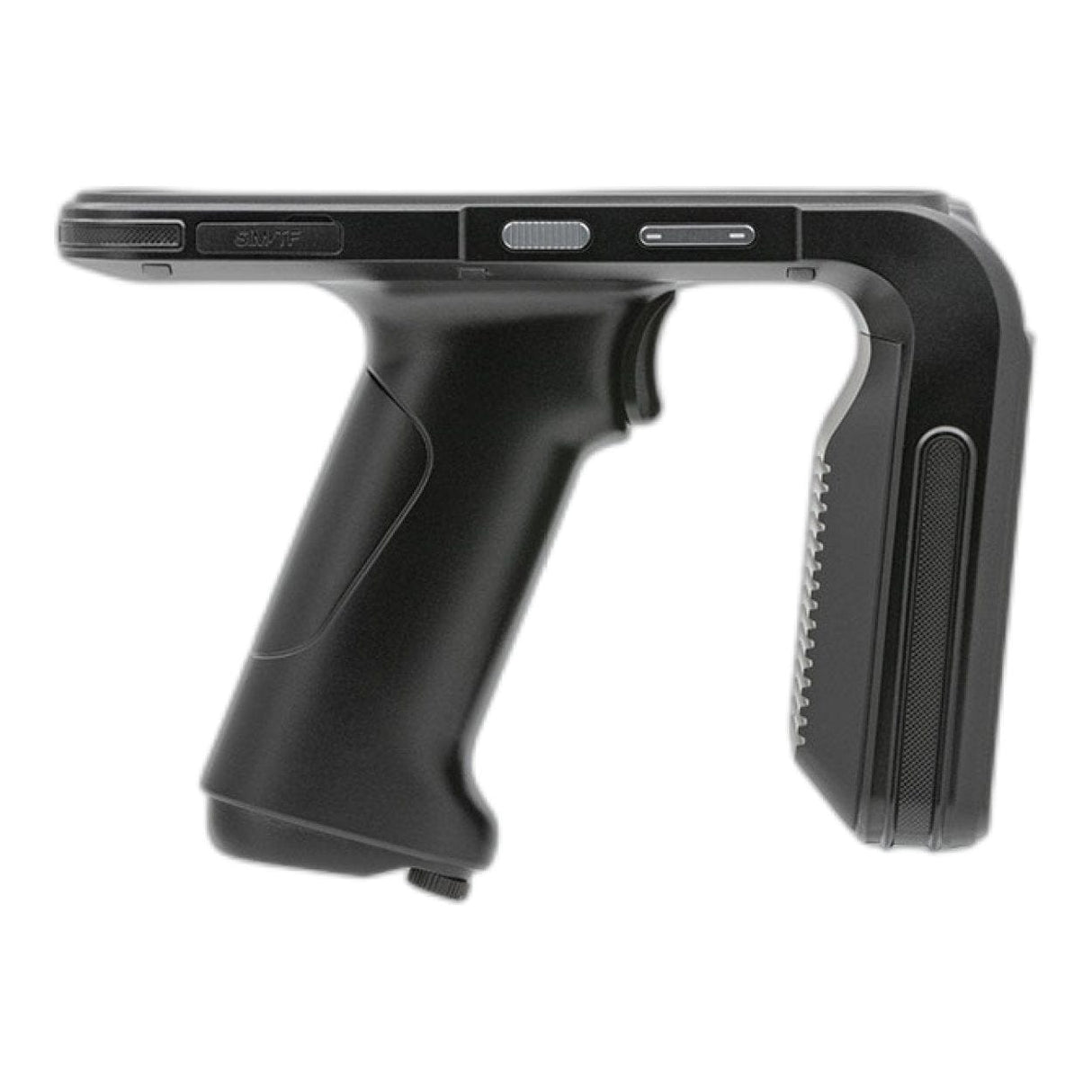

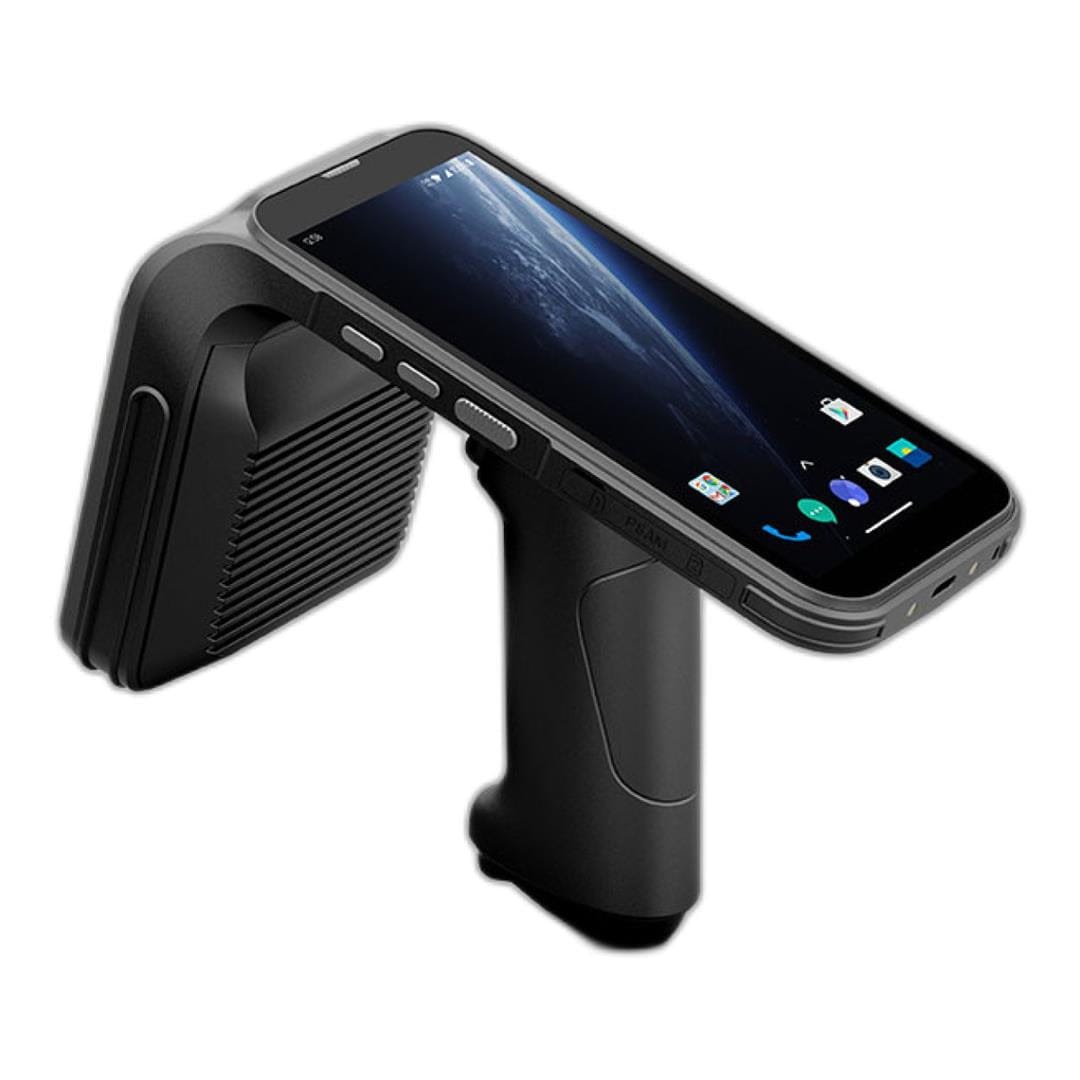

Chainway C5 6-inch UHF RFID Reader - Octa-core 64GB Flash 4GB RAM Wi-Fi LTE Android 13

Chainway C5 6-inch UHF RFID Reader - Octa-core 64GB Flash 4GB RAM Wi-Fi LTE Android 13

Stronger UHF Performance, Higher Security and Reliability

Chainway C5 is an all-in-one high-performance UHF RFID Reader. It integrates with Impinj E Series chips and supports Impinj Gen2X, offering industry-leading UHF performance. C5 adopts an integrated design, provides more stable UHF performance, and delivers higher durability. It features Android 13, octa-core processor, optional mass internal memory and a large capacity removable battery. C5 also supports 2D scanning, NFC, fingerprint recognition and other functions, which enables it to be widely used in banking, public security, warehousing, retail, logistics and other industries.

• Integrated UHF Design
• Octa-Core 2.3GHz
• 5" Fingerprint & 6" Large Screen Options
• 6700mAh / 13,400mAh Removable Battery
• IP65 & 1.5m Drop

Specifications:

Dimensions: 178.8 x 96.5 x 128.4mm

Weight: 626g (device with battery)

Display: 5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080

Touch Panel: Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass

Power: 6700mAh / 13400mAh removable pistol battery

Notification: Sound, LED indicator, vibrator

Interfaces: USB 2.0 Type-C, OTG, Type-C headphones supported

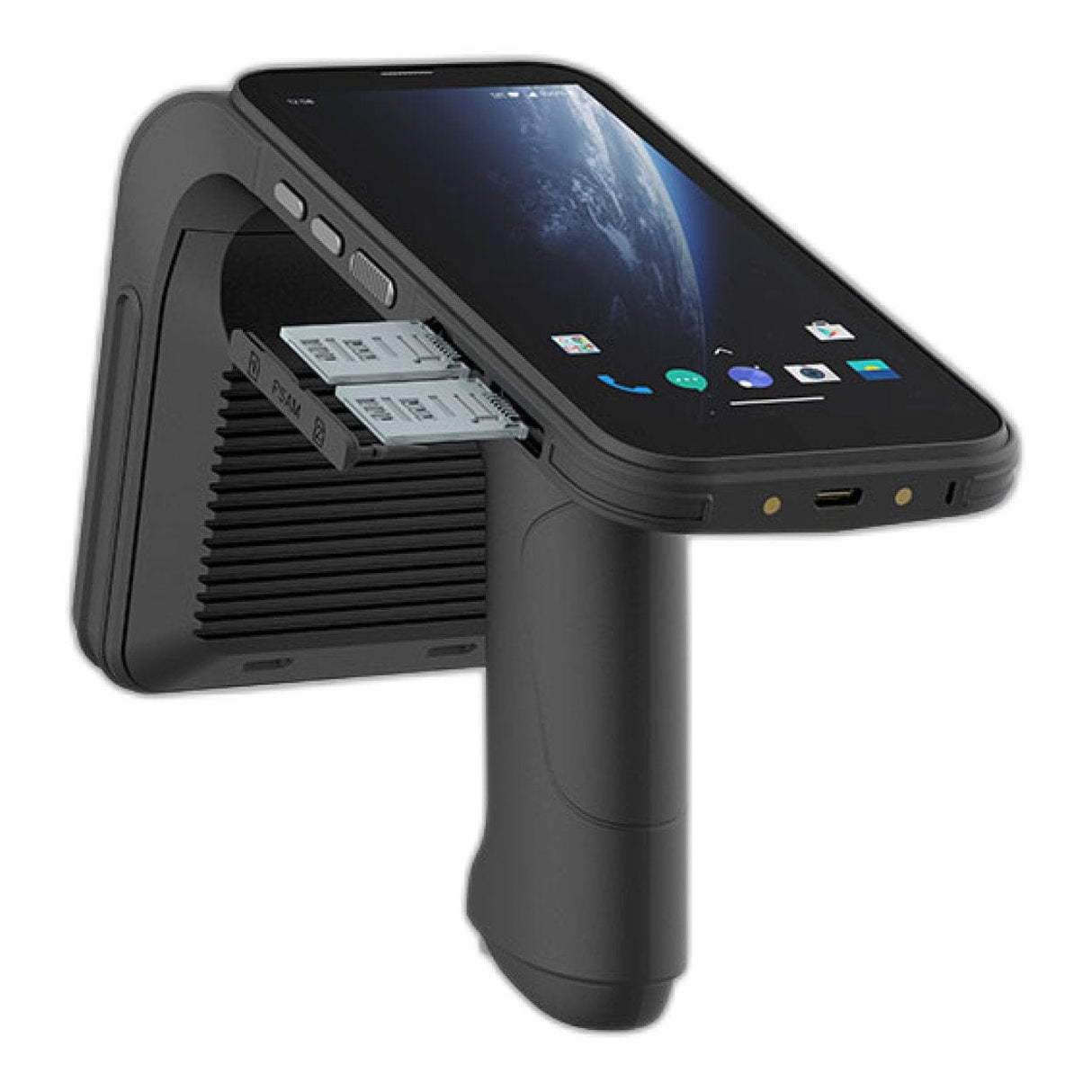

Card slot: 2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card

Audio: 1 microphone; 1 speaker; 1 receiver

Keypad: 1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)

Sensors: Gravity sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope

Operating System: Android 13

SDK: Chainway Software Development Kit

Language: Java

Tool: Eclipse / Android Studio

CPU: Octa-core, 2.3GHz

RAM+ROM: 4GB + 64GB

Expansion: Supports up to 512GB Micro SD (TF) card

UHF RFID

Engine: Based on Impinj E Series chips

Frequency: 865-868MHz / 920-925MHz / 902-928MHz

Impinj Gen2X: Supported

Protocol: EPCglobal Gen 2 (ISO18000-6C)

Output Power: 1W (30dBm, +5dBm to +30dBm adjustable)

Fastest Read Rate: 1300+ tags / sec (Circular Polarized)

Max Read Range:

• 30m (Impinj MR6 tag, size 70 x 15mm)
• 32m (Impinj M750 tag, size 70 x 15mm)
• 33m (Alien H3 Anti-Metal tag, size 130 x 42mm)

*Ranges and rates depend on tags and environment

Front Camera: 5MP

Rear Camera: Rear 13MP Autofocus with flash

WLAN: 802.11 a / b / g / n / ac, 2.4G / 5G dual-band, 2*2 MIMO antennas (Optional)WWAN2G: GSM (B2 / B3 / B5 / B8)

3G: WCDMA (B1 / B2 / B4 / B5 / B8) CDMA2000 ECDO: BC0

4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41Bluetooth5.0Vo-LTESupportGNSSGPS / AGPS, GLONASS, BeiDou, Galileo
