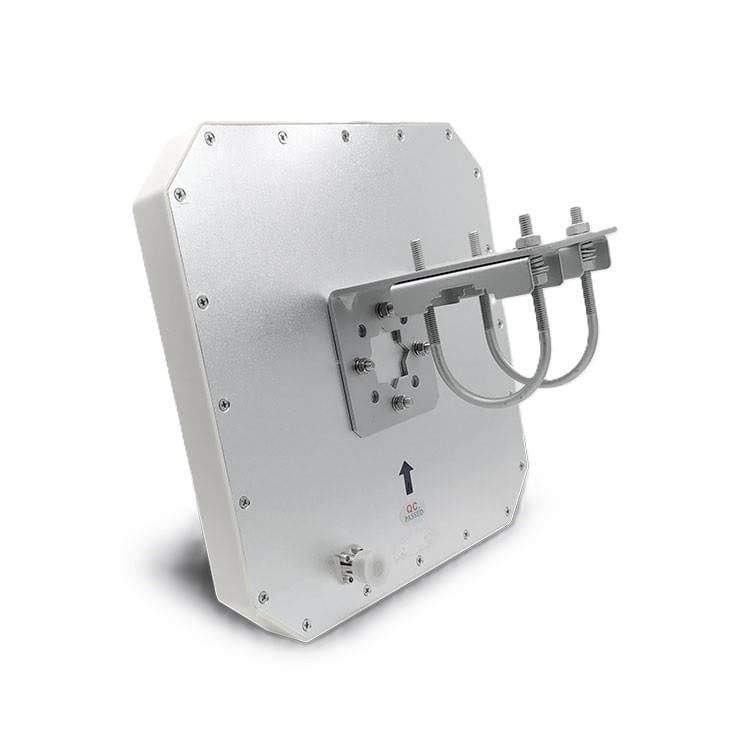

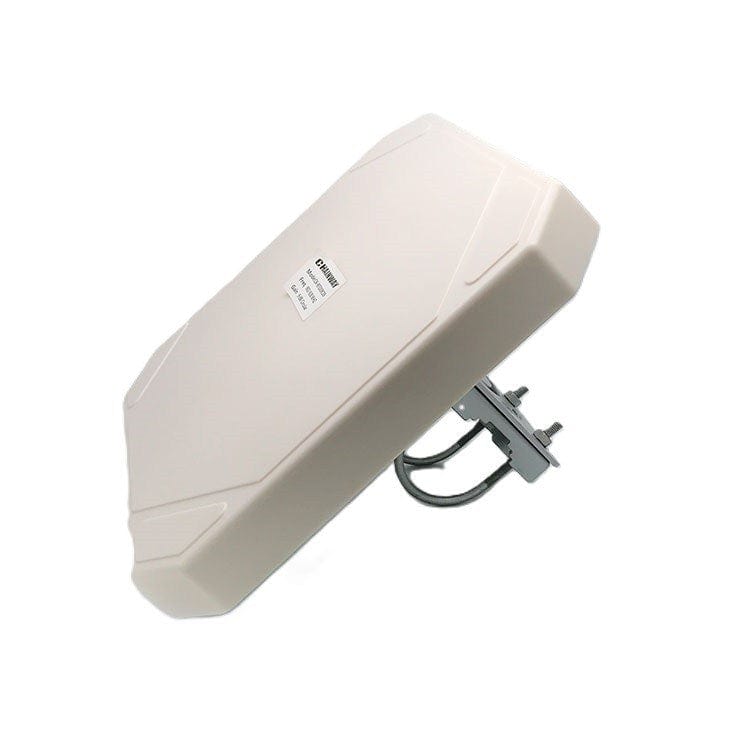

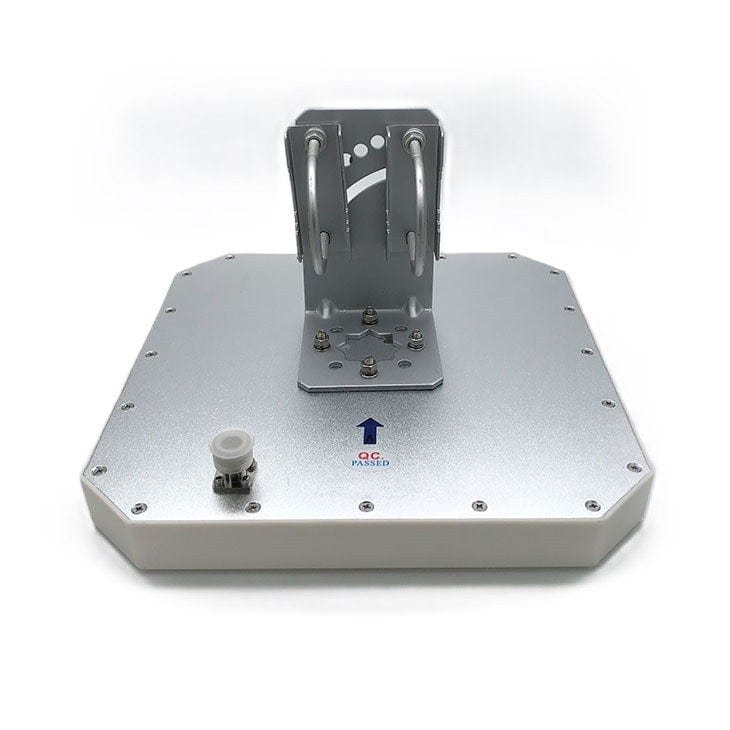

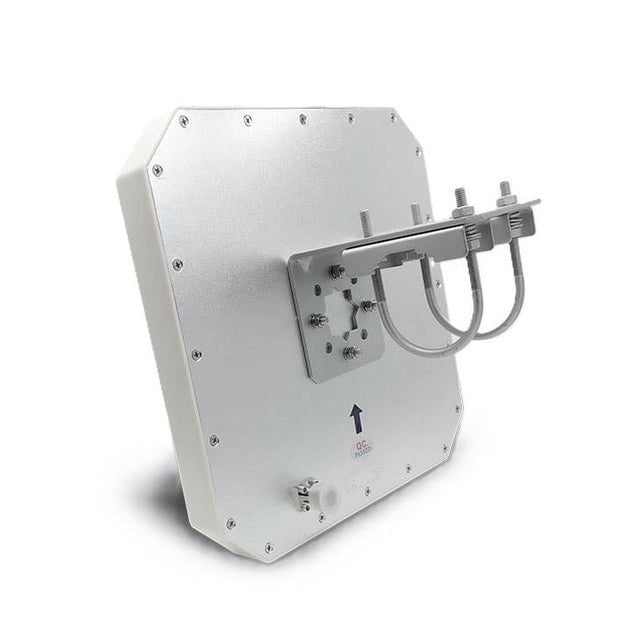

Chainway Ant-RC09 9dBi Panel Antenna 9DBI-ANTENNA

Chainway Ant-RC09 9dBi Panel Antenna 9DBI-ANTENNA

Environmental Adaptability, Easy Installation

This is the 9dBi Panel Antenna launched by Chainway. With the characteristics of fast reading/writing speed, while it could support long-distance reading and bulk-tags reading with the assurance of high data security. The device is portable, lightweight, and effortless to install, and intermittently has a high IP protection rating. Keeping this in consideration, Ant-RC09-255/255 is an ideal antenna to be deployed in various industries like logistics, warehousing, transportation, retail, medical treatment, electricity power, finance, ticket management, and livestock industry, etc.

Specifications

Electrical
Frequency Range                               902-928MHz / 865-868MHz
Polarization Type                              RHCP
Gain                                                     9dBi
3dB Beam-Width. H-Plan               60°
3dB Beam-Width. E-Plan               55°
VSWR                                                 ≤1.3
Front to back Ratio                          ≥17dB
Input Impedance                             50Ω
Max Input Power                             20W
Lightning Protection                       DC Grounded

Mechanical
Connector Type                                N-Type Female
Dimensions H*W*D (mm)            255*255*30(mm)
Weight                                               1.27kg(with mounting bracket)
Radome Material                            ABS
Radome colour                                 Off-white
Radiant board material                  aluminum
Operating Temperature                 -40ºC/+60ºC
Sealing                                               IP67
Installation mode                            Pole mounted or Wall mounted
Support Pole Diameter                   φ30-φ50(mm)
Rated Wind Velocity                       60m/s

Application:
Logistics & Warehouse, production line and shelves management
Access control, parking lot management
Retail & Garment industry
Anti-counterfeit management
Material management, Medical equipment, Electricity, Military equipment, Financial, Ticket, Animal husbandry etc.
Features:
Antenna and reader is separated
Light weight and small size, low profile, install and use conveniently
Fast read & write, high performance, convenient, Long read & write distance
IP67
Order Description:
865-868MHz: Ant-RC09-255/255-EU
902-928MHz: Ant-RC09-255/255-CA
Available Accessories:
Antenna cables(optional, customizable):
Ant-CA-SMA.M/N.M-LMR2-1M
Ant-CA-SMA.M/N.M-LMR2-5M
Ant-CA-SMA.M/N.M-LMR2-15M
Ant-CA-SMA.M/N.M-LMR4-5M
Ant-CA-SMA.M/N.M-LMR4-15M
Mounting sets(optional):
Pole mounting bracket: Ant-MOT-RC09-255/255-P
Wall mounting bracket: Ant-MOT-RC09-255/255-W
