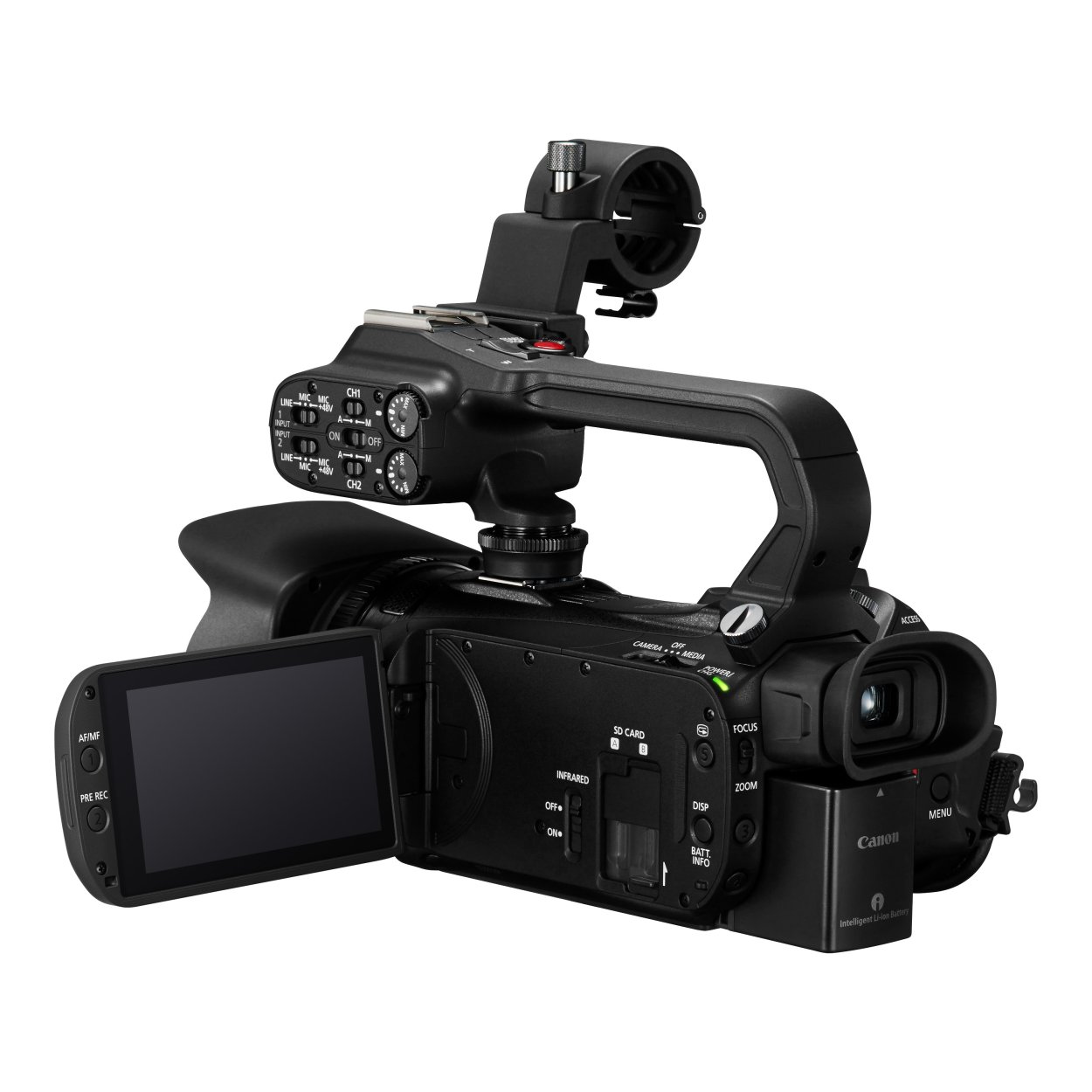

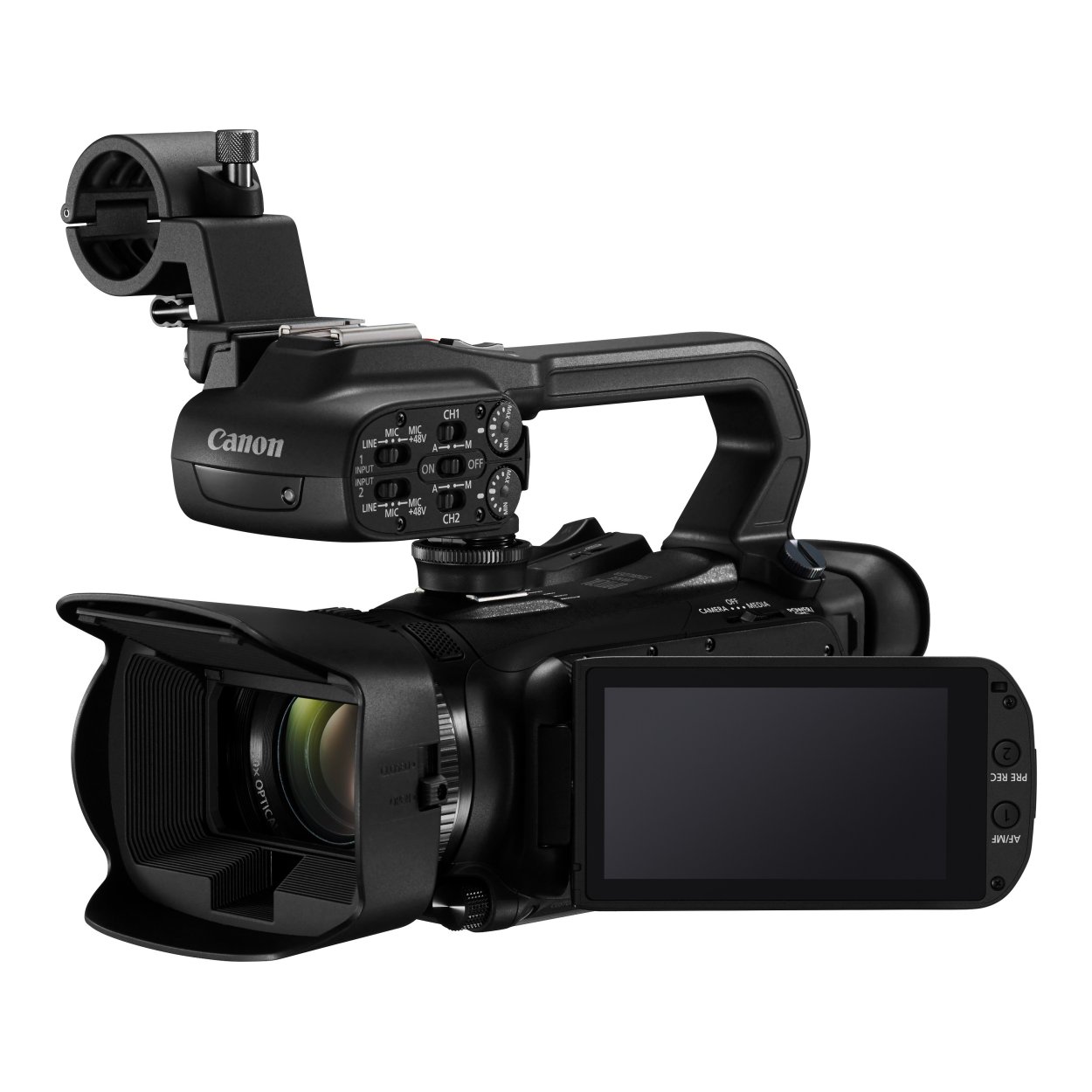

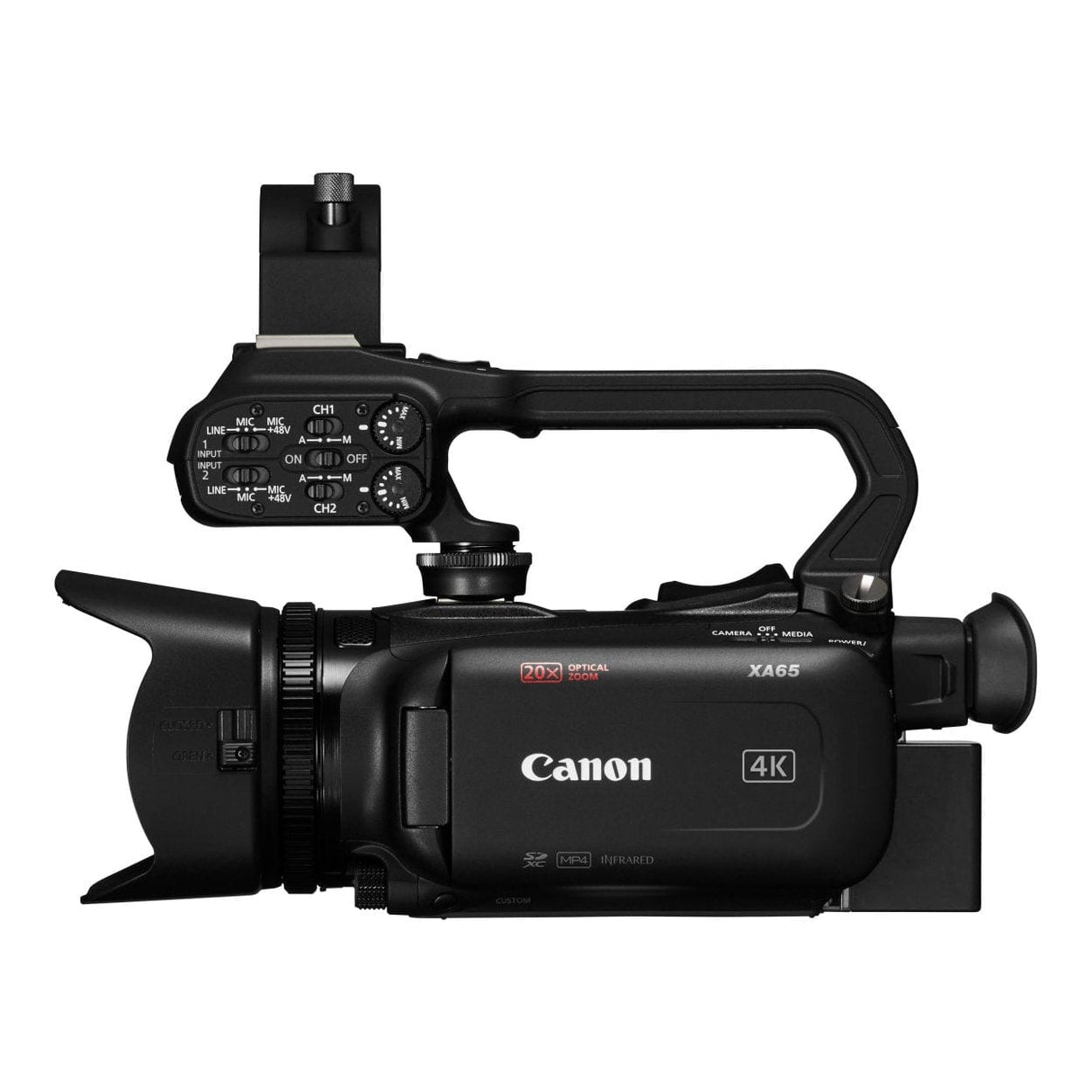

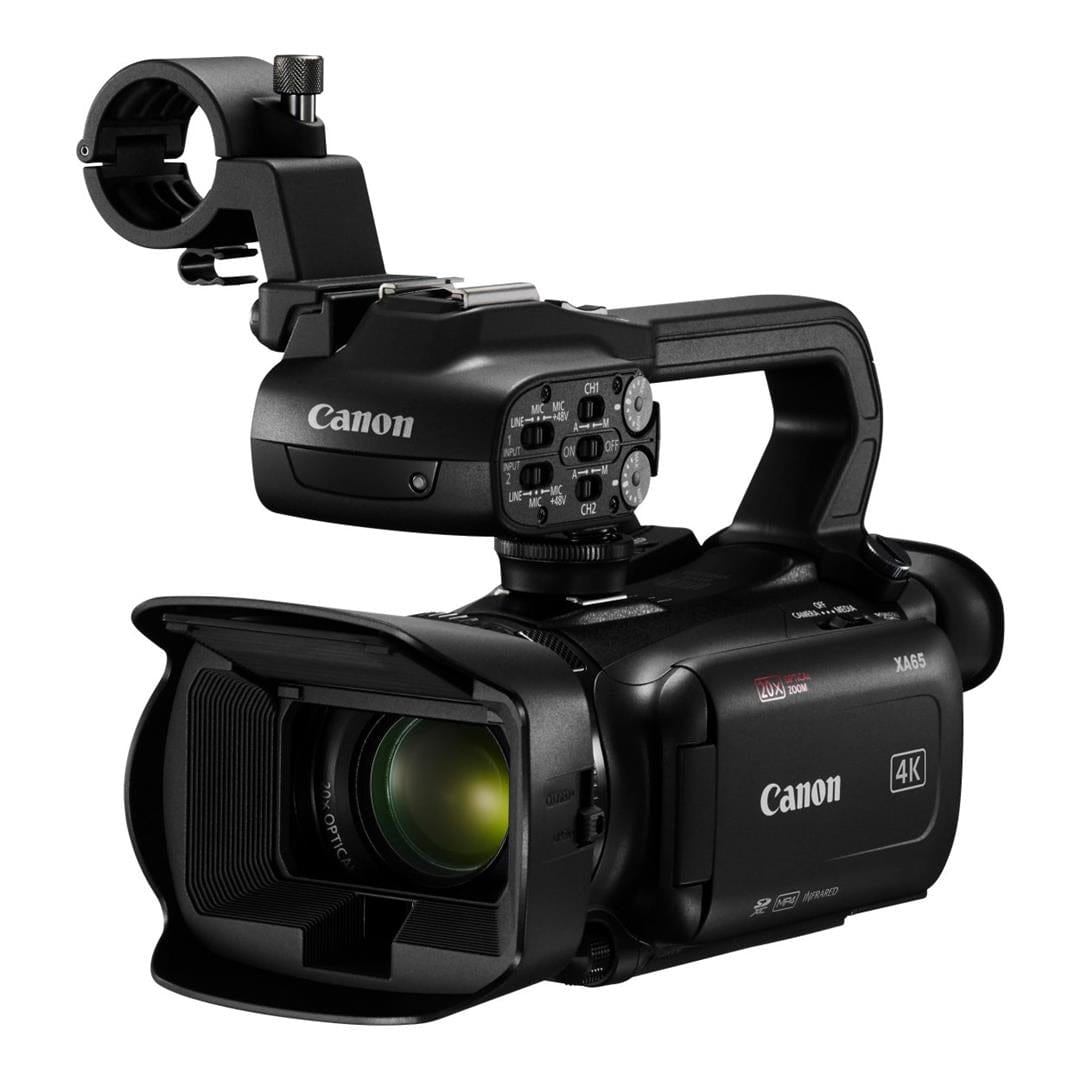

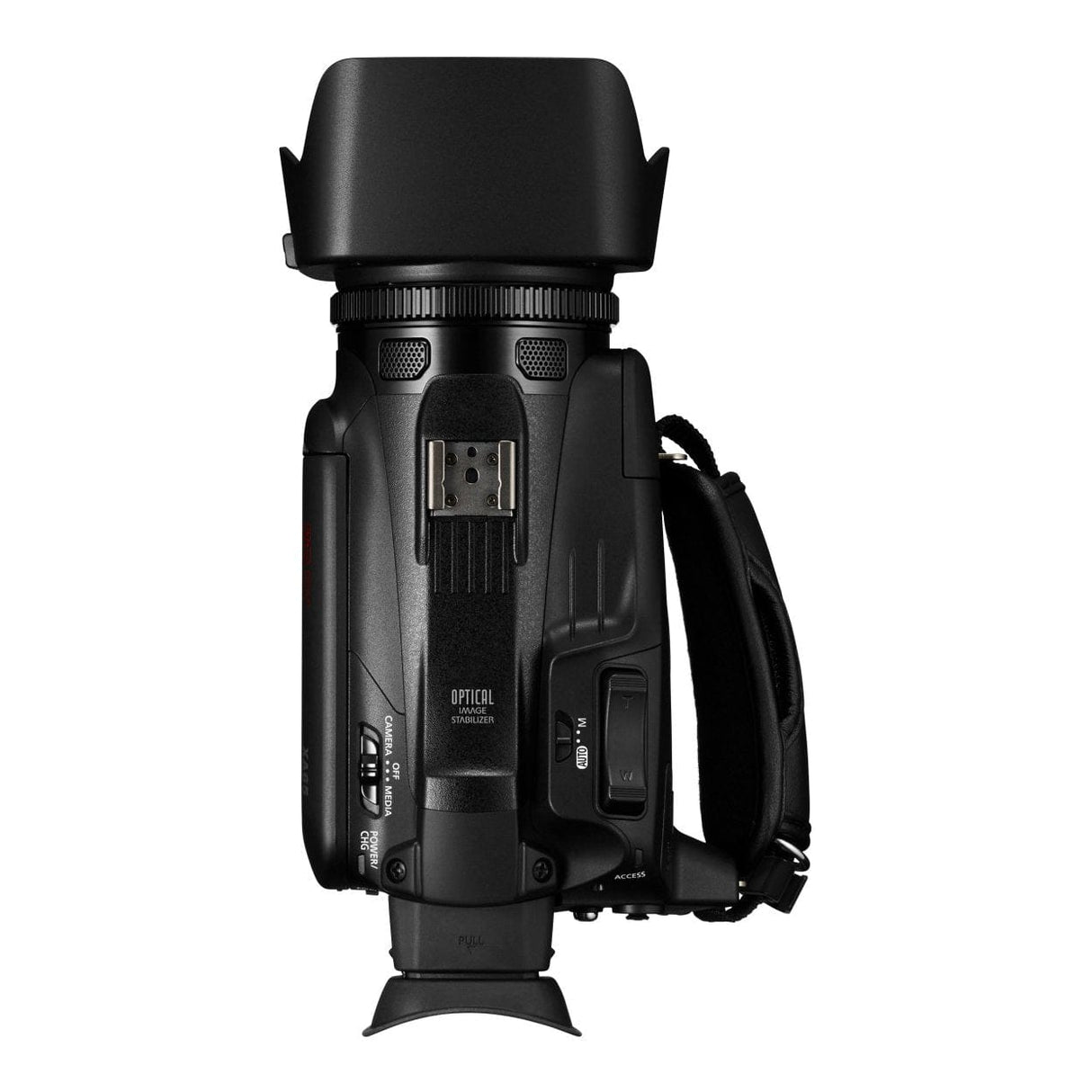

Canon XA65 Professional UHD 4K Camcorder 5732C003

Canon XA65 Professional UHD 4K Camcorder 5732C003

The Canon XA65 is a lightweight 4K professional video camera perfect for news gathering, education or documentary filmmaking. It’s a camcorder designed for agile video capture, recording high quality footage that can easily be incorporated into a wider workflow thanks to 3G-SDI and HDMI outputs. With outstanding Over Sampled HD processing, advanced autofocus, a Canon 20x optical zoom lens and HD livestreaming in UVC¹ via USB-C over a computer, it’s easy to capture footage and record onto SD, SDHC and SDXC cards – or share it later in either XF-AVC or MP4 formats.

Features:

• 4K UHD professional camcorder
• 1/2.3"-type CMOS sensor, DIGIC DV6 processing
• 20x optical zoom, 5-axis Image Stabilizer

Capture stunning 4K UHD and superior Full HD images thanks to a 4K 1/2.3" type CMOS sensor and DIGIC DV6 image processor. Over Sampled HD processing delivers Full HD images from the 4K sensor

The Canon lens covers a 29.3 mm wide angle (35 mm equivalent) plus a powerful 612 mm reach with Dynamic IS. A digital zoom boosts to 800x with 5-axis image stabilisation

Adjustable focusing speeds and an advanced Hybrid AF system give fast and precise focusing

Use the 3.5-inch LCD display to set focus by touching the AF point required

Record XF-AVC 4K UHD 160 Mbps at 25P, plus Full HD 45 Mbps at 50P/50i/25P. For smaller files, record MP4 4K 150 Mbps at 25P and Full HD 35 Mbps or 17 Mbps at 50P/25P

Output options include 3G-SDI, HDMI, simultaneous backup and relay recording via dual SD card and Infrared mode

For creative video, record Slow Motion in Full HD 0.5x or Fast Motion in 4K/Full HD up to 1200x. Colour match with other Canon cameras via the custom picture menu

Stream HD footage via UVC¹ over a computer or add a date and time stamp with OSD recording. Two XLR terminals on a detachable handle plus 4-channel linear PCM bring pro audio options

Technical Specifications:

Image Sensor
Sensor: 1/2.3-type CMOS
Filter: RGB Primary Colour Filter
Total Pixels: Approx. 21.14MP
Effective Pixels per Sensor: Approx. 8.29 MP (3840 x 2160)
Subject Illumination Range: Approx. 0.3 lx to 100,000 lx
Minimum Illumination (PAL): P Mode: Approx. 4.2 lx (shutter speed 1/25 sec with auto slow shutter On), Low Light Mode: Approx. 0.3 lx (shutter speed 1/2 sec.)

Image Processor
Type: DIGIC DV 6
Colour Sampling: YCC 4:2:0 8bit

Lens
Zoom Ratio: 20x Optical
Focal Length (35mm Equivalent): Approx. 29.3 - 601mm Standard IS/IS Off
Minimum Focus Distance: 1 cm at wide end, 60 cm across entire zooming range
Max. Aperture: f/1.8 - 2.8 (AV Priority and Manual Modes)
Aperture Blades: 8 blades
Filter Diameter: 58mm
Image Stabilization System: Optical system (lens shift) + electronic stabilization Dynamic, Standard, Powered IS, Off
ND Filter: Built-in gradation filter (Auto or Off)
Zoom Control: Zoom rockers on body and handle; Selectable manual zoom/focus ring on lens; Selectable High Speed and Soft Zoom modes available
Zoom Speed: Variable (body rocker only) or Constant speed (body and handle rocker; Fast/Normal/Slow, 16 speed level settings in each)

Focus Control
Manual: Lens ring and touchscreen point selection (Magnify and Peaking assist), Focus Preset
Autofocus: Touchscreen AF point selection, Face Detection and Tracking, Touch and Track, Face Only AF (Instant AF, Medium AF, Normal AF)
Focus System: Hybrid AF (High Speed/Medium speed) using TTL-video signal detection and external phase difference metering; Normal AF: TTL, Contrast based AF
Iris Control: Touchscreen, Auto
Digital Zoom/Teleconverter: 20x digital zoom (400x with optical zoom) and 40x digital zoom (800x with optical zoom); 2x Digital Teleconverter

Recording
Video Storage Media: SD/SDHC/SDXC card (2 card slots)
Recording Time: 150Mbps: 55 mins / 35Mbps: 240 mins / 17Mbps: 495 mins
Recording File System: FAT32/exFAT
Internal Recording Format (PAL): XF-AVC: 3840x2160 / 25.00P (160 Mbps), 1920x1080 / 50.00P, 50.00i, 25.00P (45 Mbps); MP4: 3840x2160 / 25.00P (150 Mbps), 1920x1080 / 50.00P, 25.00P (35, 17 Mbps)
External Recording Output: HDMI output and SDI output with UHD and Full HD recording modes
Slow/Fast Motion (PAL): UHD 3840x2160 / 25.00P: x2, x4, x10, x20, x60, x120, x600, x1200; 1920x1080 / 50.00P: x2, x4, x10, x20, x60, x120, x600, x1200; 1920x1080 / 25.00P: x0.5
Pre-Record Function: Yes, 3 seconds
Still Photos: JPEG up to 3840x2160
Photo Storage Media: SD Card

System
Display Type: Capacitive LCD touch panel
Size: 3.5-inch (8.8 cm) diagonal, Approx. 2,760,000 dots (1280 x RGB x 720)
Wave Form Monitor: No
Focus Assist: Peaking / Magnify, Selectable Peaking Colour: Red / Blue / Yellow
Zebra: 70% or 100% reference level
Markers: Grid (white/grey), Level (white/grey), 4:3 (white/grey)
EVF: Size 0.36-inch (0.92 cm diagonal), Approx. 1,770,000 dots (1024 x RGB x 576), Correction Lens +2.0 to -5.5 dioptre

Inputs / Outputs
Audio Input: XLR 3-pin jack (x2) with 48V phantom power, Line and Mic options; 3.5mm mic input (2.4V DC)
Built-in Mic: Yes
Headphone Output: 3.5mm stereo mini jack
HDMI Output: HDMITM mini connector
USB: Type-C, Hi-Speed USB (USB 2.0), UVC supported
SDI Output: 3G-SDI
Time Code: Rec Run / Free Run
Genlock: No
LAN: No
AV Terminal: No
DC Input: USB-C
Remote Control Terminal: 2.5mm mini jack

Miscellaneous
Tally Lamp: Yes, in detachable Handle Unit
Colour Bars (PAL): Yes, SMPTE, ARIB or EBU, with 1KHz Tone
Accessory Shoe: Yes (cold shoe)
Assignable Buttons: 5 assignable Buttons
Custom Dial: Iris/Shutter/Gain, AGC Limit, Exposure Compensation, Off

Exposure
Exposure Metering: Center-weighted average, AUTO, P, Av, Tv, Portrait, Sports, Low Light, IR modes; Segment evaluative metering: Night Scene, Snow, Beach, Sunset, Spotlight; No metering in Fireworks mode
Exposure Compensation: Highlight AE, Normal, Exposure lock, Auto backlight compensation
Exposure Lock: Yes
Auto ISO / Auto Gain Control Setting: Auto / Manual
Auto Gain Control Limit: 0 - 23dB (1dB increments)
Shutter Speed: Auto, P, Tv, Manual; PAL: 1/6 - 1/2000 sec (1/2 - 1/500 sec Low Light mode)
Slow Shutter (SLS): 50.00P: Auto slow shutter On: 1/25 to 1/500 sec; Off: 1/50 to 1/500 sec; 25.00P: Auto slow shutter On: 1/12.5 to 1/500 sec; Off: 1/25 to 1/500 sec
Clear Scan (PAL): No

Streaming, Wi-Fi, & GPS Specifications
Wi-Fi: No
GPS Information (Optional Accessory): Location (Latitude/Longitude/Altitude), UTC, Satellite reception (requires GPS Receiver GP-E2)

White Balance
Auto: Yes
Preset: Daylight (Approx. 5,600K), Tungsten (Approx. 3,200K)
Manual Setting: Colour Temperature range 2,000–15,000K, default 5,600K

Shooting Modes
Program AE, AUTO, M, P, Tv, Av, SCN (Portrait, Sports, Night Scene, Snow, Beach, Sunset, Low Light, Spotlight, Fireworks) IR mode
Custom Picture Menu: C1: Normal (BT.709 Normal / BT.709), C2-C6: USER02 to USER06
Look Settings: Standard (Sharpness, Contrast, Colour Depth)
Colour Matrix Settings: Neutral, Video mode higher contrast
Infrared Shooting Mode: Yes (green or white)
Built-in IR Lamp: Yes, in detachable Handle Unit, Wavelength 850nm

Audio
Recording Format: MPEG-2 AAC-LC (16-bit 2ch) / LPCM (16-bit 4ch)
Audio Control: Manual/Auto, Independent 2ch Line/Mic/Mic+48V input, Level control per channel (-∞ to +18 dB), Independent audio limiters (2 ch), Input mic trimming
Reference Tone: 1KHz, -12dB / -18dB / -20dB / Off
Microphone Attenuation: On/Off (20dB)
Microphone Level Meter: Yes

Accessories
Supplied: Lens hood with barrier, Mic holder unit, Handle Unit, Battery Pack BP-820, USB Power Adapter PD-E1, AC Cable
Optionals: Canon Battery Pack BP-820/BP-828, Canon Battery Charger CG-800E/CG-800, HDMI cables HTC-100/HTC-100S, Canon Tele Converter TL-H58, Wide Attachment WA-H58, Shoulder Strap SS-600/SS-650, Wrist Strap WS-20, PROTECT Filter 58mm, ND4-L Filter 58mm, ND8-L Filter 58mm, GPS Receiver GP-E2, Remote Controller RC-V100, Battery Video Light VL-10Li/VL-10LiII, BP-900 series (for VL-10Li/VL-10LiII), Compact Power Adapter CA-910/920/930, Interface Cable IFC-300PCU/S / IFC-400PCU

Power Source
Power Supply (Battery): Canon Battery Pack BP-820 (supplied), BP-828 (optional)
Power Consumption: UHD: MP4 150Mbps 25.00P: 4.5W; XF-AVC 160Mbps 25.00P: 4.5W; Full HD: MP4 35Mbps 50.00P: 4.6W; XF-AVC 45Mbps 50.00P: 4.6W

Recording Time
UHD: MP4 150Mbps/25.00p: Max 165 mins (BP-820), typical 95 mins; Max 240 mins, typical 140 mins (BP-828)
XF-AVC 160Mbps/25.00P: Max 160 mins (BP-820), typical 95 mins; Max 230 mins, typical 145 mins (BP-828)

Physical Specifications
Dimensions: Approx. 109 x 84 x 182 mm (main body only), Approx. 131 x 180 x 231 mm (including lens hood, BP-820, mic holder, handle unit)
Weight (Body Only): Approx. 750g
Weight (Accessories): Approx. 1140g
Operating Temperature Range: 0ºC to +40ºC, 85% relative humidity

What's in the Box:

• XA65 Professional Camcorder
• HDU-1 Handle Unit
• PD-E1 USB Power Adapter
• BP-820 Battery Pack
• Lens Hood with Lens Barrier
• Mic Holder
