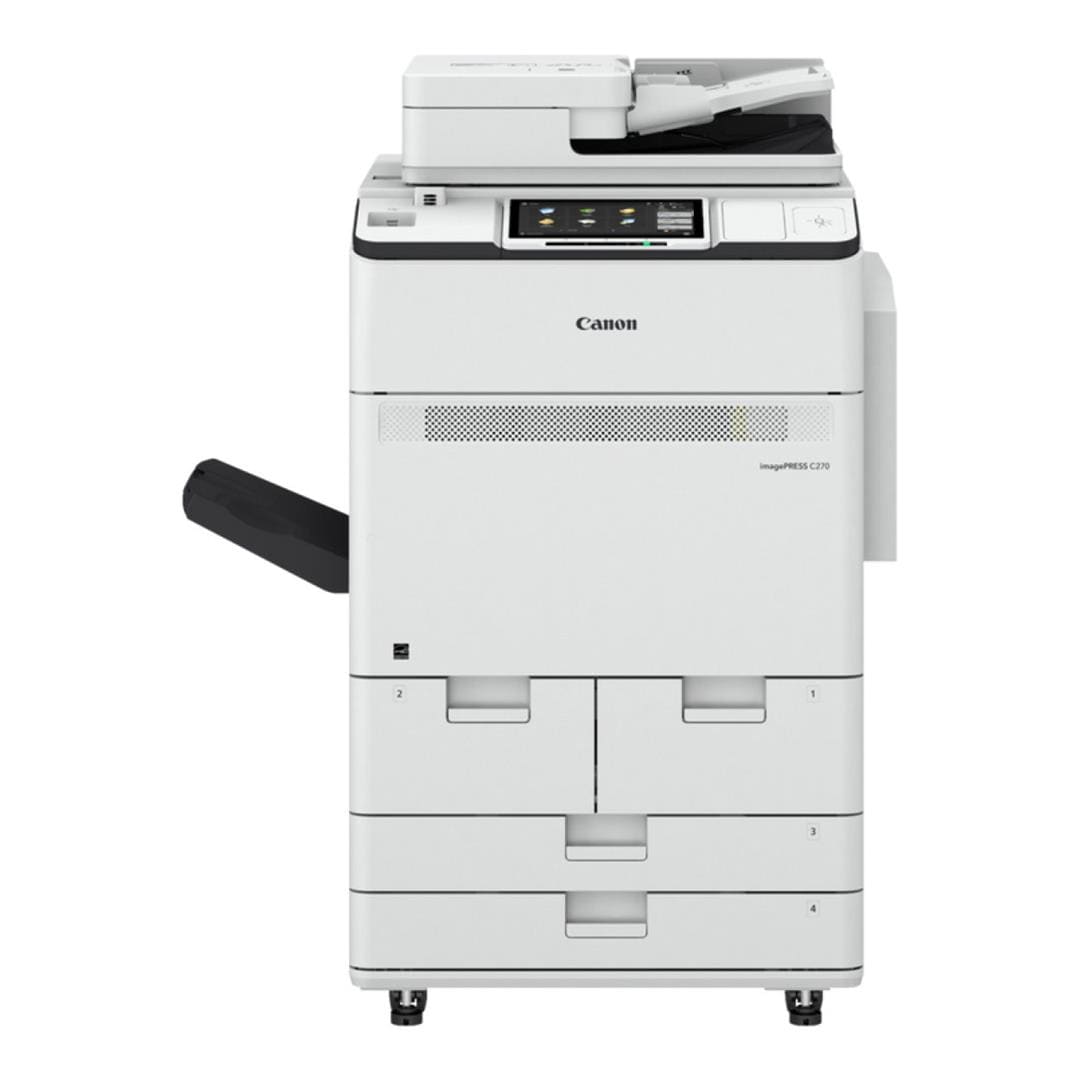

Canon imagePRESS C265 A3 Wi-Fi Multifunction Colour Laser Printer 5590C003

Canon imagePRESS C265 A3 Wi-Fi Multifunction Colour Laser Printer 5590C003

Maximise your business potential by amplifying your creative output

Create standout promotional materials with secure and efficient multifunction devices that upgrade your in-house printing with a wide range of professional applications.

Professional capabilities

Do more from a single device, with media support from A6 to SRA3, long sheet capability and media weights of up to 350 gsm, plus high-capacity finishing options.

High image quality

Quick and accurate performance with an outstanding print output from a cost-effective, reliable devices, featuring advanced colour management tools for consistency and quality control.

Reliable security

Advanced protection for your documents, device and network includes McAfee Embedded Control software, encrypted SSD and TPM 2.0, to help safeguard against potential data loss.

Specifications:

Product: Canon imagePRESS C265

Machine Type: A3 Color Laser Multifunctional

Core Functions: Print, Copy, Scan, Send, Store

Processor Speed: 1.8GHz Dual Core Processor

Control Panel: 10.1 inch TFT LCD WSVGA Colour Touch panel

Memory:

• Standard: 5.0GB RAM
• Main CPU Side: 2GB
• Image Processing CPU Side: 2GB + 1GB (reserved for image processing)

Storage:

• Standard: (SSD) 256GB
• GB Optional: (SSD) 1TB

Interface Connection

NETWORK:

• Standard: 1000Base-T/100Base-TX/10Base-T, Wireless LAN(IEEE 802.11 b/g/n)
• Standard: USB 2.0(Host) x1, USB 3.0(Host) x1, USB 2.0(Device) x1

Network Protocols:TCP/IP (FTP, SMTP, POP, HTTP, SNMP, LDAP, SLP, SMB, LPD, IPP, WS-Discovery, Bonjour, Direct Mobile Printing, Port9100, SNTP, 802.1X, DHCP, DNS, NTP)

Paper Supply Capacity (A4, 80 gsm):

• Standard: 3,550 sheets
• 250-sheet Multi-purpose tray,
• 1,100-sheet Paper Deck x 2,
• 550-sheet Paper Cassette x 2
• Maximum: 7,050 sheets (with POD DECK LITE-C1 or PAPER DECK UNIT-E1)

Paper Output Capacity (A4, 80 gsm):

• 250 sheets (with Copy Tray-R2)
• Maximum: 3,500 Sheets (with Staple Finisher-AC1 or Booklet Finisher-AC2)
• Maximum: 5,000 Sheets (with Staple Finisher-AG1 or Booklet Finisher-AG1)

Finishing Capabilities: With options: Collate, Group, Offset, Staple, Saddle Stitch, Hole Punch, Eco Staple, Staple On Demand, Document Insertion, Z-fold, Half-fold, C-fold, Accordion-Z fold, Double Parallel-fold, Trimming

Supported Media Types:

• Multi-purpose tray: Thin, Plain, Recycled, Color, Heavy, Coated, Textured, Tracing, Bond, Transparency, Label, Pre-punched, Letterhead, Tab, Envelope
• Paper Decks (Right/Left): Thin, Plain, Recycled, Color, Heavy, Tracing, Bond, Transparency, Bond, Pre-punched, Letterhead
• Paper Cassettes (Upper/Lower): Thin, Plain, Recycled, Color, Heavy, Bond, Transparency, Pre-punched, Letterhead, Tab*1, Envelope*2

*1 Tab Feeding Attachment-F1 is required
*2 Envelope Feeder Attachment-F1 is required.

Supported Media Sizes:

Multi-purpose tray:

• Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
• Custom size: 90.0 x 148.0 mm to 330.2 x 487.7 mm
• Long size: 210.0x487.8 mm to 330.2x1,300.0mm*1
• Free size: 100.0 x 148.0 mm to 330.2 x 487.7 mm
• Envelope: COM10 No.10, Monarch, DL, ISO-C5
• Envelope custom size: 90.0 x 148 mm to 330.2 x 487.7 mm

*1 by service mode

Paper Decks (Right/Left): Standard size: A4, B5

Paper Cassettes (Upper/ Lower):

• Standard size: SRA3, A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R
• Custom size: 139.7 x 182.0mm to 330.2 x 487.7mm
• Envelope: COM10 No.10, Monarch, DL, ISO-C5
• Envelope custom size: 98.0 x 148.0mm to 330.2 x 487.7mm

Supported Media Weights:

• Multi-purpose tray: 52 to 350 gsm
• Paper Deck (Right/Left): 52 to 220 gsm
• Paper Cassette (Upper/Lower): 52 to 256 gsm
• Duplex: 52 to 220 gsm

Warm-up Time:

• Quick Startup Mode: 4 seconds or less (Time until key operations can be performed on the touch panel display)
• From Power On: 30 seconds or less (Time until it becomes possible to start copying)
• From Sleep Mode: 30 seconds or less

Dimensions (W x D x H): 689 x 937 x 1,185 mm

Installation Space (W x D):

• Basic: 2,026 x 1,524 mm (with Front door open + Multi-purpose tray/upper-right cover open + Buffer Pass-M1 + Booklet Finisher-AC2/extension tray & rotary tray extended)
• Fully Configured: 2,621 x 1,524 mm (with POD Deck Lite-C1 + Buffer Pass-M1 + Document Insertion Unit-Q1 + Booklet Finisher-AC2/extension tray extended)
• Fully Configured: 5,900 x 1,524 mm (with Multi Drawer PD-E1 + Stack Bypass Tray-B1 + Buffer Pass-M1 + Insertion Unit-R1 + Paper Folding Unit-K1 + Booklet Finisher-AG１+ Booklet Trimmer G1+ 2-Knife Trimmer-G1 + Trimmer Conveyor-B1/extension tray extended)

Weight: Approx. 261 kg (including toner)

Print Specifications

Printing Method: Colour Laser Beam Printing (Electronic Photography)

Print Speed: Up to 65/70 ppm (A4, Colour/BW)

Alignment Tolerance: Cross track: 2.0 mm or less, In track: 1.2mm or less

Print Resolution (dpi): 2,400 x 2,400

Page Description Languages: UFR II, PCL6, (optional) imagePRESS PS Printer Kit-G1

Direct Print:

• Direct printing available from USB memory, Advanced
• Space, Remote UI and Web Access*
• Supported file types: TIFF, JPEG, PDF, EPS and XPS

*Only PDF print from websites is supported

Mobile / Cloud Printing: AirPrint, Mopria, Canon PRINT Business, uniFLOW Online and Universal Print, A range of software and MEAP-based solutions are available to provide printing from mobile devices or internet-connected devices and cloud-based services depending on your requirements.

OS Standard Printing: Android/Windows® 10/Chrome OS/macOS (11.2.2) /iOS/iPadOS As of Mar. 2021

Fonts:

• PCL fonts: 93 Roman, 10 Bitmap fonts, 2 OCR fonts, Andalé
• Mono WT J/K/S/T* (Japanese, Korean, Simplified and Traditional Chinese), Barcode fonts**

* Requires optional PCL INTERNATIONAL FONT SET-A1
**Require optional BARCODE PRINTING KIT-D1

Print Features: Secured Print, Secure Watermark, Header/Footer, Page Layout, Two-sided Printing, Mixed Paper Sizes/ Orientations, Front/Back Covers, Toner Reduction, Poster Printing, Forced hold printing, Print Date, Scheduled Printing, Printing Using a Virtual Printer

Operating Systems:

• UFRII: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
• PCL: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022
• PS: Windows® 8.1/10/11/Server2012/Server2012 R2/ Server2016/Server2019/Server2022, Mac OS X (10.11 or later)
• PPD: Windows® 8.1/10/11, Mac OS X(10.11 or later)

Copy Specifications

Copy Speed:

• 65 ppm CL and 70 ppm BW (A4, A5*, A5R, A6R*)
• 32 ppm CL and 35 ppm BW (A3)
• 46 ppm CL and 49 ppm BW (A4R)

*1-sided

First-Copy-Out Time: Approx. 4.8/5.9 seconds or less

Copy Resolution (dpi): 600 x 600

Multiple Copies: Up to 9,999 copies

Copy Density: Automatic or Manual (9 Levels)

Magnification: 25% - 400% (1% Increments)

Preset Reductions: 25%, 50%, 70%, 100% (1:1)

Preset Enlargements: 141%, 200%, 400%

Scan Specifications

Type: Single-pass Duplexing Automatic Document Feeder* [2-sided to 2-sided (Automatic)]
* Detect Feeder Multi Sheet Feed is supported.

Pull Scan Specifications: Colour Network ScanGear2. For both TWAIN and WIA

Supported OS: Windows® 8.1/10/11/Server2012/Server2012 R2/Server 2016/Server 2019/Server 2022

Scan Resolution (dpi):

• Scan for Copy: 600 x 600
• Scan for Send: (Push) 600 x 600 (SMB/FTP/WebDAV/IFAX), (Pull) 600 x 600

Document Feeder Paper Capacity (80 gsm): up to 200 Sheets

Acceptable Originals/Weights:

• Platen: Sheet, Book, and 3-Dimensional objects
• Document Feeder media weight:
• 1-sided scanning: 38 to 220 gsm (BW, CL)
• 2-sided scanning: 38 to 220 gsm (BW, CL)

*An acceptable weights of A6R or smaller is 50 to 220gsm.

Supported Media Sizes:

• Platen: max. scanning size up to 297.0 x 431.8 mm
• Document Feeder media size:
• A3, A4, A4R, A5, A5R, A6R, B4, B5, B5R, B6R,
• Custom size: 70.0 x 139.7 mm to 304.8 x 431.8 mm

Scan Method: Push Scan, Pull Scan, Scan to Box, Scan to Advanced Space, Scan to Network, Scan to USB Memory Key, Scan to Mobile device, Scan to cloud (uniFLOW Online optional)

Scan Speed: Single-sided Scanning: 135/135 (300 x 300 dpi, send), 80/80 (600 x 600 dpi, copy)

Double-Sided Scanning: Double-sided Scanning: 270/270 (300 x 300 dpi, send), 160/90 (600 x 600 dpi, copy)

Send Specifications

Destination: E-mail/Internet FAX (SMTP), SMB v3.0, FTP, WebDAV, Mail Box, Super G3 FAX (Optional), IP Fax (Optional)

Address Book / Speed Dials: LDAP (2,000), Local (1,600), Speed dial (200)

Send Resolution (dpi): 600 x 600

Communication Protocol:

• File: FTP (TCP/IP), SMB v3.0, WebDAV
• E-mail/I-Fax: SMTP, POP3

File Format: TIFF, JPEG, PDF(Compact, Searchable, Apply policy, Optimize for Web, PDF/A-1b, Trace & Smooth, Encrypted, Device Signature, User Signature), XPS (Compact, Searchable, Device Signature, User Signature), Office Open XML (PowerPoint, Word)

Universal Send Features: Original Type Selection, Two-sided Original, Book to Two Pages, Different-size Originals, Density Adjustment, Sharpness, Copy Ratio, Erase Frame, Job Build, Delayed Send, Preview, Job Done Notice, File Name, Subject/Message, Reply-to, E-mail Priority, TX Report, Original Content Orientation, Skip Blank Pages

Store Specifications

Mail Box:

• 100 User Inboxes, 1 Memory RX Inbox, 50 Confidential Fax Inboxes
• Maximum 30,000 Pages (2,000 jobs) Stored

Advanced Space:

• Communication Protocol: SMB or WebDAV
• Supported Client PC: Windows® 8.1/10
• Concurrent Connections (Max.): SMB:64, WebDAV:3

Advanced Space Available Disk Space:

• Approx. 16 GB
• Approx. 480 GB (with optional)

Advanced Space Features:

• Authentication for Advanced Space Log-in, Sort Function, Printing a PDF File with a Password, imageWARE
• Secure Audit Manager Support, Search, File Preview, Authentication Management, Open to public, URI TX, Backup/Restore
