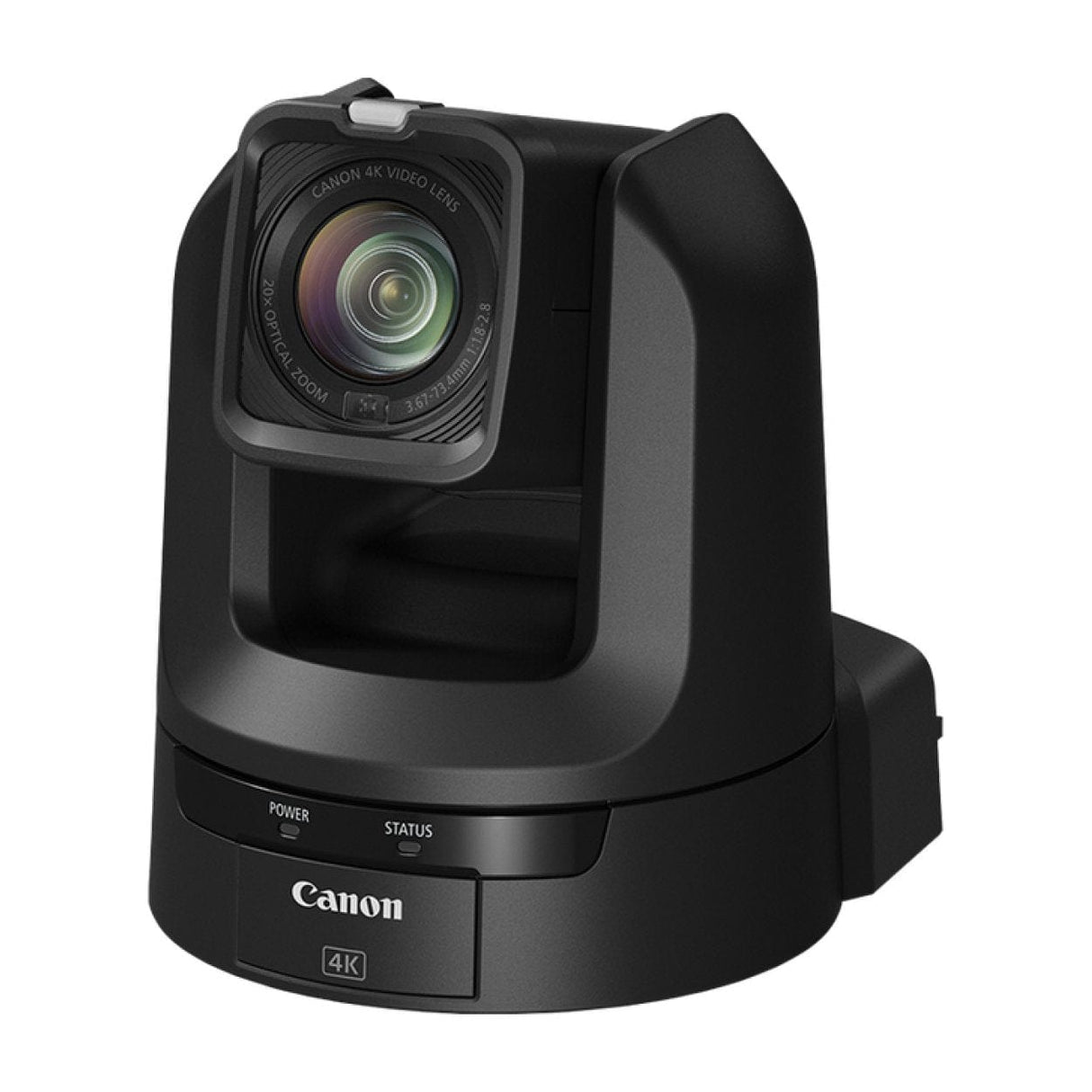

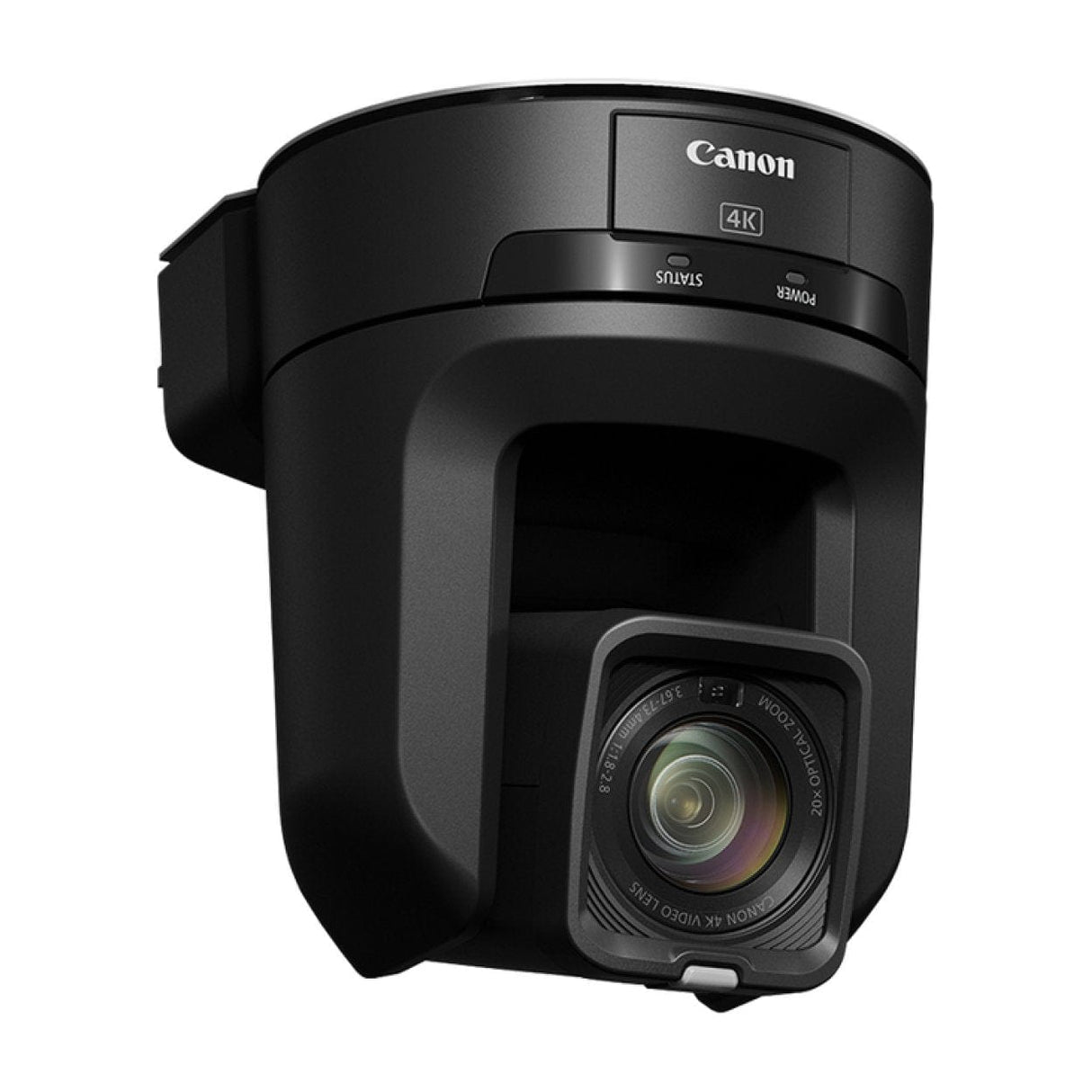

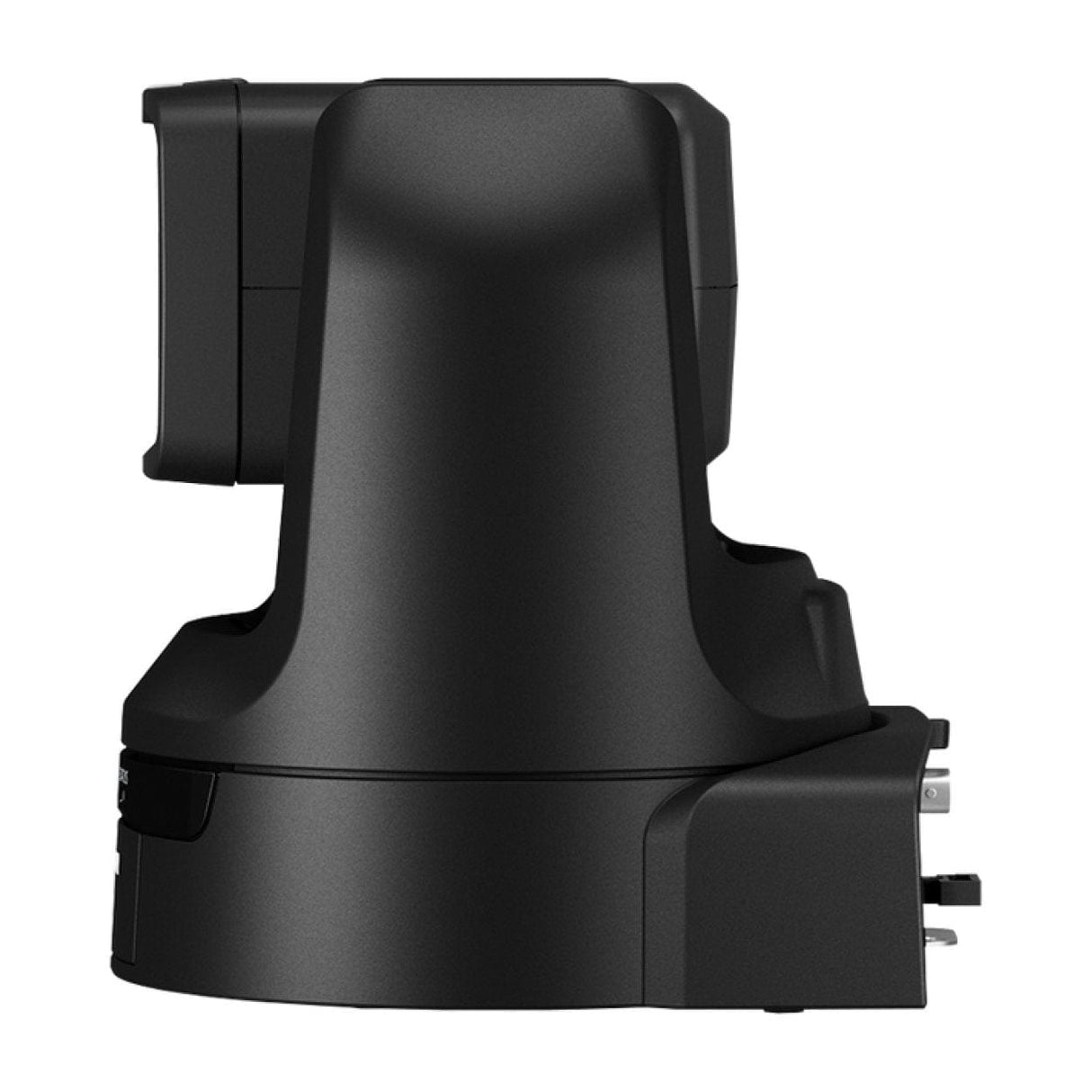

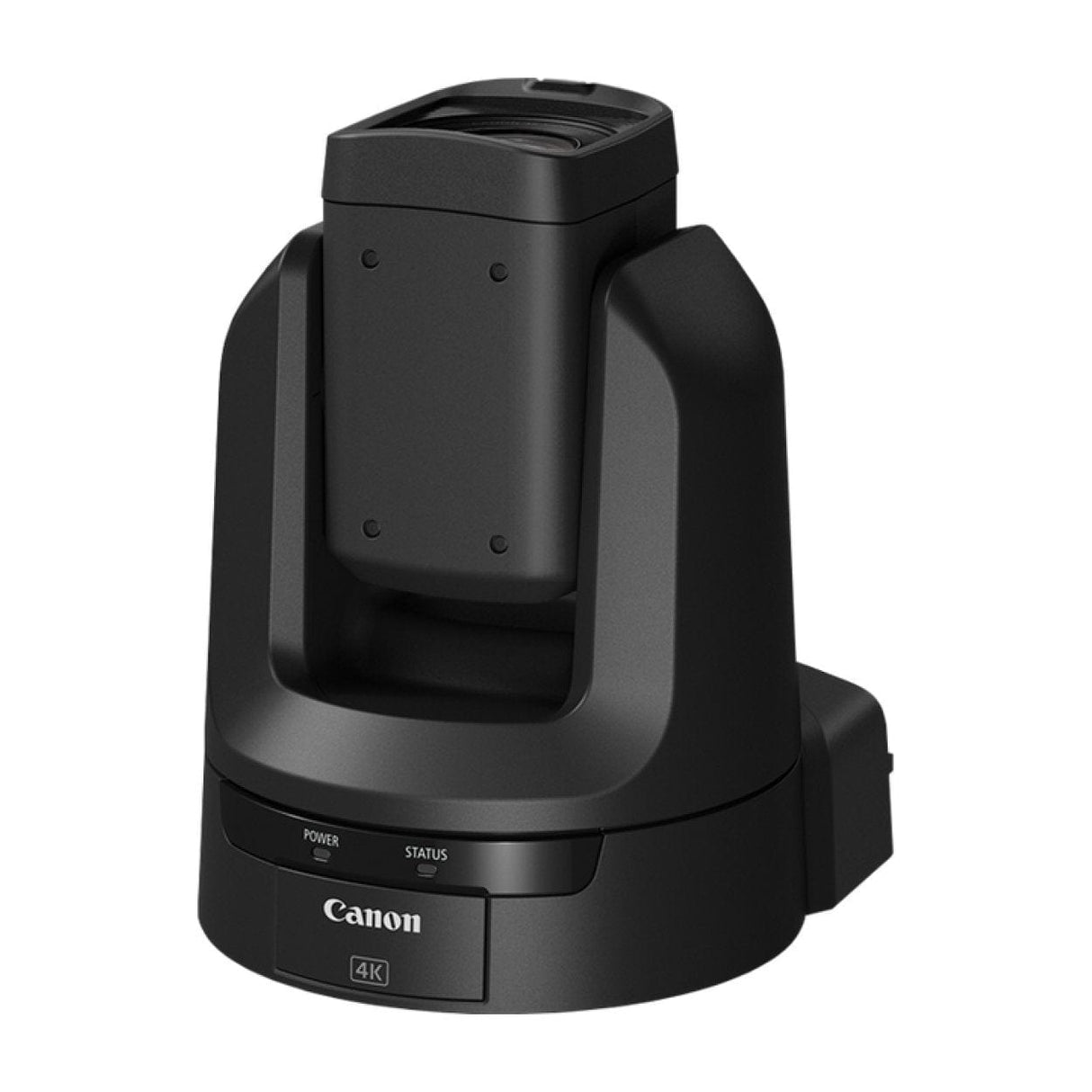

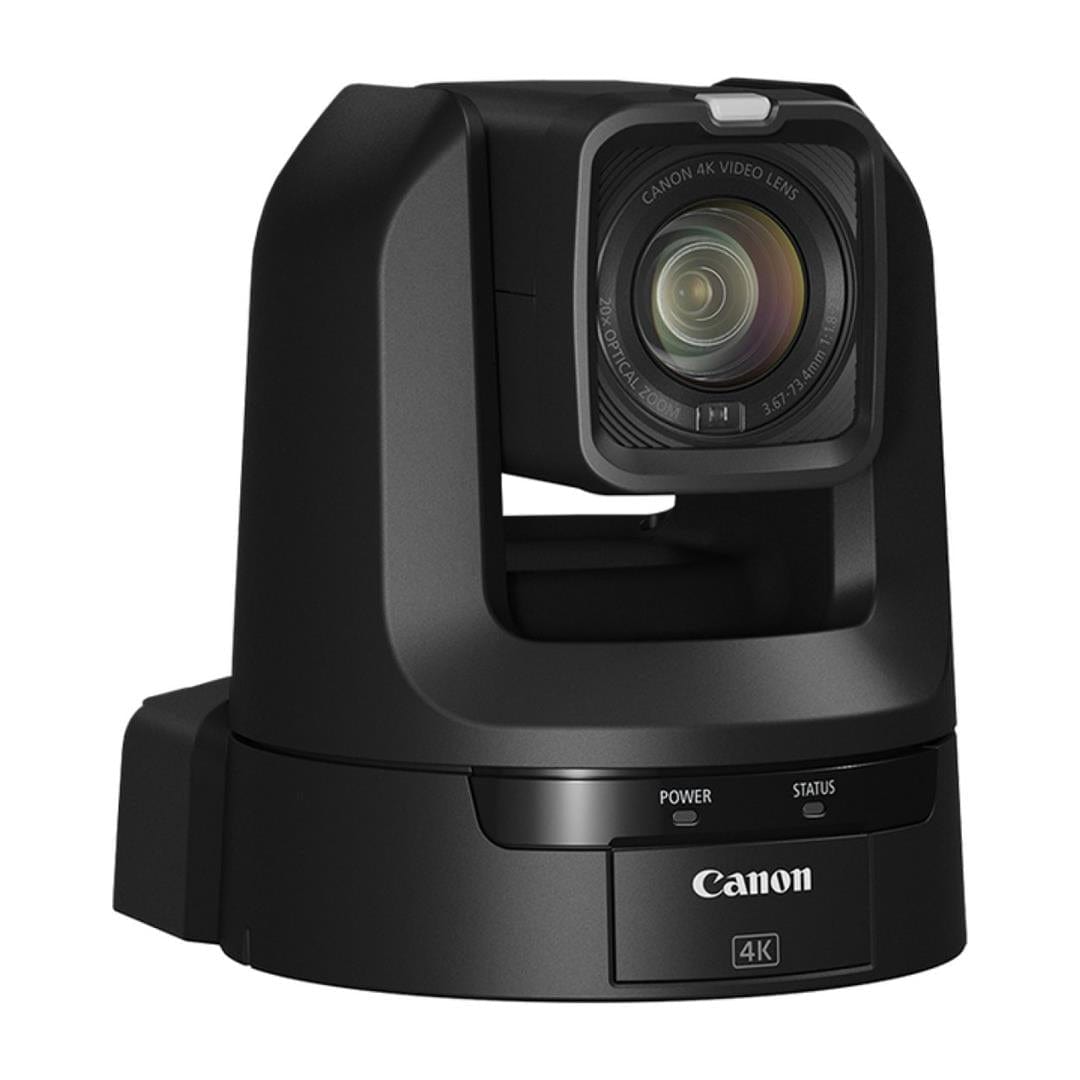

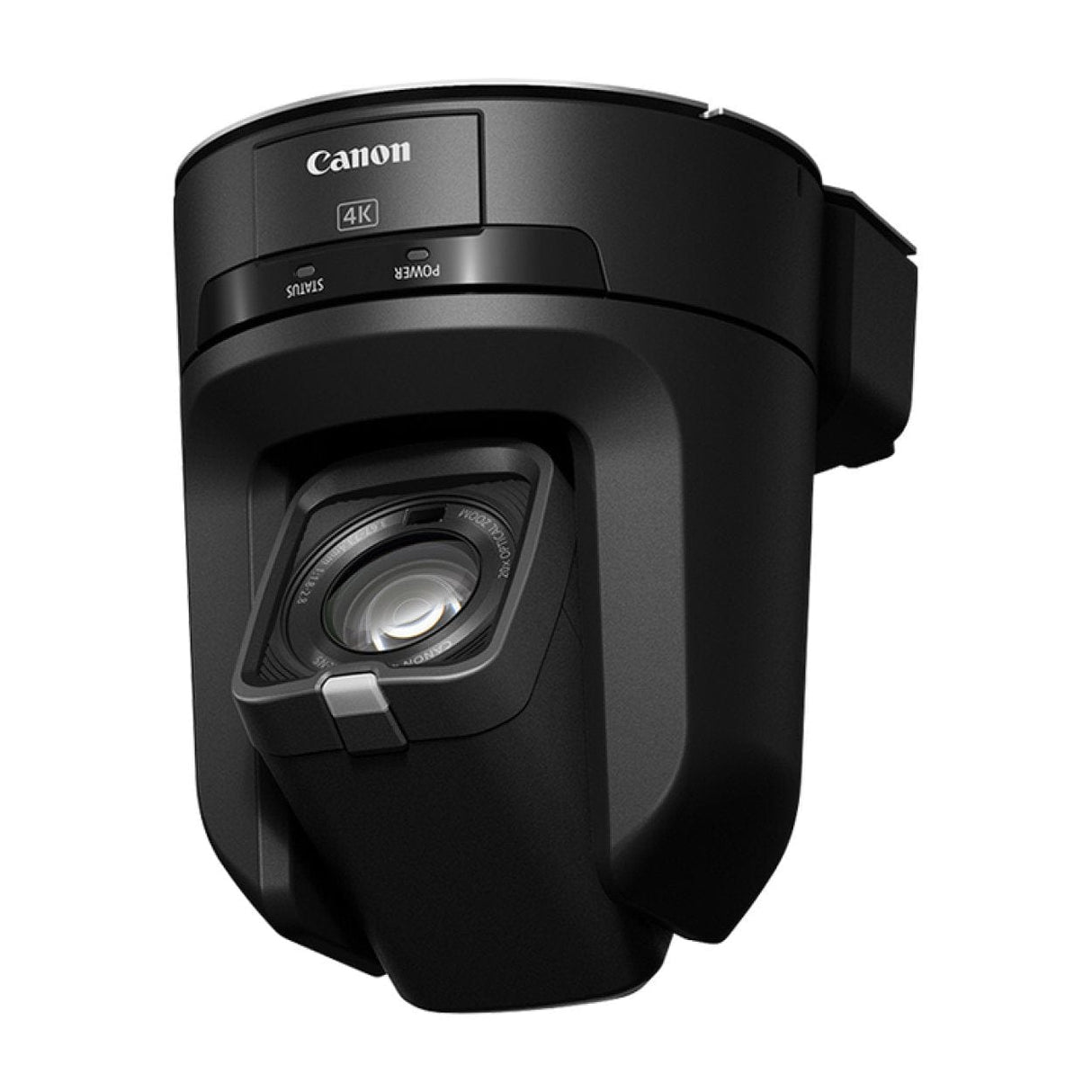

Canon CR-N300 4K 8.29MP PTZ CMOS Camera 5157C003

Canon CR-N300 4K 8.29MP PTZ CMOS Camera 5157C003

The CR-N300 makes content creation and streaming simple. Equipped with a 1/2.3-inch CMOS sensor with 4K UHD resolution, 20x image stabilised optical zoom and a wide range of streaming and control protocols, as well as the ability to automate your productions using Auto Tracking App RA-AT001(Lite)*, it’s the ideal choice for a variety of productions.

Auto Tracking

Auto Tracking Application RA-AT001. Unlock the potential to track the main speaker with face detection as they move around the stage, automatically. Optimise production efficiency for lectures, corporate events, houses of worship, live performances and broadcast.

Main features of CR-N300

Equipped with 4K UHD resolution, a 20x optical zoom, Hybrid Auto Focus, numerous IP streaming and control protocols, you can engage your audience in new ways.

Accurate 4K Auto Tracking*

Unlock the potential to track the main speaker with face/header detection as they move around the stage, automatically. Capable of multiple adjustments, settings such as composition size, tracking sensitivity, exclusion zones, priority display area and more mean the ideal tracking set-up can be easily achieved.

Razor sharp 4K imagery

A 1/2.3-type CMOS Sensor and DIGIC DV6 processor combine to deliver exceptional 4K UHD imagery (up to 30p), or outstanding Full HD footage thanks to over sampled HD processing. These technologies provide an image quality with superior levels of detail fit for any production.

20x Optical zoom for incredible flexibility

Capture all the detail you need, thanks to Canon’s advanced 4K optics which feature a flexible 20x optical zoom covering a broad focal range of 29.3-601mm (35mm equivalent), ensuring great flexibility. Equipped with image stabilisation, for minimal image disruption when moving.

IP Streaming and Control to transform your productions

The CR-N300 boasts a comprehensive range of IP control and streaming protocols up to 4K UHD 30p allowing for greater control for your production needs. Featuring major protocols such as NDI|HX*, RTMP, RTP/RTSP, RTMPS, SRT, FreeD and Canon’s XC Protocol, it will fit into most new or most existing systems, making it an extremely flexible option.

Hybrid AF for precise focus

The CR-N300 combines high-precision contrast AF with high-speed phase-detection AF, ensuring rapid and accurate focusing of the subject, even in low light conditions.

Equipped with a bespoke external sensor which measures the distance to the subject and compares the point of focus with that determined by the Contrast AF system. This Hybrid AF system is particularly effective in low light situations and provides fast, accurate and reliable Autofocus with greater accuracy than Contrast AF alone.

Flexible connectivity for your workflow

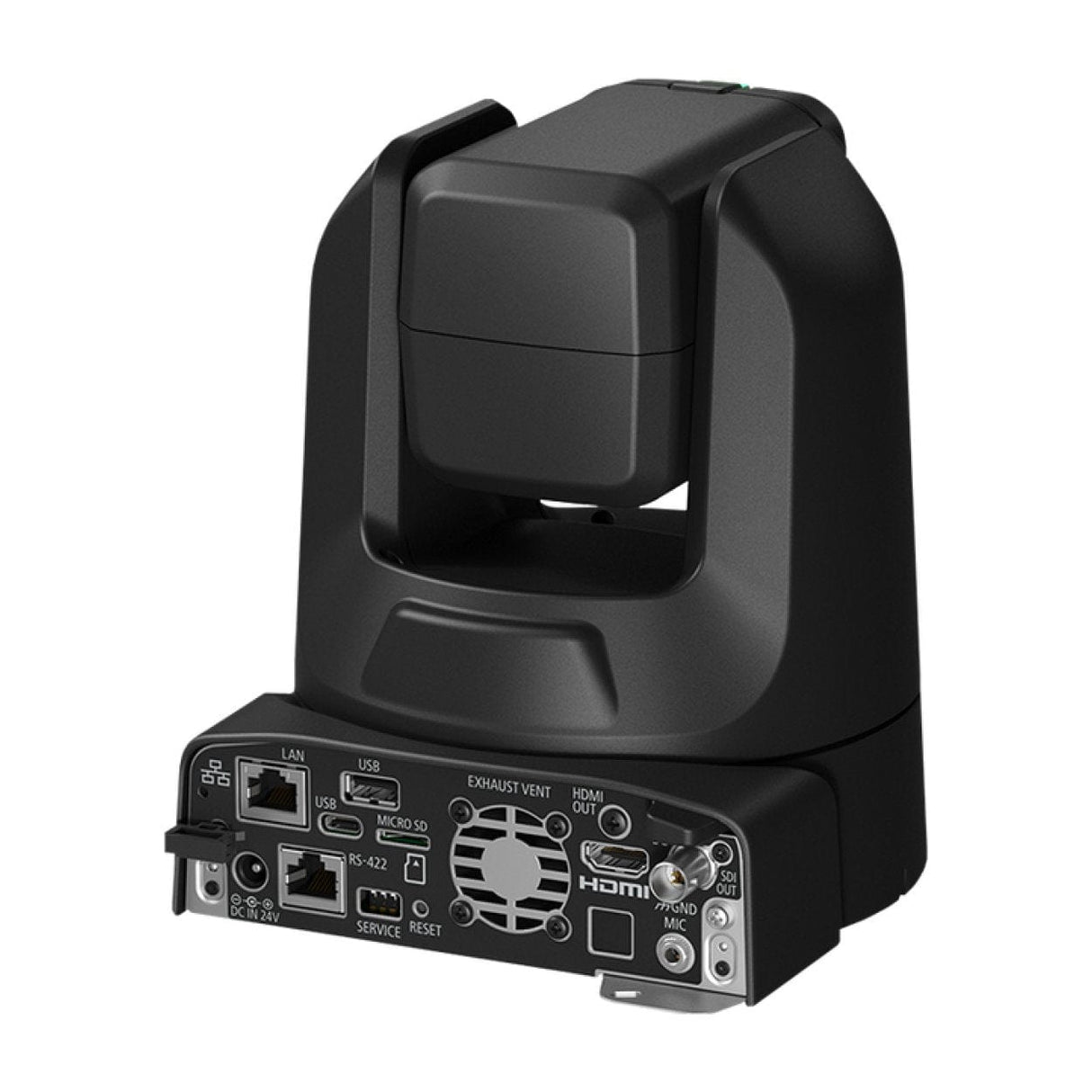

The CR-N300 features a whole host of connections to ensure the ultimate flexibility in workflows. Featuring a HDMI port which can achieve 4K UHD, 4:2:2 10-bit. The camera also boasts a 3G-SDI port, USB Port, 3.5mm Audio Input and a PoE+ LAN port.

Smooth, precise control

The CR-N300 is equipped with a high-precision drive mechanism, enabling the Pan and Tilt movement to be finely adjusted at variable speeds using controllers such as RC-IP100, Canon Remote Camera Control Application or a tablet via Wi-Fi, to capture the perfect shot.

Image Presets for Quick and Easy Use

The CR-N300 is equipped with multiple Image Presets that allow for quick and easy adjustments of video settings for specific environments. The user can also register up to 100 preset positions on the CR-N300 making productions simple and easy.

Specifications

Pan and Tilt:

• Pan operation range: Horizontal ±170°
• Pan operation speed: 0.2° – 300°/sec.
• Tilt operation range: Vertical -30° – +100°
• Tilt operation speed: 0.2° – 170°/sec.

SDI Video Output

• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
• When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

HDMI Video Output

• HDMI 3840 x 2160: 29.97P, 25.00P, 23.98P (4:2:2 10 bit)
• 1920 x 1080: 59.94P/59.94i, 50.00P/50.00i/25.00P, 29.97P/23.98P (4:2:2 10 bit)
• 1280 x 720: 59.94P, 50.00P (4:2:2 10 bit)
• Same video format required for SDI and HDMI (cannot select different formats for SDI and HDMI)
• When 3840 x 2160 is selected for HDMI, video will not be outputted to SDI.

IP Video Output

• 3840 x 2160: 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1920 x 1080: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 1280 x 720: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• 640 x 360: 59.94 fps, 29.97 fps, 14.99 fps, 5.00 fps (4:2:0 8 bit)
• If 59.94/50.00 Hz is selected for the frame frequency, the 3840 x 2160 format cannot be selected.
• A frame rate that exceeds the frame frequency cannot be selected.
• JPEG has one pattern fixed depending on the frame frequency (format is fixed and cannot be selected)
• Resolution: 1280 x 720
• When frame frequency is 59.94/50.00 Hz: 14.99 fps, when frame frequency is 23.98 Hz: 11.99 fps, when frame frequency is 29.97/25.00 Hz: 12.50 fps

USB, Motion JPEG:

• 1920 x 1080: 59.94 Hz: 12.00 fps, 5.00 fps; 50.00 Hz: 12.50 fps, 5.00 fps
• 1280 x 720: 59.94 Hz: 12.00 fps, 5.00 fps; 50.00 Hz: 12.50 fps, 5.00 fps
• 640 x 360: 59.94 Hz: 12.00 fps, 5.00 fps; 50.00 Hz: 12.50 fps, 5.00 fps

Interface
