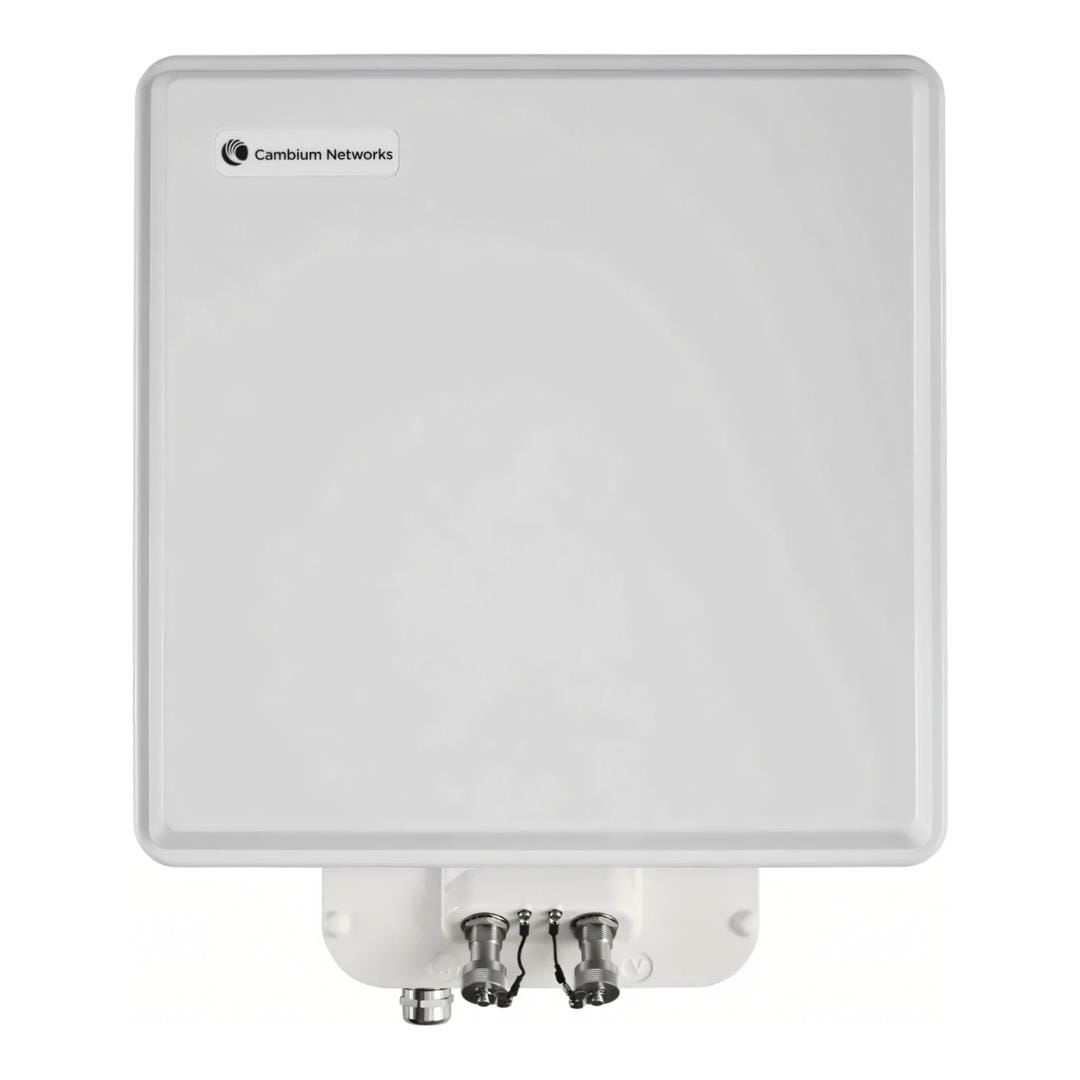

Cambium Networks PTP670-INT Integrated 23dBi END with AC Supply CORE-PTP670-INT

Cambium Networks PTP670-INT Integrated 23dBi END with AC Supply CORE-PTP670-INT

The Cambium Networks CORE-PTP670-INT is a PTP 670 integrated wireless backhaul radio end featuring a built-in 23dBi directional antenna and supplied AC power solution. Designed for carrier, enterprise, public safety and critical infrastructure networks, the PTP 670 combines high-capacity point-to-point wireless performance with wide-band 4.9 to 6.05GHz operation, intelligent spectrum optimisation and flexible Gigabit network connectivity. Its integrated antenna simplifies deployment by eliminating the need for a separate external RF antenna.

Key Features

• Cambium Networks PTP 670 integrated wireless backhaul radio end.
• Built-in 23dBi flat-panel directional antenna.
• Wide-band 4.9 to 6.05GHz operation, subject to regional regulations.
• Up to 450Mbps aggregate throughput.
• Supports 5, 10, 15, 20, 30, 40 and 45MHz channel widths.
• Dynamic Spectrum Optimization for intelligent interference avoidance.
• Fast Preemptive Adaptive Modulation from BPSK to 256-QAM.
• Supports point-to-point links up to 250km under suitable conditions.
• 2 × Gigabit Ethernet copper interfaces and 1 × SFP interface.
• Synchronous Ethernet and IEEE 1588v2 timing support.

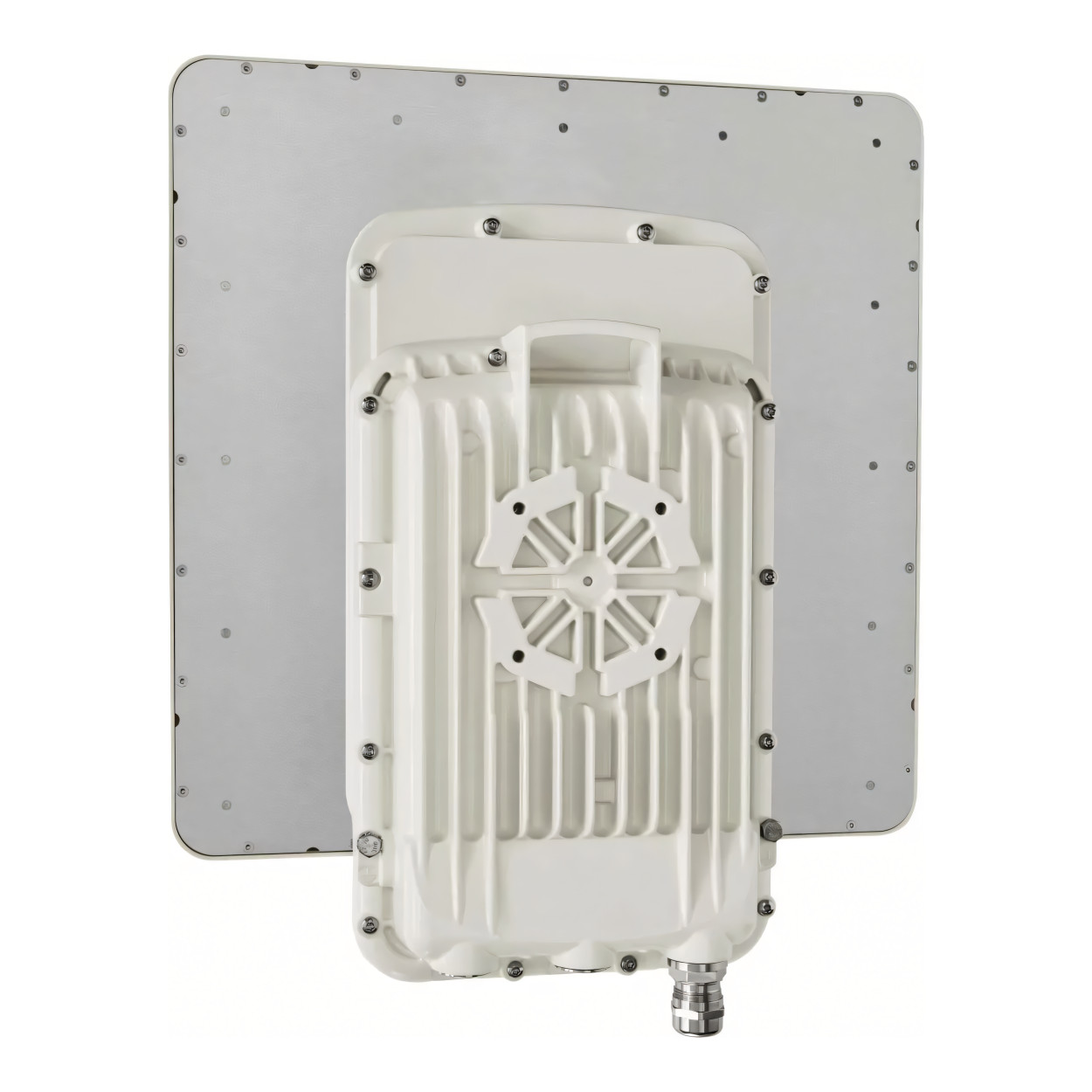

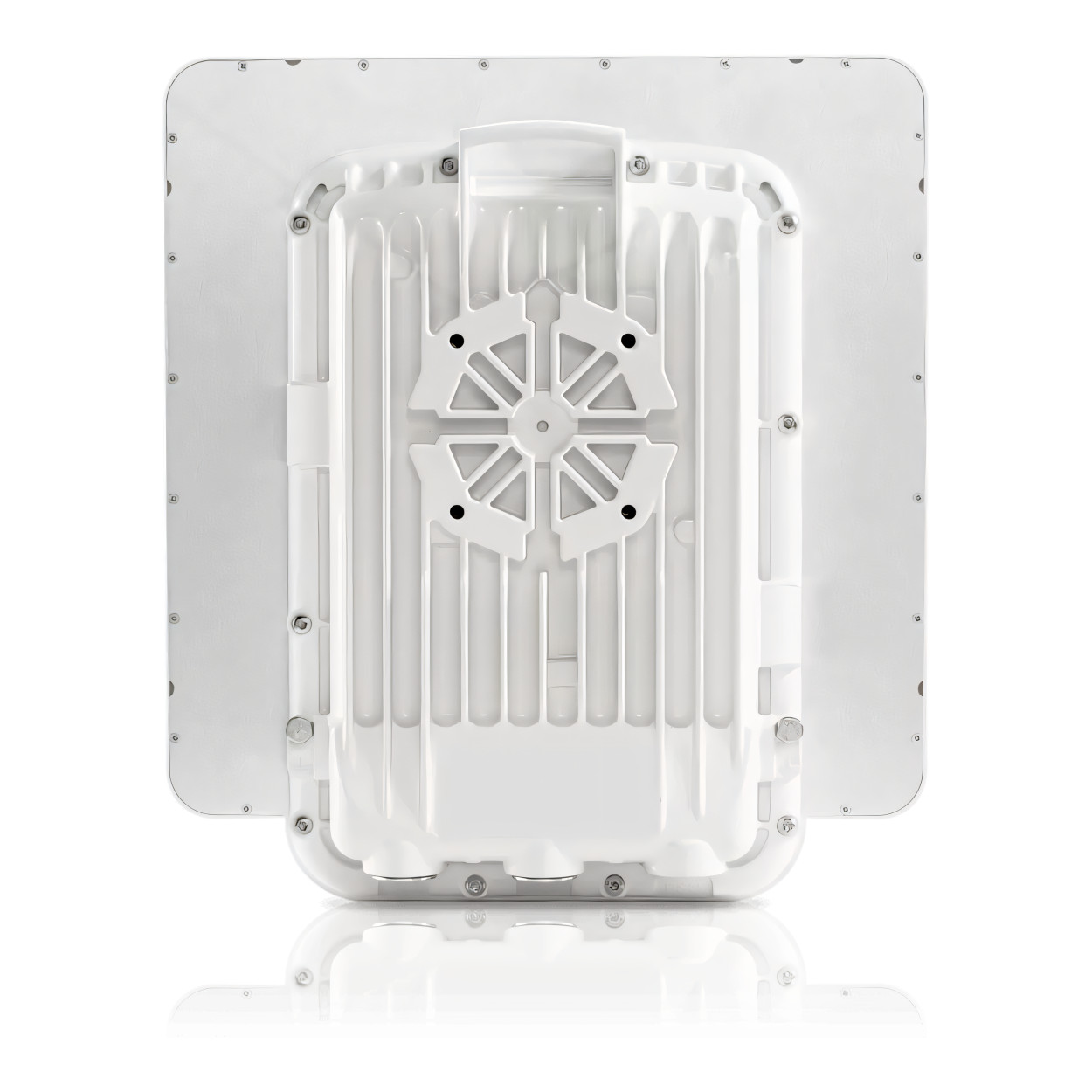

Integrated 23dBi Antenna

The PTP 670 Integrated incorporates a 23dBi flat-panel directional antenna directly into the outdoor unit. This provides a compact all-in-one radio and antenna solution, simplifying installation compared with connectorized models that require separately purchased external antennas.

High-Capacity Wireless Backhaul

The PTP 670 platform supports up to 450Mbps aggregate throughput and is designed for demanding wireless Ethernet backhaul. Fast Preemptive Adaptive Modulation automatically adjusts through multiple modulation and coding levels, from BPSK through 256-QAM dual-payload MIMO, to help maintain link performance as RF conditions change.

Dynamic Spectrum Optimization

Cambium Networks Dynamic Spectrum Optimization continually evaluates the RF environment and can automatically select suitable operating channels to help avoid interference. Manual channel selection is also supported for installations requiring specific frequency planning.

Flexible Gigabit Connectivity

The radio provides two Gigabit Ethernet copper interfaces plus an SFP interface. Gigabit Port 1 carries network data and PoE power input, while Gigabit Port 2 can provide IEEE 802.3at PoE output to compatible equipment. The SFP interface provides additional flexibility for suitable fibre or copper Gigabit Ethernet connections.

Long-Range Outdoor Networking

Under suitable link conditions, the PTP 670 platform supports wireless distances of up to 250km. Actual achievable throughput and range depend on spectrum availability, interference, terrain, regulatory restrictions, installation accuracy and other link-engineering factors.

Technical Specifications

What’s in the Box:

• Cambium Networks PTP 670 Integrated 23dBi ODU
• AC Power Injector / AC Power Supply
• Line Cord for the Applicable Regional Package
• Tilt Bracket Assembly

The Cambium Networks CORE-PTP670-INT combines the proven PTP 670 wireless backhaul platform with an integrated 23dBi directional antenna for streamlined outdoor deployment. Its wide-band radio, Dynamic Spectrum Optimization, Gigabit Ethernet and SFP connectivity, long-range capabilities and carrier-grade networking features make it suitable for demanding point-to-point broadband and infrastructure links.
