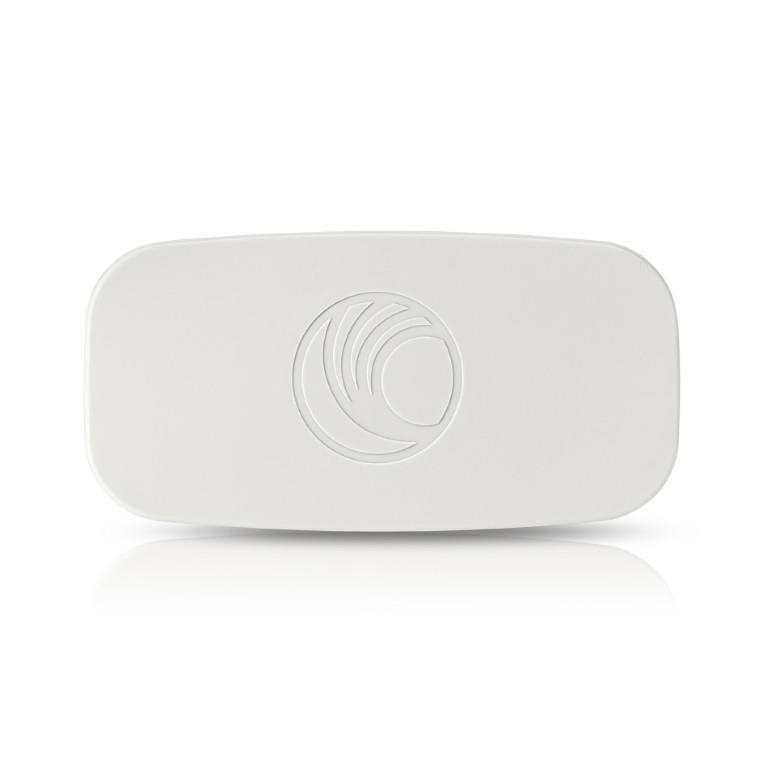

Cambium Networks ePMP Force 180 5Ghz Subscriber Radio Antenna C050900C271A

Cambium Networks ePMP Force 180 5Ghz Subscriber Radio Antenna C050900C271A

ePMP FORCE 180 5Ghz INTEGRATED RADIO

The ePMP Force 180 is the second generation of ePMP Integrated Radio Modules. It has the exceptional reliability and quality that users have come to expect from the ePMP product line and adds some significant performance enhancements.

This radio comes in a small, sleek form factor but delivers high performance. The antenna gain is increased by 3 dB to 16 dBi which will provide a 40% increase in range. It comes equipped with a Gigabit Ethernet port so that nothing will limit this product in delivering the maximum throughput. The radio module is powered by PoE and the Ethernet port has the unique capability of being powered from a PoE injector that conforms to standard pinouts or from a PoE injector that conforms to Cambium pinouts. This makes it possible to upgrade existing radio locations to the Force 180 without changing the PoE injector.

It also includes an adjustable mounting bracket that eases the task of installing and properly aligning the radio.

All the unique advantages of ePMP software such as eFortify™ and eCommand™ are available with the Force 180. eFortify enhances the performance of the ePMP 1000 in high noise environments. eCommand provides a suite of management features and tools to assist network operators in planning, provisioning and monitoring of their network. The ePMP Force 180 Integrated Radio is a compact and powerful platform that can operate as an Access Point, Subscriber Module or PTP radio.

Features

• Delivers more than 200 Mbps of real user throughput. Using 2x2 MIMO OFDM technologies, ePMP deployments achieve industry leading data rates.
•  Can be configured as a Subscriber Module, an unsynchronized Access Point or a Backhaul radio.
• Will function as a client to an ePMP GPS Synchronized Radio in either a Point-to-Multipoint (PMP) or Point-to-Point (PTP) deployment forming a GPS Synchronized solution.
• Quality of Service (QOS) allows you to confidently offer triple play services – VoIP (Voice over IP), video and data.

Technical Specification
