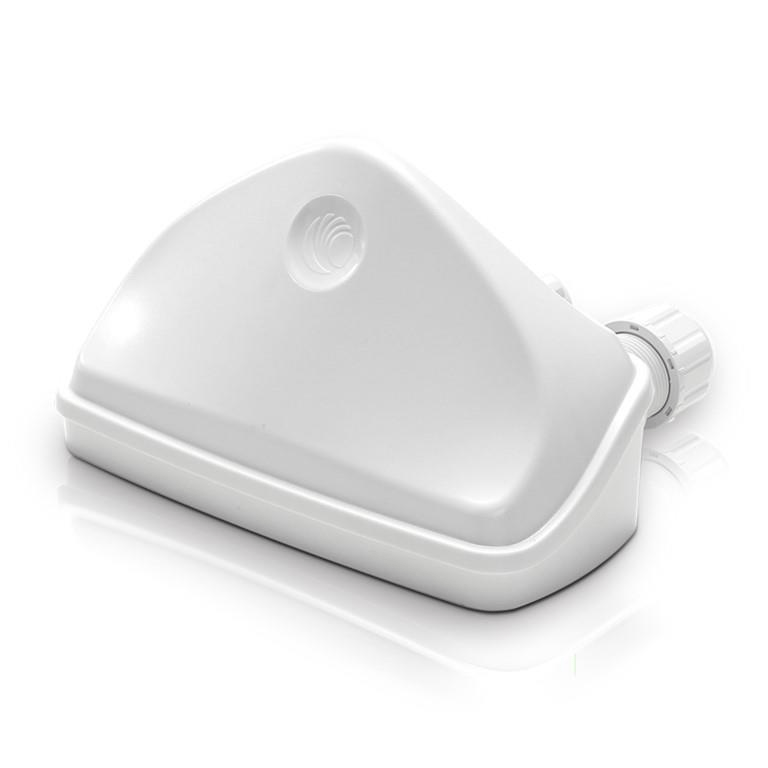

Cambium Networks cnPulse Sync Generator CORE-CNPULSE

Cambium Networks cnPulse Sync Generator

cnPulse is the latest GPS synchronization generation device designed specifically for Cambium Networks PMP and PTP radios. The cnPulse module is IP67 (weather proof and supports a wide temperature range for rugged environments. The GPS receiver is highly reliable and supports both GPS and GNSS signals. cnPulse gets it power from the ODU AUX port in mode 1 or from the CAT-5 drop cable in mode 2 so no external power supply is required. There are no configuration or software settings required.

Technical Specification

• cnPulse derives power input from the radio or CMM port and returns the 1PPS signal and satellite statistics on port 1.
• Typically used on CMM5, cnReach and the AUX ports on PMP 450i, PMP450m or PTP 450i

• cnPulse is deployed in-line with the radio’s CAT-5 drop cable. cnPulse receives power (and data) from the ODU’s PoE power injector on port 3.
• cnPulse port 2 then outputs PoE+Data+CambiumSYNC to the main input on a radio. Typically used on PTP 550.

• Port 1: AUX PORT RJ-45 8-pin shielded; AUX output
• Port 2: PoE + CambiumSYNC ODU RJ-45 8-pin shielded; PoE + CambiumSYNC + Data output
• Port 3: PoE+ CambiumSYNC PIDU RJ-45 8-pin shielded; PoE + Data Input

• CMM5 to cnPulse Optional: N000000L125A cnPulse to CMM5 20m shielded cable (8-pin RJ-45 to 6-pin RJ-12)
• AUX port to cnPulse Recommend to use an 8-pin shielded straight through CAT5 cable
• Radio to cnPulse Recommend to use an 8-pin shielded straight through CAT5 cable
• PoE injector to cnPulse Recommend to use an 8-pin shielded straight through CAT5 cable
• cnReach to cnPulse Refer to cnReach user guide for pinout.
