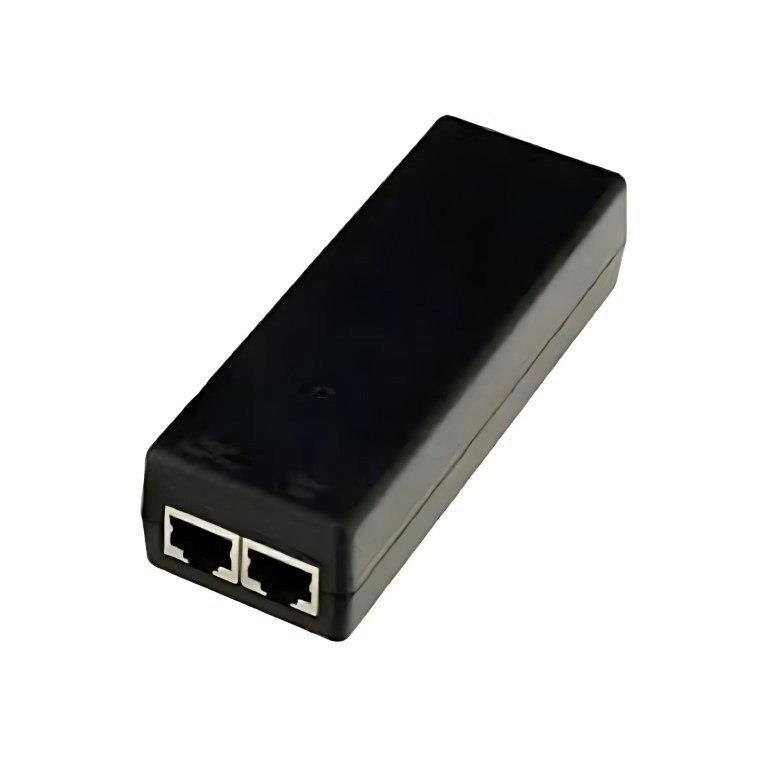

Cambium Networks 60W Gigabit PoE AC Power Injector N000065L001C

Cambium Networks 60W Gigabit PoE AC Power Injector N000065L001C

Specification

Dimensions: 137 mm (5.4 in) x 56 mm (2.2 in) x 38 mm (1.5 in)

Weight: 0.240 Kg (0.5 lbs)

Temperature: 0°C to +40°C

Humidity: 90% non-condensing

Waterproofing: Not waterproof

Altitude: Sea level to 5000 meters (16000 ft)

AC Input: Min 90 V AC, 57 – 63 Hz, max 264 V AC, 47 – 53 Hz.

DC output voltage to the ODU: 55V +/- 5%

AC connector: IEC-320-C8

Efficiency: Better than 85%, efficiency level ‘V’

Over Current Protection: Hiccup current limiting, trip point set between 120% to 150% of full load current

Hold up time: At least 10 milliseconds

Note: Figure 8 power cored required
