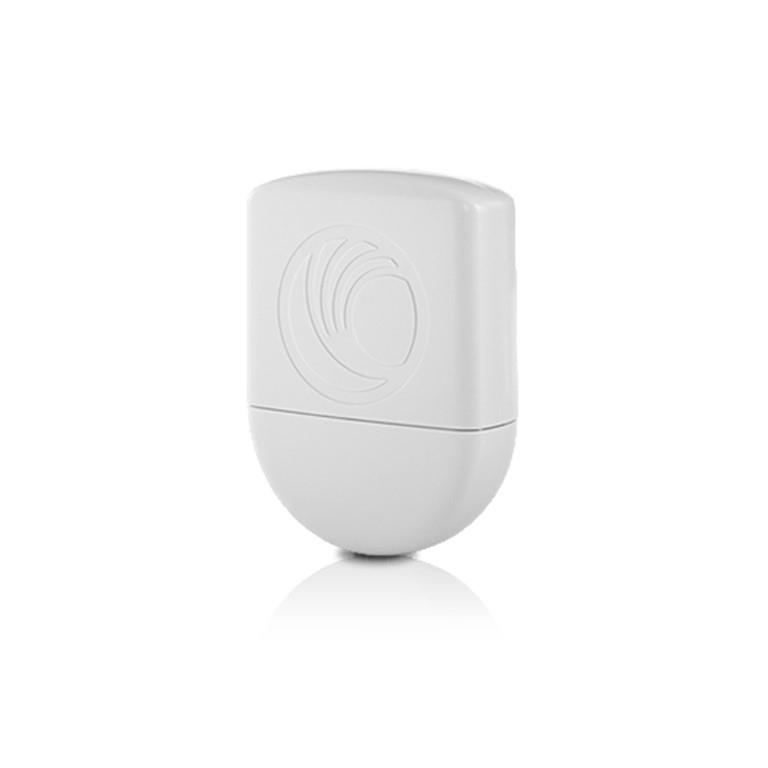

Cambium Networks 56V Gigabit Surge Suppressor C000000L033A

Cambium Networks 56V Gigabit Surge Suppressor C000000L033A

Gigabit Ethernet Surge Suppressor 56V

Cambium Networks designs outdoor wireless broadband solutions to operate in the toughest of environments. Lightning strikes are the most typical cause of system outages or failures of mast-mounted equipment especially when mounted as high as 300m.

The Gigabit Ethernet Surge Suppressor is critical for lightning protection to minimize the potential for damage.

Network operators should always follow best-practices for grounding and lightning protection. Doing so will minimize network outages and reduce the associated costs of tower climbs and equipment repair/replacement.

Technical Specification

Transfer Rate: 1000 Base T
Connectors: 2 x RJ-45
Nominal Voltage: 56V
Protection Mode: Line-to-line and line-to-ground
Surge Arrestor Tvs: Diodes (Transient Voltage Suppression for longer operational life)
Surge Current Rating, L-G, total: 172A, 10/1000us
Response Time: 5 nanoseconds typical
Mounting: Pole mount or wall mount
Dimensions: 118mm x 87.5mm x 46.5mm
Weight: 156 gm
Wind Survival: 321 km/hour
Operating Temperature: -40° C to +60° C
Humidity: 100% condensing
Environmental Protection: IP54 (Dust and Water Intrusion Protection)
