Brateck 37 to 70-inch AV 2.07m high Trolley Stand TTV04-46TW

Brateck 37 to 70-inch AV 2.07m high Trolley Stand TTV04-46TW

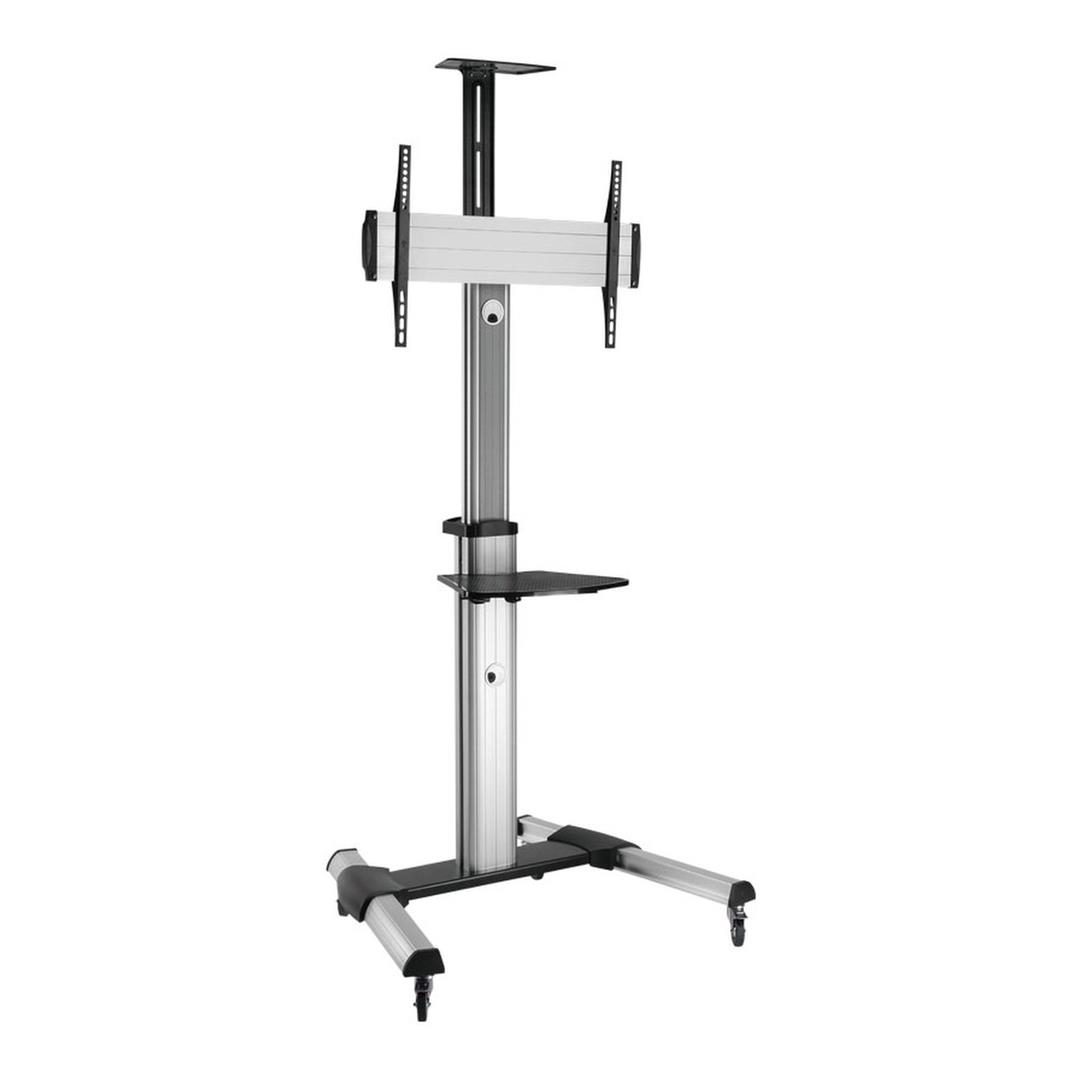

The Brateck TTV04-46TW is a mobile, height-adjustable AV trolley designed to support a single 37–70-inch LED or LCD display weighing up to 50 kg. Its telescopic column, adjustable viewing angle and wheeled base make it a practical presentation solution for conference rooms, classrooms, exhibitions and public display environments. Integrated cable management and equipment shelves help keep a complete AV installation organised.

Adjustable Display Height

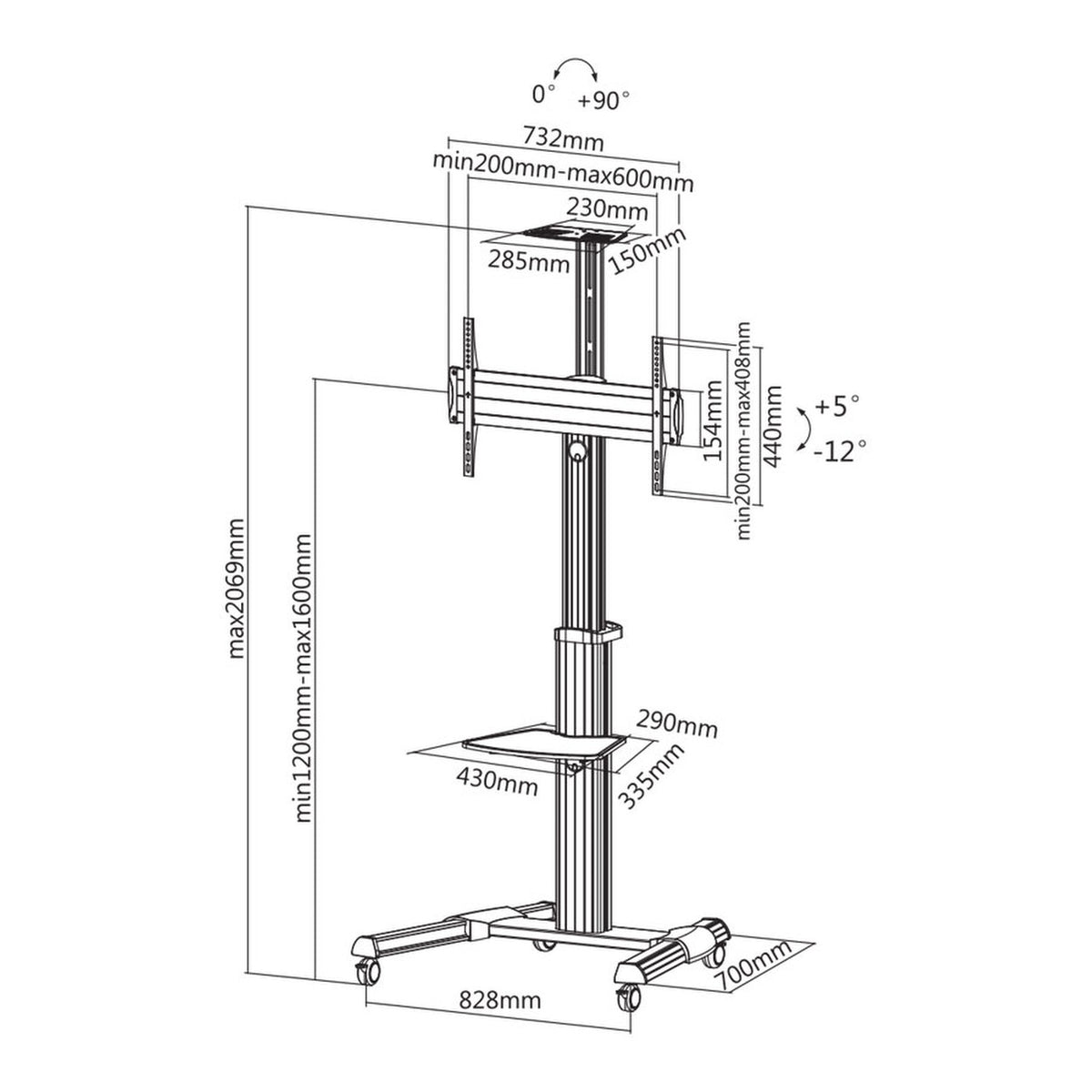

The telescopic column provides an assembled height range of approximately 1,669 to 2,069 mm. A quick-release spring-lock mechanism assists with raising or lowering the mounted display, allowing its position to be adapted for seated audiences, standing presentations and different room layouts.

Landscape and Portrait Viewing

The display mount supports rotation through a range of 0 to 90 degrees, allowing a compatible screen to be used in either landscape or portrait orientation. This makes the trolley suitable for conventional presentations as well as menus, directories, digital signage and vertically formatted content.

Adjustable Viewing Angle

A tilt range from 5 degrees upwards to 12 degrees downwards helps position the screen for a comfortable viewing angle. This adjustment can also help reduce reflections from overhead lights or nearby windows.

Mobile Presentation Platform

The solid 828 × 700 mm base uses heavy-duty castors to move the installation between meeting rooms, teaching spaces or presentation areas. Linkqage also specifies that the trolley has passed a 10-degree slope test, supporting stable use when correctly assembled and operated on a suitable surface.

Support for AV Equipment

A height-adjustable equipment shelf provides space for a laptop, media player or other AV device weighing up to 5 kg. The camera rack also supports up to 5 kg, providing a mounting position for suitable conferencing equipment or a compatible camera.

Neat Cable Management

Internal cable management routes connected cables through the trolley structure, helping reduce visible clutter around the display and equipment shelves. The result is a cleaner installation for customer-facing, educational and professional presentation environments.

Key Features:

• Supports one 37–70-inch LED or LCD flat-panel display weighing up to 50 kg.
• Telescopic height adjustment provides an assembled height of approximately 1,669–2,069 mm.
• Screen rotation from 0 to 90 degrees supports landscape and portrait orientation.
• Adjustable tilt from 5 degrees upwards to 12 degrees downwards helps improve the viewing angle.
• Compatible with VESA patterns from 200 × 200 mm up to 600 × 400 mm.
• Height-adjustable AV shelf and camera rack each support equipment weighing up to 5 kg.
• Heavy-duty castors support convenient movement between presentation areas.

Display Compatibility

Before installation, check the display’s screen size, weight and rear mounting pattern. The television or monitor must measure between 37 and 70 inches, weigh no more than 50 kg and use one of the supported VESA mounting patterns. Screen size alone does not guarantee compatibility.

Technical Specifications:

Create a flexible display setup for meetings, teaching or digital signage with the Brateck TTV04-46TW, and add it to your cart today.
