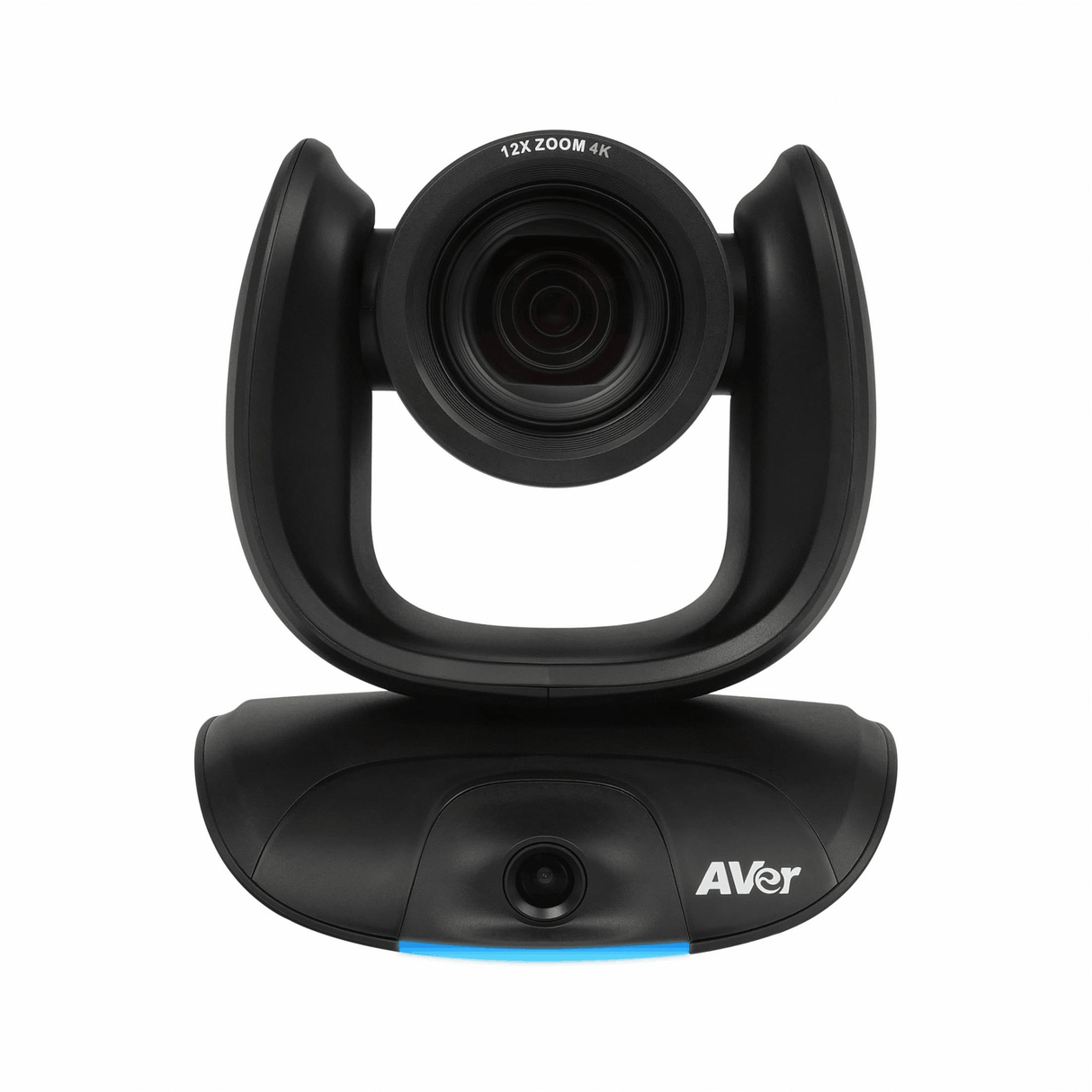

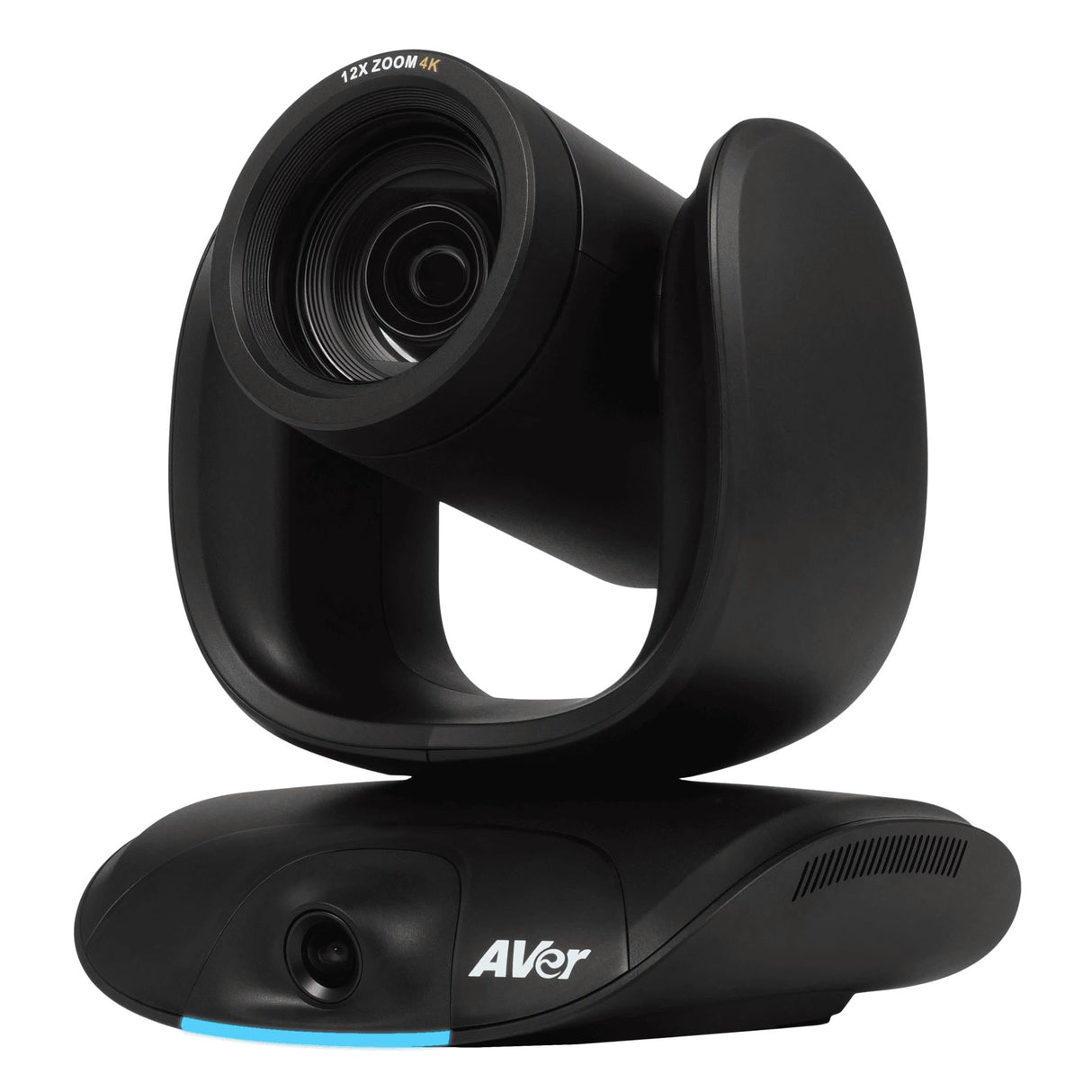

AVer CAM550 4K Dual Lens USB/HDMI Conferencing Camera

AVer CAM550 4K Dual Lens USB/HDMI Conferencing Camera

4K Dual Lens PTZ Conferencing Camera

The CAM550 is equipped with an AI lens for automated PTZ functionality, which delivers a full view of meeting attendees and detects newcomers. The Smart Gallery feature puts up clear views of every participant on the remote side. Enable gesture control camera operation to enjoy a fluent, safe meeting experience. 4K dual-lens technology captures the room in its entirety, providing a premium conferencing experience for mid-to-large scale rooms.

4K Dual Lens Offers Wide-angle Clarity for Mid-to-Large Scale Rooms

Capture a complete view of the room with wide-angle clarity. The CAM550 equips two 4K lenses. The first is a PTZ camera with 12X optical zoom (24X total zoom) to clearly frame meeting participants. The second is an AI lens with 95°FOV to provide a panoramic view of the room.

Dynamic Framing Enhances Meeting Efficiency

The CAM550 quickly and precisely focuses on participants and newcomers. When newcomers walk in, the secondary AI lens springs to action to detect them, then the PTZ camera automatically re-frames. Through fully automatic operation, this dynamic framing optimizes meetings and protects the safety of participants.

Get rid of USB cable connections by using the AVer Virtual Stream function

Get rid of USB cable connections by using the AVer Virtual Stream function AVer Virtual Streaming technology makes the CAM550 available as a camera video source for virtual meetings via a single Ethernet connection. Also, a PoE+ port simplifies set up and reduces installation costs. *PoE+ configuration is only supported by Windows OS.

Specifications

Dual Camera:

Lens 1: PTZ Optical Zoom Lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 24X Zoom*: 12X optical; 2X digital zoom
• Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
• Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• AE, white balance: auto, manual override via PTZApp 2
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS232

Secondary Fixed Lens (AI Lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Innovative features:

• Dynamic auto framing: secondary AI lens detects all participants, new participants trigger PTZ lens to dynamically frame all participants.
• Preset framing tracks both preset area and speaker*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• HDMI Picture in Picture (PIP) function
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology*** (One RJ45 cable transfers IP streaming to USB.)
• Audio tracking support: Integration with 3rd party ceiling microphone (Shure/Sennheiser) via AVer Preset Link*** function.

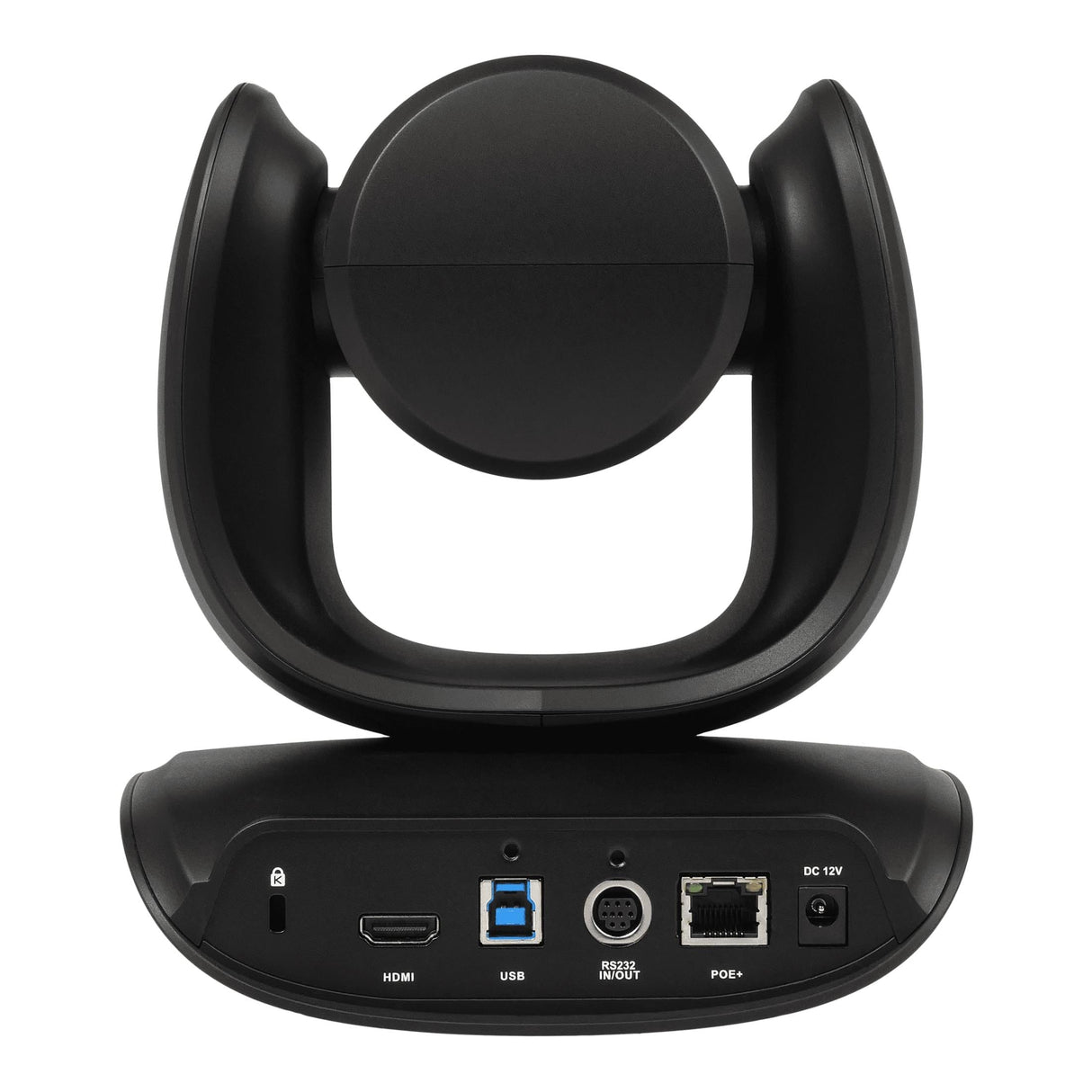

Connectivity:

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI

Control:

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
• Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome. (Not support IE)
• OSD setting: HDMI out to TV monitor
• PTZApp 2

Package Contents:

• CAM550 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-B to type-A cable (3m)
• Remote control
• Mini DIN9 to mini DIN8 RS232 adapter cable
• HDMI cable (3 m)
• Wall mount bracket and screws
• QR code card
• Tripod screw
• Drill paper

Compatible Applications:

Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
