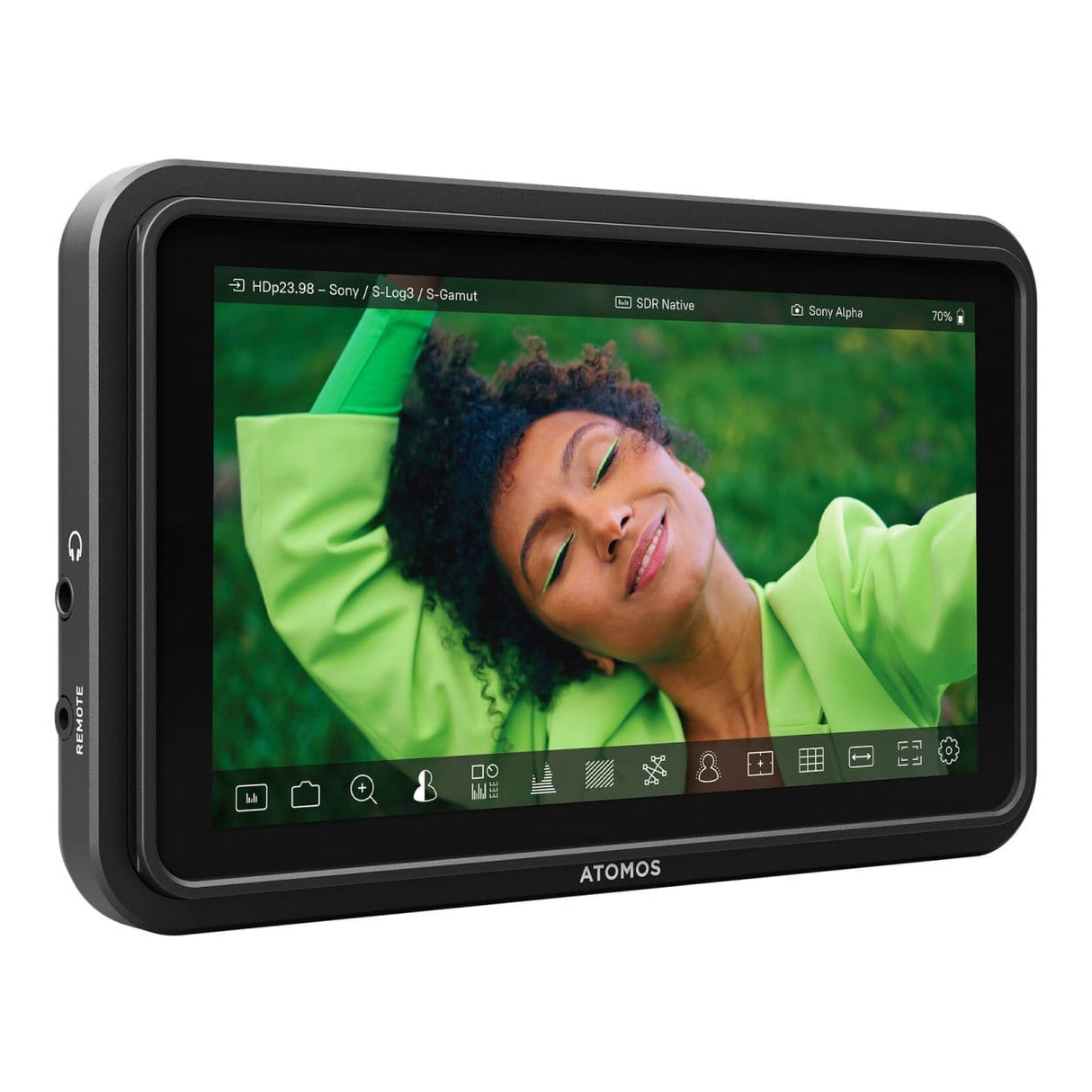

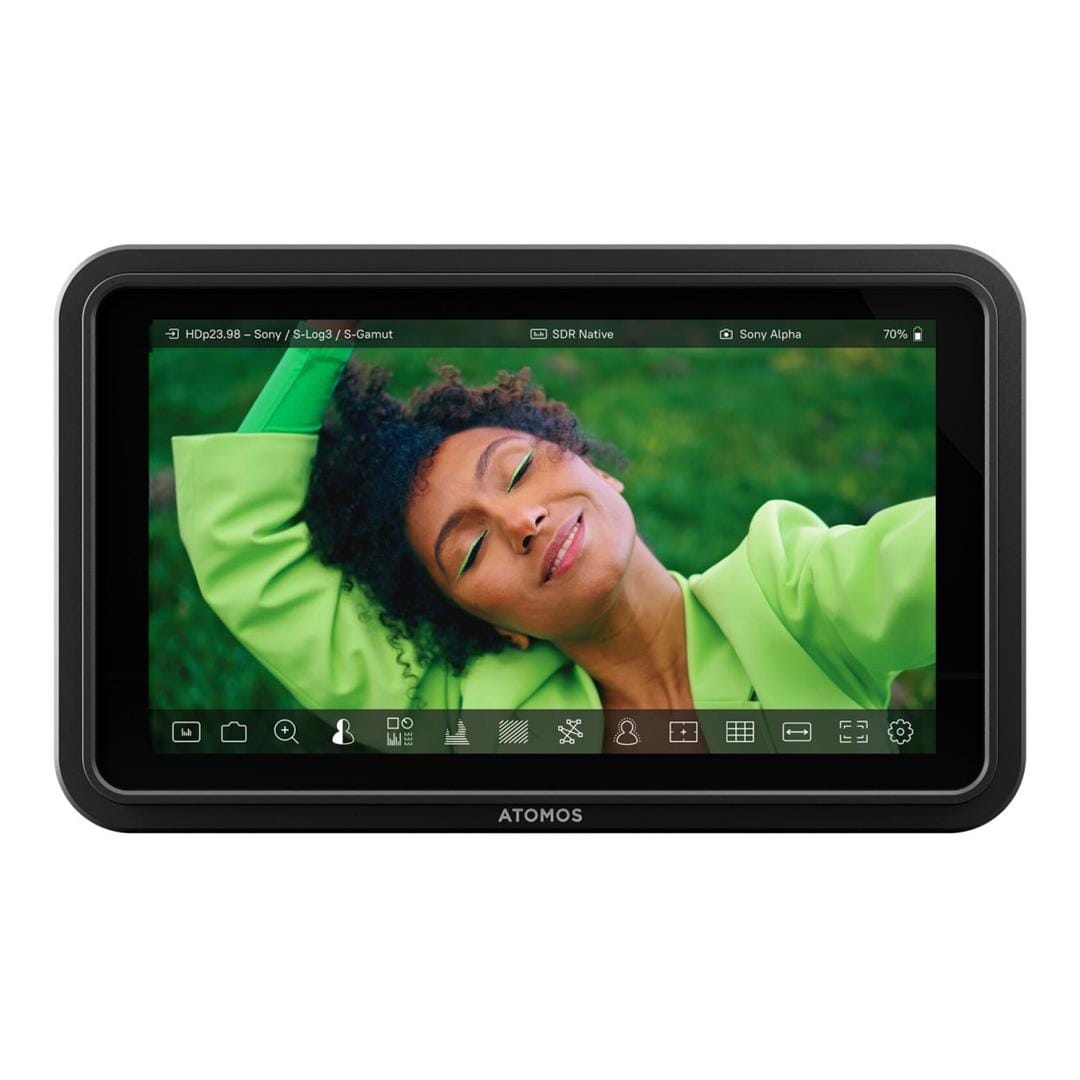

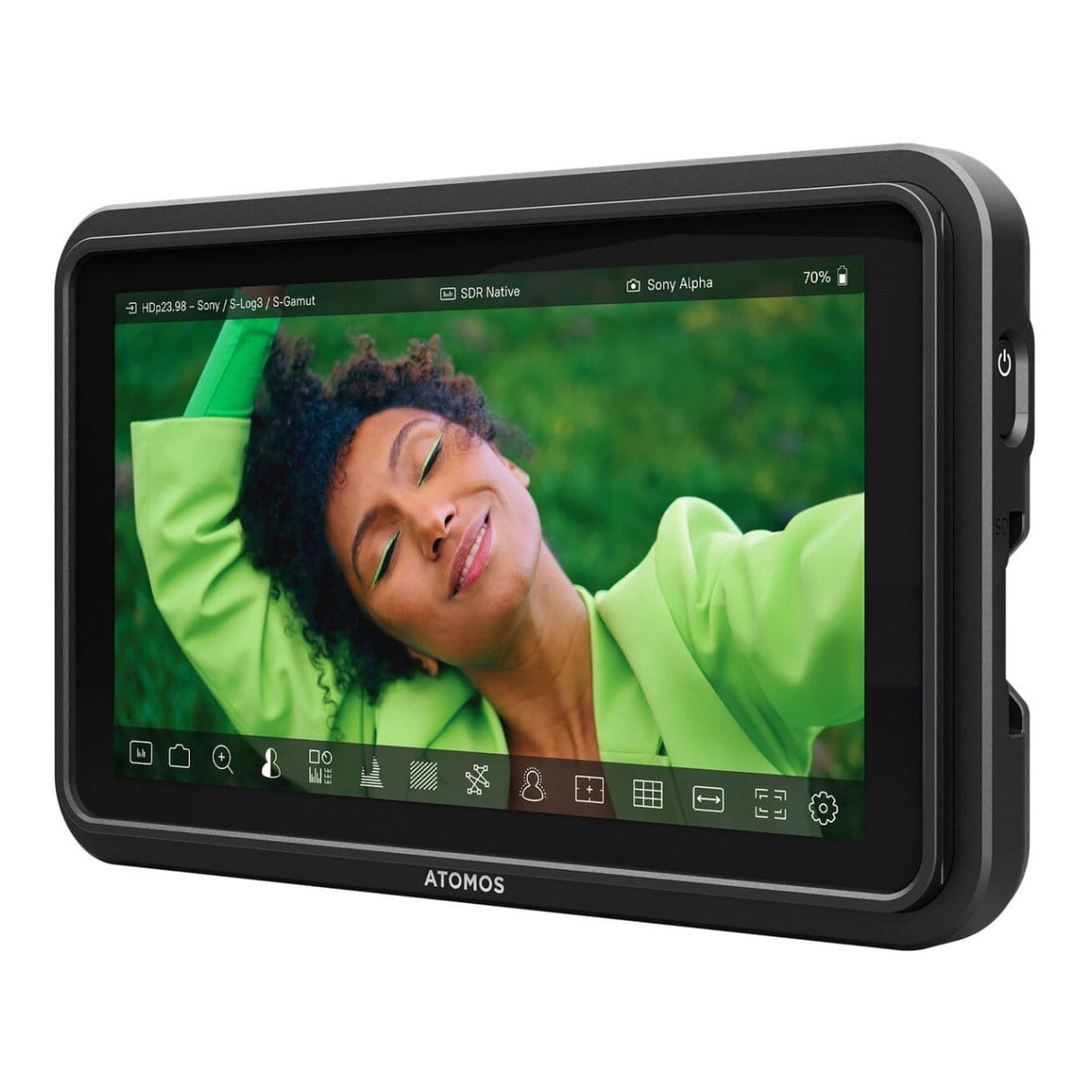

Atomos Shinobi II 5.2-inch HDMI HDR Camera Display ATOMSHB003

Atomos Shinobi II 5.2-inch HDMI HDR Camera Display ATOMSHB003

Key Features

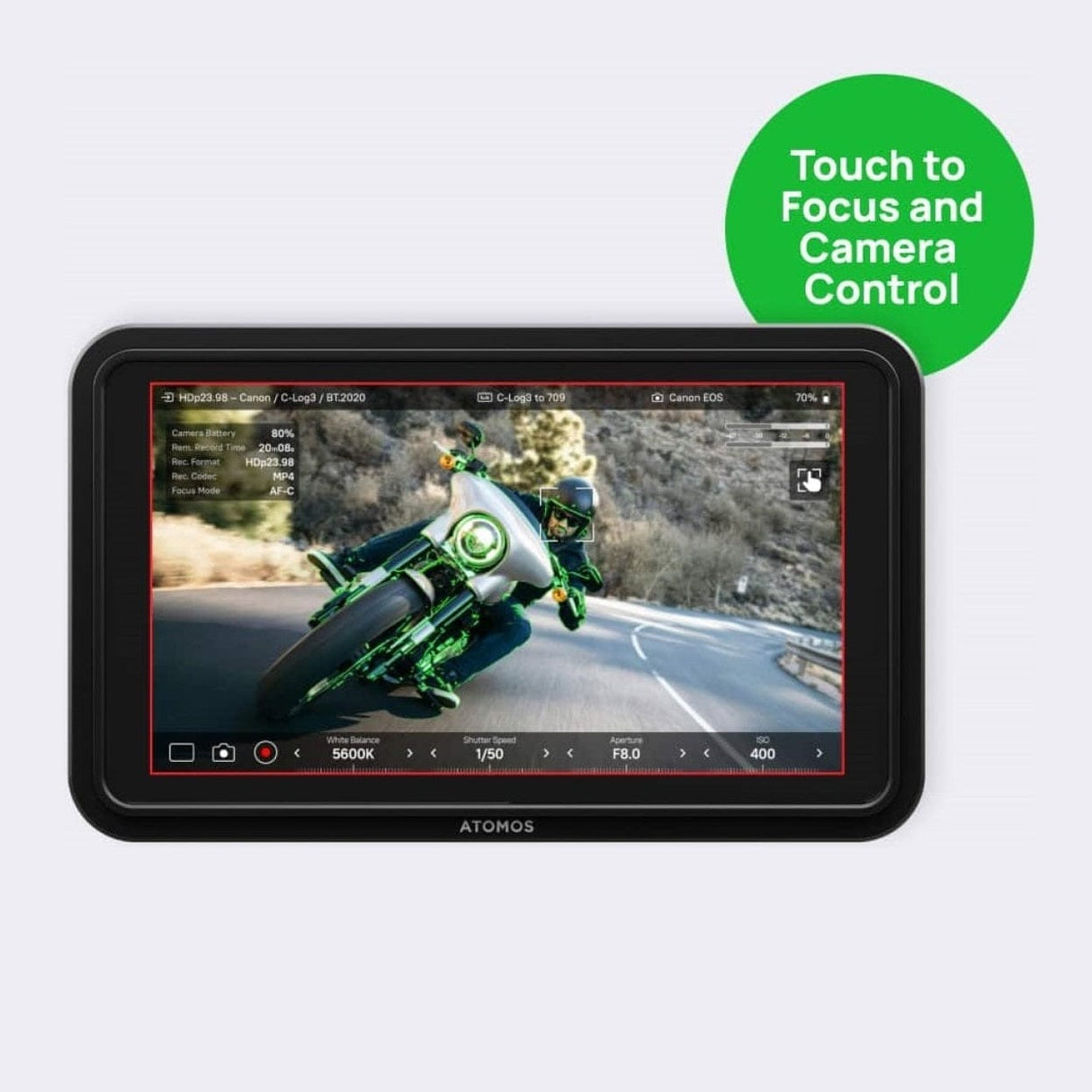

• Touch to Focus
• Camera Control, Shutter Release
• Slim, Lightweight, Low-Profile Design
• 5.2" 1920 x 1080p Capacitive Touchscreen
• USB PD Power
• High 1500 cd/m² Brightness
• 4K HDMI Input, HDR/HLG/PQ Support
• AtomHDR Mode with 10-Stop Dynamic Range
• Built-In and USB Calibration Support
• Single Sony L-Series Battery Slot

The slim, lightweight, high brightness, 5-inch 1500nit HDR camera monitor that’s perfect for vloggers, filmmakers and photographers.

Perfect for Video.

High brightness, lightweight, 5-inch, 1500nit HDR touchscreen monitor. Monitor HDMI signals up to 4Kp30. Built-In LUT; preview the look & store up to 8 LUTs. Camera Control for ISO, White Balance, Shutter, Aperture & Touch Focus. Long Battery Life – runs all day off a single battery; Analysis Mode – monitor using the waveform, histogram & vectorscope tools simultaneously; Frame Guides – frame shots with confidence, for social media or cinematic productions; USB-C PD – power Shinobi II via USB-C PD. Power/charge your camera too.

Perfect for Photographers: 1500nit HDR touchscreen camera monitor. New Shutter Release button allows photo capture triggering directly from the Shinobi II’s touchscreen. This is particularly useful when shooting multiple exposures for HDR bracketing, focus stacking, or similar workflows.

Camera Status

A camera status indicator allows you to keep an eye on the camera's internal record settings, battery status, and remaining recording time. A red edge display shows when the camera is recording internally, whether triggered by the camera or from the Shinobi II.

Input Signals

The Shinobi II features an HDMI 1.4 input that allows you to monitor signals in various resolutions and frame rates up to DCI/UHD 4K30 and up to 1080p60.

Power Options

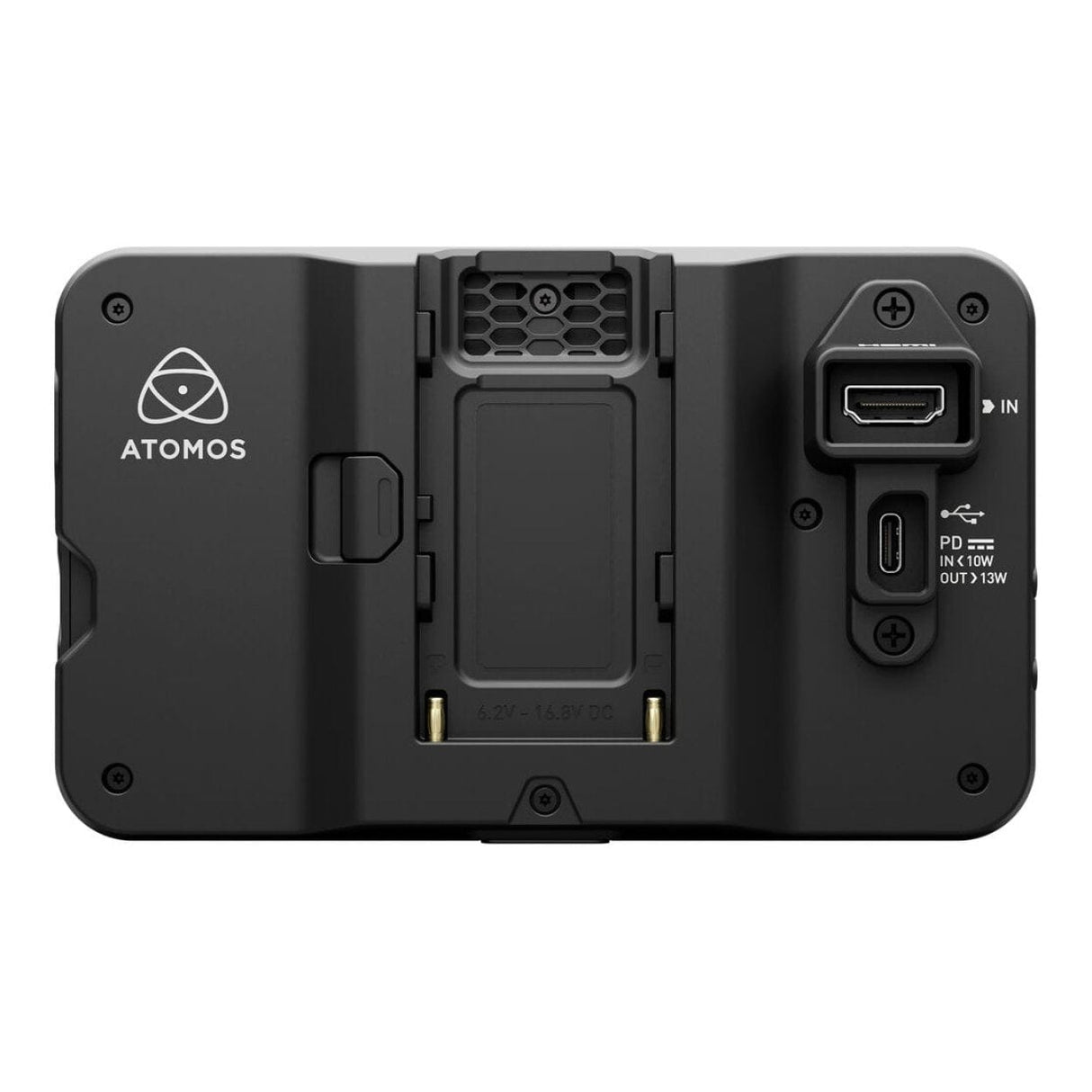

There are multiple methods to power the Shinobi II, including an L-series/NP-F style battery, an optional battery eliminator (dummy battery) in combination with a DC barrel to D-Tap cable, or via a USB-C PD charger with 10W input. You can also charge/power your camera via USB-C PD 13W output while using Shinobi II's camera control features.

Technical Specification

Product: Atomos Shinobi II Camera Monitor

Display Panel: SuperAtom IPS Panel (Capacitive Touch)

Size: 5.2-inch

Resolution: 1920 x 1080

Viewing Angle: 178 + H & V

PPI: 427

Bit Depth: 10-bit (8+2 FRC)

Backlight Type: Edge-lit

Brightness (cd/m² / nits): 1500

Aspect Ratio: 16:9

Body: ABS Polycarbonate Plastic

Cooling: Passive heat sink

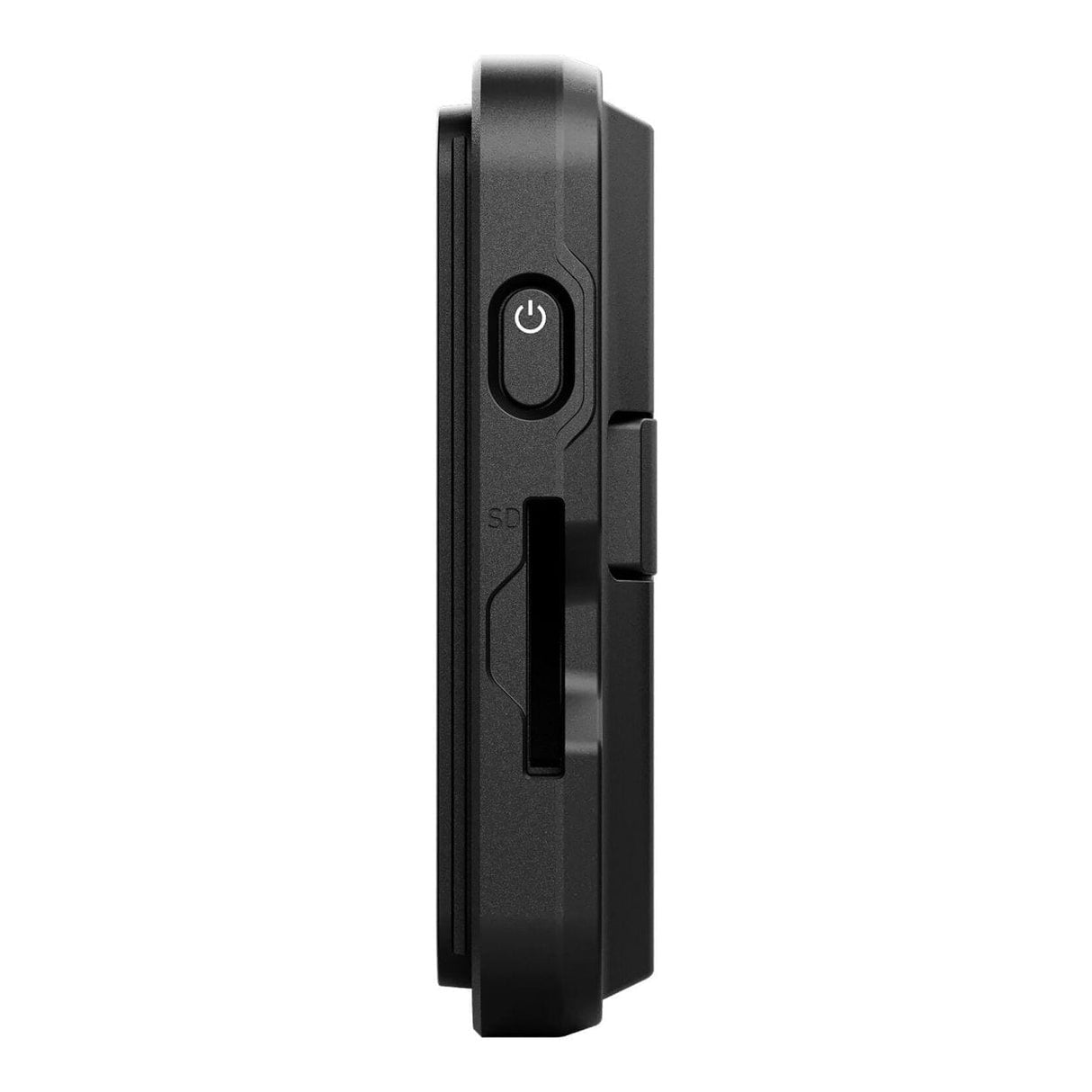

Multi-Function Button: Power / Lock Screen

Touch Screen: Capacitive Touch

Mounting Points Bottom: 1x 1/4-inch 20 with anti-rotational points

Input Voltage: 6.2V to 16.8V

Compatible Batteries: 1x NP-F / L-Series

Built-in battery: No

Continuous power: Via NPF battery or USB-C PD

DC-In Connector: Via Battery Eliminator (separate purchase)

D-Tap: Via optionally available Battery Eliminator or D-Tap to DC-Barrel Cable

Weight: 210 g

Warranty: 1-Year Carry-in

For a list of compatible cameras

• https://www.atomos.com/supported-cameras/?products=shinobi-ii
