Aten UCE33100 4-port USB 3.2 Gen 1 Cat 6A Extender

Aten UCE33100 4-port USB 3.2 Gen 1 Cat 6A Extender

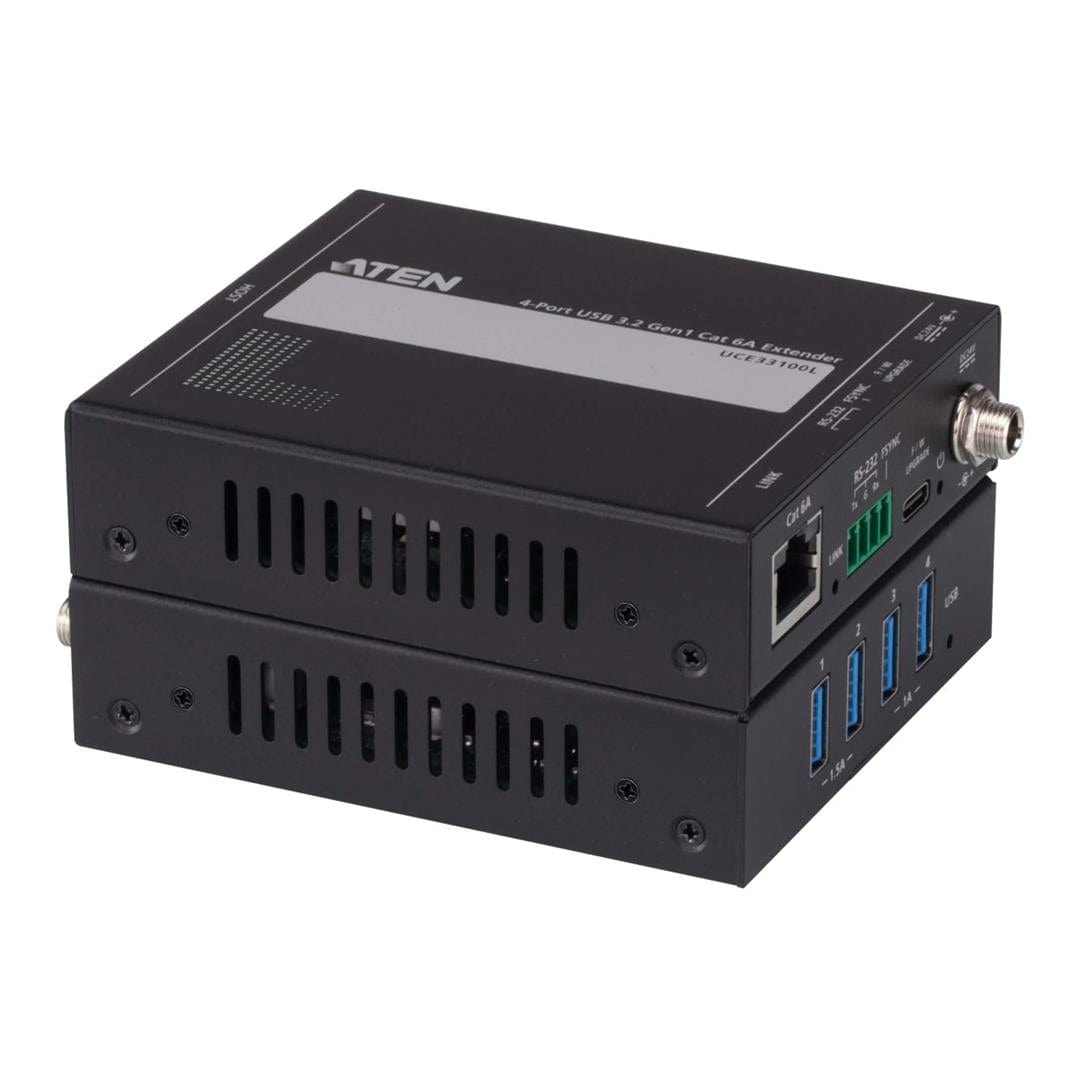

The UCE33100 is a two-piece extension kit that transmits uncompressed USB 3.2 data at up to 5Gbps over a 100 m Cat 6A cable. With four USB Type-A ports built on the remote unit, the connection to multiple USB peripherals, from flash drives, keyboards, mice, and webcams to interactive whiteboards, is made easy. The support for bi-directional RS-232 pass-through facilitates integration into control systems, and apart from that, the Frame Synchronization (FSYNC) GPIO pass-through ports allow bi-directional commands to be sent when it comes to industrial camera implementations. The bi-directional 24V power over cable function eliminates the need for an additional power adapter when either of the local or remote unit receives power.

The UCE33100 supports plug-and-play operation to work flawlessly with all operating systems, assuring hassle-free installation with no extra driver or software required. Flexibility is further enhanced due to the extender’s compact, wall-mountable enclosure, which also helps save space.

Features

• A two-piece extension kit that transmits USB signals over a Cat 6A cable
• Long distance USB 3.2 data transmission at up to 5Gbps across 100m
• Backward compatible with USB 2.0 / 1.1 specifications
• 4x USB Type-A ports built on the remote unit for connection to multiple USB peripherals (flash drives, keyboards, mice, webcams, interactive whiteboards, and any other USB-based devices)
• Supports bi-directional RS-232 pass-through for integration into control systems
• Supports bi-directional Frame Synchronization (FSYNC) GPIO pass-through for industrial camera applications
• Bi-directional 24V power over cable eliminates the need for an additional power adapter when either of the local or remote unit receives power
• Plug-and-play with no driver / software required to work with all operating systems
• Compact, wall-mountable enclosure elevates installation flexibility and helps save space

As the scope of meeting rooms continually evolves, it’s critical that we keep pace and maintain fast data transmission that extends to a longer distance should the occasion arise. In such cases, the UCE33100 becomes your perfect partner as it extends your USB connectivity across a distance of up to 100 m over a Cat 6A cable to assure a smooth meeting experience and contribute toward your overall operational efficiency at the office.

5 Gbps High-Speed Data Transmission over 100 m

Transmit USB 3.2 data at an ultra-high 5 Gbps speed spanning a distance up to 100 m with a Cat 6A cable*. (Product recommendation: 2L-29330)

4x USB Type-A Ports for Plug-n-Play Peripheral Connections

Enhance the resourcefulness of the extender by tapping into its 4 USB type-A ports and have a wide range of peripherals at your disposal.

PoC Power Supply for Ultimate Usability Convenience

Either the local or remote unit could be plugged into a power source, powered by just a Cat 6A connection cable.

Easily Mountable for Versatile Deployment

For added ease of installation and expansion, a mounting kit is provided as a resourceful accessory to facilitate easy and convenient installation.

Technical Specification

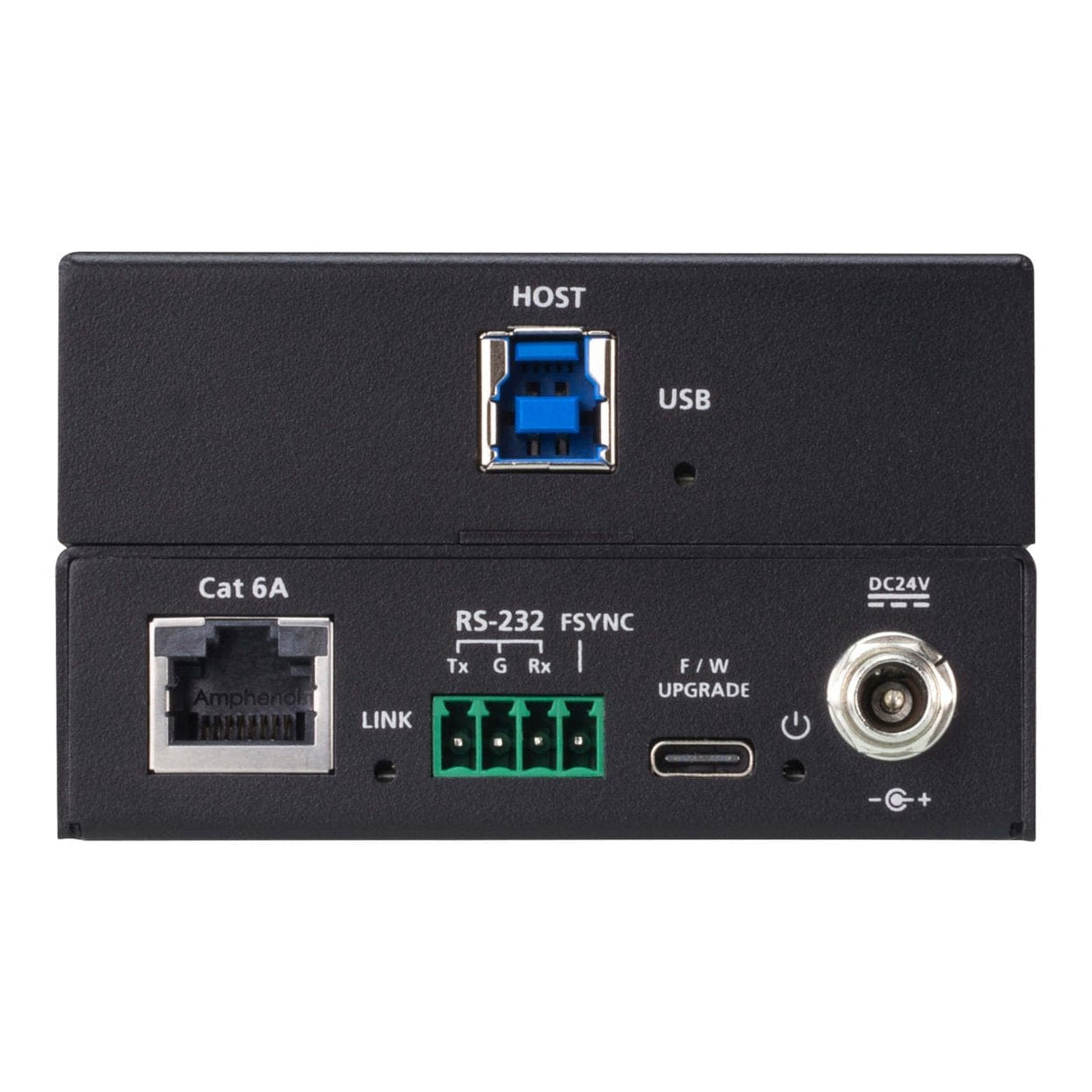

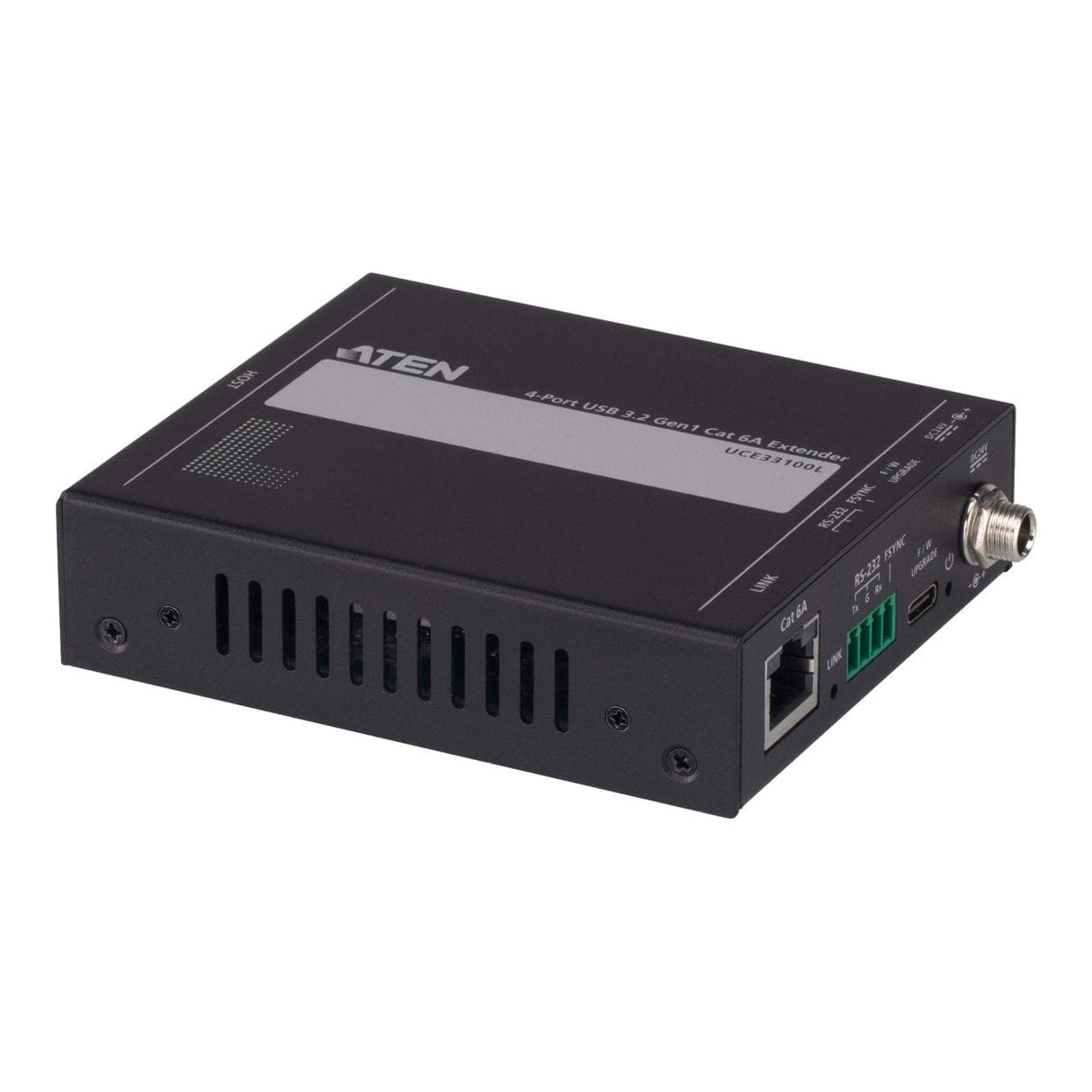

Local Unit

Upstream Port: 1x USB Type B Female

Downstream Port

• 1x RJ45 Female
• 1x USB Type C Female (Firmware Upgrade)
• 1x 3-pin Terminal Plug (RS-232)
• 1x 1-pin Terminal Plug (FSYNC)
• Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.

Power: 1x DC Jack

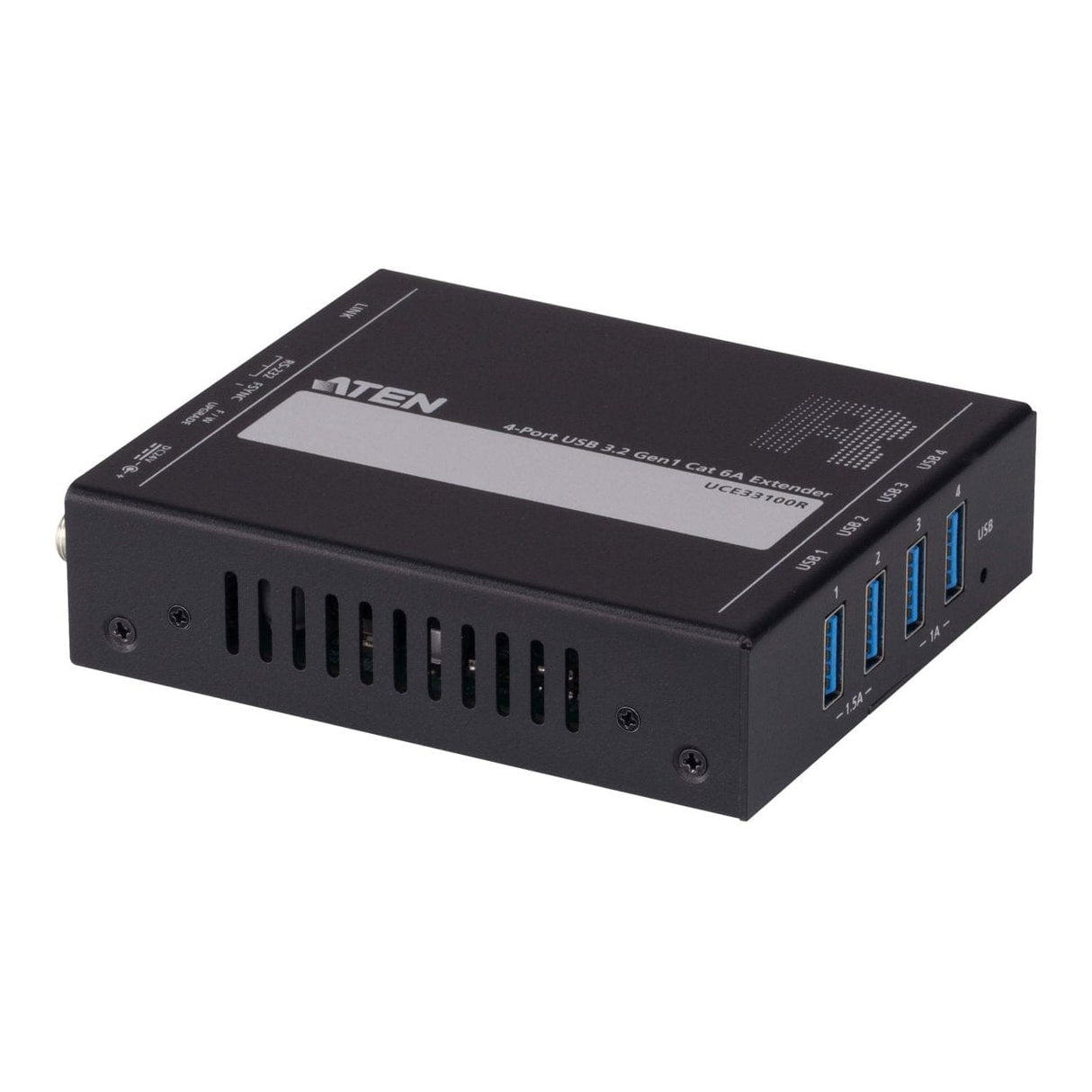

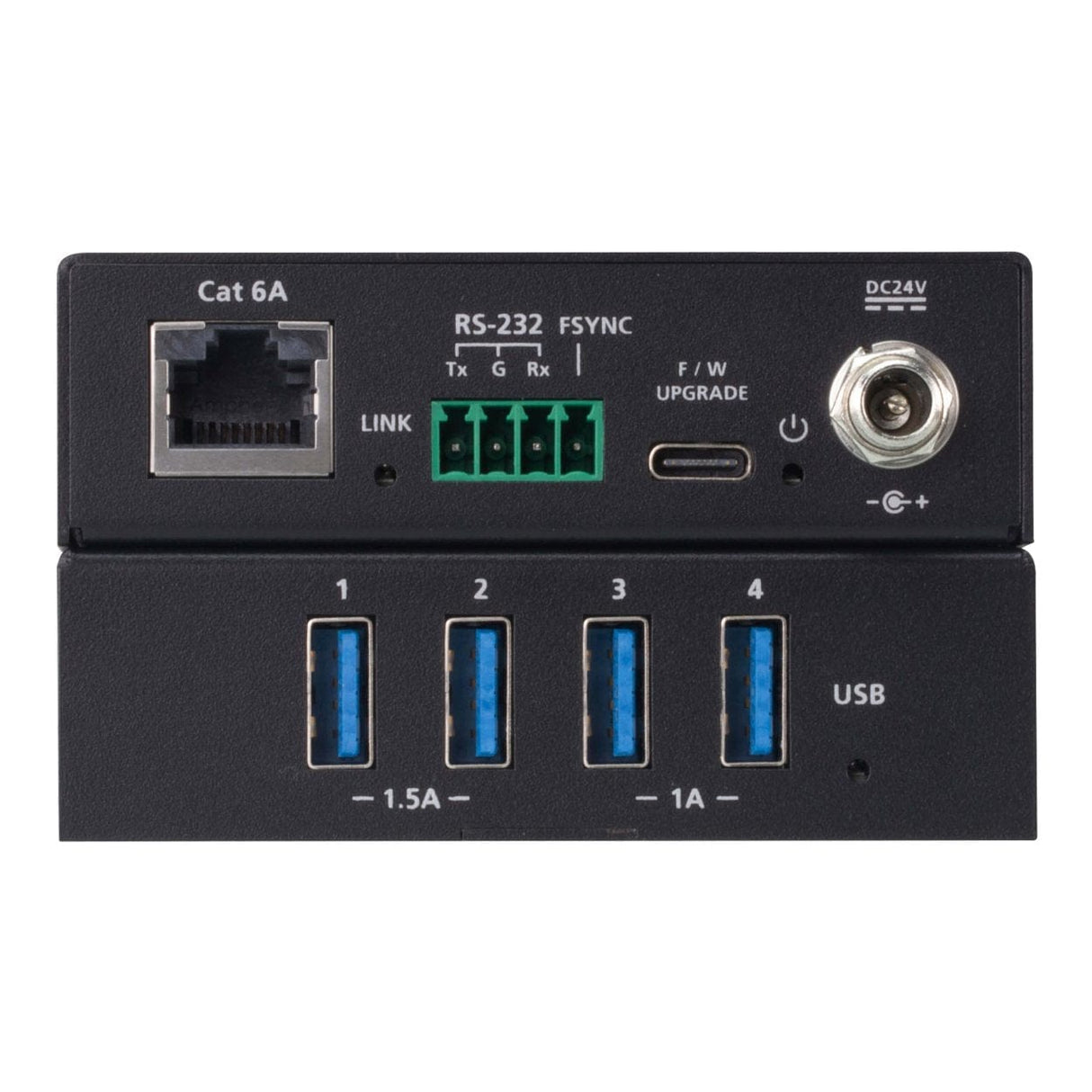

Remote Unit

Upstream Port: 1x RJ45 Female

Downstream Port

• 4x USB Type A Female
• 1x USB Type C Female (Firmware Upgrade)
• 1x 3-pin Terminal Plug (RS-232)
• 1x 1-pin Terminal Plug (FSYNC)
• Note: The USB-C port is for firmware upgrade only. Please do not connect any other devices during regular use.

Power: 1 x DC Jack

USB Specification: USB3.2 Gen1

Cable Type: Cat 6A Ethernet Cable

Signal Range: 100m

LEDs

Status: 3x LED

Power Consumption

• DC 24V: 1.92WBTU/h
• DC 24V: 2.64WBTU/h
