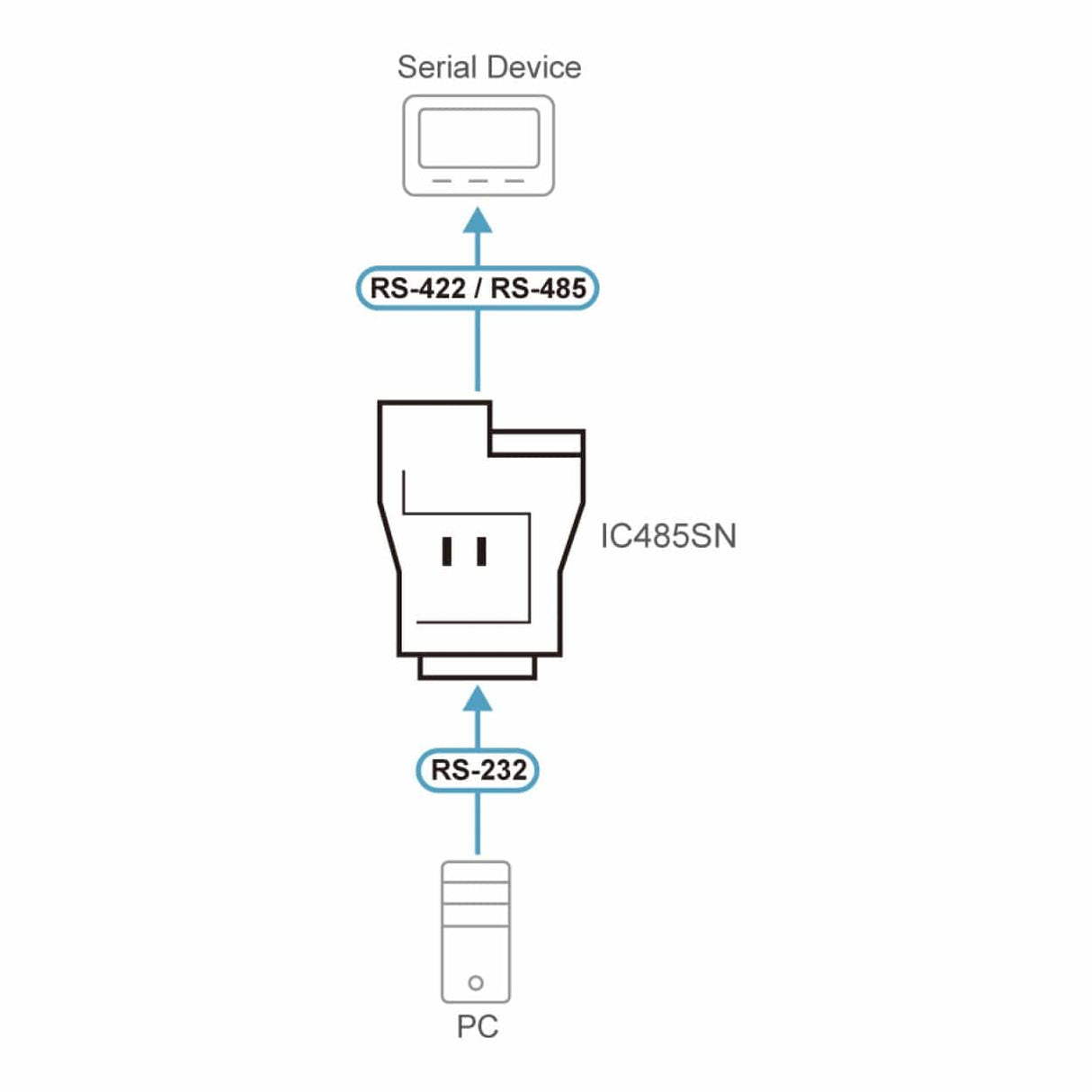

IC485SN is a 2-way converter for converting RS-232 signals to and from RS-422/RS-485 signals in long-distance applications up to 1200 m (4000 ft.) – without the need of an external power supply.

• Data transmission controlled by the RTS signal.
• DCE/DTE selectable.
• Point to point, multidrop, and simplex/duplex link selection.
• Four wire full duplex; Four wire half duplex.
• Compact size.
• Cable distance of up to 1200m (4000 ft.).
• Non powered operation.
• Supports baud rates up to 115.2Kbps.
• OS Support: Windows 2000, Windows XP

Specifications

Connectors:

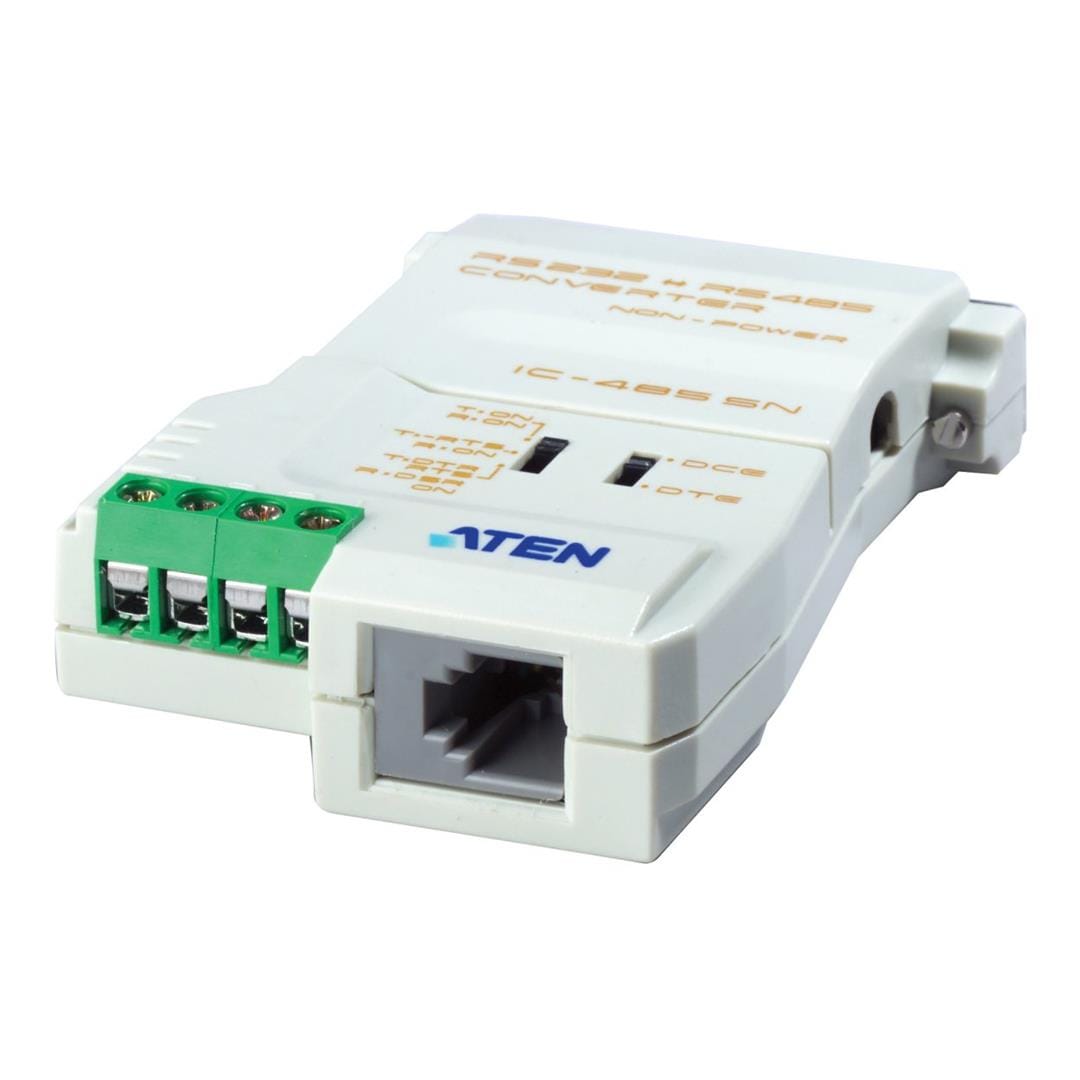

1 DB-25 Female (RS-232)
RS-485 / RS-422 Four Terminal Block
1x RJ-11 Female
Switches

DCE, DTE
TxON, RxON
TxRTS, RxON
TxDTR/RTS,RxDSR/ON
Power Consumption: DC9V:0.03W:1BTU/h

Note:

• The measurement in Watts indicates the typical power consumption of the device with no external loading.
• The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Signal Range :1200 m [4000'] (Max)
Data Rate: Up to 100 Kbps under 1200 m [4000']
Environmental
Operating Temperature; 0 ~50ËšC
Storage Temperature: -20 ~ 60ËšC
Humidity: 0~80% RH, Non-condensing
Physical Properties
Housing: Plastic
Weight: 0.06 kg
Dimensions (L x W x H): 7.90 x 5.45 x 2.10 cm (3.11 x 2.15 x 0.83 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

What's in the box:

• 1 x Aten RS-232/RS-485 Interface Converter
• 1 x User manual
