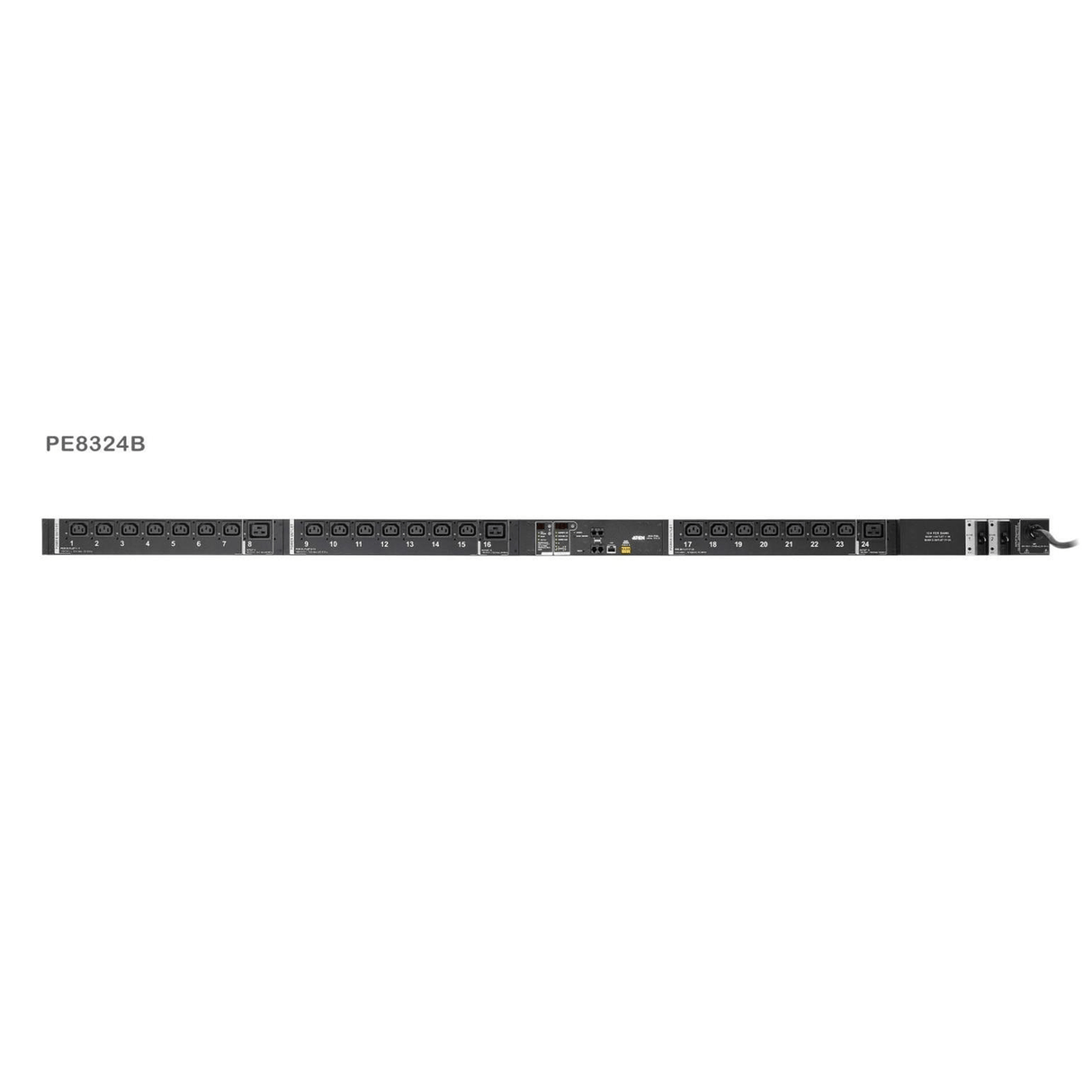

Aten PE8324 0U 30A 24 AC Outlet PDU

Aten PE8324 0U 30A 24 AC Outlet PDU

The PE8324B eco PDU with Outlet Monitoring from ATEN is a 0U, 30A maximum output, 200 to 240V, multi-outlet power distribution unit, designed to increase the efficiency of data center usage with a focus on green-energy power usage. The PE8324B has 21 x C13 and 3 x C19 outlets, and features NRGence´s proactive overload protection, which will automatically power off the last outlet that caused a current overload.

NRGence eco PDUs are engineered to provide secure, centralized, intelligent, power management (power on, off, cycle) of data center IT equipment (servers, storage systems, KVM switches, network devices, serial data devices, etc.), and is designed with the ability to monitor the center´s health environment via sensors.

The PE8324B offers remote power control combined with real-time power measurement - allowing you to control and monitor the power status of devices attached to the PDU bank and outlet, from practically any location via a TCP/IP connection.

The power status of each outlet can be set individually, allowing users to switch each device On/Off. The eco PDU also offers comprehensive power analysis reports, which can separate departments and locations, providing precise measurements of current, voltage, power and watt-hour in a real-time display. Installation entails plugging cables into their appropriate ports and then applying the user-friendly, browser-based configuration and management. Since the eco PDU firmware is upgradeable over the internet, you can stay current with the latest functionality improvements simply by downloading updates as they become available.

Additionally, this NRGence eco PDU supports any 3rd-party V3 SNMP Manager Software and NRGence eco Sensors (eco PDU Manager Software). The eco Sensors PDU provides you with an easy method for managing multiple devices, offering an intuitive and user-friendly graphical user interface that allows you to configure a PDU device and monitor power status of the equipment connected to it.

With its advanced security features and ease of operation, the PE8324B eco PDU is a convenient, reliable, and effective way to remotely manage power access for multiple computer installations and allocate power resources in an efficient, green-energy way.

Connections

Supports:
10/100Mbit Ethernet Interface
TCP/IP, UDP, HTTP, HTTPS, SSL, DHCP, SMTP, NTP, DNS, Auto Sense, Ping, SNMP V1,V2&V3
2-level account/password security, IP/MAC filter, 128 bit SSL, RADIOUS
eco Sensors, Browser (IE, Firefox, Chrome, Safari)

Metering

PDU and outlet level power metering and monitoring
Environment monitoring - supports external temperature/temperature & humidity sensors for rack temperature and humidity monitoring
Current, voltage, power, power dissipation, temperature, and humidity metering and threshold level setting
Support door sensor

Outlet Switch Control

Remote power outlet control (On/Off, Power Cycle) by individual outlets and outlet groups
Outlet group support at the PDU
Supports multiple power control methods - Wake on LAN, System After AC Back, Kill the Power
Power-On sequencing - users can set the power-on sequence and delay time for each outlet to allow equipment to be powered on in the correct order
Proactive overload protection(POP) - automatically powers off the last outlet that caused the current overload
