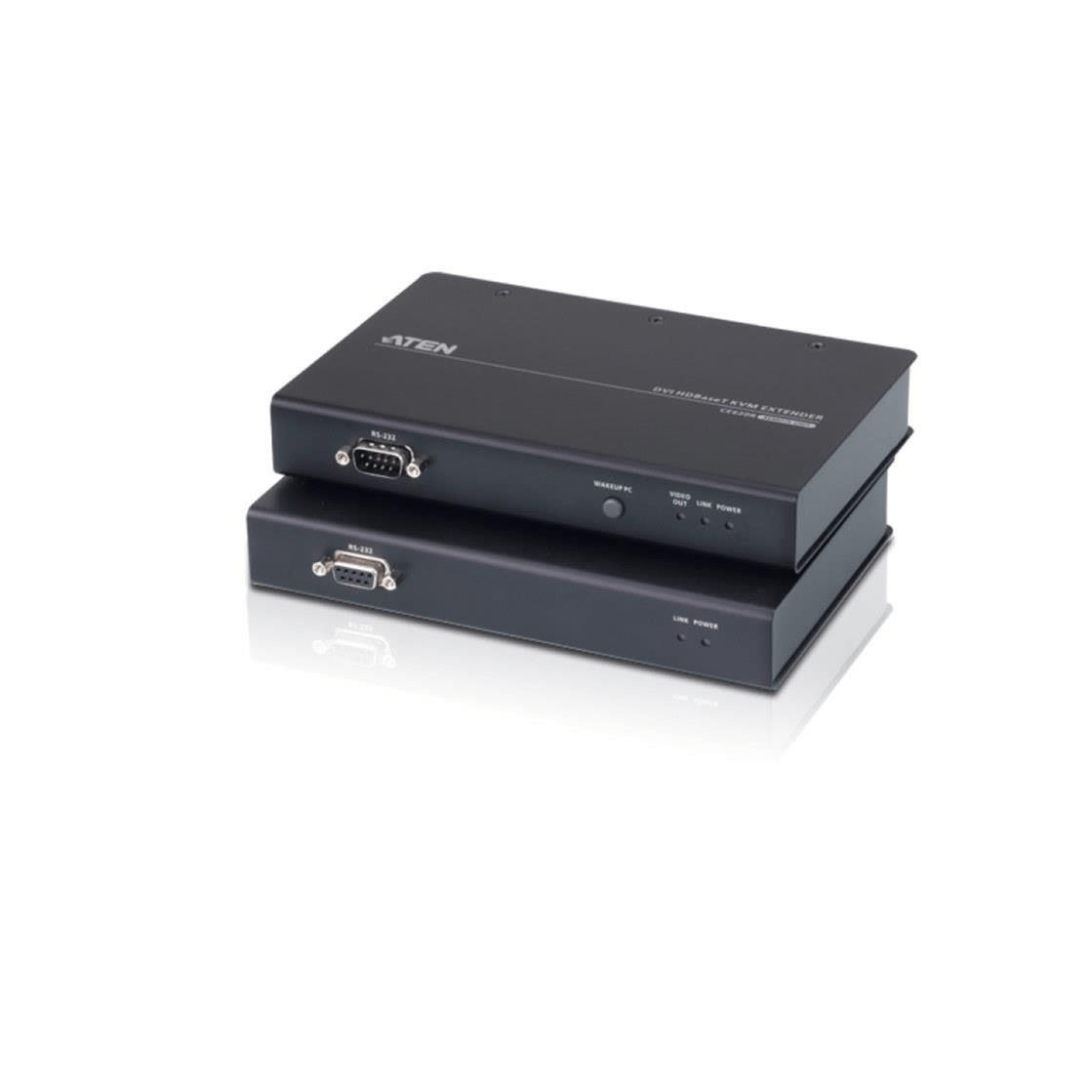

ATEN CE620 USB DVI HDBaseT 2.0 KVM Extender

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. The CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0 and RS-232 signals up to 100 meters from the source computer using a single Cat5e/6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

HDBaseT™ 2.0 connectivity technology - Extends video, audio, USB and RS-232 signals via a single Ethernet cable - EDID Buffer for smooth power-up and the highest quality display - Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions

Long distance superior video quality - HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m - HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m - Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap - Integrated USB 2.0 ports — ensuring fast transmission speeds for peripherals - Supports 2-channel PCM digital audio — ensuring highquality audio transmissions - Supports PC Wakeup function via pushbutton or hotkey - Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)

Aten USB 2.0 DVI Single Link over 1 CAT Cable (100m) KVM Extender with Full USB2.0 support (up to 480Mbps) / HDBaseT2.0. Type: Transmitter & receiver, Connectivity technology: Wired, Maximum transfer distance: 100 m. Transmitter local video port type: DVI-D. Receiver local video port type: DVI-D. Power consumption (transmitter) (max): 3 W, Power consumption (receiver) (max): 5.6 W. Transmitter width: 18.2 cm, Transmitter depth: 12.3 cm, Transmitter height: 2.87 cm
