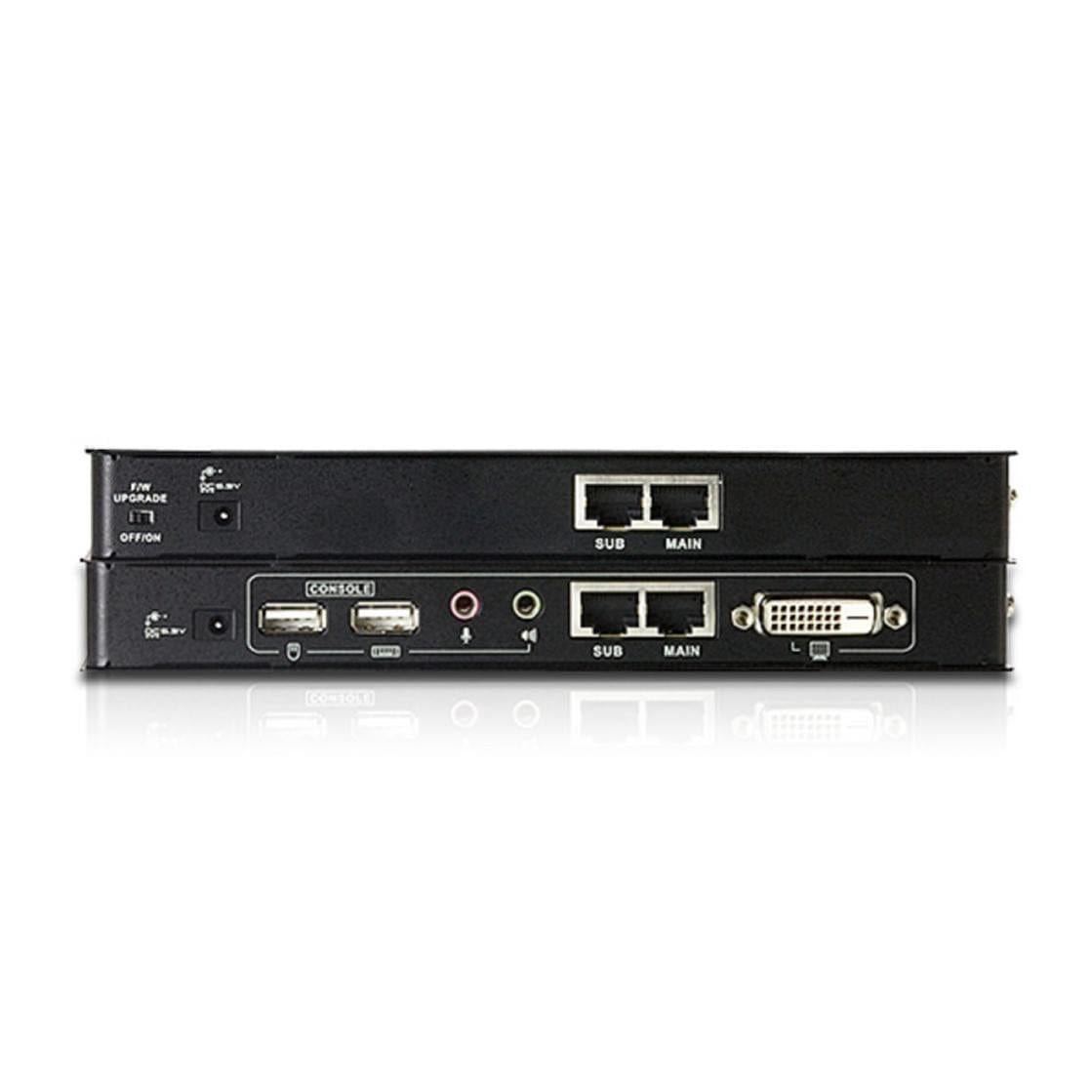

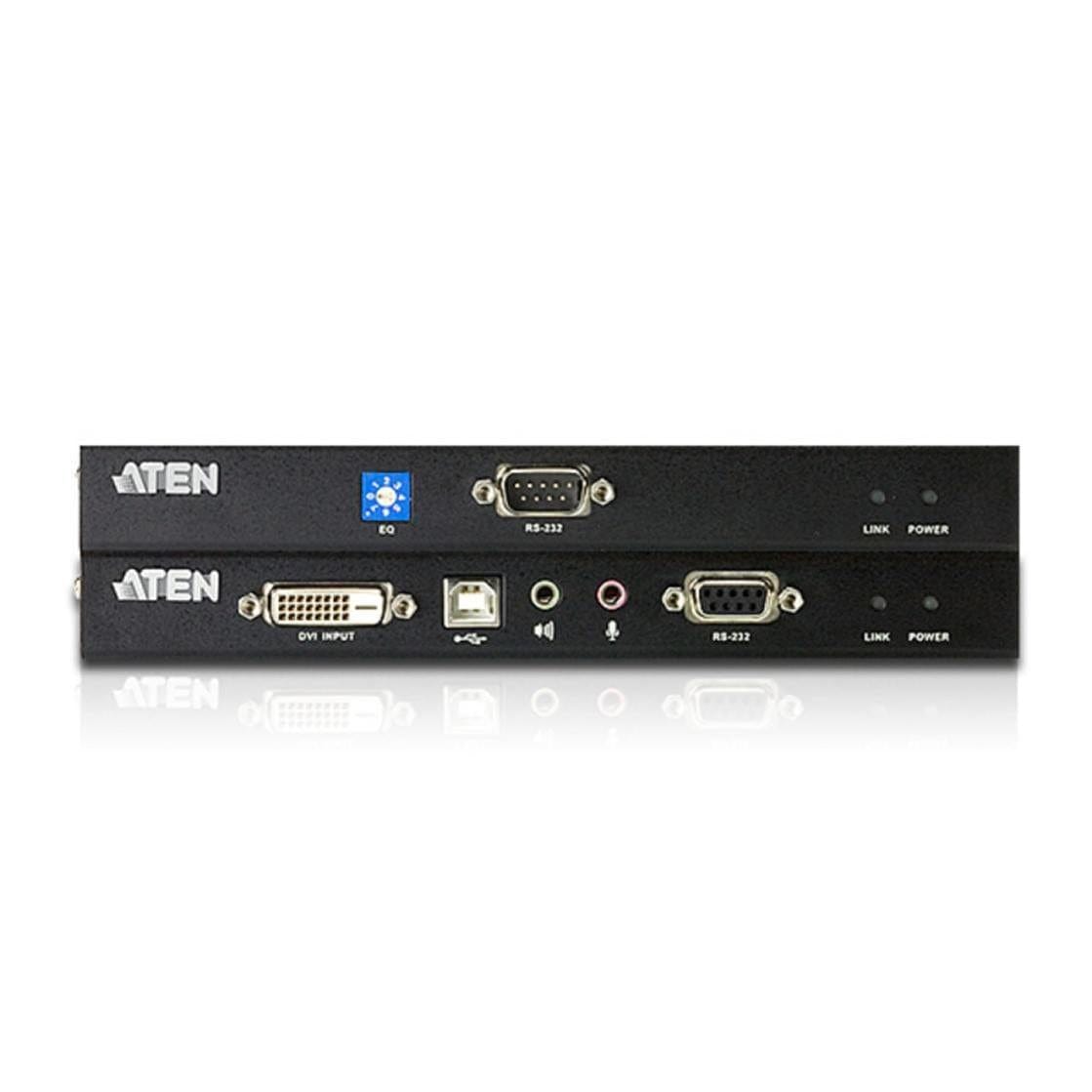

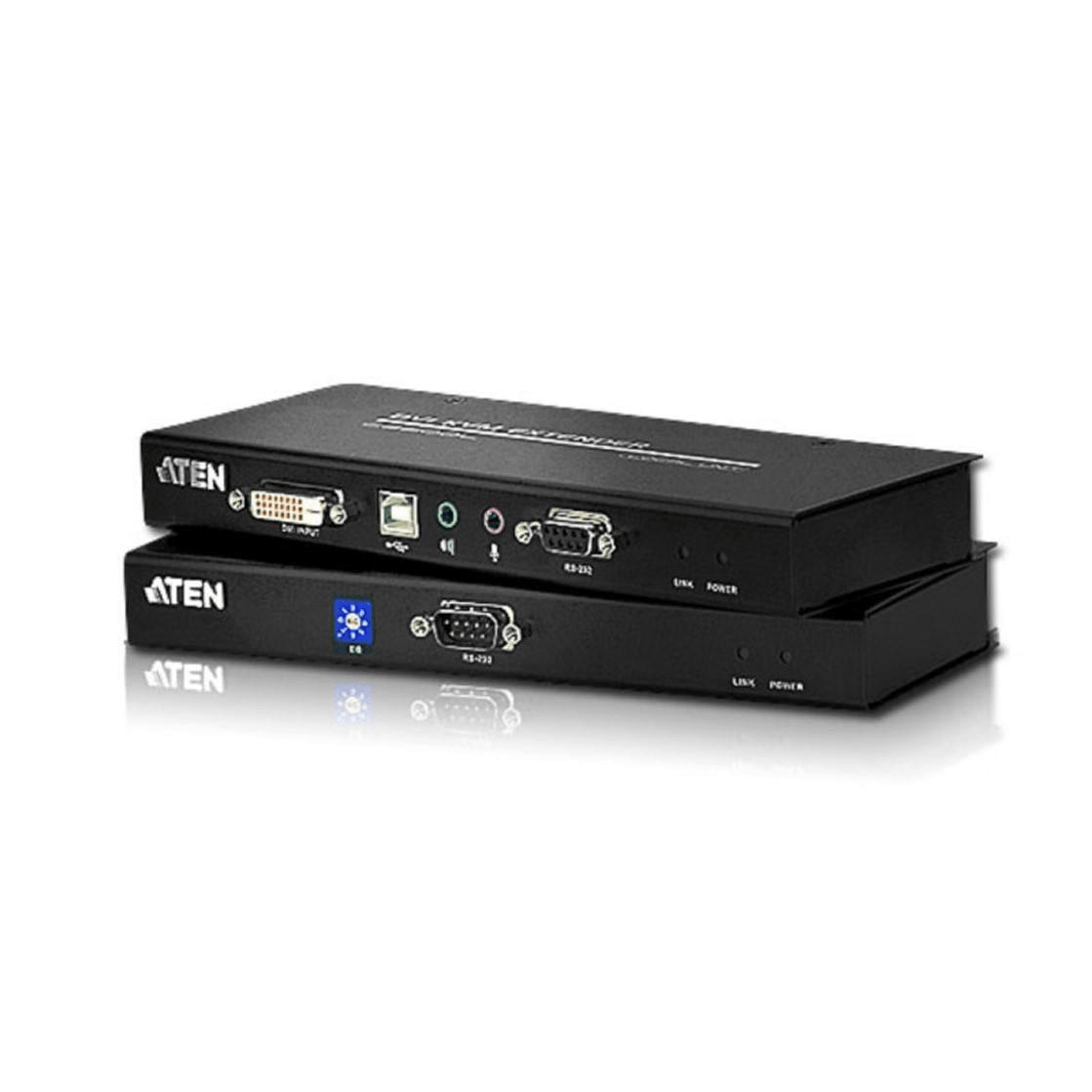

ATEN CE602 USB DVI Dual Link Cat 5 KVM Extender

Features - Local and Remote Units connect at distances up to 60 m using Cat 5e cable - Allows access to a computer or KVM installation from a remote console (up to 60 m) - Supports DVI-D interface and allows transmission of DVI duallink signals - Features ATEN technology that allows A/V transmission over one cat 5e cable - The 2nd Cat 5e cable is used for HDCP, RS-232, microphone and dual link signals - Manual compensation control to adjust signal strength in order to compensate for distance - RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate 115200 bps) - Audio Enabled – supports stereo speakers and microphone - Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) - Supports Wide Screen formats - Superior video quality of up to 2560 x 1600 @ 60 Hz (DVI Dual Link) at 40 m; 1920 x 1200 @ 60 Hz at 30 m; 1024 x 768 @ 60 Hz at 60 m – get an excellent, crisp image on your screen over long distance transmissions - Hot pluggable - Rack mountable - Easy to install – no software required – connecting cables to the devices is all it takes - Firmware upgrade

Package Contents - 1x CE602L DVI KVM Extender (Local Unit) - 1x CE602R DVI KVM Extender (Remote Unit) - 1x 2L-7D02UD 1.8 m USB DVI-D Dual Link KVM Cable Set - 2x 0AD6-1605-24EG Power Adapters - 1x Mounting Kit - 1x User Instructions
