Aten 17-inch 16-port Single Rail LCD KVM Switch CL5716M

Aten 17-inch 16-port Single Rail LCD KVM Switch

The CL5716M Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716M can control up to 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716M, so that up to 512 computers can all be controlled from a single KVM console.

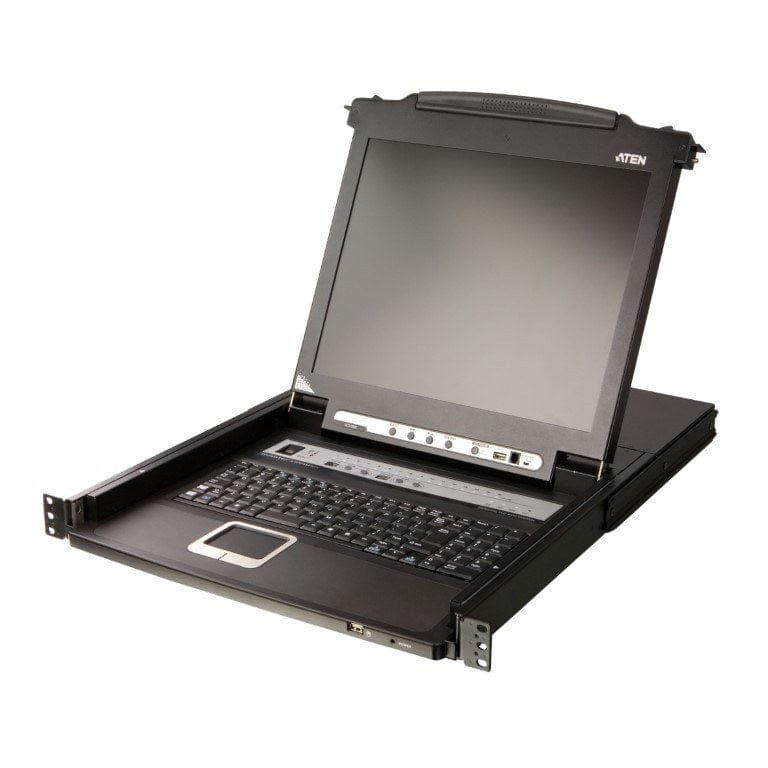

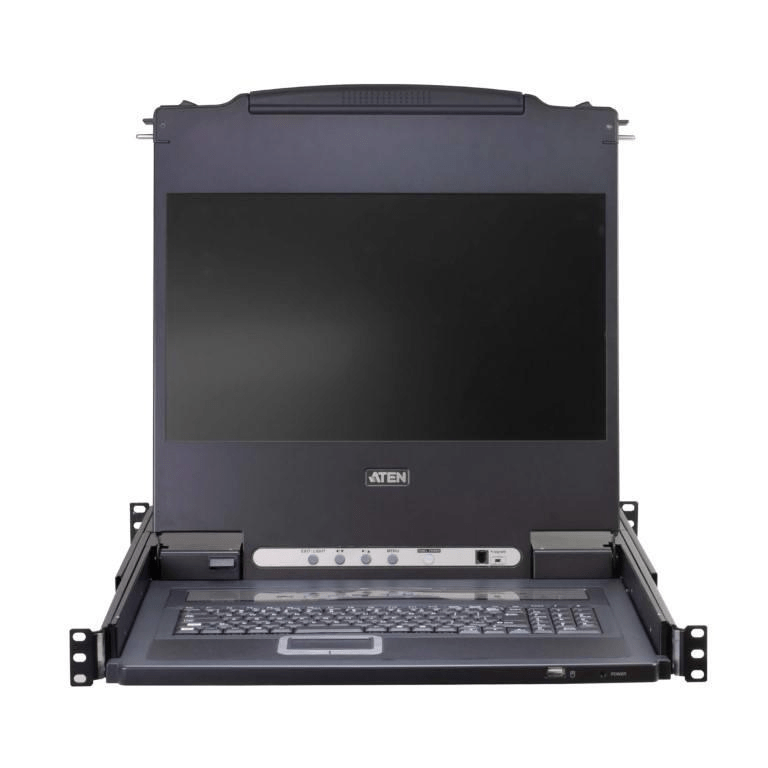

The CL5716M offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716M offers the option to use a fingerprint identification system for controlling access to both the CL5716M itself and the servers it commands.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Features

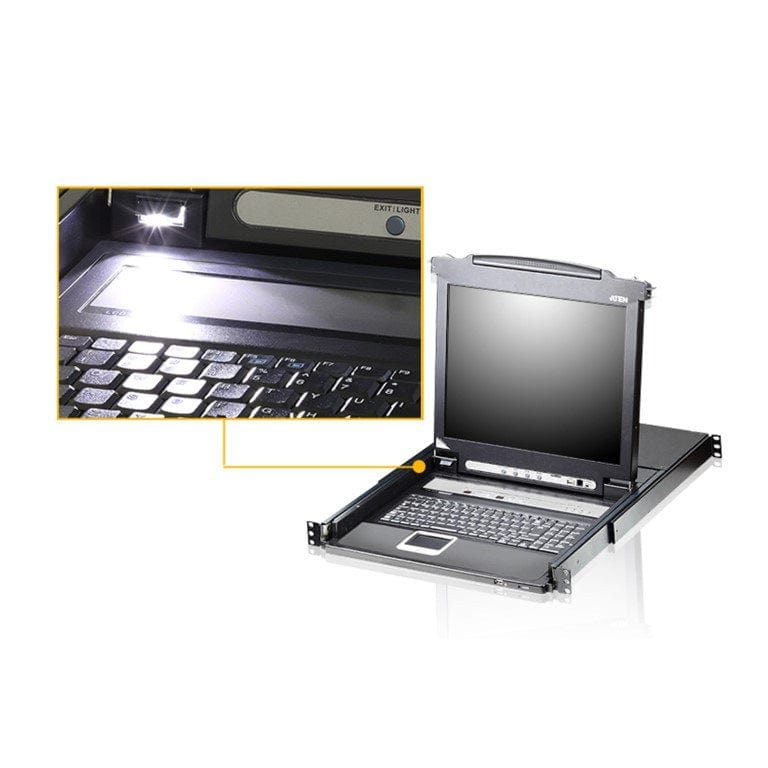

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
• Integrated KVM console with 17” LED-backlit LCD monitor in a Slideaway housing
• Available with or without fingerprint identification reader¹
• Space saving technology – up to two consoles (one bus) control up to 8 or 16 computers
• Daisy-chain up to 31 additional units – controls up to 512 computers from a single console
• Dual interface – supports computers and console with PS/2 or USB keyboards and mice
• USB port allows each computer to access USB peripherals² (inapplicable to CL5716MW)
• LCD module rotates up to 120 degrees for a more comfortable viewing angle
• Multiplatform support – Windows, Linux, Mac, and Sun
• Supports multimedia USB keyboards for PC, Mac and Sun
• Auto PS/2 and USB interface detection
• Keyboard and mouse emulation (PS/2 and USB) for smooth switching and simultaneous booting of multiple computers even when the console focus is elsewhere
• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
• Superior video quality – supports resolutions of up to 1280 x 1024 @ 75 Hz (CL5716M / CL5716FM / CL5716N) and 1920 x 1080 @ 60 Hz (CL5716MW)
• No software required –convenient computer selection via front panel pushbuttons, hotkeys and multilingual onscreen display (OSD) menus
• Auto-senses station's position on daisy-chained installations; no need for manual dip switch setting; front panel LED indicates station's position
• Port names automatically reconfigured when station sequence is changed
• Two level password security – only authorized users can view and control computers
• Supports one administrator and four user accounts with separate profiles
• Auto Scan mode enables continuous monitoring of user-selected computers
• Broadcast supports – commands from the keyboard can be broadcast to all available computers on the installation
• Hot pluggable
• Beeper on / off via hotkey and OSD
• Firmware upgrades to all the chained KVM switches at the same time via the daisy-chain cable
• Optional rack mount kits available including easy installation options
• Keyboard Language supports: English (US), English (UK), French, German, German (Swiss), Greek, Hungarian, Italian, Japanese, Korean, Russian, Spanish, Swedish and Traditional Chinese

Technical Specification

• 1 (Dark Green)

Lock

• 1 x Num Lock (Green)
• 1 x Caps Lock (Green)
• 1 x Scroll Lock (Green)

LED Illumination Light: 1 x LED Illumination Light
Panel Spec
LCD Module: 17" TFT-LCD
Resolution: 1280 × 1024 @ 75 Hz
Response time: 5 ms
Viewing Angle: 170° (H), 160° (V)
Pixel Pitch: 0.294 mm x 0.294 mm
Support Color: 16.77M colors
Contrast Ratio: 1000:1
Luminance: 250 cd/m²
Video
Input Video Resolution: up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B
Scan Interval: 1-255 seconds
Emulation
Keyboard / Mouse: PS/2, USB

Package Contents

• 1x CL5716M LCD KVM Switch with standard Rack Mount Kit
• 2x Custom KVM Cable (VGA, USB; 1.8m/6ft)
• 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft)
• 1x Firmware Upgrade Cable
• 1x Power Cord (AC Power Models)
• 1x User Instructions
