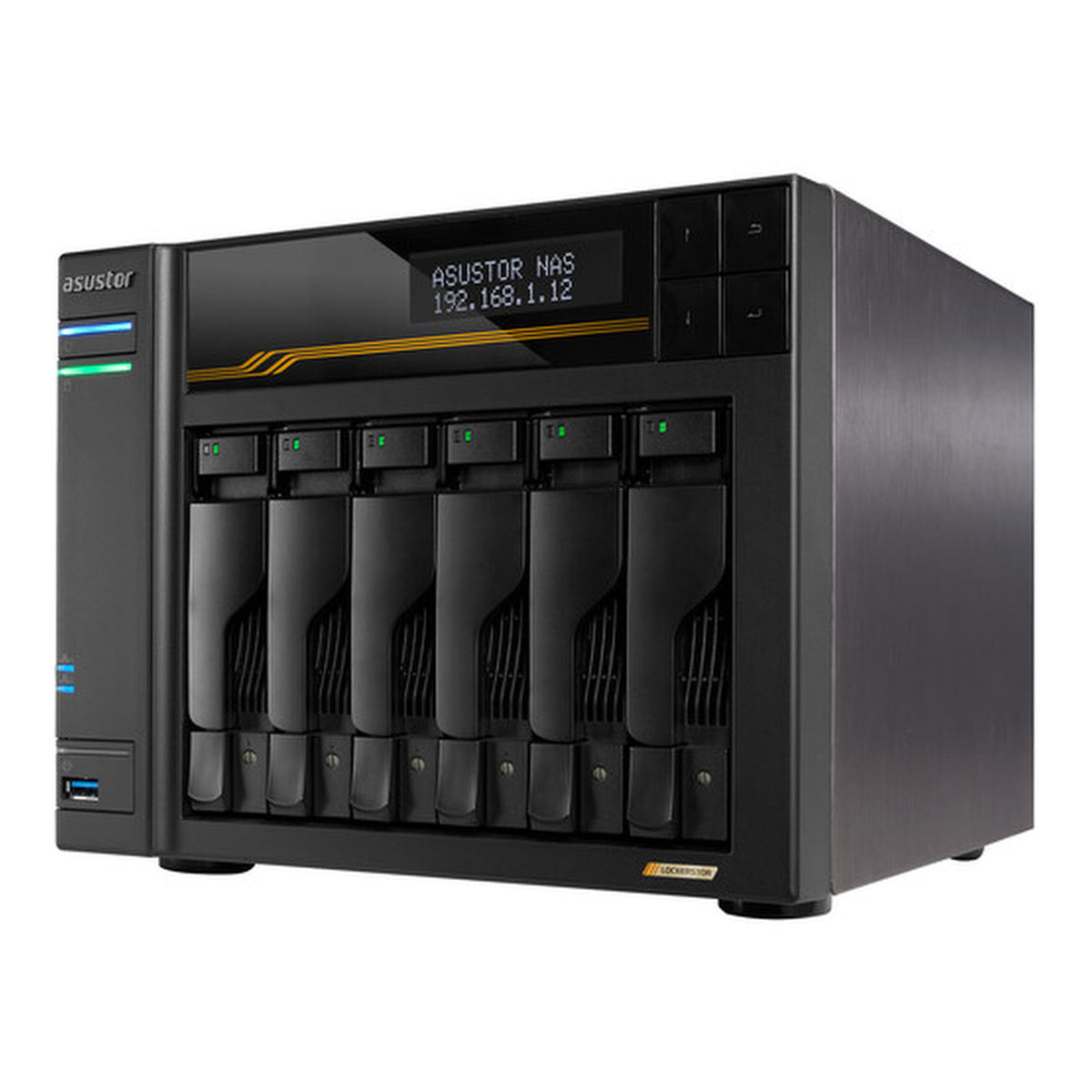

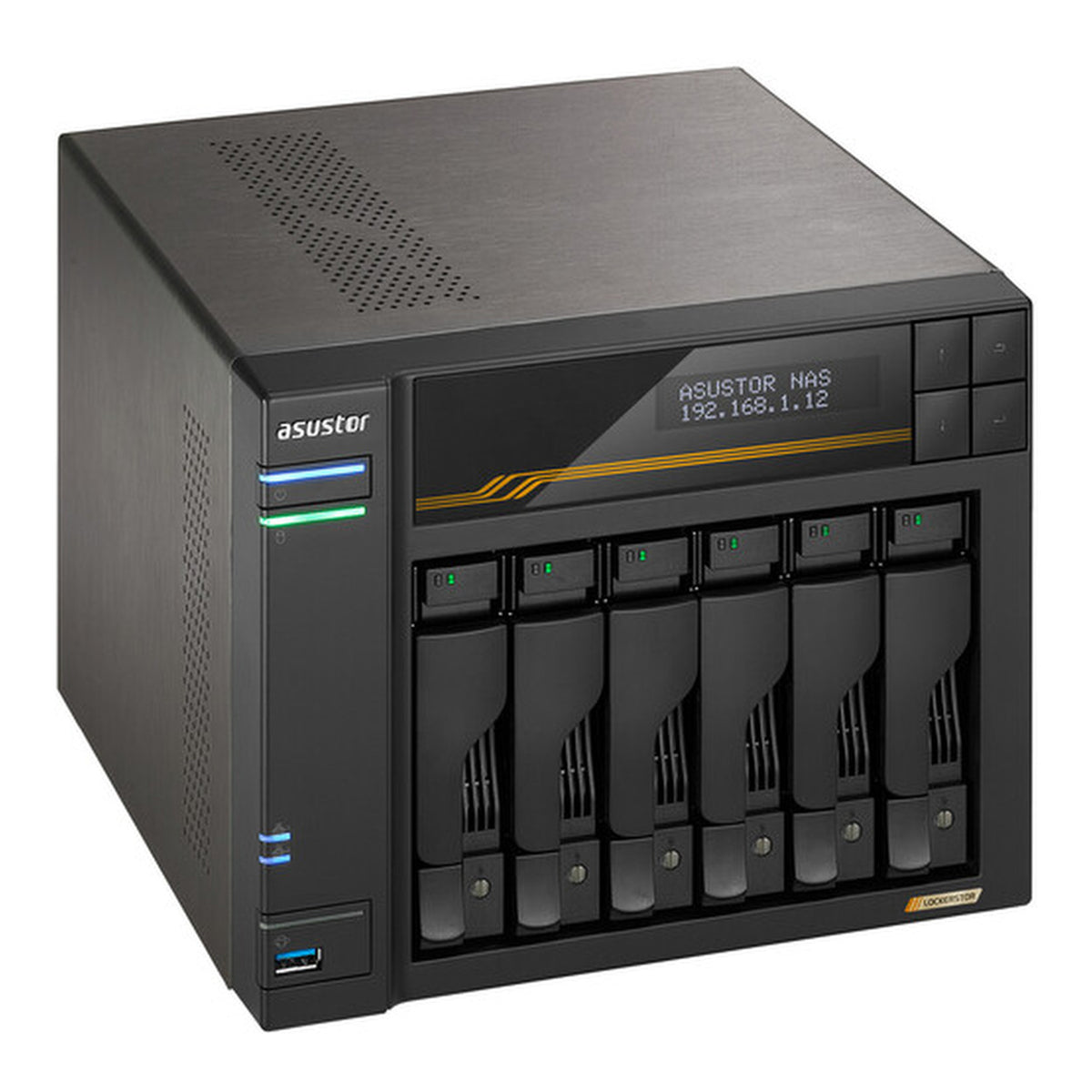

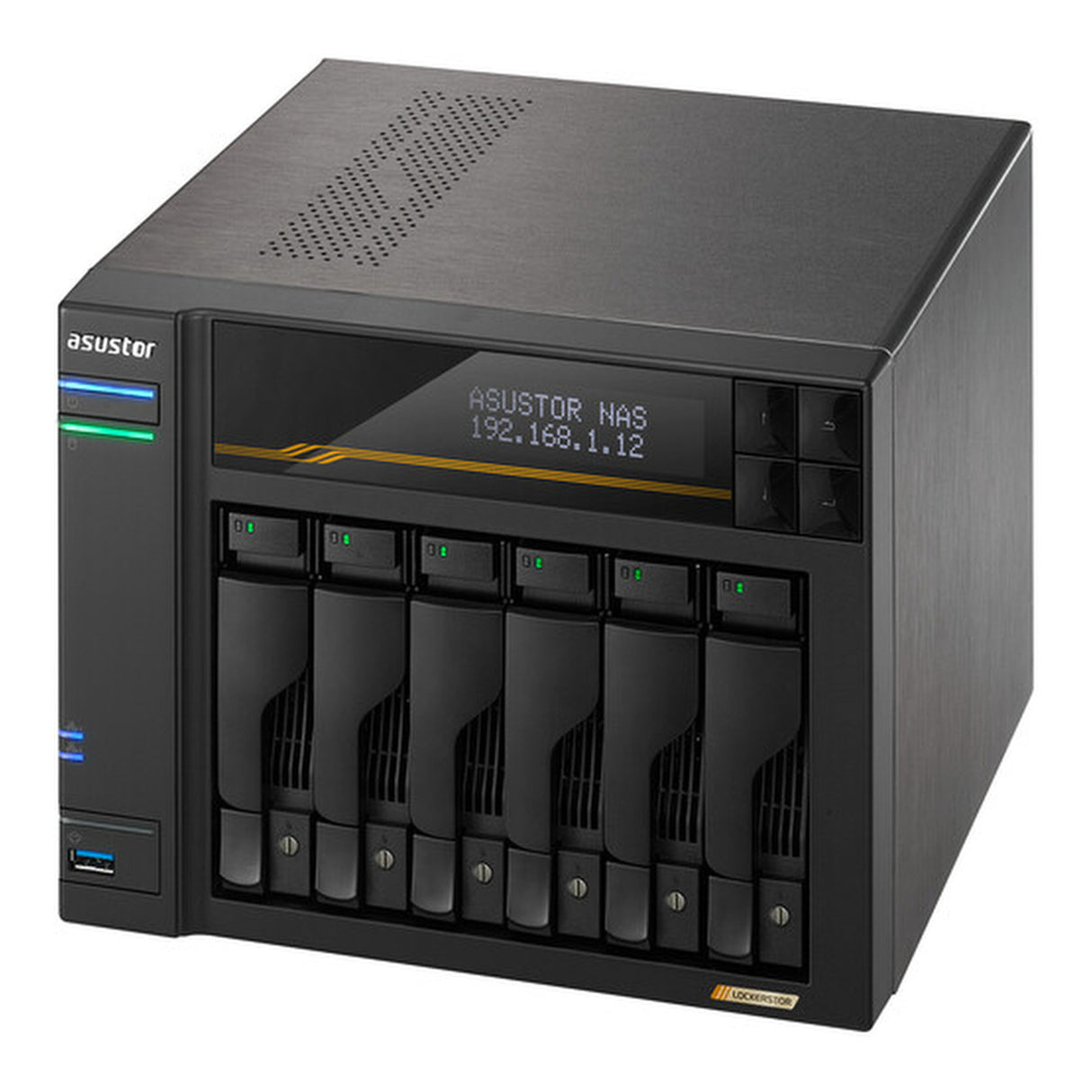

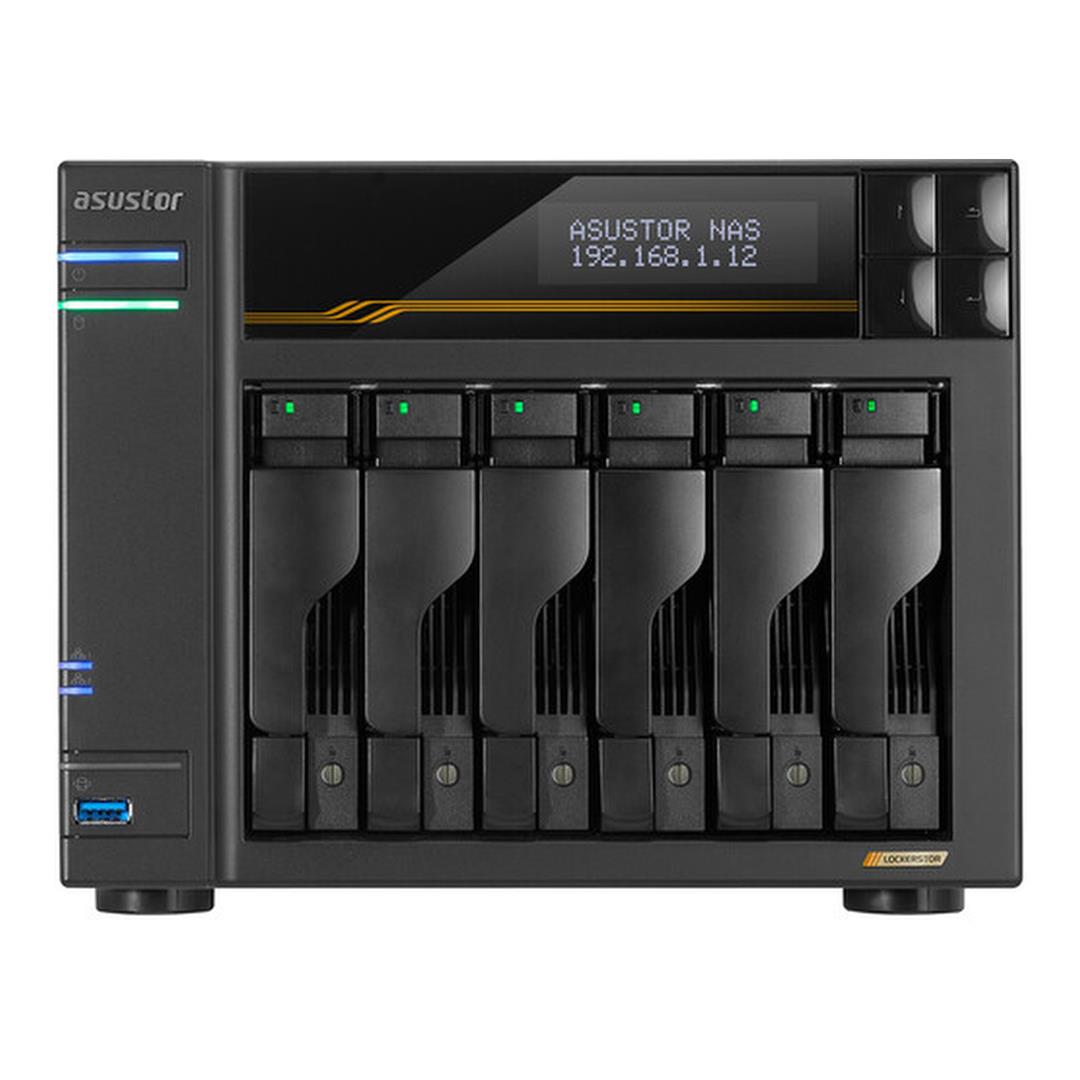

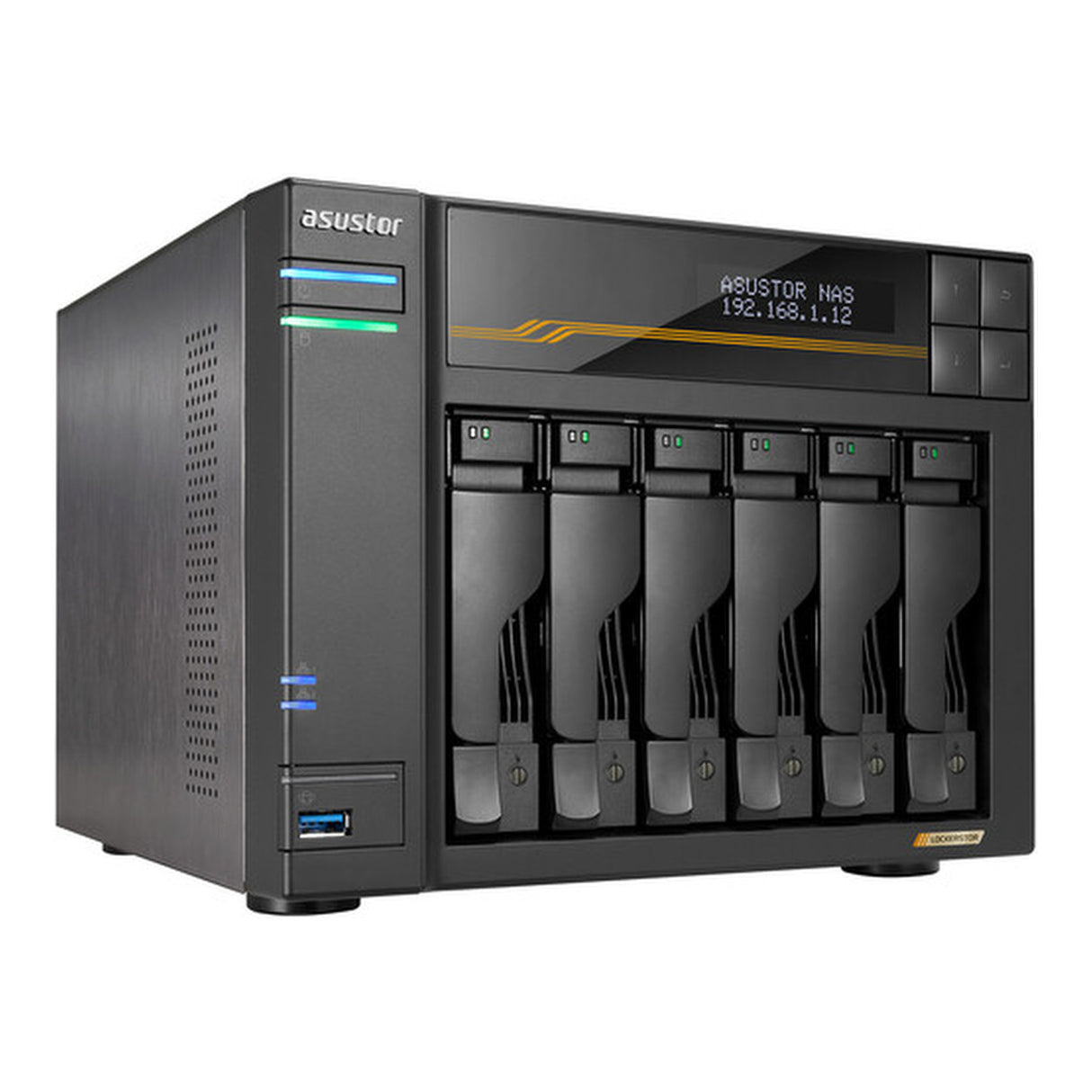

Asustor AS6806T LOCKERSTOR 6 Gen3 6-bay NAS Enclosure 90-AS6806T00-MF30

Asustor AS6806T LOCKERSTOR 6 Gen3 6-bay NAS Enclosure 90-AS6806T00-MF30

The ASUSTOR LOCKERSTOR 6 Gen3 AS6806T is a six-bay network attached storage enclosure for businesses, creative teams and users managing growing digital libraries. An AMD Ryzen quad-core processor, 16GB of ECC DDR5 memory and dual 10GbE connectivity support shared storage, backups and demanding file workflows. Six SATA drive bays and four M.2 NVMe SSD slots provide flexibility to configure storage around your capacity and performance needs.

Key Features:

• AMD Ryzen processing: The four-core V3C14 processor runs at 2.3GHz, with boost speeds up to 3.8GHz, to support file transfers, backups and NAS applications.
• Expandable ECC memory: Supplied with 16GB DDR5-4800 ECC memory, expandable to 64GB for larger workloads.
• Flexible storage configuration: Six SATA bays accommodate compatible hard drives or SSDs, alongside four M.2 slots for NVMe SSD caching or storage.
• Multi-gigabit networking: Two 10GbE ports and two 5GbE ports provide connectivity options for compatible high-speed networks.
• Fast external storage connections: Two USB4 Type-C ports and three USB 3.2 Gen 2 Type-A ports support external storage transfers and backups.
• Backup and recovery tools: Snapshot Center, MyArchive and cloud backup applications help build a structured data protection routine.

ECC Memory for Reliable Operation

The installed ECC memory detects and corrects common memory errors, supporting data integrity during everyday operation. Two SO-DIMM slots allow expansion up to 64GB as your requirements grow. Compatible ECC modules are required to retain ECC functionality.

Combine SATA Capacity with NVMe Storage

Use the six SATA bays for your main storage array and the four PCIe 4.0 M.2 NVMe slots for SSD caching or dedicated SSD storage. ADM supports both approaches, allowing you to tailor your configuration to shared documents, media libraries or workloads that benefit from faster random access.

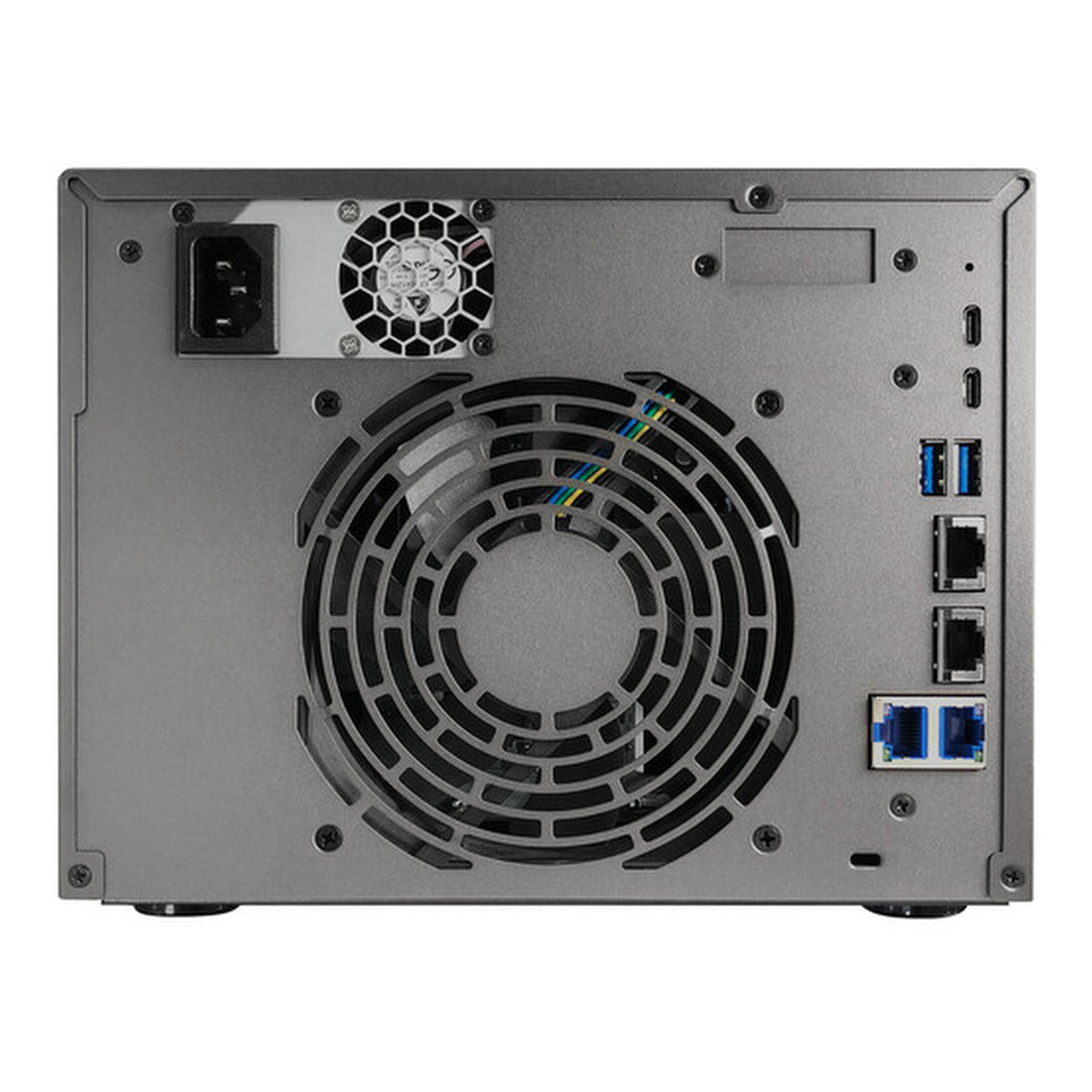

High-Speed Networking and External Storage

Dual 10GbE and dual 5GbE connections provide options for moving large files across compatible networks. SMB Multichannel support allows supported clients and correctly configured networks to use multiple network connections for file transfers.

Two USB4 Type-C ports offer interface speeds up to 40Gbps for compatible external storage. Three USB 3.2 Gen 2 Type-A ports provide additional connections at up to 10Gbps.

USB4 compatibility: The NAS does not support direct USB4 or Thunderbolt connection to a Windows PC or Mac. Access computer files over the network; USB4 is intended for supported external storage and supported NAS-to-NAS connections. Actual transfer speeds depend on the connected devices and configuration.

Snapshots, Archives and Cloud Backups

Snapshot Center supports Btrfs volume and iSCSI LUN snapshots to help restore data after unwanted changes. MyArchive turns compatible NAS hard drives into removable archives, while DataSync Center and Cloud Backup Center provide options for synchronisation and offsite backups. RAID can provide drive-failure protection with an appropriate configuration, but does not replace a separate backup.

Technical Specifications:

Build a central storage and backup solution around your needs with the ASUSTOR LOCKERSTOR 6 Gen3, and add it to your cart today.
