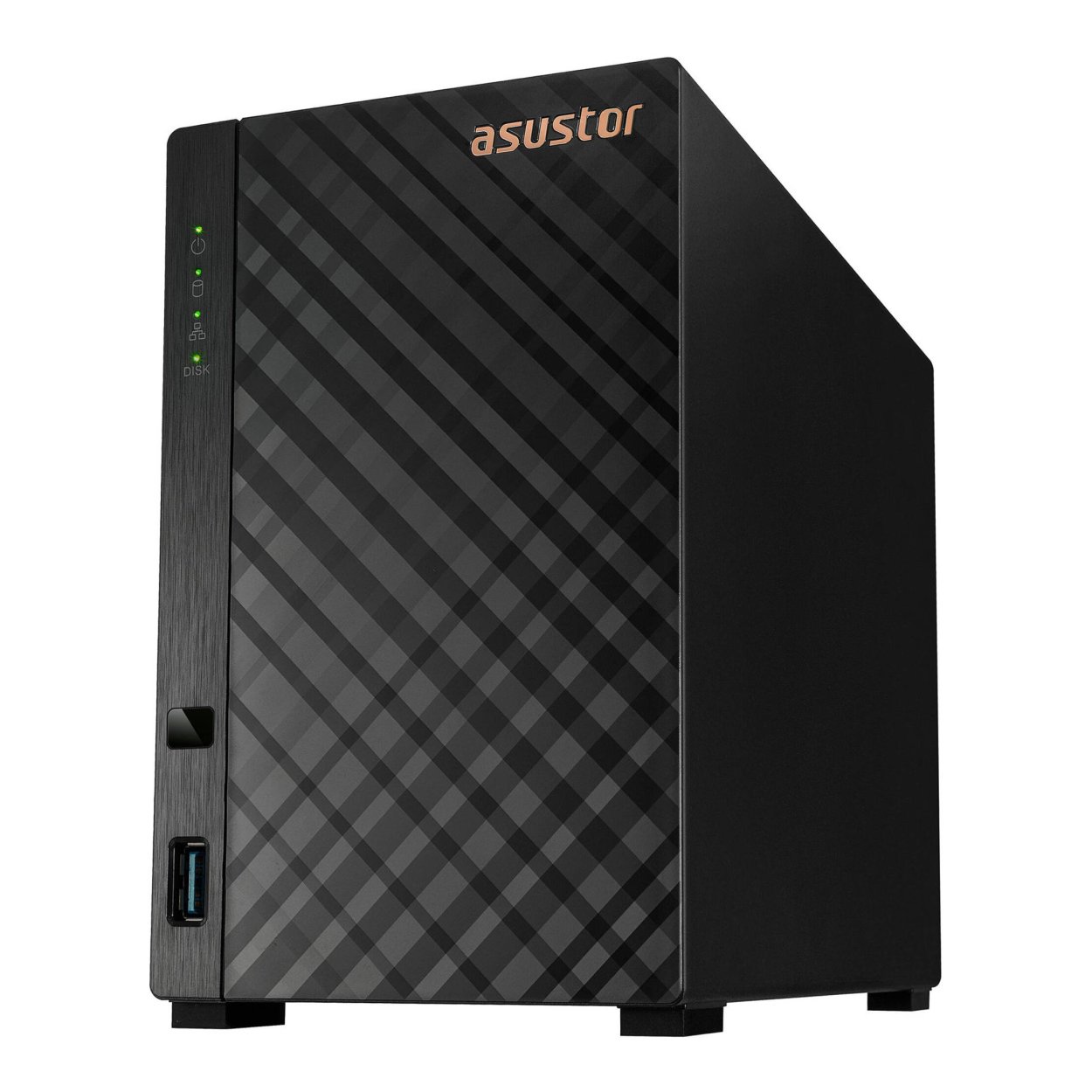

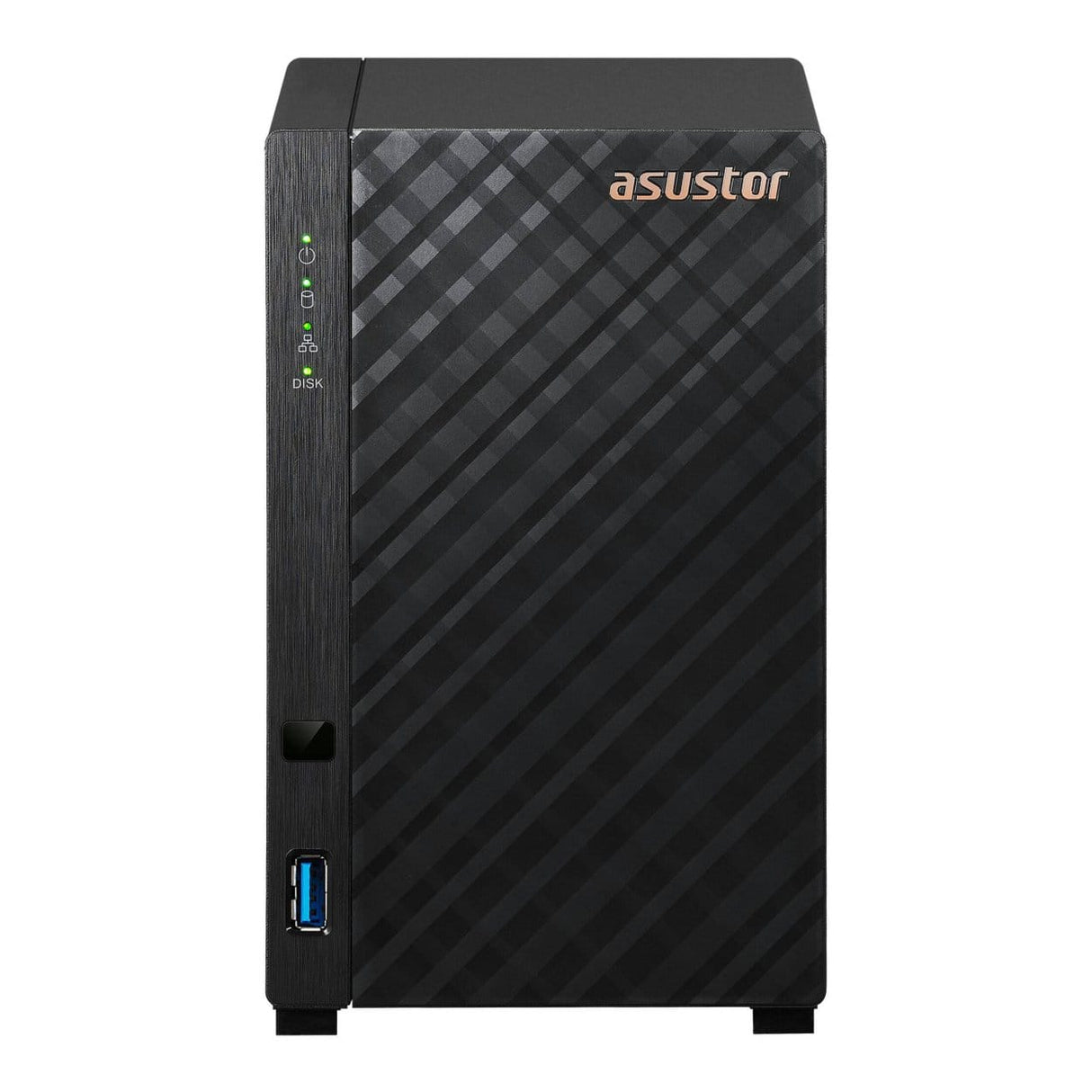

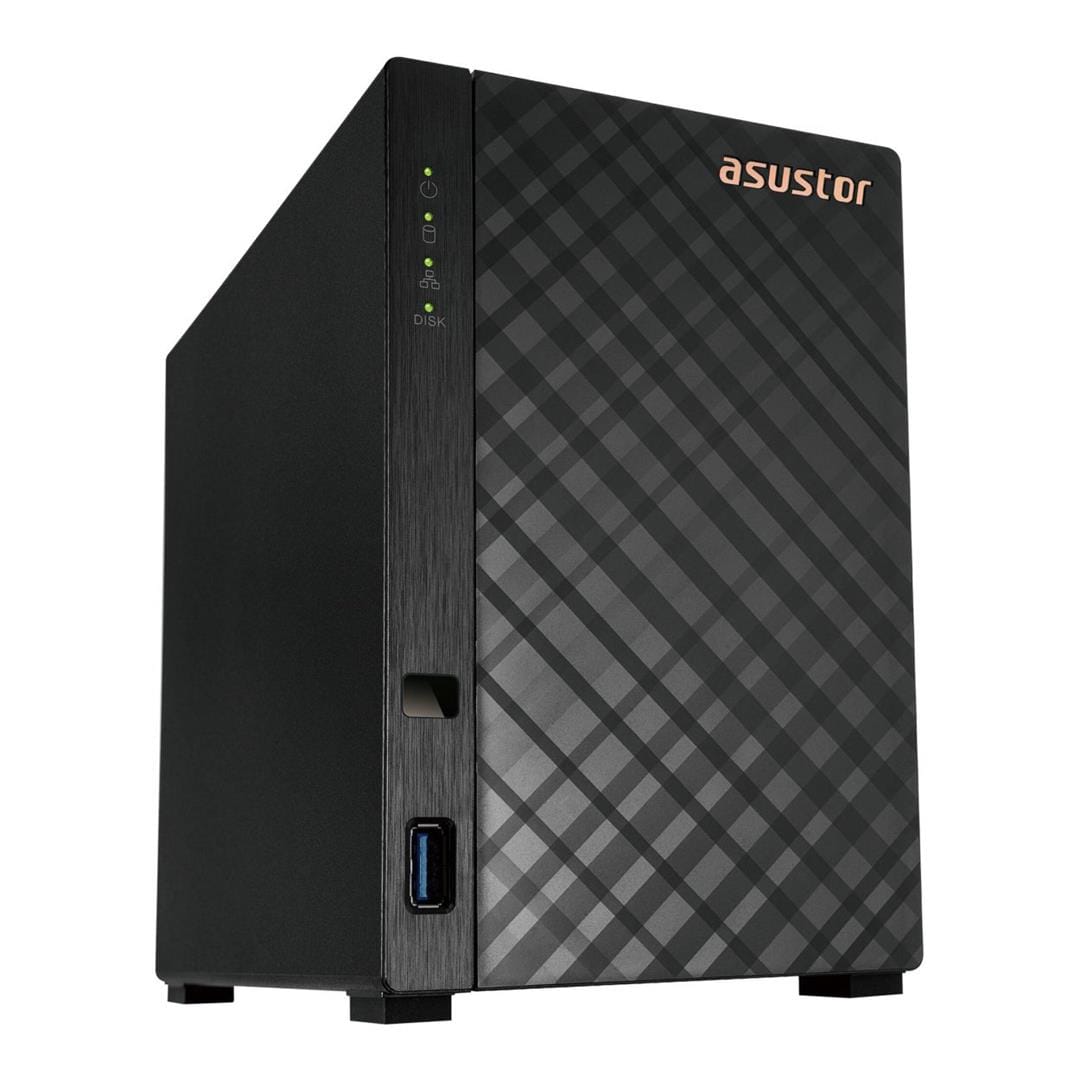

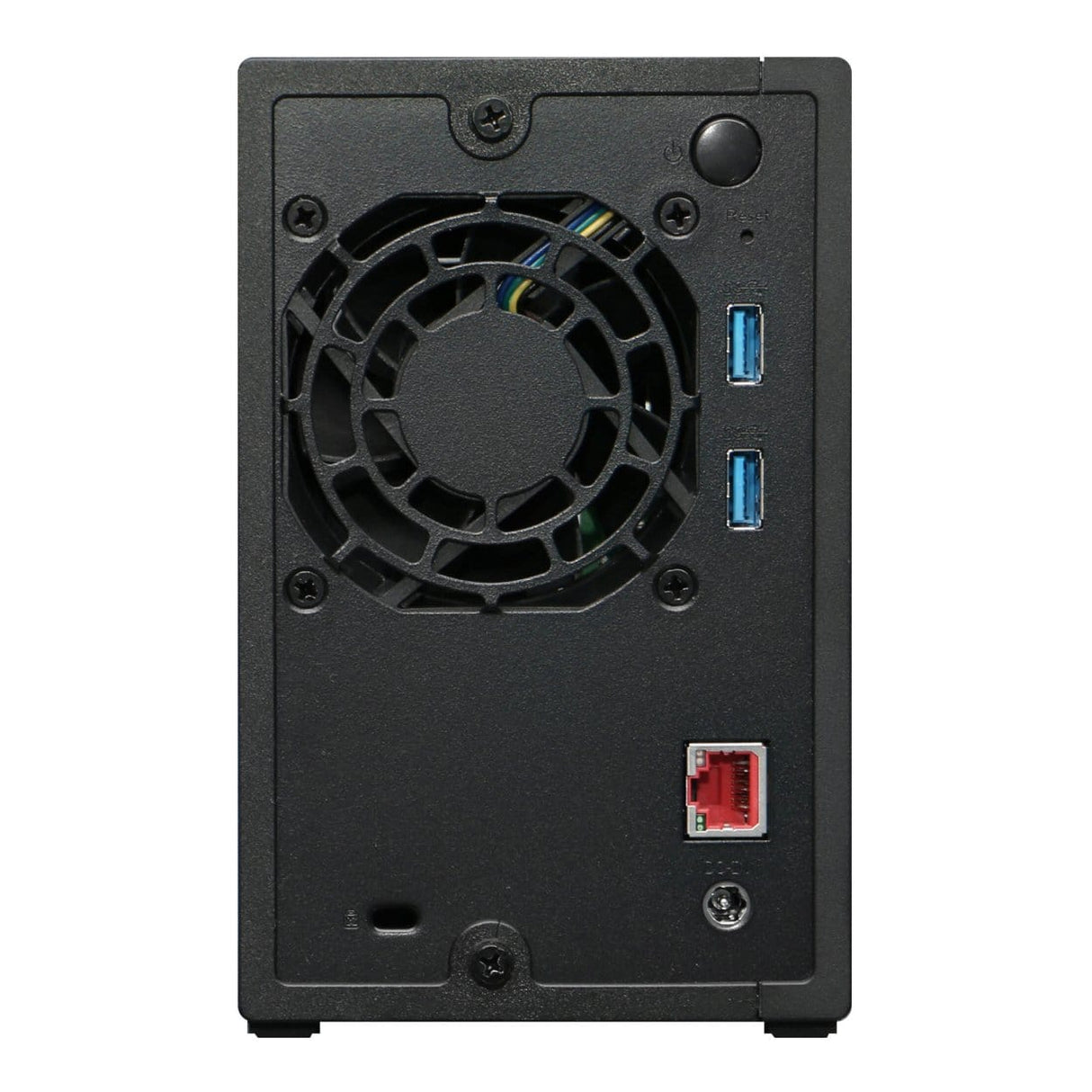

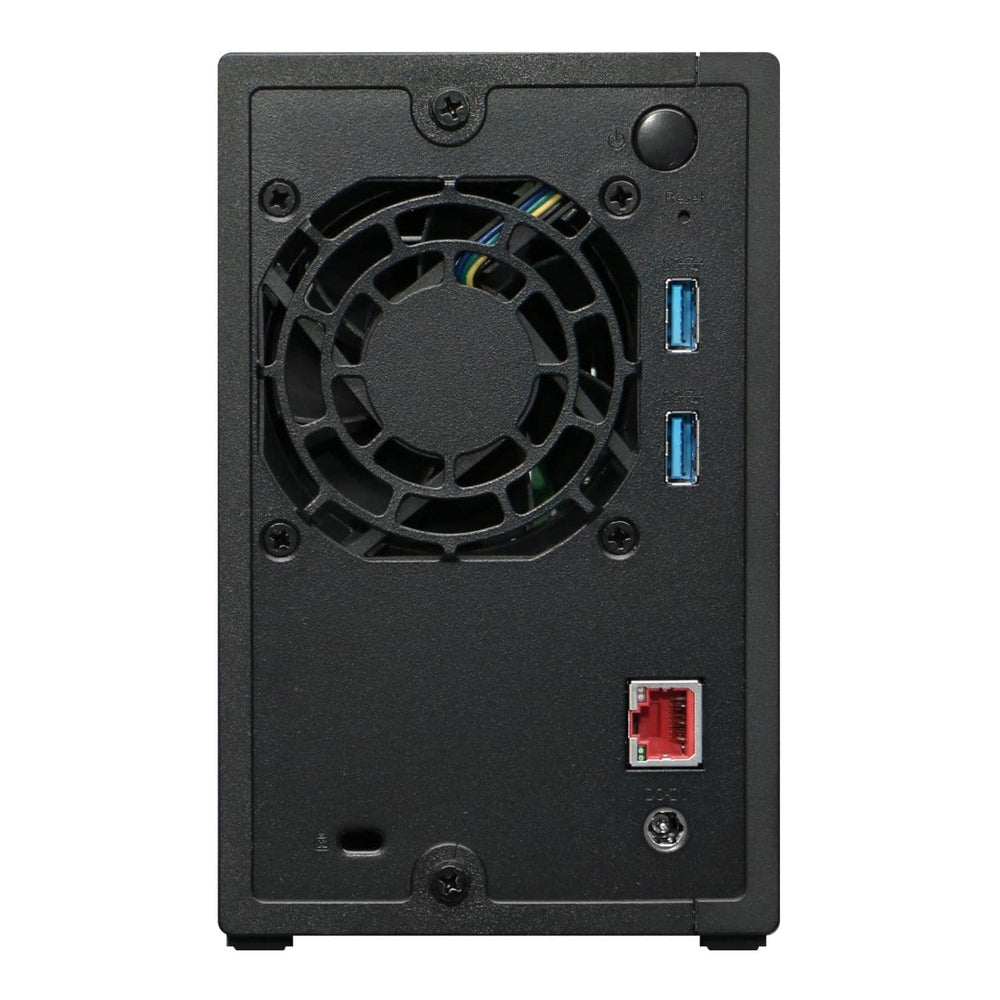

Asustor AS1202T Drivestor 2 Gen2 2-Bay NAS Storage Enclosure

Asustor AS1202T Drivestor 2 Gen2 2-Bay NAS Storage Enclosure

The AS12-series NAS (such as the AS1202/1204) is a compact, family-oriented 2-bay unit built around the Realtek RTD1619B 1.7 GHz ARM64 quad-core processor and 1 GB DDR4 RAM, with 8 GB eMMC flash storage and support for 3.5" SATA HDDs. It offers 2.5-Gigabit Ethernet (2.5G/1G/100M), three USB 5 Gbps ports (one front, two rear), and Btrfs-based snapshots for efficient local snapshots and data protection, making it well-suited for home media, backups, and light-duty server roles. The platform emphasizes security and future-proofing via ADM 5.1+ with post-quantum cryptography (PQC), using the NIST-certified Kyber-based hybrid TLS (X25519 + ML-KEM 768) over TLS 1.3; as long as the web browser supports PQC, ADM automatically establishes a post-quantum-secured connection, clearly marked in the interface to defend against “Harvest Now, Decrypt Later” attacks on stored data. Together with low operation power (~11.6 W), quiet cooling (~18.6 dB idle), and 3-year warranty, the AS12 series is positioned as an energy-efficient, easy-to-use home NAS with strong security and expandable storage (up to 14 bays with expansion units).

Features

• Equipped with Realtek RTD1619B 1.7GHz quad-core processor
• Superfast 2.5-Gigabit Ethernet
• 1 GB DDR4 RAM
• Upgraded powerful internal display, smooth transcoding of 4K videos
• Supports Wake on LAN and Wake on WAN
• Tool-free installation

Technical Specifications

Product Code: AS1202T

Description: Asustor Drivestor 2 Gen2

CPU Model: Realtek RTD1619B

CPU Architecture: ARM64 64-bit

CPU Frequency: Quad-Core 1.7GHz

Memory: 1GB DDR4

Memory Expandable up to: not expandable

Flash Memory: 8GB eMMC

Drive Bays: 2

Compatible Drive Type : 3.5 SATA HDD

Maximum Drive Bays with Expansion Unit: 14

Expansion: 3 x USB 5Gbps Type-A

Network: 1 x 2.5 Gigabit Ethernet (2.5G/1G/100M)

Multimedia Output: N/A

System Fan: 1 x 70mm

Power Supply Unit / Adapter: 65W x1

Input Power Voltage: 100V to 240V AC

Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC

Power Consumption

11.6W (Operation);

5.97W (Disk Hibernation)

Noise Level: 18.6dB (HDD idle)

Operation Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -20°C~70°C (-4°F~158°F)

Humidity: 5% to 95% RH

Size: 165(H) x 102(W) x 218(D) mm

Weight: 1.14 kg / 2.5 lbs
