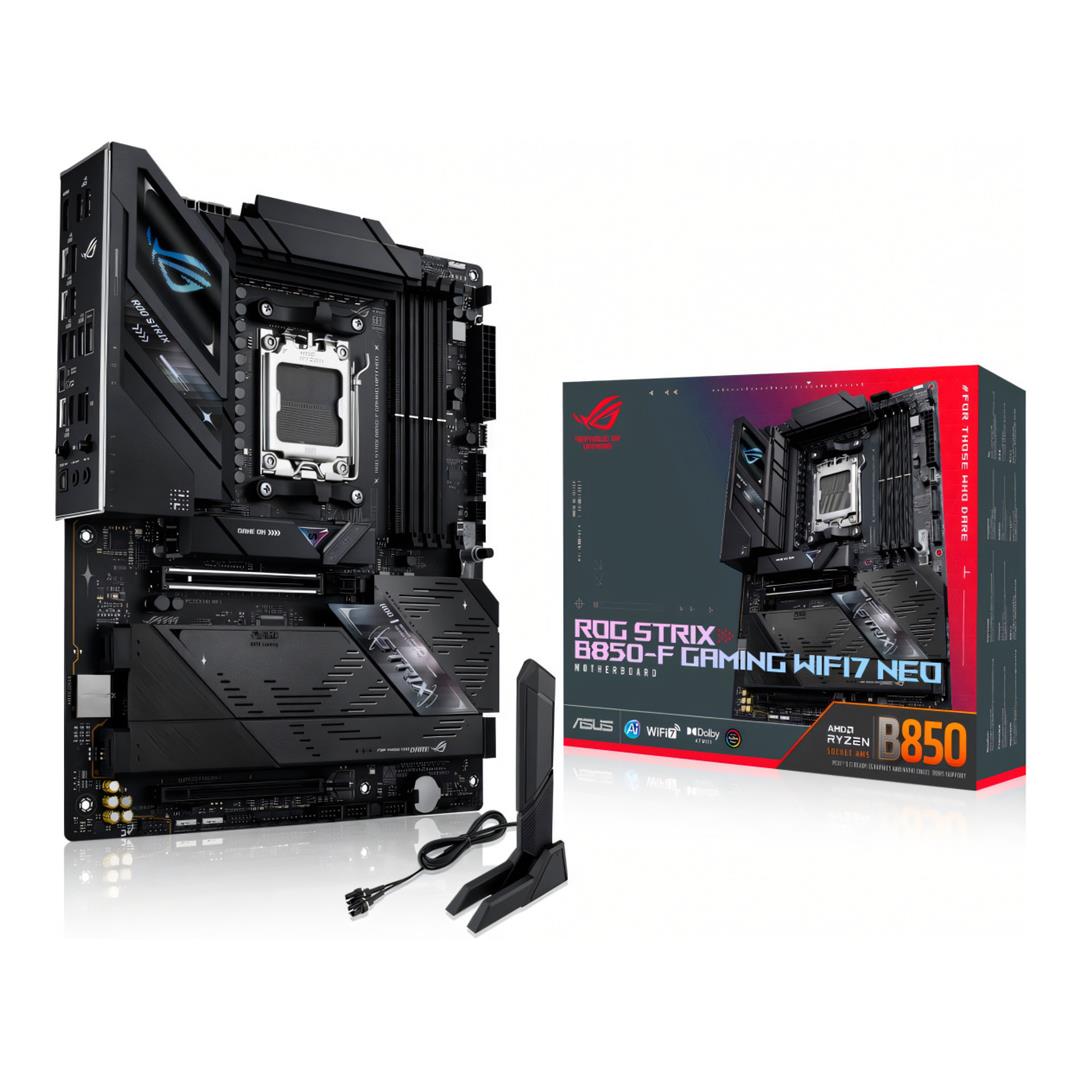

ASUS ROG STRIX B850-F Gaming Wi-Fi7 NEO AMD AM5 ATX Motherboard 90MB1NX0-M0VAY0
The ASUS ROG STRIX B850-F GAMING WIFI7 NEO is a high-performance ATX gaming motherboard built around the AMD B850 chipset and AM5 platform. Designed for compatible AMD Ryzen 9000, 8000 and 7000 Series processors, it combines DDR5 memory support, PCIe 5.0 expansion, four M.2 slots, Wi-Fi 7 and 5Gb Ethernet with a robust 16+2+2 power solution and comprehensive ROG cooling features.
Key Features
- AMD AM5 socket supports compatible Ryzen 9000, 8000 and 7000 Series desktop processors.
- Four DDR5 DIMM slots support up to 256GB and memory speeds up to 9000+ MT/s (OC).
- PCIe 5.0 x16 SafeSlot provides high-bandwidth expansion with compatible processors.
- Four M.2 slots include support for up to two PCIe 5.0 x4 SSDs with compatible CPUs.
- Integrated Wi-Fi 7 and Realtek 5Gb Ethernet provide high-speed wireless and wired networking.
- ROG SupremeFX ALC4080 audio with Savitech SV3H712 amplifier delivers high-quality onboard audio.

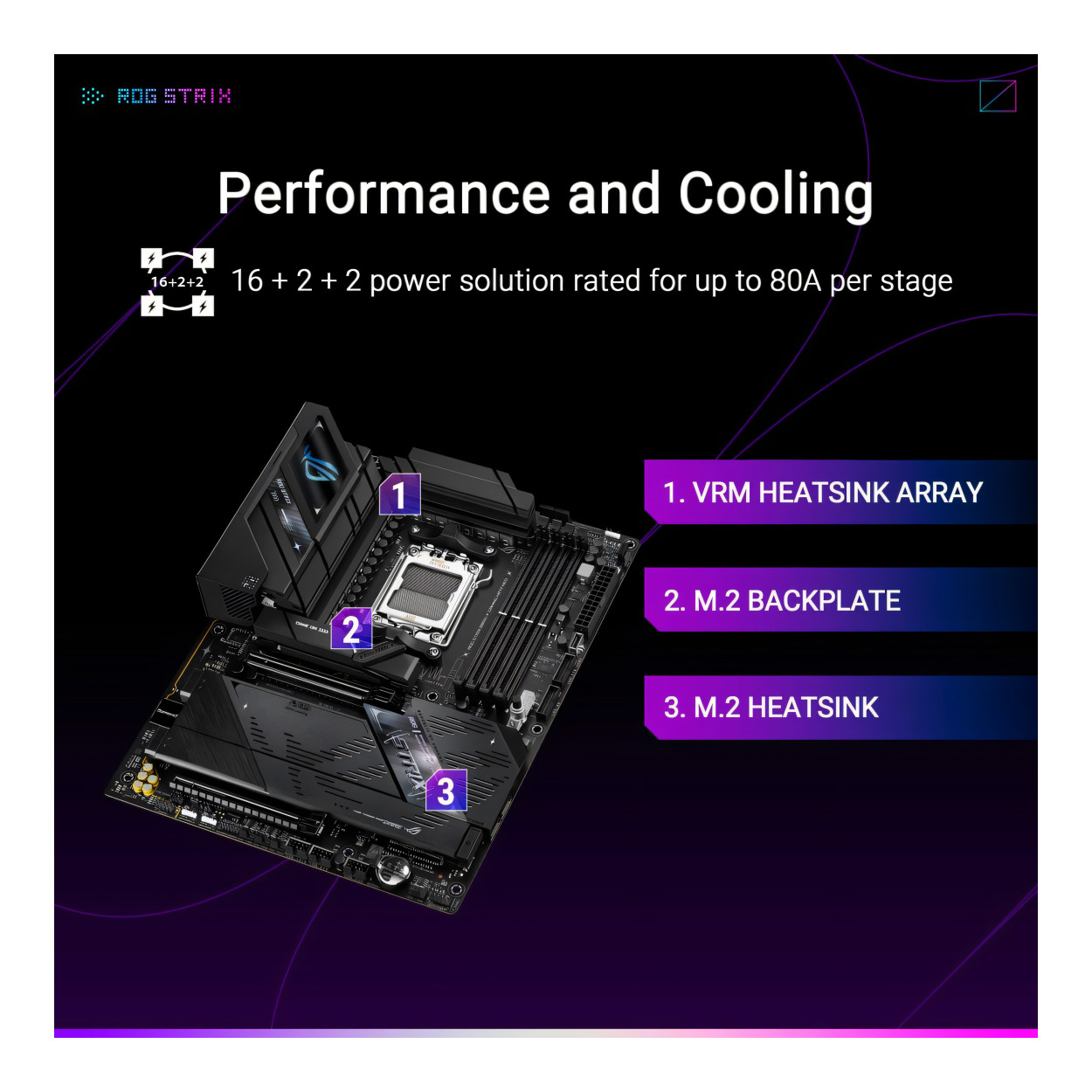

- 16+2+2 power solution rated for 80A per stage supports demanding multi-core processors.

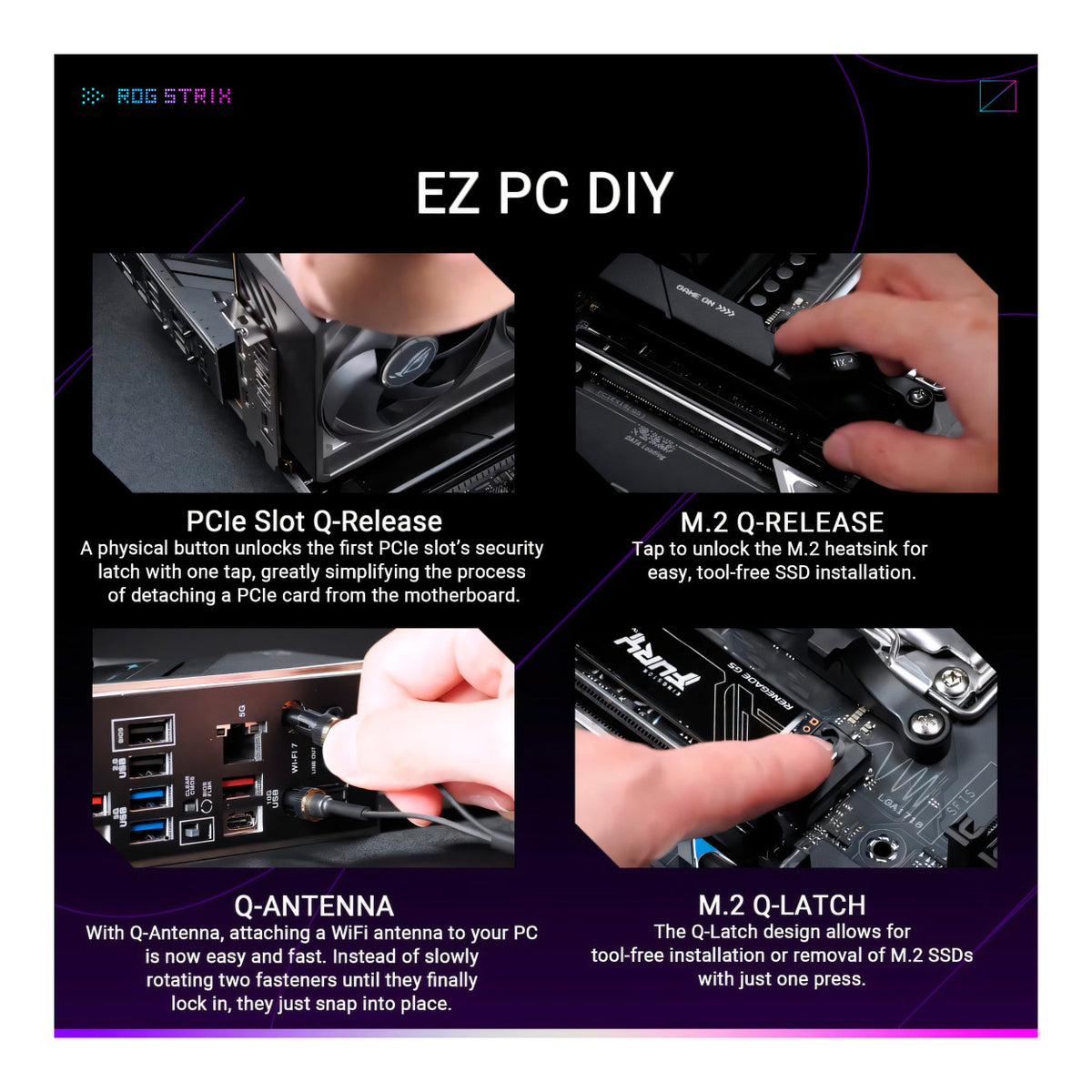

- DIY-friendly features include PCIe Slot Q-Release, M.2 Q-Latch, Q-Antenna, BIOS FlashBack and Clear CMOS.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS ROG |
| Model | ROG STRIX B850-F GAMING WIFI7 NEO |
| Manufacturer Part Number | 90MB1NX0-M0VAY0 |
| Chipset | AMD B850 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000, 8000 & 7000 Series Desktop Processors |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256GB |
| Maximum Memory Speed | Up to 9000+ MT/s (OC) |
| Memory Architecture | Dual Channel |
| Memory Features | AMD EXPO, ASUS Enhanced Memory Profile (AEMP), ECC & Non-ECC Unbuffered DDR5 Support |
| Primary Expansion Slot | 1 × PCIe 5.0 x16 SafeSlot (CPU Dependent) |
| Additional Expansion Slot | 1 × PCIe 4.0 x16 (x4 Mode) |
| M.2 Storage | 4 × M.2 Slots |
| M.2 Interface | Up to 2 × PCIe 5.0 x4 + 2 × PCIe 4.0 x4, Depending on Processor |
| SATA | 2 × SATA 6Gb/s |
| RAID Support | AMD RAIDXpert2 RAID 0, 1, 5 & 10 |
| Ethernet | Realtek 5Gb Ethernet with ASUS LANGuard |
| Wireless Networking | Wi-Fi 7 (802.11be), 2×2, 2.4GHz / 5GHz / 6GHz |
| Wi-Fi Chipset | MediaTek MT7925 |
| Bluetooth | Bluetooth 5.4 with LE Audio Support |
| Rear USB Ports | 4 × USB 10Gbps, 6 × USB 5Gbps, 2 × USB 2.0 |
| Rear USB Type-C | 3 × USB Type-C (2 × 10Gbps + 1 × 5Gbps) |
| Front USB Type-C Support | 1 × USB 20Gbps Connector |
| Display Output | 1 × HDMI 2.1, Up to 4K at 60Hz with Compatible Processor |
| Audio Codec | ROG SupremeFX ALC4080 |
| Audio Amplifier | Savitech SV3H712 AMP |
| Audio | 7.1-Channel High Definition Audio |
| Rear Audio Connectivity | 2 × Audio Jacks, 1 × Optical S/PDIF Out |
| Power Design | 16+2+2 Power Stages, 80A per Stage |
| CPU Power | 2 × 8-Pin +12V ProCool CPU Power Connectors |
| Cooling Headers | 1 × CPU Fan, 1 × CPU OPT Fan, 1 × AIO Pump, 4 × Chassis Fan |
| RGB Connectivity | 3 × Addressable Gen 2 Headers |
| DIY Features | PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-DIMM, Q-LED, BIOS FlashBack & Clear CMOS |
| Form Factor | ATX |
Build a powerful AMD gaming system with the ROG STRIX B850-F GAMING WIFI7 NEO, combining DDR5, PCIe 5.0, Wi-Fi 7, 5Gb Ethernet and extensive high-speed storage connectivity.
