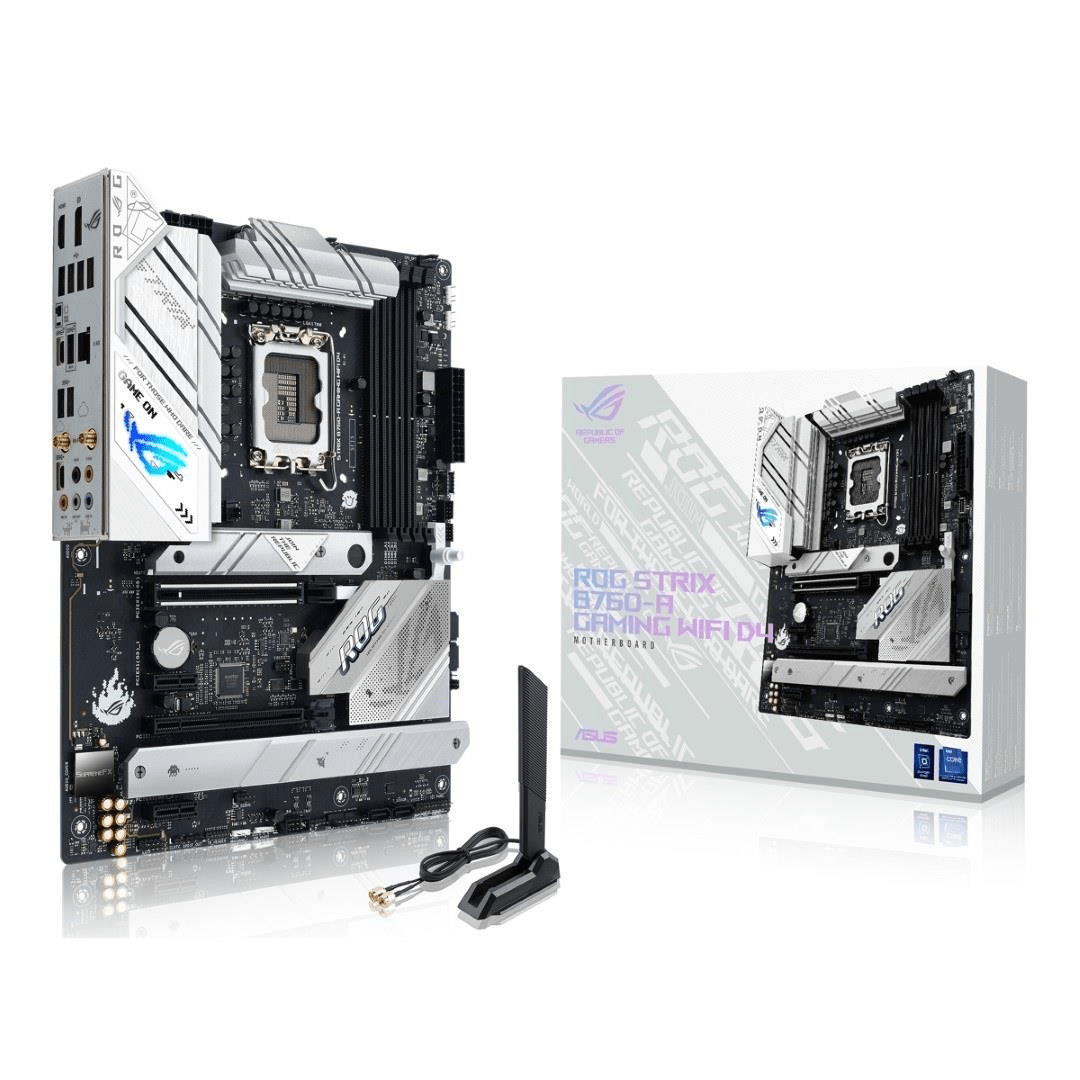

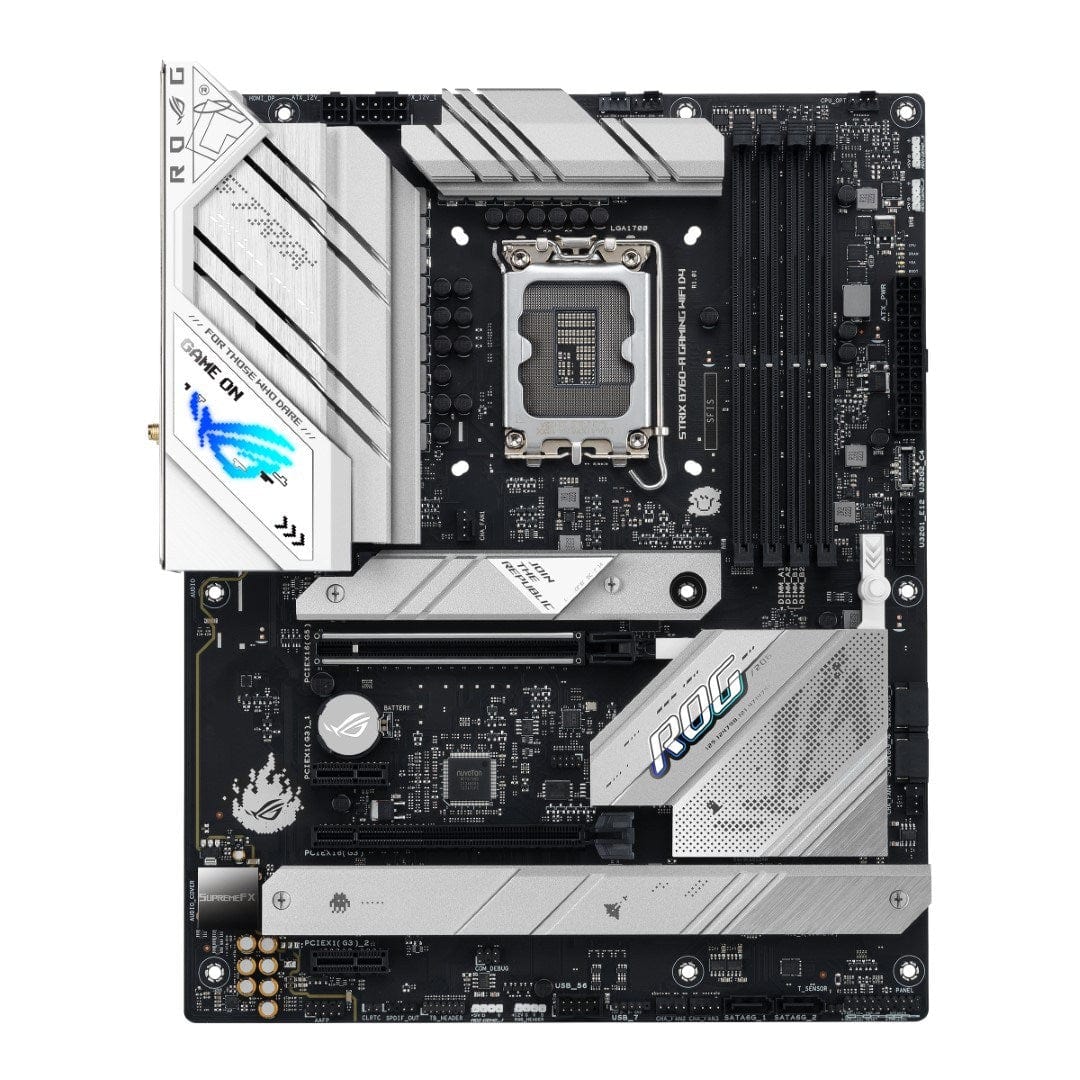

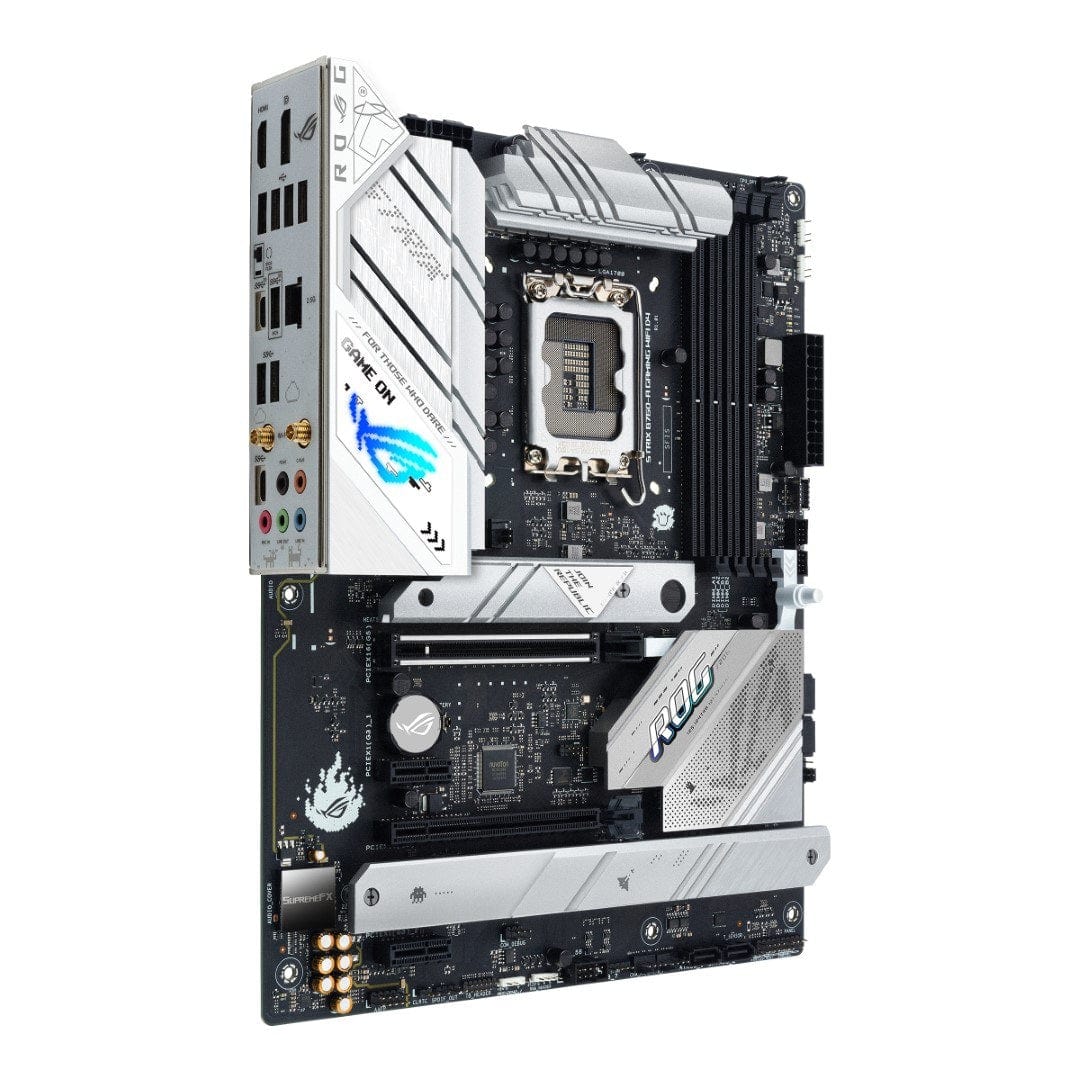

Asus ROG Strix B760-A Gaming Wi-Fi D4 Intel LGA 1700 ATX Motherboard 90MB1DD0-M0EAY0

Asus ROG Strix B760-A Gaming Wi-Fi D4 Intel LGA 1700 ATX Motherboard 90MB1DD0-M0EAY0

On its face, the Strix B760-A D4 wears a light aesthetic, but beneath its grey aluminum heatsinks lies a dark PCB flush with high-performance hardware. A VRM configuration equipped to handle high-core-count Intel® 13th Gen processors, PCIe 5.0 bandwidth for graphics cards, and next-gen WiFi 6E team up to bring devilishly good gaming to this heavenly board.

DIY-FRIENDLY FEATURES

PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.

BIOS FLASHBACK™
BIOS FlashBack™ is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

Q-LED
Four onboard LEDs indicate power status and identify problems with CPU, memory, graphics card, or boot device for quick diagnosis.

ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A D4 were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.​

POWER ARCHITECTURE​
12 + 1 power stages deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.​

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.​

OPTIMEM II
OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.

M.2 HEATSINKS
Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability.

CPU FAN HEADERS
Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers.​

AIO PUMP FAN HEADER
A dedicated PWM/DC header connects self-contained water-cooling setups.

4-PIN FAN HEADERS
Each header supports auto-detection of PWM or DC fans.

LEADING CONNECTIVITY
The Strix B760-A D4 is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.​

PCIE PERFORMANCE
The top PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with three PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance.

NETWORKING
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
* WiFi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz WiFi.

Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet.

USB
A USB 3.2 Gen 2x2 Type-C® port offers speedy data transfers up to 20 Gbps.

AUDIO
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A D4 implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.

PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A D4 shine in every build.
