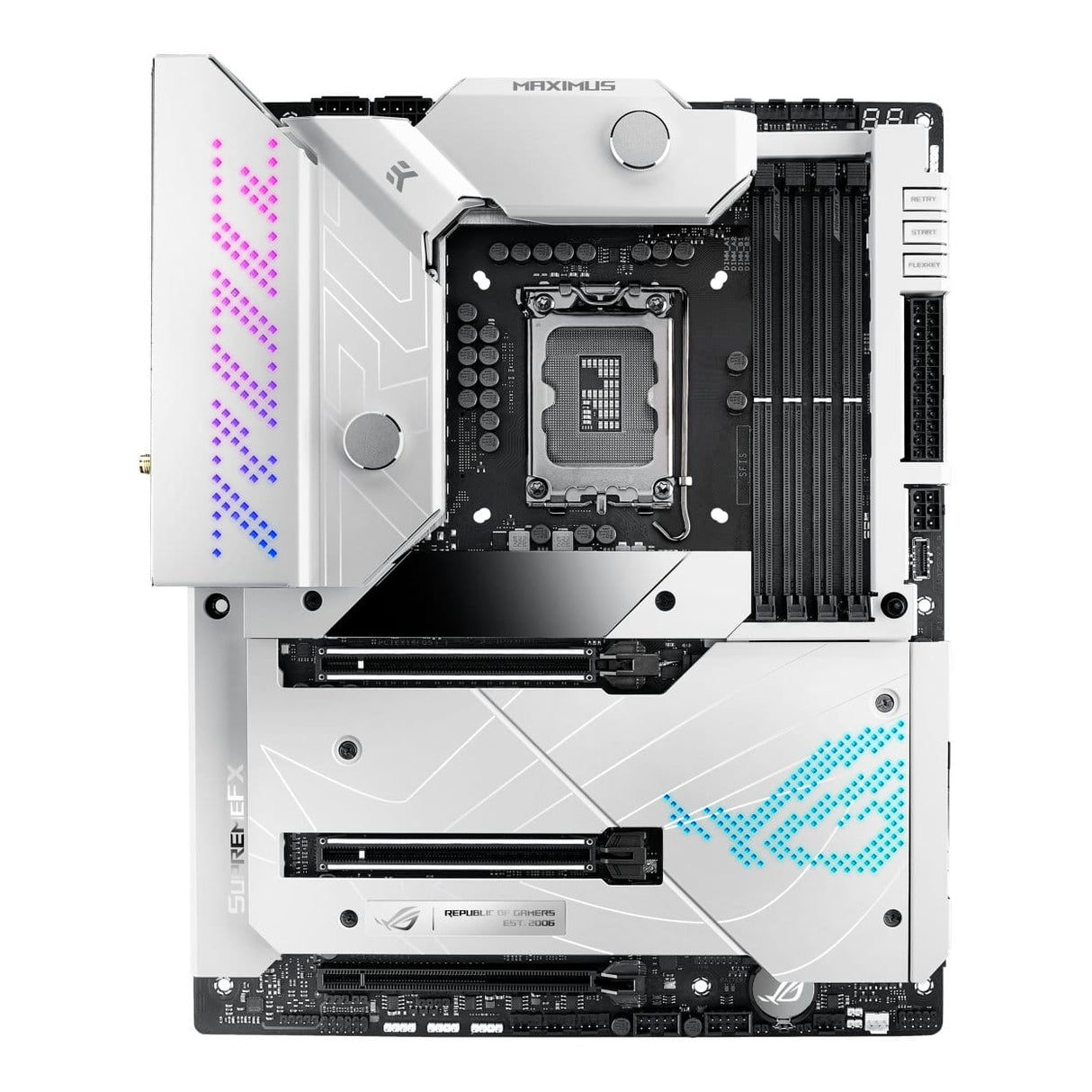

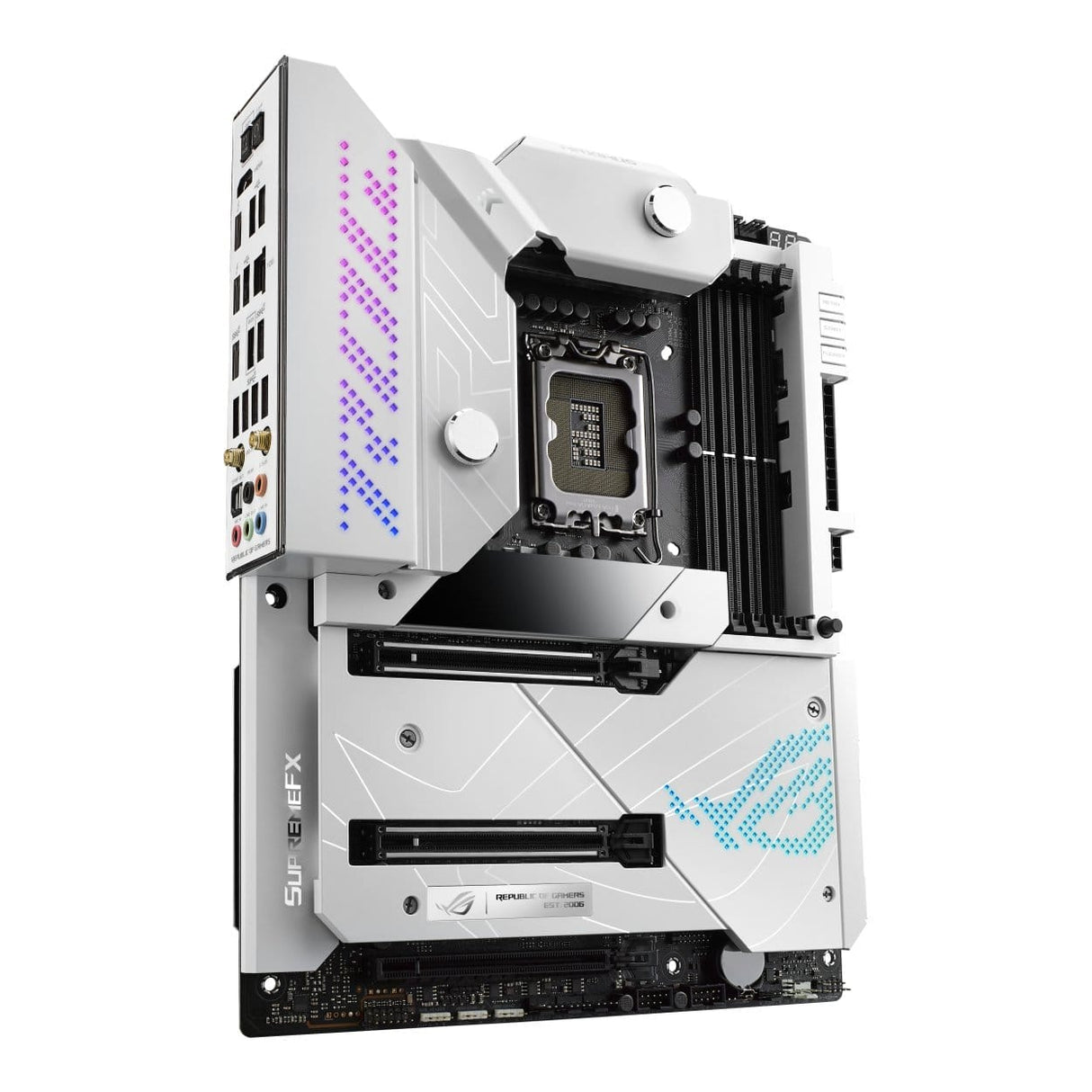

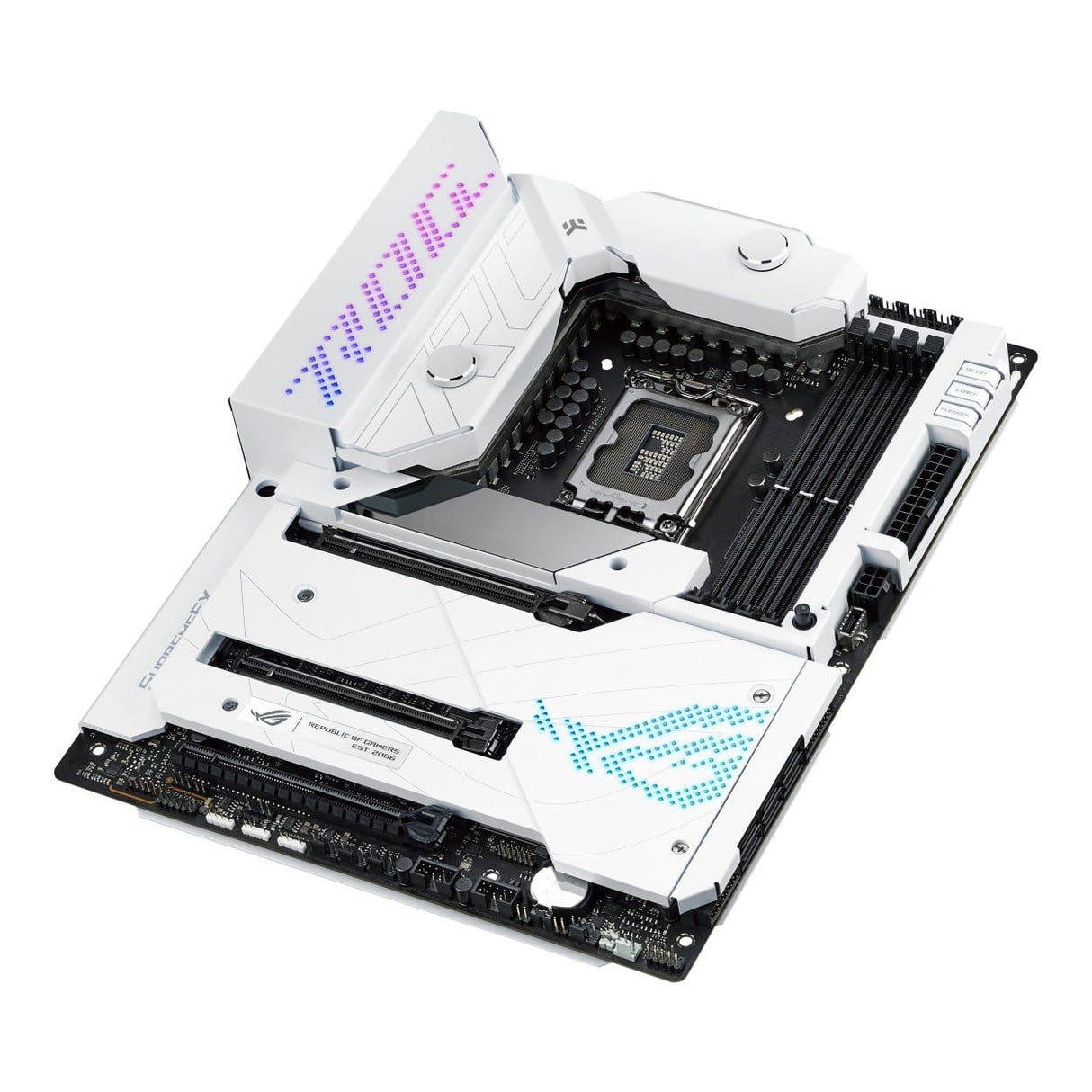

ASUS ROG Maximus Z690 Formula Intel LGA 1700 ATX Motherboard 90MB18G0-M0EAY0
ASUS ROG Maximus Z690 Formula Intel LGA 1700 ATX Motherboard 90MB18G0-M0EAY0 is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description

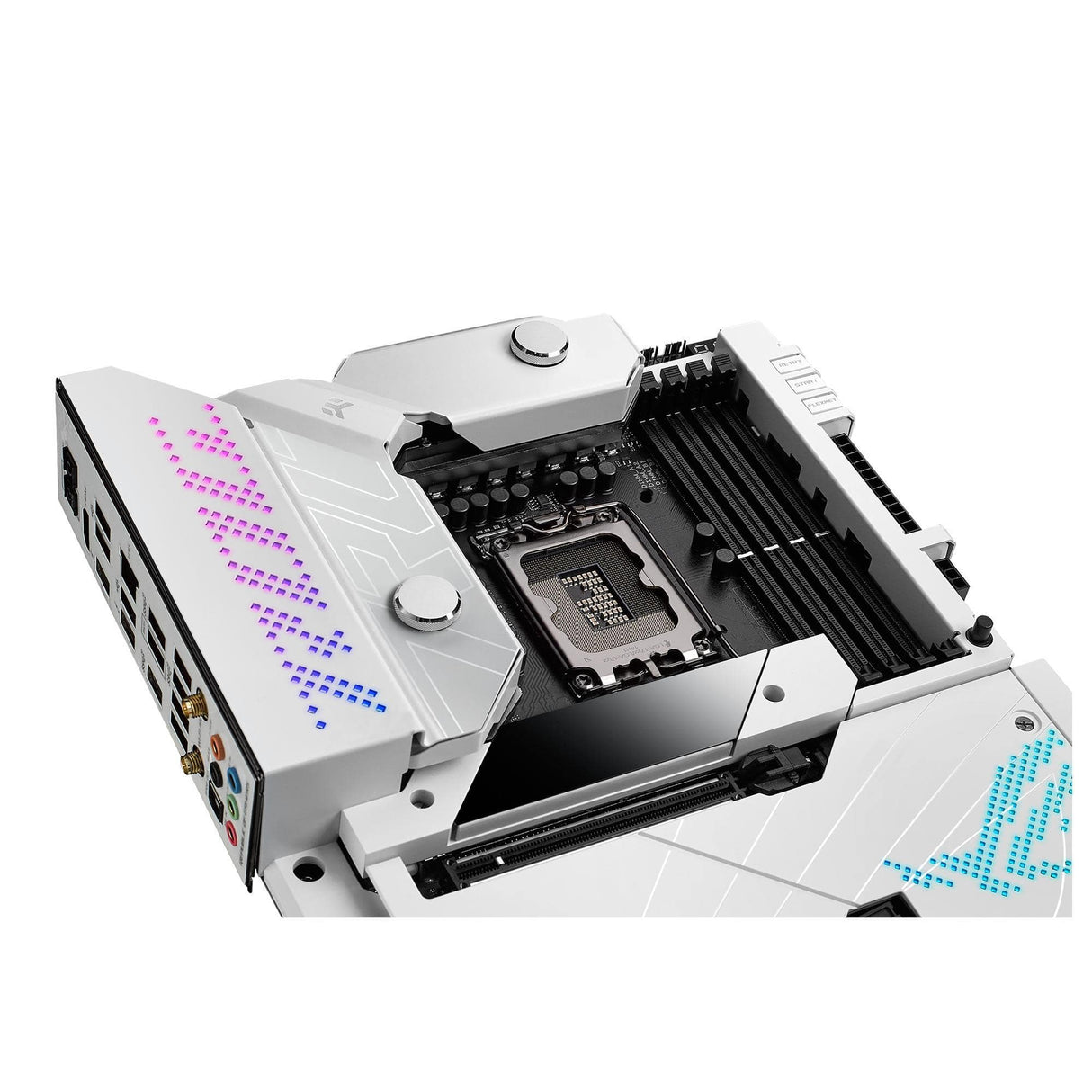

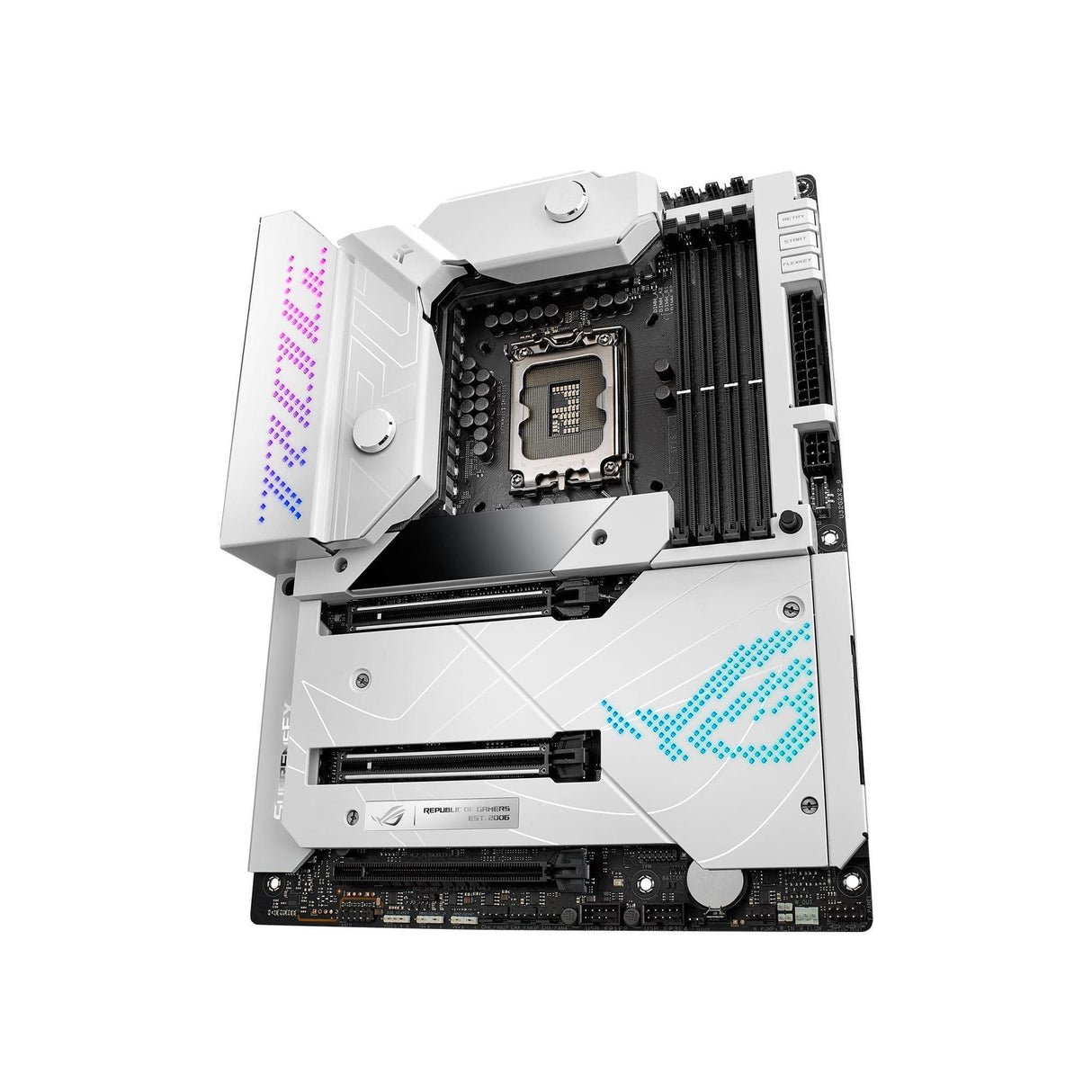

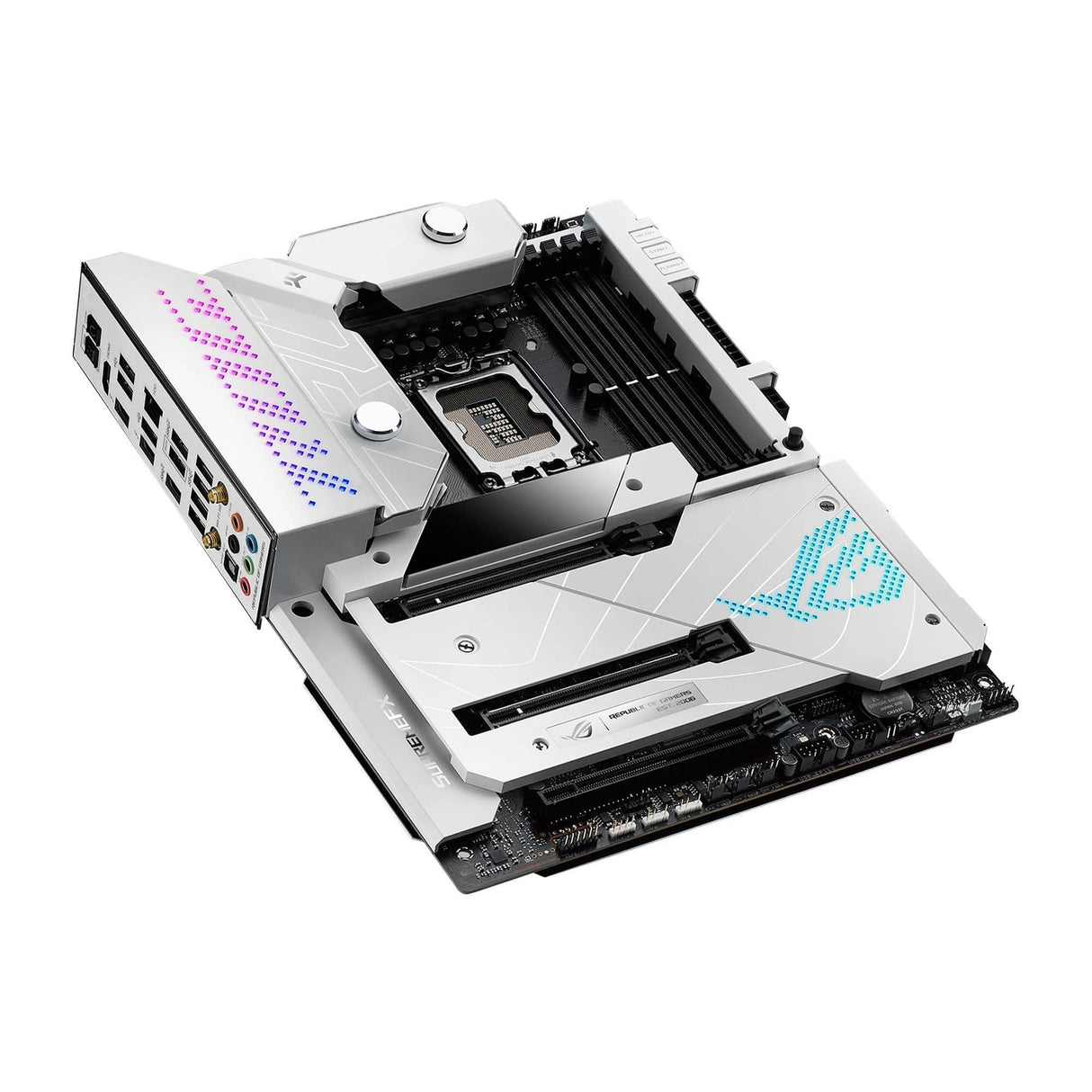

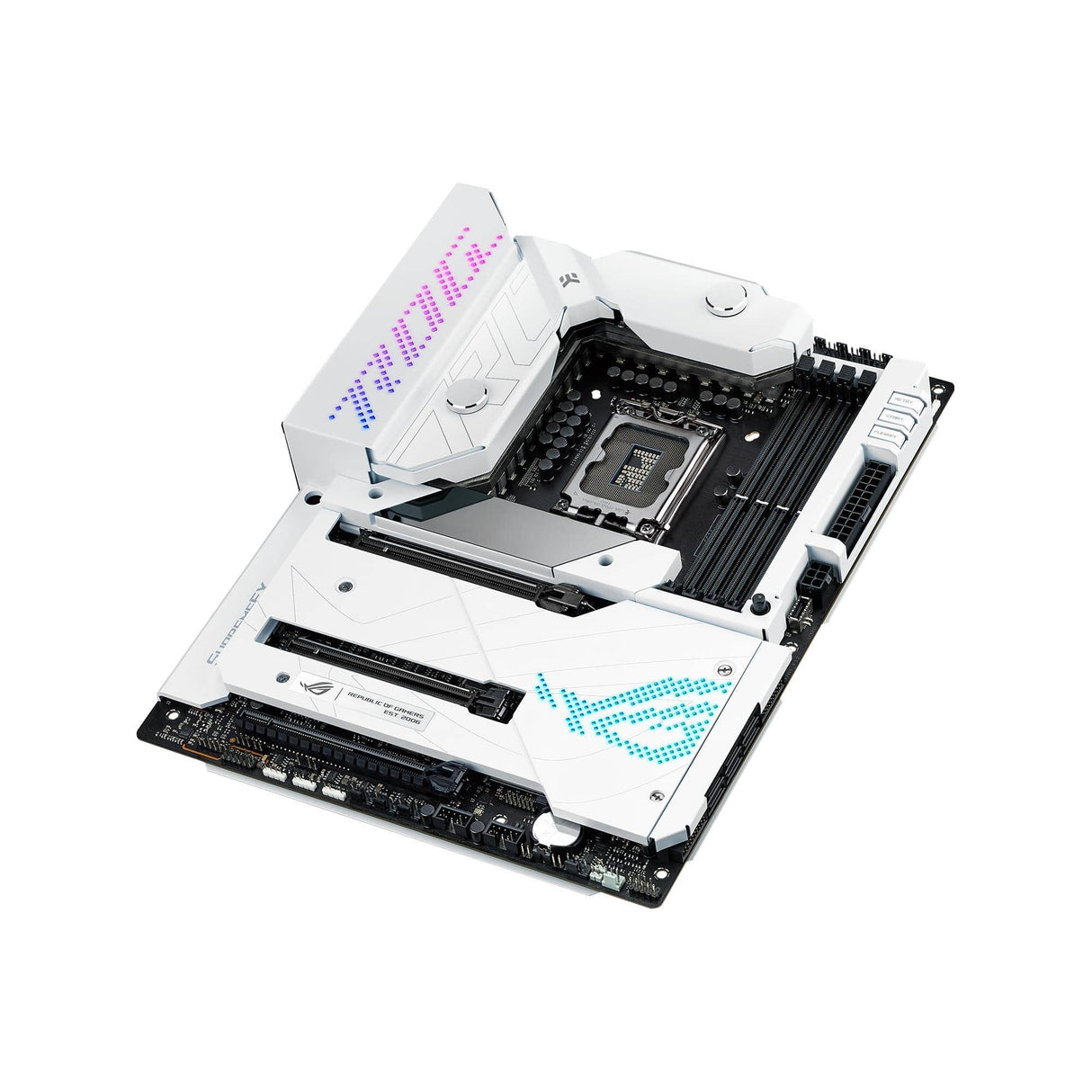

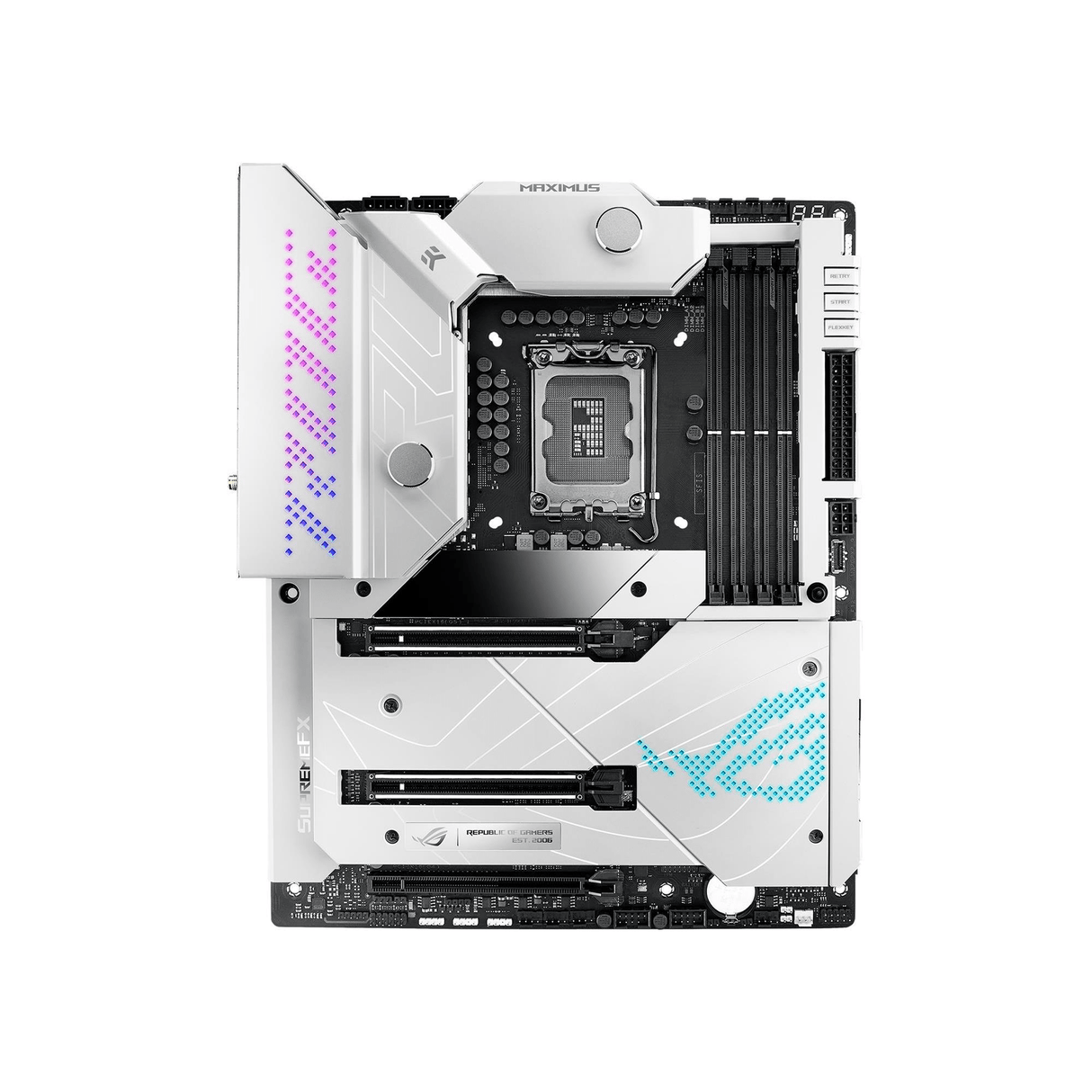

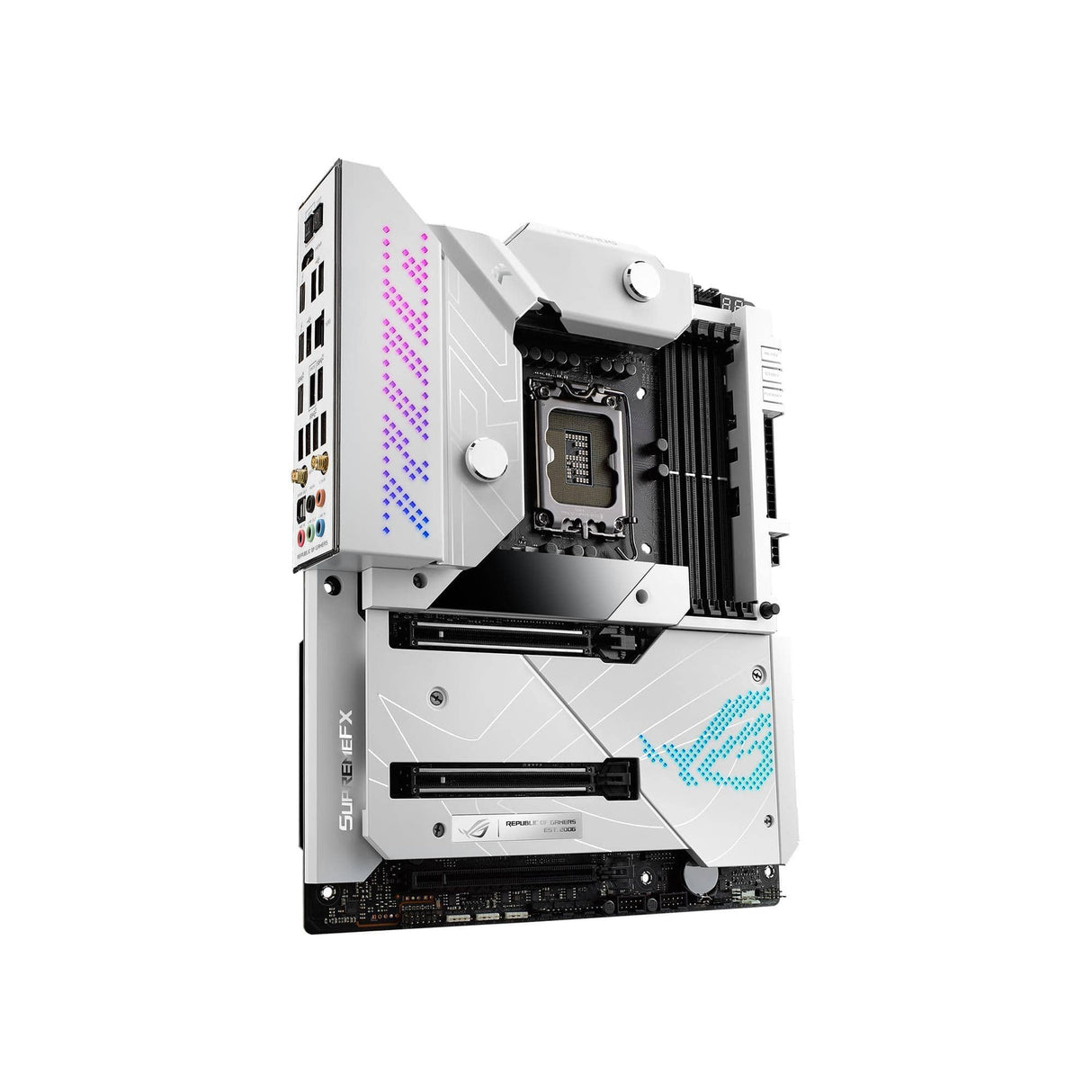

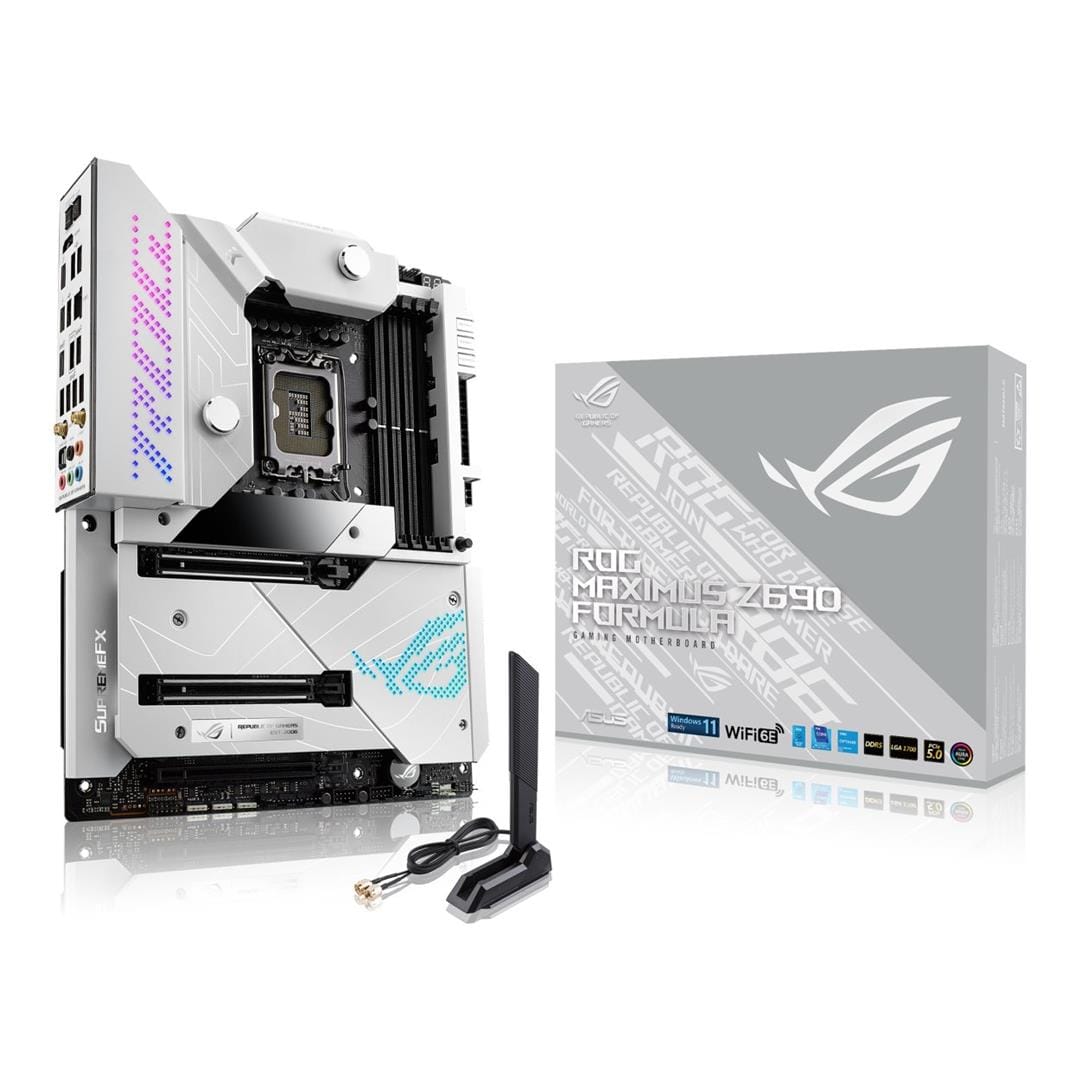

ASUS ROG Maximus Z690 Formula Intel LGA 1700 ATX Motherboard 90MB18G0-M0EAY0
The ASUS ROG Maximus Z690 Formula is a flagship ATX gaming motherboard engineered for Intel 12th Generation processors. Designed for enthusiasts, overclockers and custom liquid-cooled systems, it combines premium power delivery, DDR5 memory support, PCIe 5.0 connectivity and advanced networking to deliver exceptional performance for gaming and content creation.
Key Features
- Supports Intel 12th Generation Core processors using the LGA1700 socket.
- Intel Z690 chipset with premium ROG overclocking features.
- Four DDR5 DIMM slots supporting up to 128GB of memory.
- PCI Express 5.0 expansion for next-generation graphics cards.
- Includes ROG Hyper M.2 Card for additional PCIe 5.0 M.2 storage expansion.
- 20+1 teamed power stages with premium VRM design.
- EK CrossChill III hybrid VRM cooling block for custom liquid cooling.
- Integrated Wi-Fi 6E, Intel 10Gb Ethernet and Intel 2.5Gb Ethernet.
- Dual Thunderbolt 4 USB Type-C ports.
- Aura Sync RGB lighting with extensive customisation.
Flagship Gaming Performance
Built around Intel's Z690 platform, the ROG Maximus Z690 Formula delivers exceptional performance for enthusiast gaming systems. PCIe 5.0, DDR5 memory support and premium power delivery enable maximum performance from compatible Intel processors and graphics cards.
Advanced Cooling for Overclocking
The exclusive EK CrossChill III hybrid VRM block combines air and liquid cooling support to help maintain lower VRM temperatures during demanding workloads and overclocking, while extensive heatsinks provide additional thermal performance.
Premium Connectivity
With Thunderbolt 4, Wi-Fi 6E, Intel 10 Gigabit Ethernet, Intel 2.5 Gigabit Ethernet, multiple USB ports and PCIe 5.0 storage expansion, the motherboard provides comprehensive connectivity for modern gaming and professional workstations.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS Republic of Gamers (ROG) |
| Model | ROG Maximus Z690 Formula |
| Manufacturer Part Number | 90MB18G0-M0EAY0 |
| Product Type | ATX Motherboard |
| CPU Socket | LGA1700 |
| Compatible Processors | Intel 12th Generation Core, Pentium Gold and Celeron Processors |
| Chipset | Intel Z690 |
| Memory Support | 4 x DDR5 DIMM Slots, Up to 128GB |
| Expansion Slots | 2 x PCIe 5.0 x16, 1 x PCIe 3.0 x16 (x4 Mode) |
| M.2 Support | 5 x M.2 Slots (Including PCIe 5.0 via Included ROG Hyper M.2 Card) |
| SATA Ports | 6 x SATA 6Gb/s |
| Power Design | 20+1 Teamed Power Stages |
| VRM Cooling | EK CrossChill III Hybrid Cooling Block |
| Networking | Intel 10Gb Ethernet, Intel 2.5Gb Ethernet and Wi-Fi 6E |
| Bluetooth | Bluetooth 5.2 |

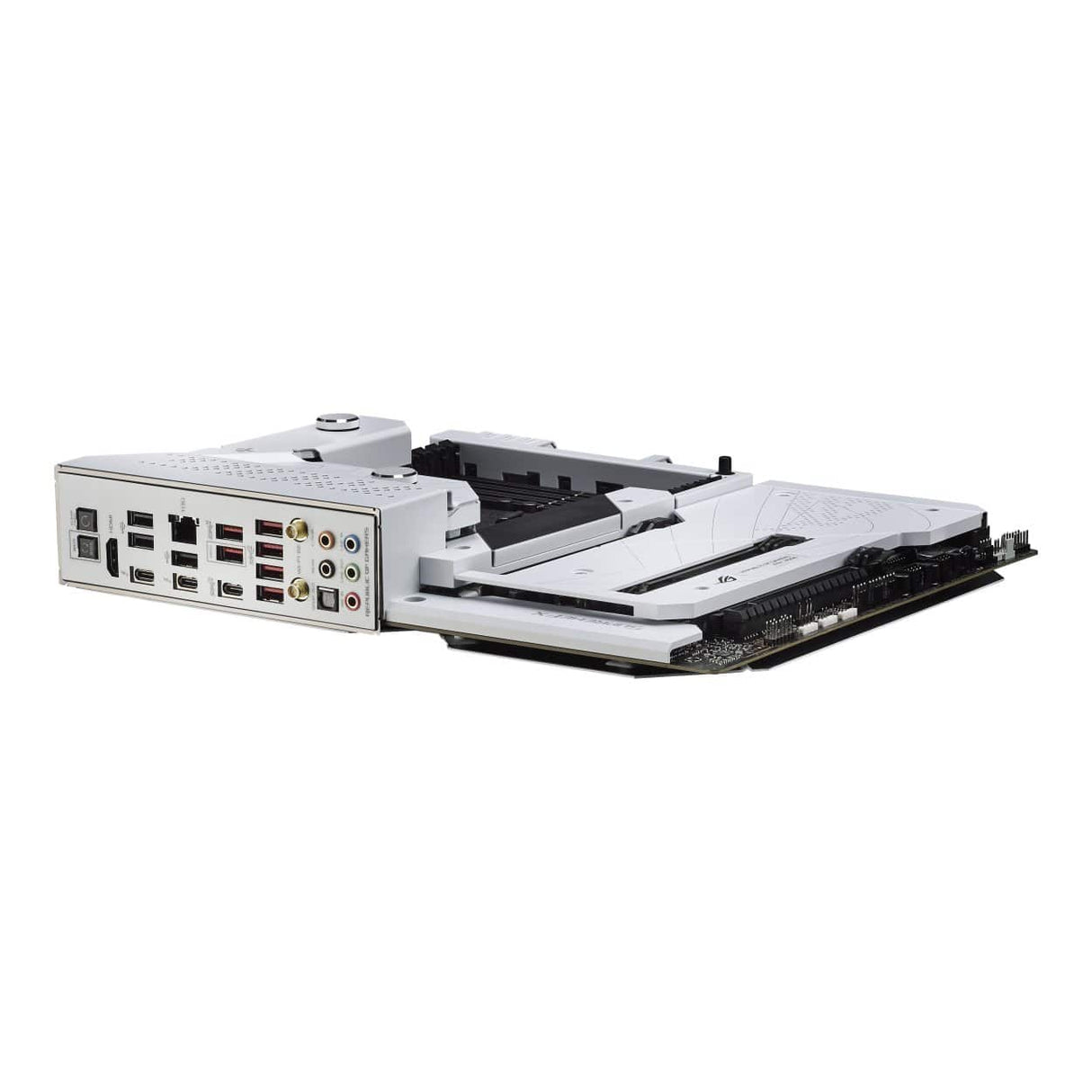

| Rear USB | Dual Thunderbolt 4 USB Type-C, USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2, USB 3.2 Gen 1 and USB 2.0 |
| Video Outputs | 1 x HDMI |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio |
| Lighting | Aura Sync RGB |
| Form Factor | ATX |
| Applications | High-End Gaming, Enthusiast PCs, Overclocking, Content Creation and Liquid-Cooled Systems |
Build a flagship Intel gaming system with the ASUS ROG Maximus Z690 Formula, delivering premium power delivery, advanced cooling and next-generation connectivity for enthusiast performance.
