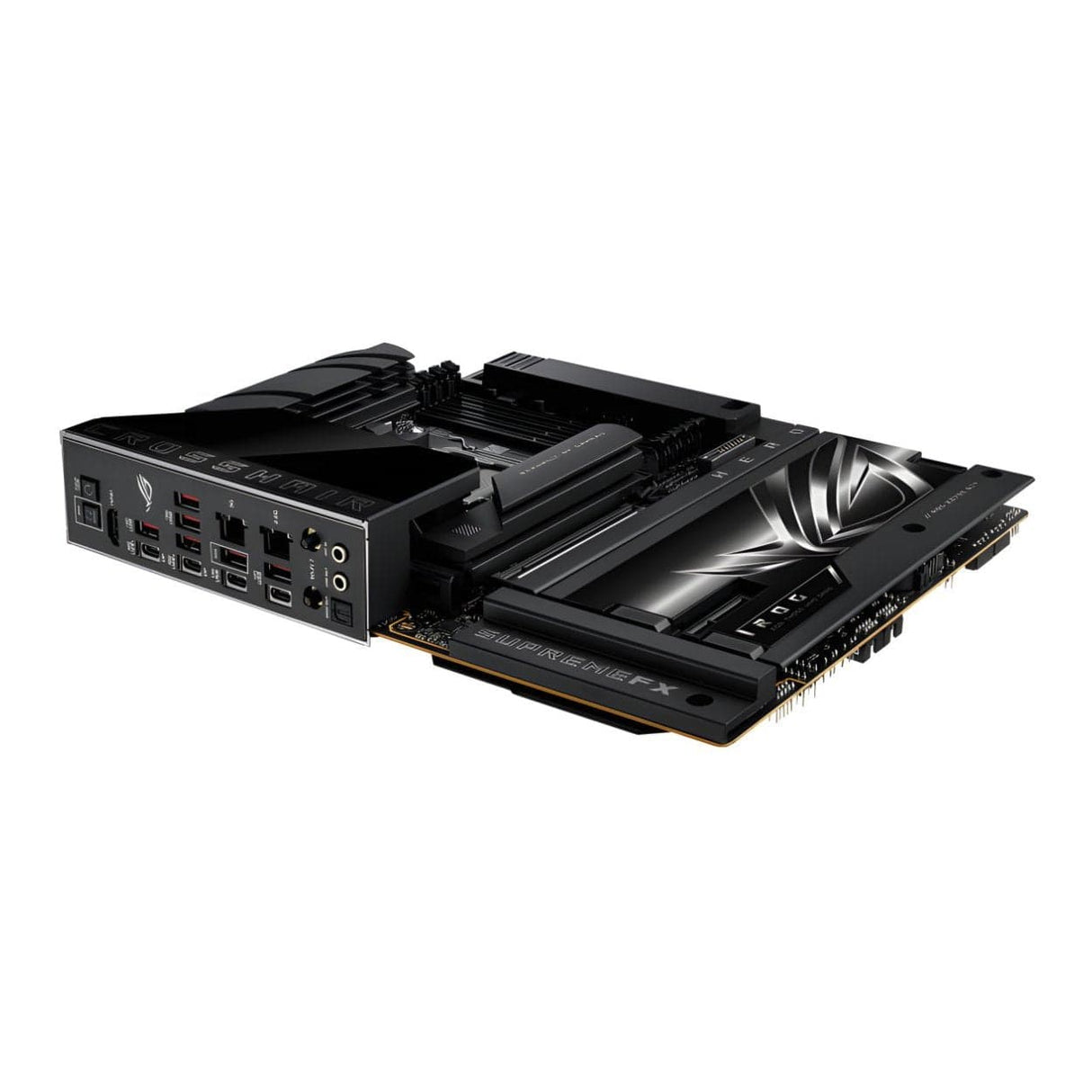

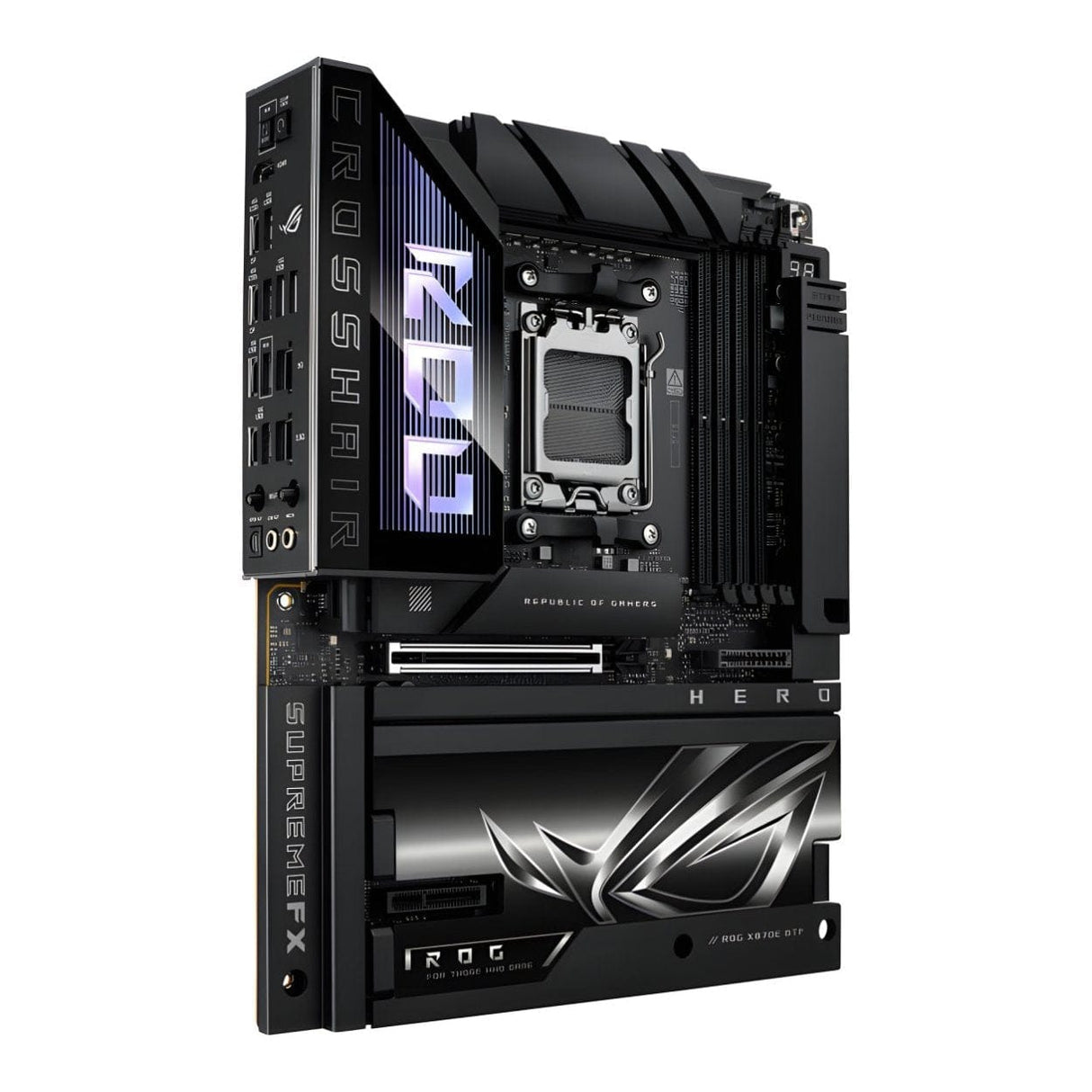

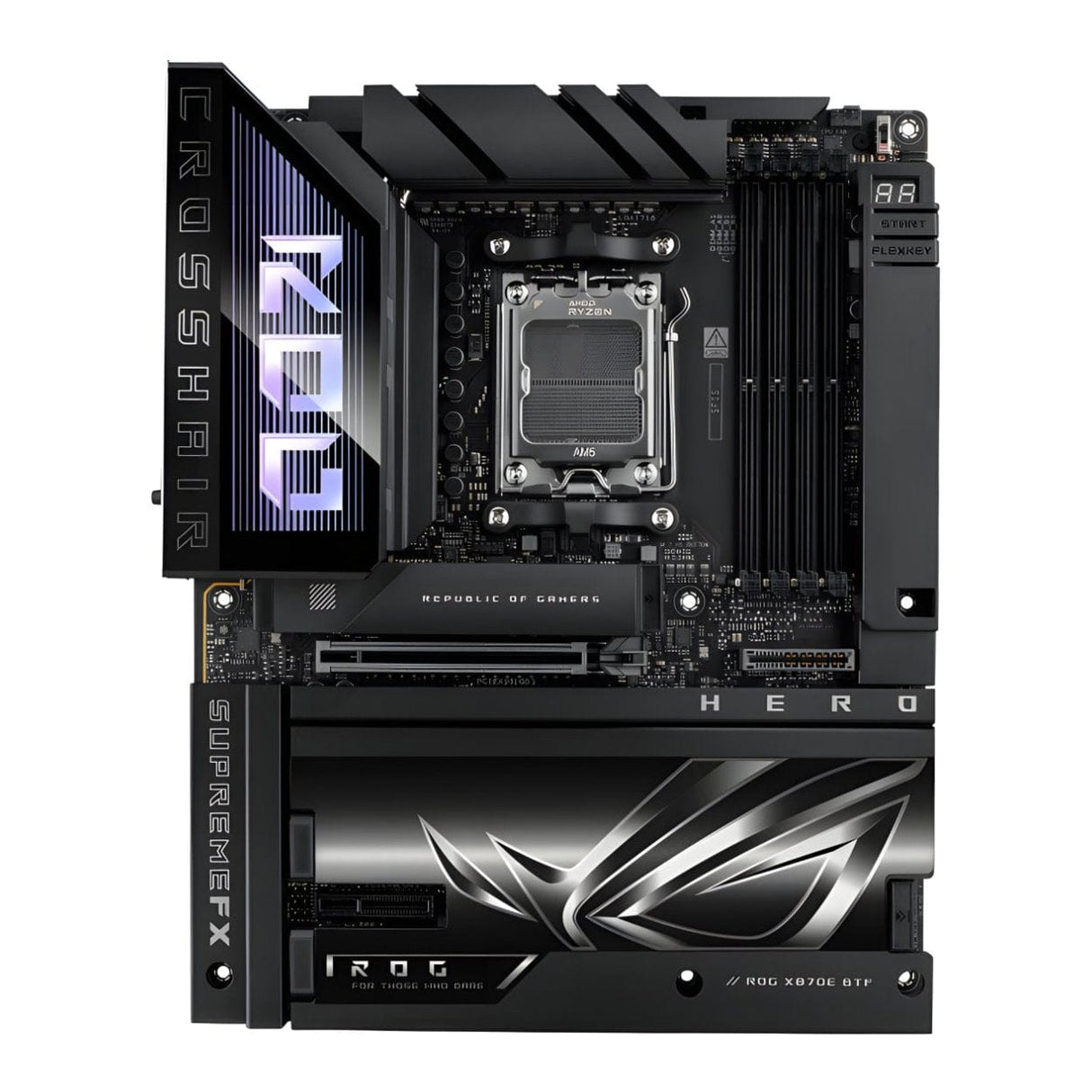

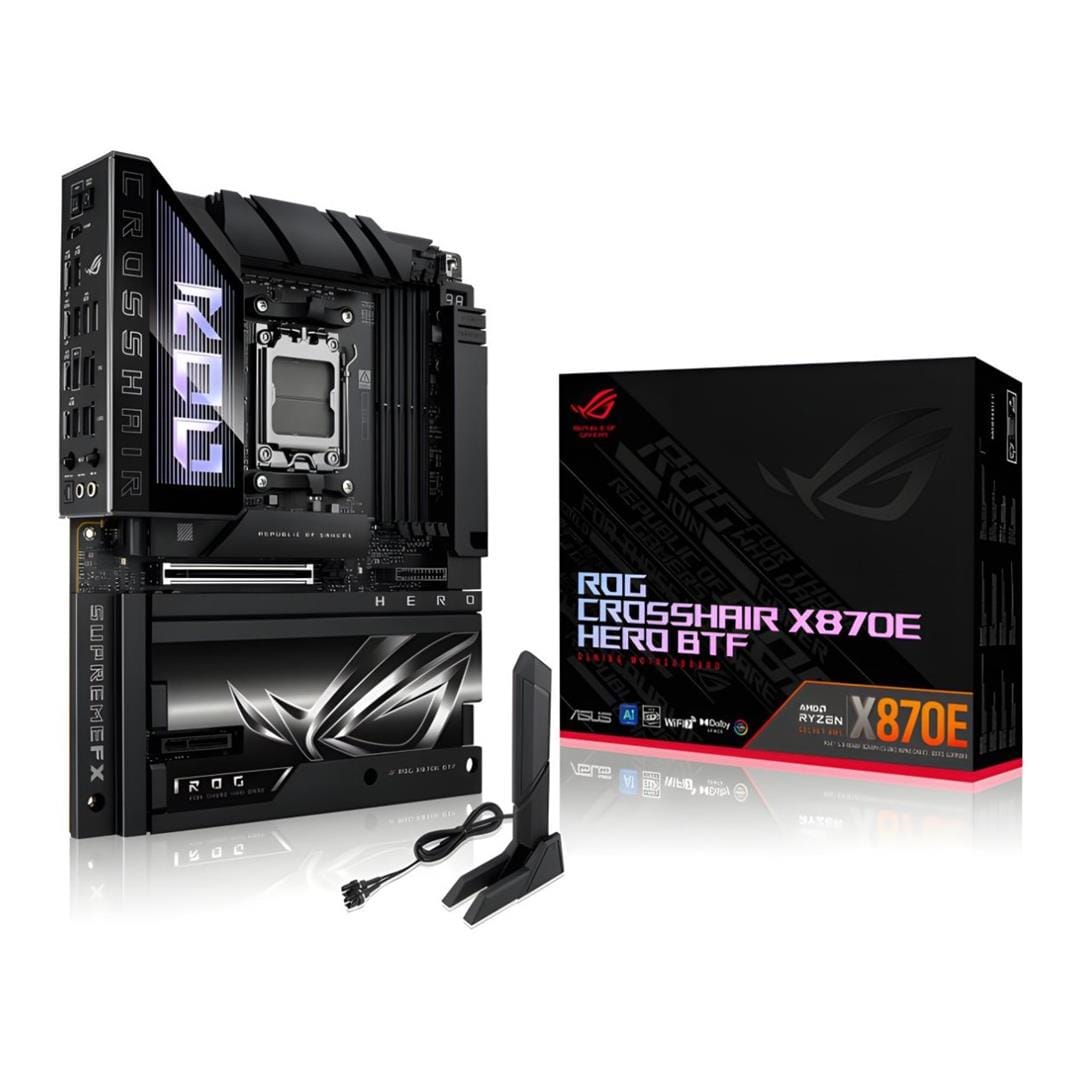

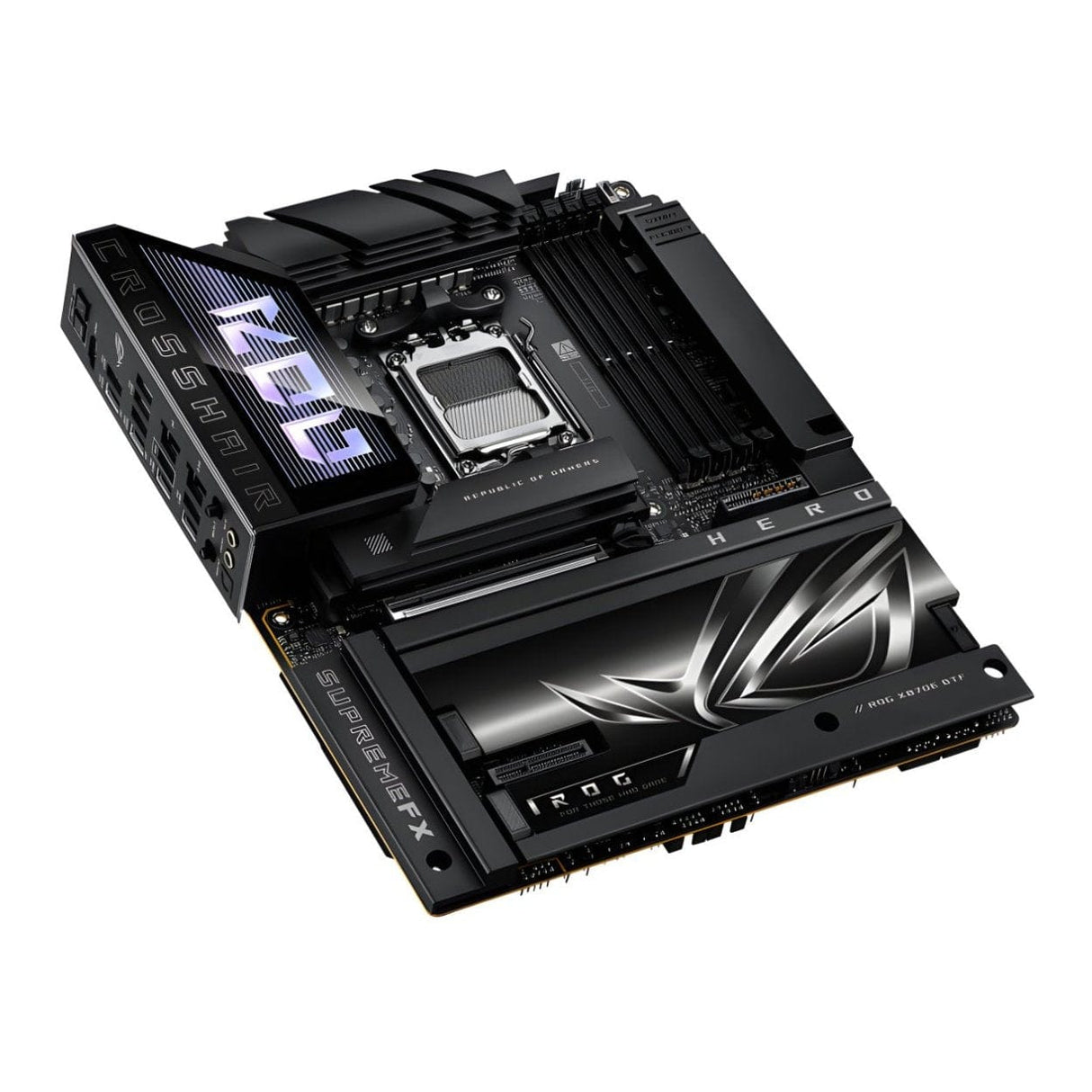

ASUS ROG Crosshair X870E Hero BTF AMD Socket AM5 ATX Motherboard 90MB1MX0-M0EAY0

ASUS ROG Crosshair X870E Hero BTF AMD Socket AM5 ATX Motherboard 90MB1MX0-M0EAY0

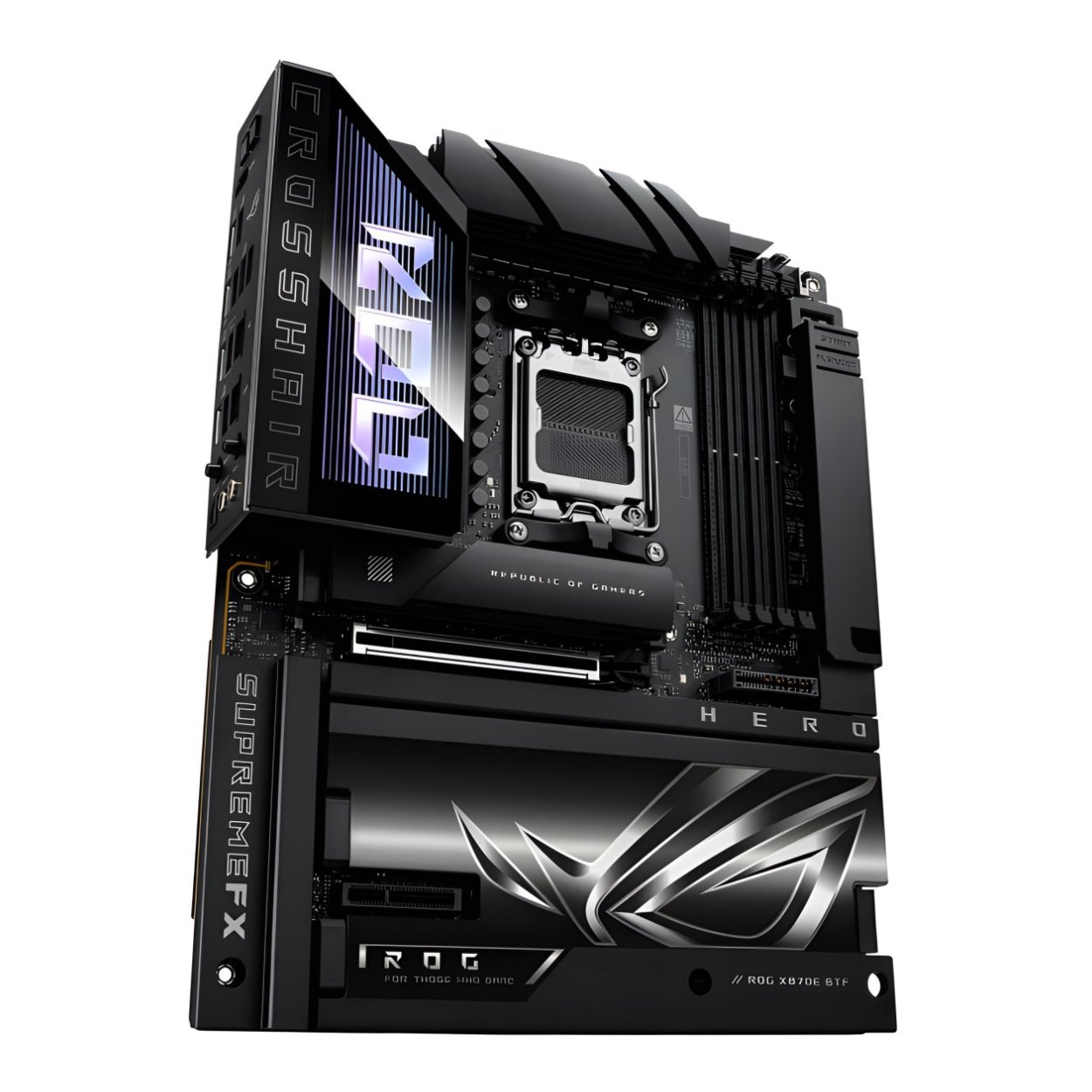

ROG Crosshair X870E HERO BTF

The ROG Crosshair X870E Hero BTF features hidden connectors for motherboard and GPU power, USB, and fan cables, delivering an ultra-clean look for your AMD Ryzen™ 9000 build. It pairs robust power delivery with ASUS-exclusive AI-enhanced tuning, PCIe® 5.0, and DDR5 slots with NitroPath DRAM Technology for advanced memory performance. Plus, Polymo Lighting II adds striking visual flair to your rig.

Advanced BTF Design

With the combination of a BTF graphics card, motherboard and chassis, you can enjoy a full hidden-connector experience. This Advanced BTF approach is achieved through the new graphics card high-power slot available on BTF motherboards, which can deliver up to 600 watts to BTF graphics cards. With a full set of BTF components, builders can eliminate visible cables for an extra-clean aesthetic.

Technical Specifications:

CPU
Socket Support AMD Socket AM5 for AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors

Chipset
Chipset AMD X870E

Memory
Memory Slots 4 x DIMM slots, max. 256GB, DDR5
Memory Speed Support Up to 8200+MT/s (OC) with Ryzen™ 9000 Series Processors
Up to 8600+MT/s (OC) with Ryzen™ 8000 Series Processors
Up to 8000+MT/s (OC) with Ryzen™ 7000 Series Processors
Memory Type ECC and Non-ECC, Un-buffered Memory
Memory Architecture Dual channel memory architecture
Memory Features Supports AMD Extended Profiles for Overclocking (EXPO™)
Supports DIMM Fit and DIMM Fit Pro
NitroPath DRAM Technology
ASUS Enhanced Memory Profile (AEMP)

Graphics
Display Outputs 1 x HDMI™ port
2 x USB4® (40Gbps) ports support USB Type-C® display outputs
Resolution Support HDMI supports 4K@60Hz
USB4 supports max. 4K@60Hz

Expansion Slots
PCIe (Ryzen™ 9000 & 7000 Series) 1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8/x4/x4 modes)
PCIe (Ryzen™ 8700, 8600 & 8400 Series) 1 x PCIe 4.0 x16 slot (Total bandwidth for x8)
PCIe (Ryzen™ 8500 & 8300 Series) 1 x PCIe 4.0 x16 slot (Total bandwidth for x4)
Chipset PCIe 1 x PCIe 4.0 x4 slot

Storage
M.2 Support Supports 5 x M.2 slots
SATA Support 4 x SATA 6Gb/s ports
M.2_1 Type 2242/2260/2280 (supports PCIe 5.0 x4 mode with Ryzen™ 9000 & 7000 Series)
M.2_2 Type 2242/2260/2280 (supports PCIe 5.0 x4 mode with Ryzen™ 9000 & 7000 Series)
M.2_3 Type 2242/2260/2280 (supports PCIe 5.0 x4 mode with Ryzen™ 9000 & 7000 Series)
M.2_4 Type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_5 Type 2280 (supports PCIe 4.0 x4 mode)
RAID Support AMD RAIDXpert2 Technology
Ryzen™ 9000 Series: RAID 0/1/5/10
Ryzen™ 8000 Series: RAID 0/1
Ryzen™ 7000 Series: RAID 0/1/10

Ethernet
LAN Ports 1 x Intel® 2.5Gb Ethernet
1 x Realtek 5Gb Ethernet
LAN Features ASUS LANGuard

Wireless & Bluetooth
Wi-Fi Wi-Fi 7 (MediaTek MT7927)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency bands
Supports 320MHz bandwidth
Bluetooth Bluetooth® v5.4

USB
Rear USB Ports 2 x USB4® (40Gbps) ports (USB Type-C®)
8 x USB 10Gbps ports (6 x Type-A + 2 x Type-C®)
Front USB Ports 2 x USB 20Gbps connectors (USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Power Delivery USB Type-C® power delivery output: max. 5V/3A

Audio
Audio Codec ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Audio Performance 120 dB SNR stereo playback output
110 dB SNR recording input
Supports up to 32-Bit/384 kHz playback
Audio Features SupremeFX Shielding Technology
ESS® ES9219 QUAD DAC
Gold-plated audio jacks
Rear optical S/PDIF out port
Premium audio capacitors

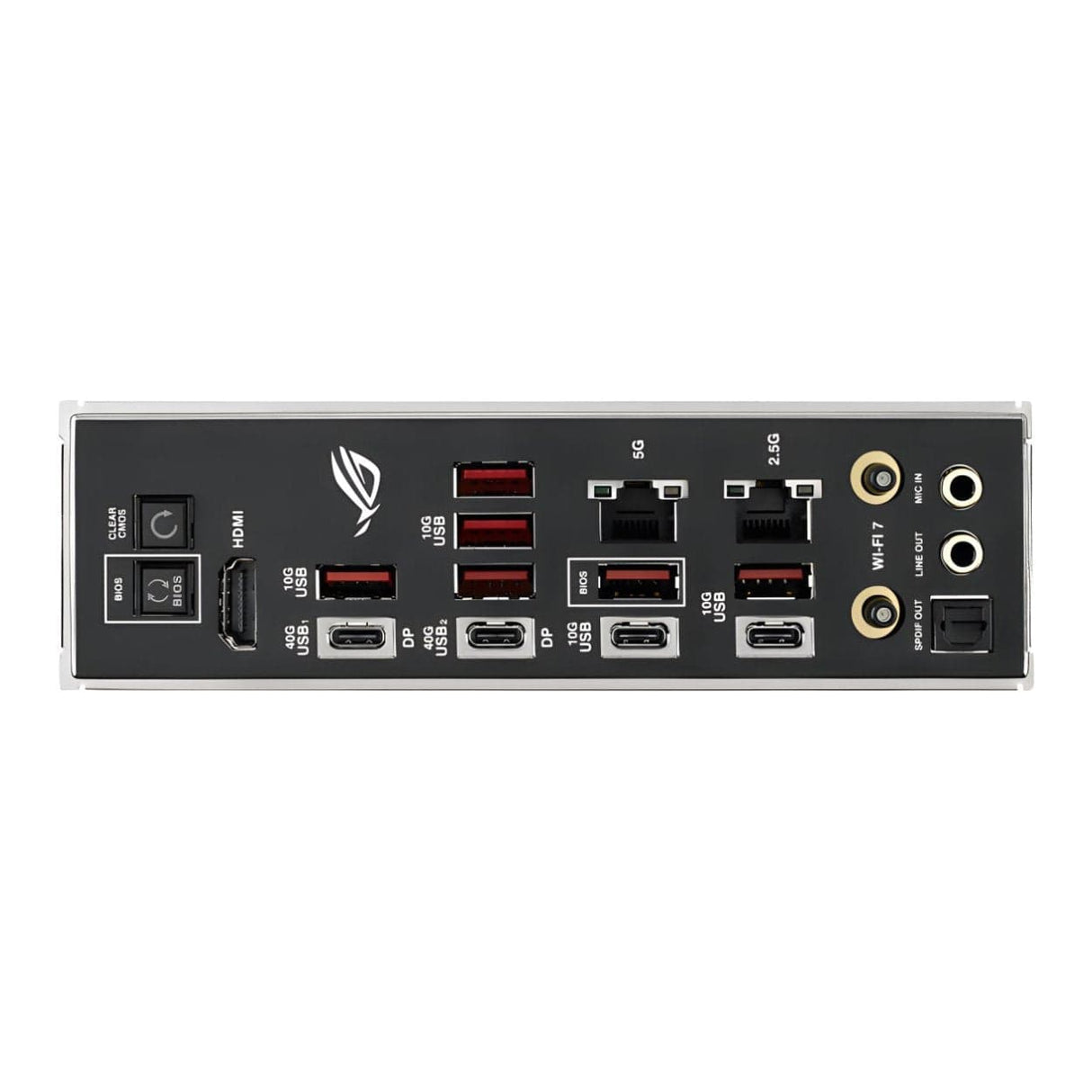

Back Panel I/O Ports
Rear Connectivity 2 x USB4® (40Gbps) ports (USB Type-C®)
8 x USB 10Gbps ports (6 x Type-A + 2 x Type-C®)
1 x HDMI™ port
1 x Wi-Fi module
1 x Intel® 2.5Gb Ethernet port
1 x Realtek 5Gb Ethernet port
2 x Gold-plated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button

Internal I/O Connectors
Fan and Cooling 1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Power Connectors 1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x Graphics card high power slot
1 x 12V-2X6 Auxiliary power connector
Storage Connectors 5 x M.2 slots
4 x SATA 6Gb/s ports
USB Headers 2 x USB 20Gbps connectors (USB Type-C®)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous 3 x Addressable Gen2 headers
1 x Alteration PCIe mode switch
1 x FlexKey button
1 x Front Panel Audio header
1 x Start button
1 x System Panel header
1 x Thermal Sensor header

Special Features
Overclocking Features Extreme OC Kit
FlexKey button
Start button
Power Design Extreme Engine Digi+
10K Black metallic capacitors
MicroFine alloy choke
ASUS Q-Design M.2 Q-Latch
M.2 Q-Release
M.2 Q-Slide
Q-Release Slim
Q-Antenna
Q-Code
Q-Connector
Q-Dashboard
Q-LED
Q-Slot
Thermal Design M.2 heatsink backplate
M.2 heatsink
VRM heatsink design
Metal backplate
EZ DIY Features Backplate
BIOS FlashBack™ button
Clear CMOS button
ProCool II
Pre-mounted I/O shield
SafeSlot
SafeDIMM
Lighting Aura Sync support

Software Features
ROG Software ROG CPU-Z
Dolby Atmos
Internet Security (1-year full version)
Polymo Lighting II
ASUS Software Armoury Crate
AIDA64 Extreme (1 year full version)
Aura Creator
Aura Sync
Fan Xpert 4 (with AI Cooling II)
GameFirst
HWiNFO
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS Tools AI Overclocking Guide
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
FlexKey

BIOS
BIOS Type 256Mb Flash ROM, UEFI AMI BIOS

Manageability
Features Wake-on-LAN (WOL) by PME

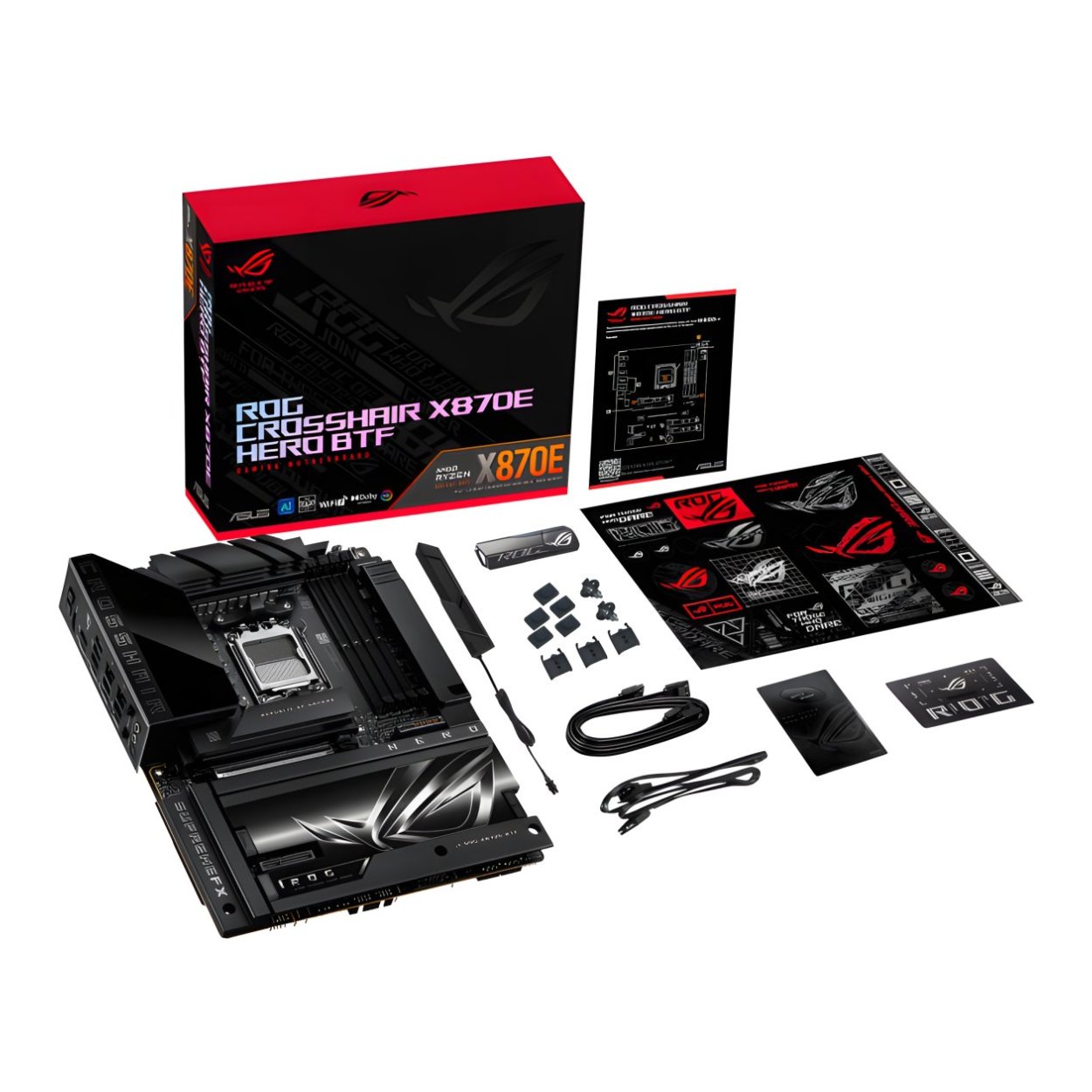

Accessories
Cables 1 x ARGB RGB extension cable
4 x SATA 6Gb/s cables
Included Items 1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch package
3 x M.2 Q-Slide package
5 x M.2 rubber package
1 x ROG stickers
1 x ROG thank you card
1 x ROG Bottle Opener
1 x USB drive with utilities and drivers
1 x Quick start guide

Operating System
Supported OS Windows® 11

Form Factor
Form Factor ATX
Dimensions 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
