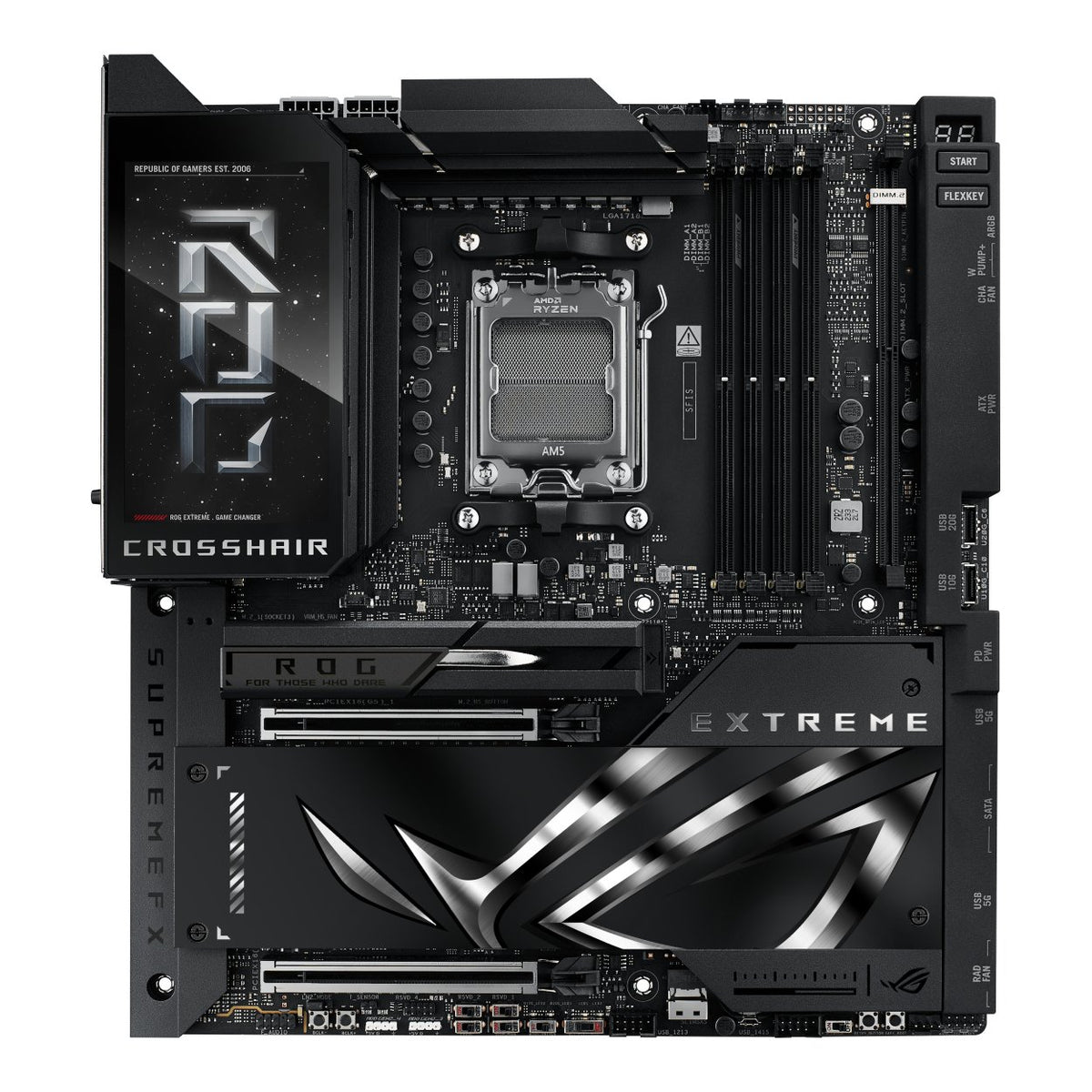

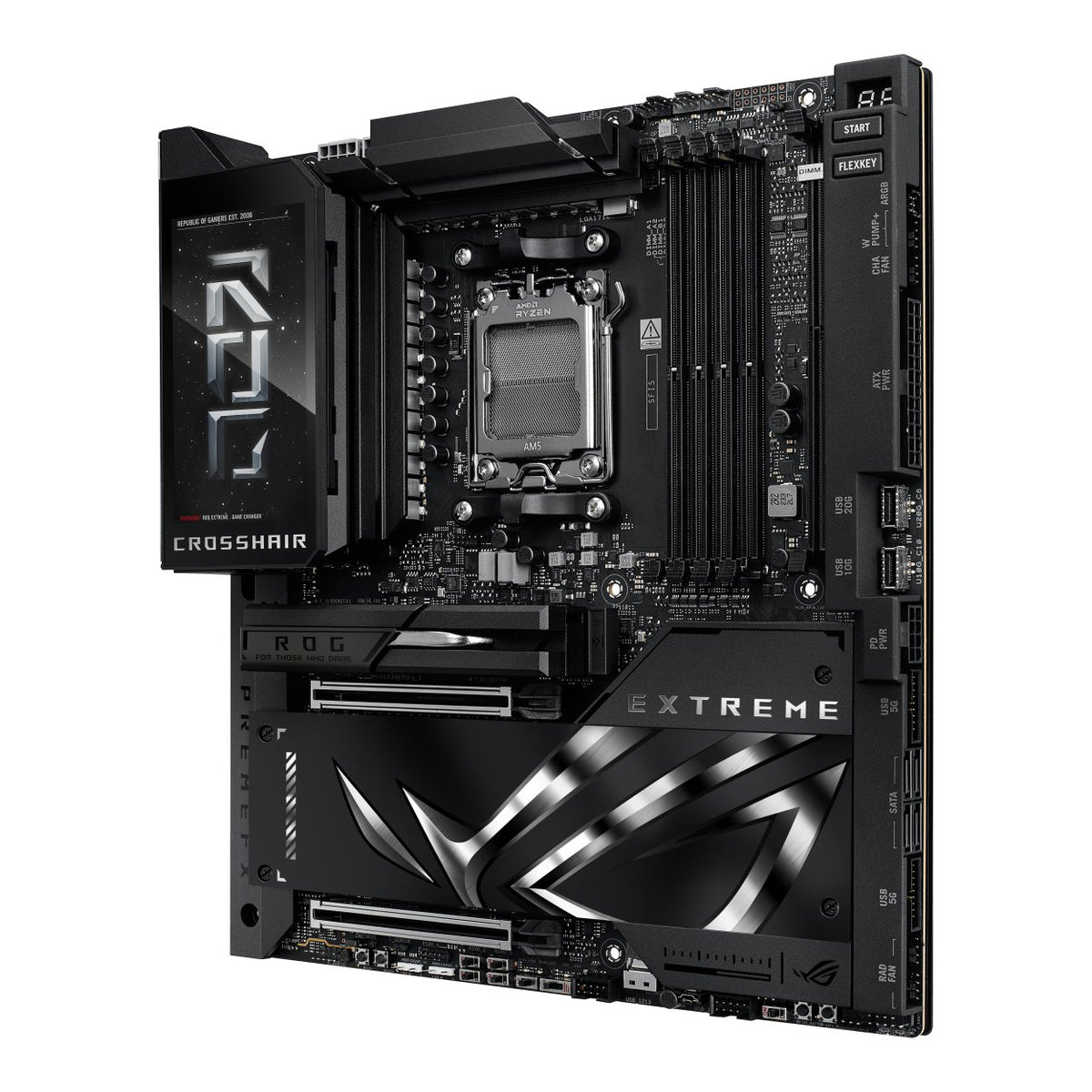

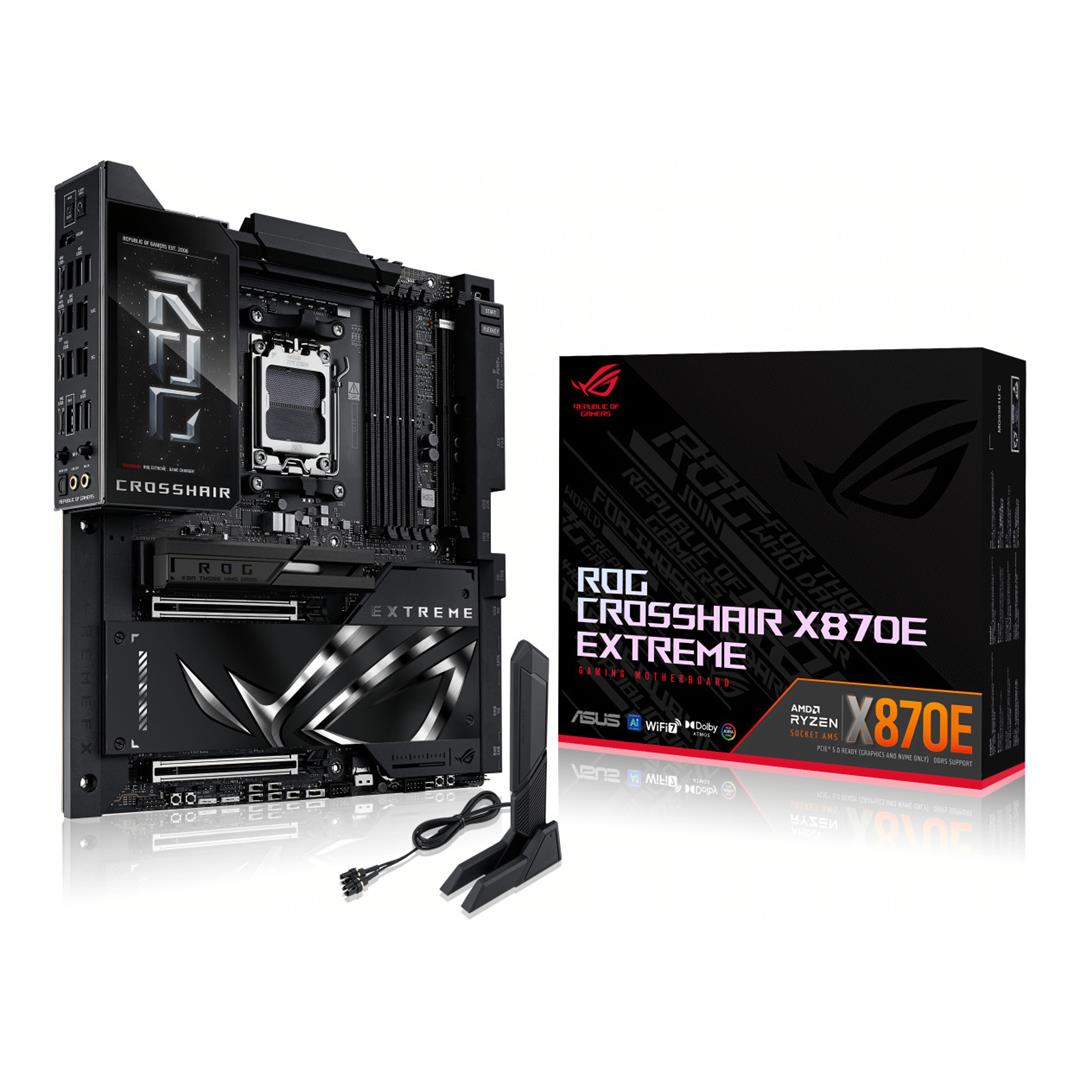

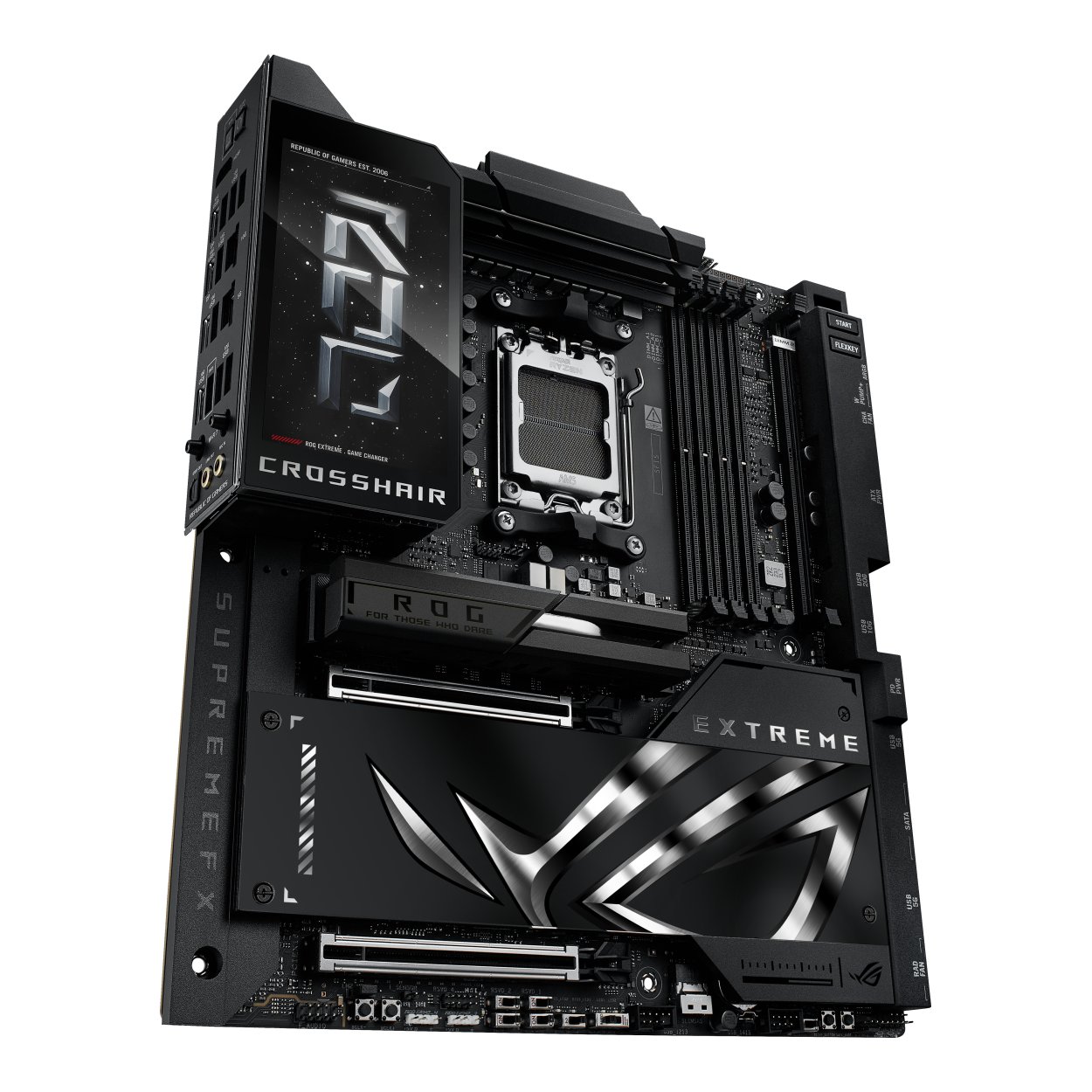

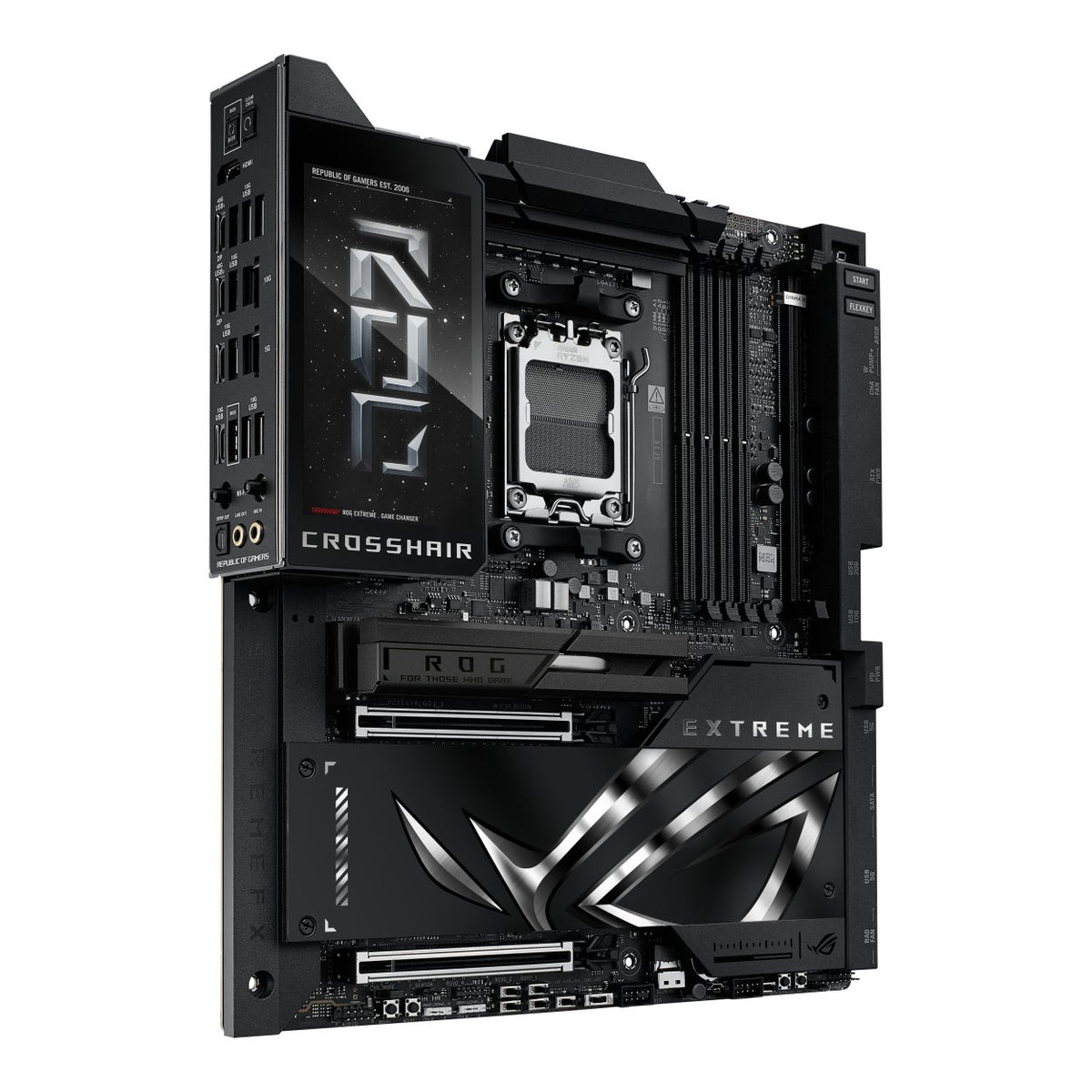

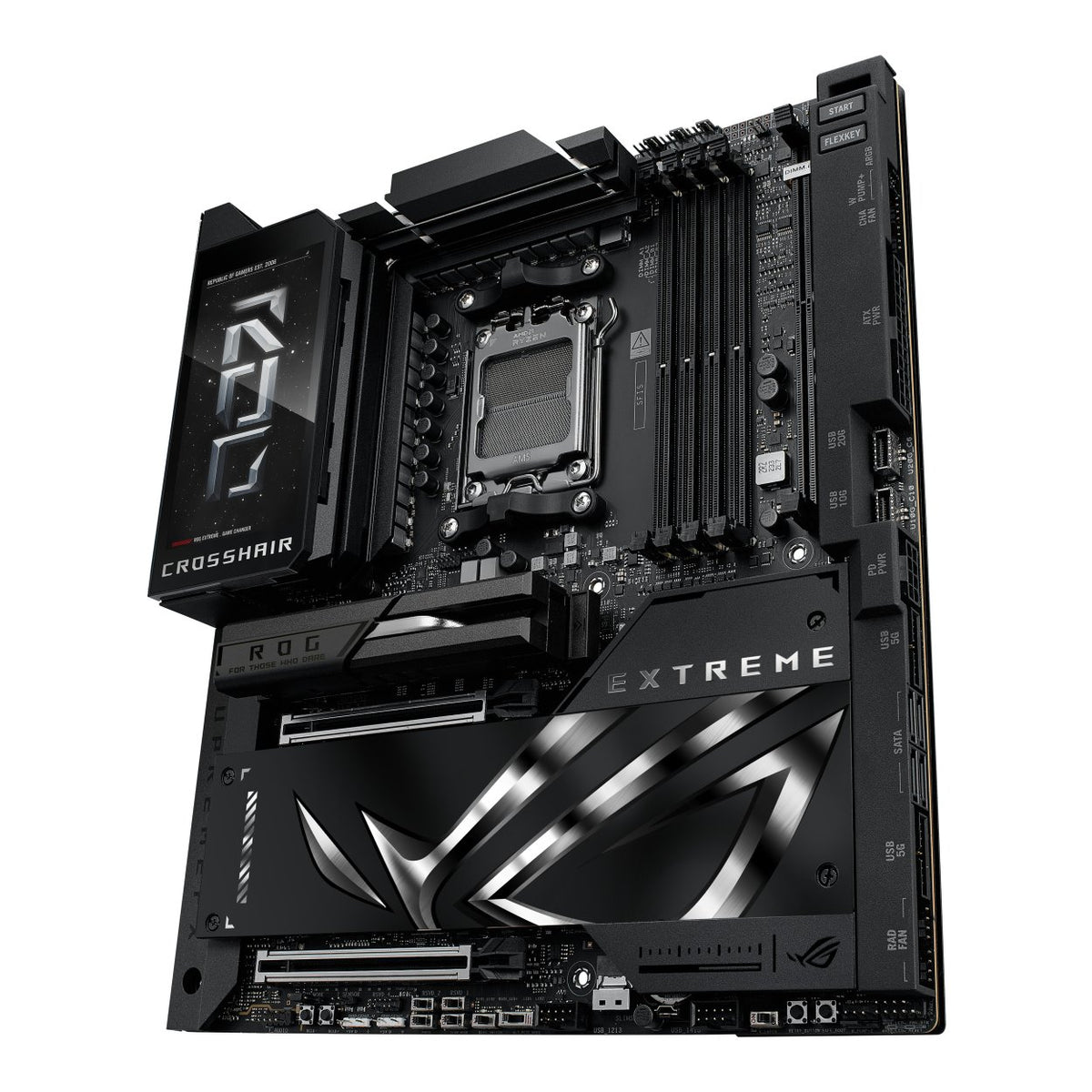

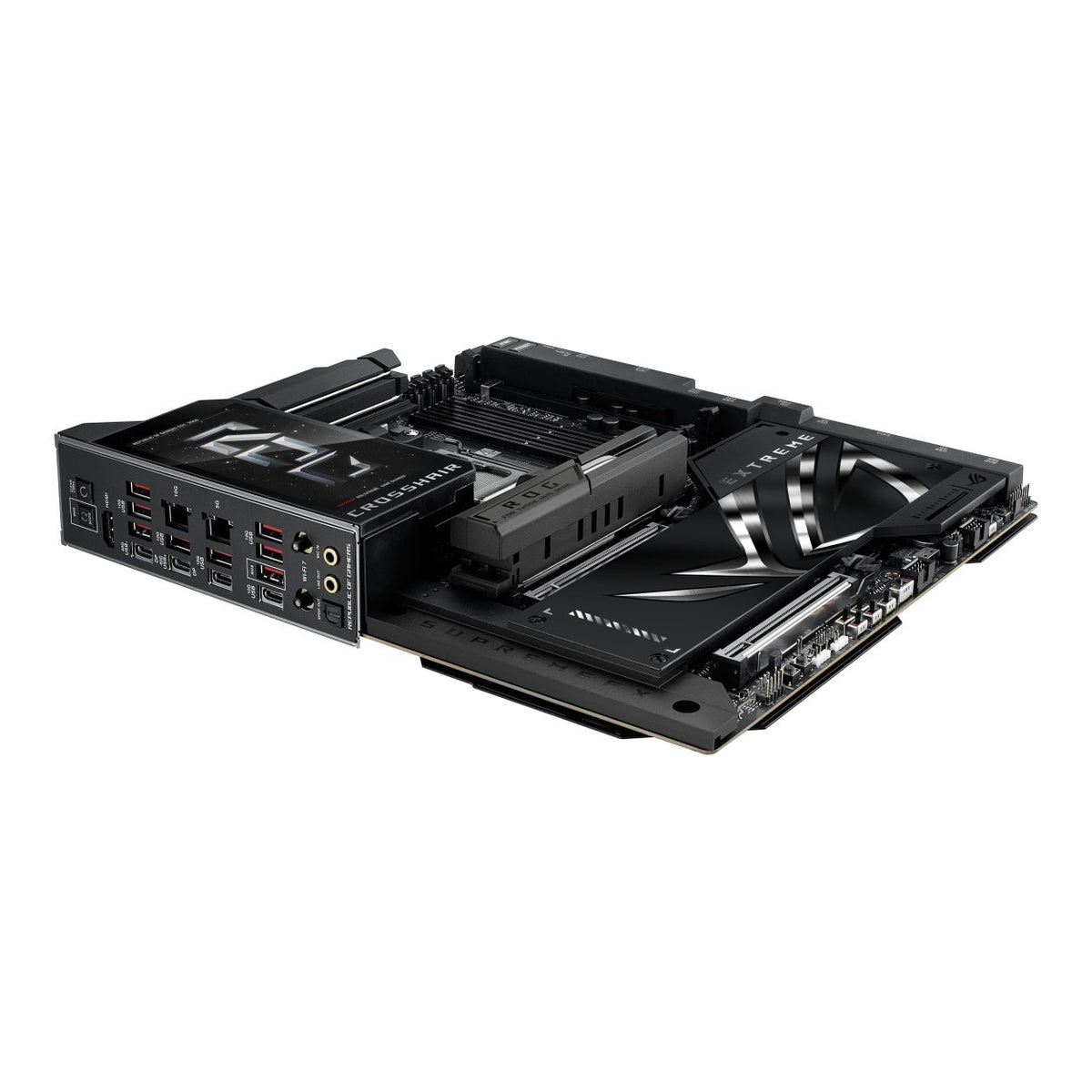

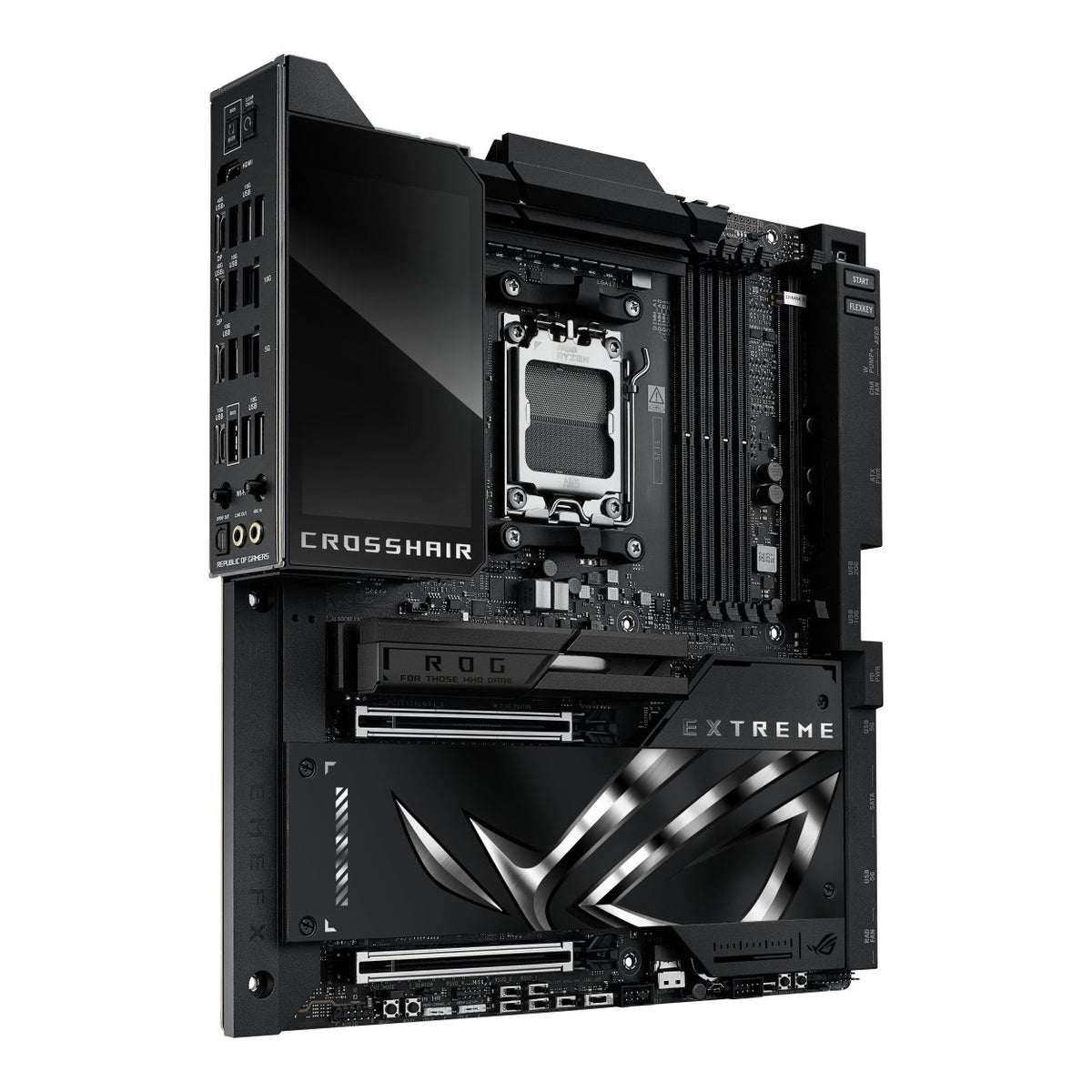

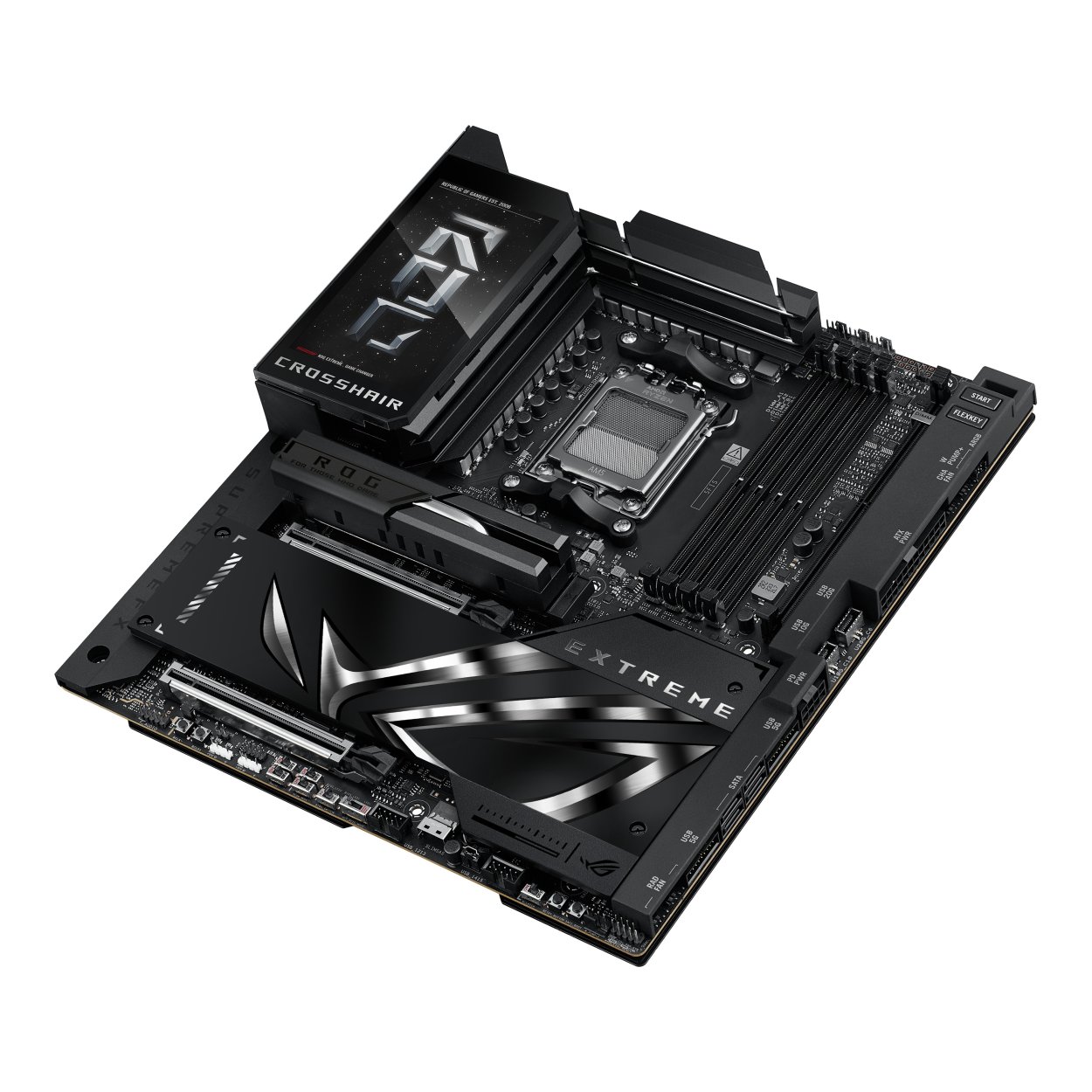

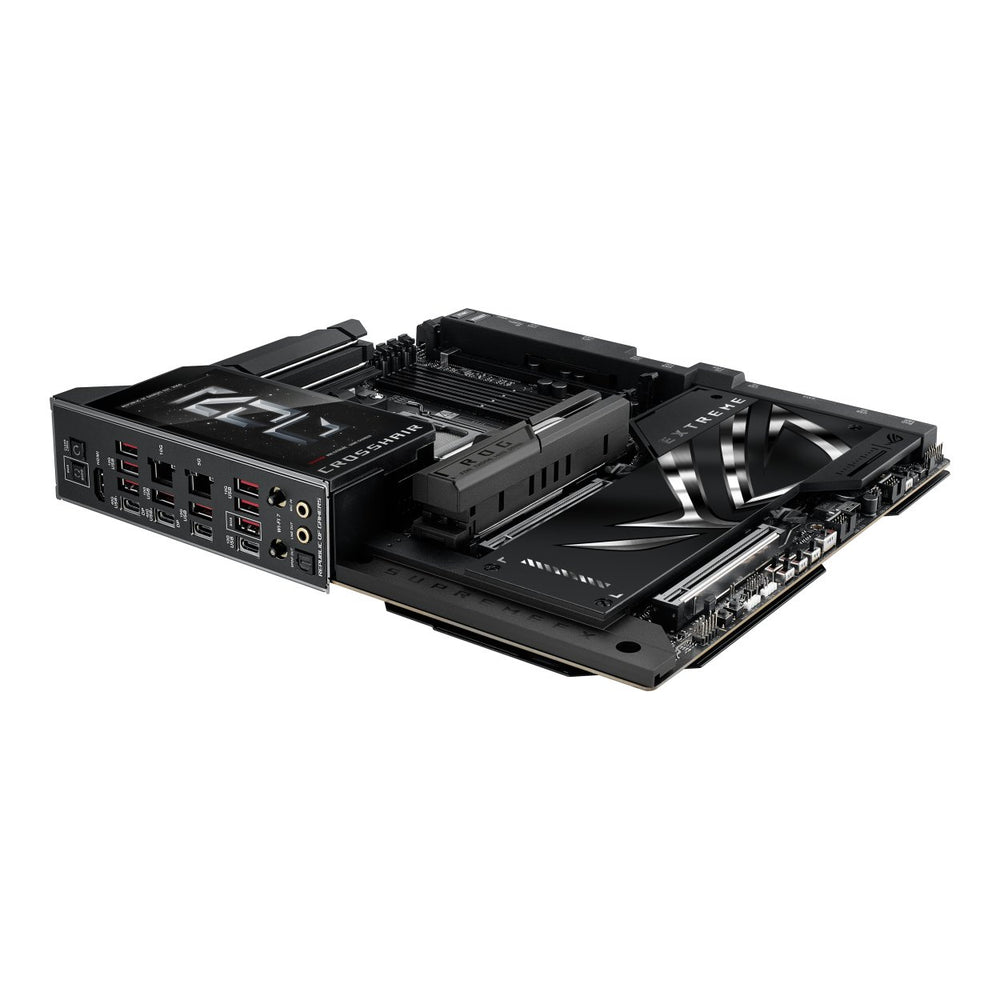

ASUS ROG CROSSHAIR X870E EXTREME AMD Socket AM5 E-ATX Motherboard 90MB1LB0-M0EAY0
R 29,99900
Unit price
/
Available Now
Delivery and Shipping
Delivery and Shipping
* Fast Delivery Available - Learn more
Easy Returns
Easy Returns
Buy With Confidence. 14 Day Returns. Online. Learn More
Price Match Guarantee
Price Match Guarantee
Found a Better Price? We'll Match It - Guaranteed - Learn More
Description
Description
ASUS ROG CROSSHAIR X870E EXTREME AMD Socket AM5 E-ATX Motherboard 90MB1LB0-M0EAY0
The ASUS ROG Crosshair X870E Extreme is a flagship E-ATX AMD AM5 gaming motherboard engineered for high-performance Ryzen systems, advanced overclocking and extensive expansion. Built around the AMD X870E chipset, it combines robust power delivery with PCIe 5.0 expansion, extensive M.2 storage, Wi-Fi 7, dual 10Gb and 5Gb Ethernet, USB4 connectivity and premium SupremeFX audio.
Key Features
- AMD X870E chipset and AM5 socket supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- Four DDR5 DIMM slots support up to 256GB memory with EXPO, AEMP and NitroPath DRAM Technology.
- 20(110A)+2(110A)+2 power-stage design with ProCool II connectors, MicroFine alloy chokes and premium metallic capacitors.
- Up to five M.2 SSDs, including three onboard PCIe 5.0 M.2 slots with compatible processors and two PCIe 4.0 M.2 slots via ROG Q-DIMM.2.
- High-speed networking with Wi-Fi 7, Marvell AQtion 10Gb Ethernet and Realtek 5Gb Ethernet.
- Dual USB4 40Gbps Type-C ports plus extensive USB 10Gbps connectivity for high-performance peripherals.
- ROG SupremeFX ALC4082 audio with ESS ES9219 Quad DAC for high-quality gaming and entertainment audio.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS ROG |
| Model | ROG Crosshair X870E Extreme |
| Manufacturer Part Number | 90MB1LB0-M0EAY0 |
| EAN | 4711387984963 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | ECC and Non-ECC Unbuffered DDR5, AMD EXPO, ASUS AEMP, NitroPath DRAM Technology |
| Maximum Memory Speed | Up to 8200+ MT/s OC with Ryzen 9000; 9000+ MT/s OC with Ryzen 8000; 8000+ MT/s OC with Ryzen 7000 |
| Expansion Slots | 2 × PCIe 5.0 x16 with Ryzen 9000/7000 Series CPUs; configuration varies by processor |
| M.2 Storage | Up to 5 × M.2 Slots |
| Onboard M.2 | Up to 3 × PCIe 5.0 x4 with Compatible Ryzen 9000/7000 Processors |
| ROG Q-DIMM.2 Storage | 2 × PCIe 4.0 x4 M.2 |
| SATA | 4 × SATA 6Gb/s |
| SlimSAS | 1 × SlimSAS Connector with PCIe 4.0 x4 Support |
| RAID | AMD RAIDXpert2; Supported RAID Levels Vary by Processor Series |
| 10Gb Ethernet | 1 × Marvell AQtion 10Gb Ethernet |
| 5Gb Ethernet | 1 × Realtek 5Gb Ethernet with ASUS LANGuard |
| Wi-Fi | 2×2 Wi-Fi 7 (802.11be), 2.4GHz / 5GHz / 6GHz |
| Bluetooth | Bluetooth 5.4 |

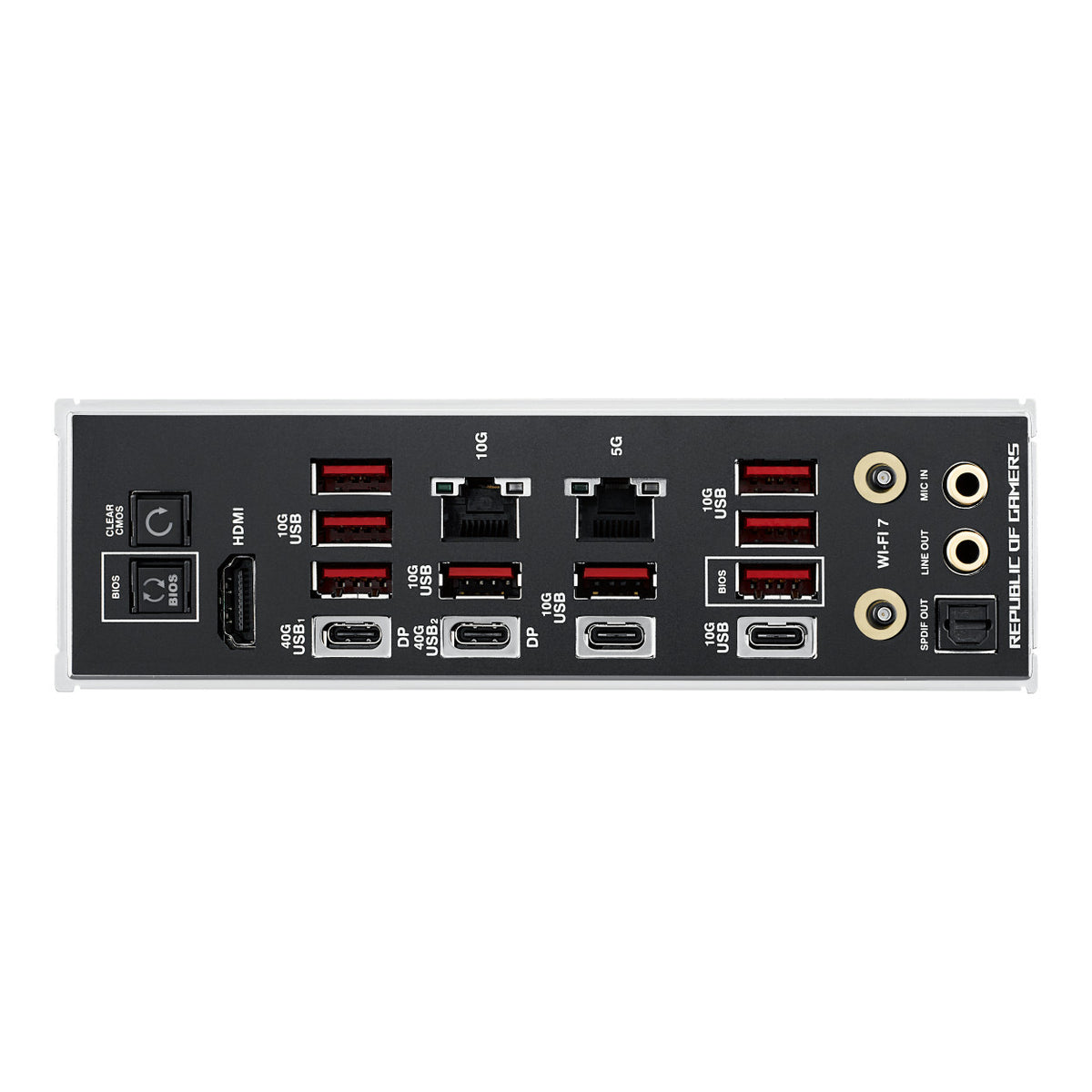

| Rear USB4 | 2 × USB4 40Gbps Type-C |
| Rear USB 10Gbps | 10 × USB 10Gbps (8 × Type-A, 2 × Type-C) |
| Front USB-C | 1 × USB 20Gbps Type-C Connector with up to 60W PD/QC4+; 1 × USB 10Gbps Type-C Connector |
| Display Output | 1 × HDMI 2.1; 2 × USB4 Type-C Display Outputs |
| Audio Codec | ROG SupremeFX ALC4082 7.1 Surround Sound High Definition Audio |
| Audio DAC | ESS ES9219 Quad DAC |
| Audio Playback | Up to 32-Bit / 384kHz via Front Panel |
| BIOS | 2 × 256Mb Flash ROM, UEFI AMI BIOS |
| Lighting | Aura Sync; Addressable Gen 2 ARGB Headers |
| Integrated Display | Full-Colour 5-Inch LCD Display |
| Operating System | Windows 11 |
| Form Factor | E-ATX |
| Dimensions | 30.5 × 27.7 cm |

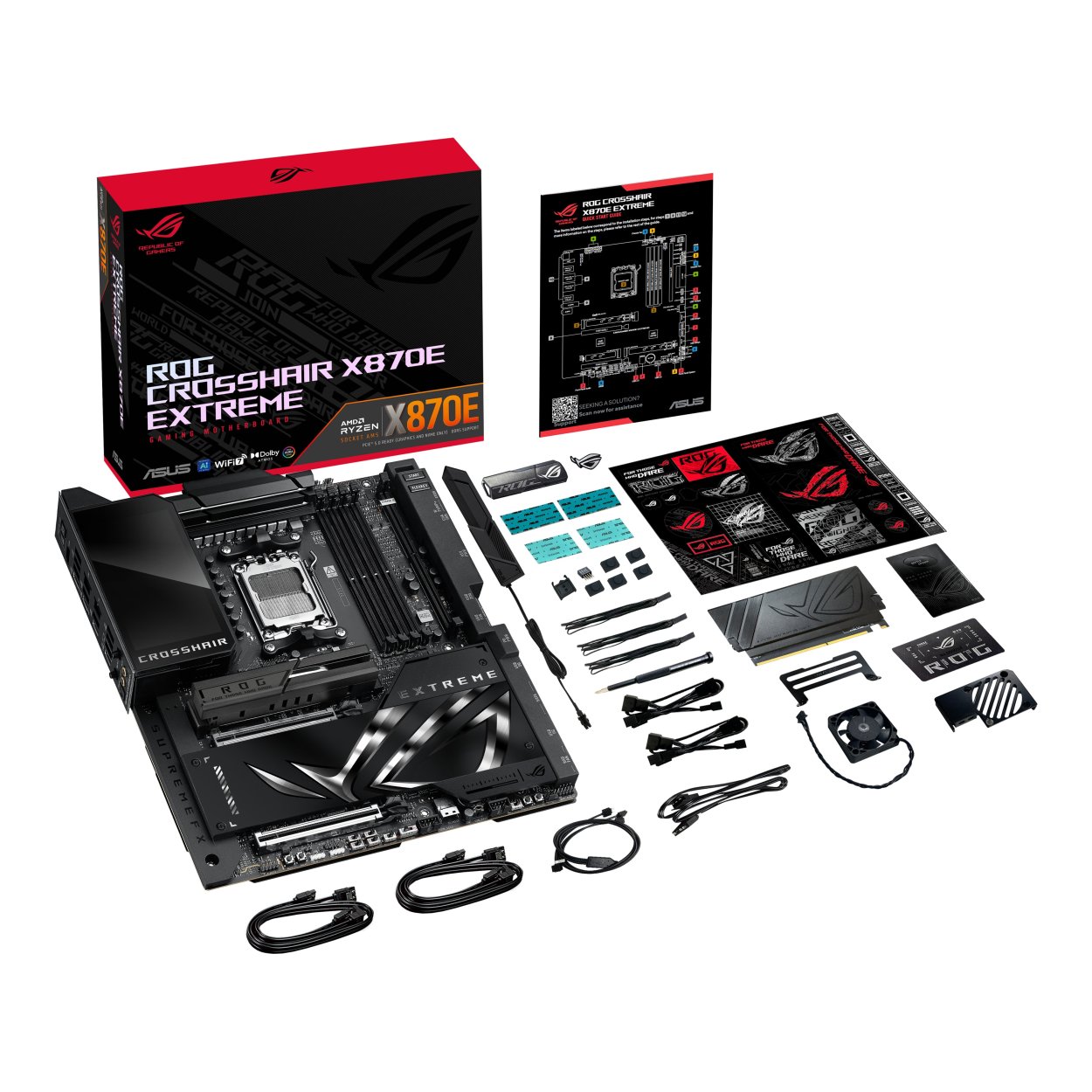

What's in the Box:
|
|
Build a high-end AMD Ryzen system with extensive PCIe 5.0 expansion, high-speed networking, advanced cooling controls and enthusiast-focused ROG overclocking features.
