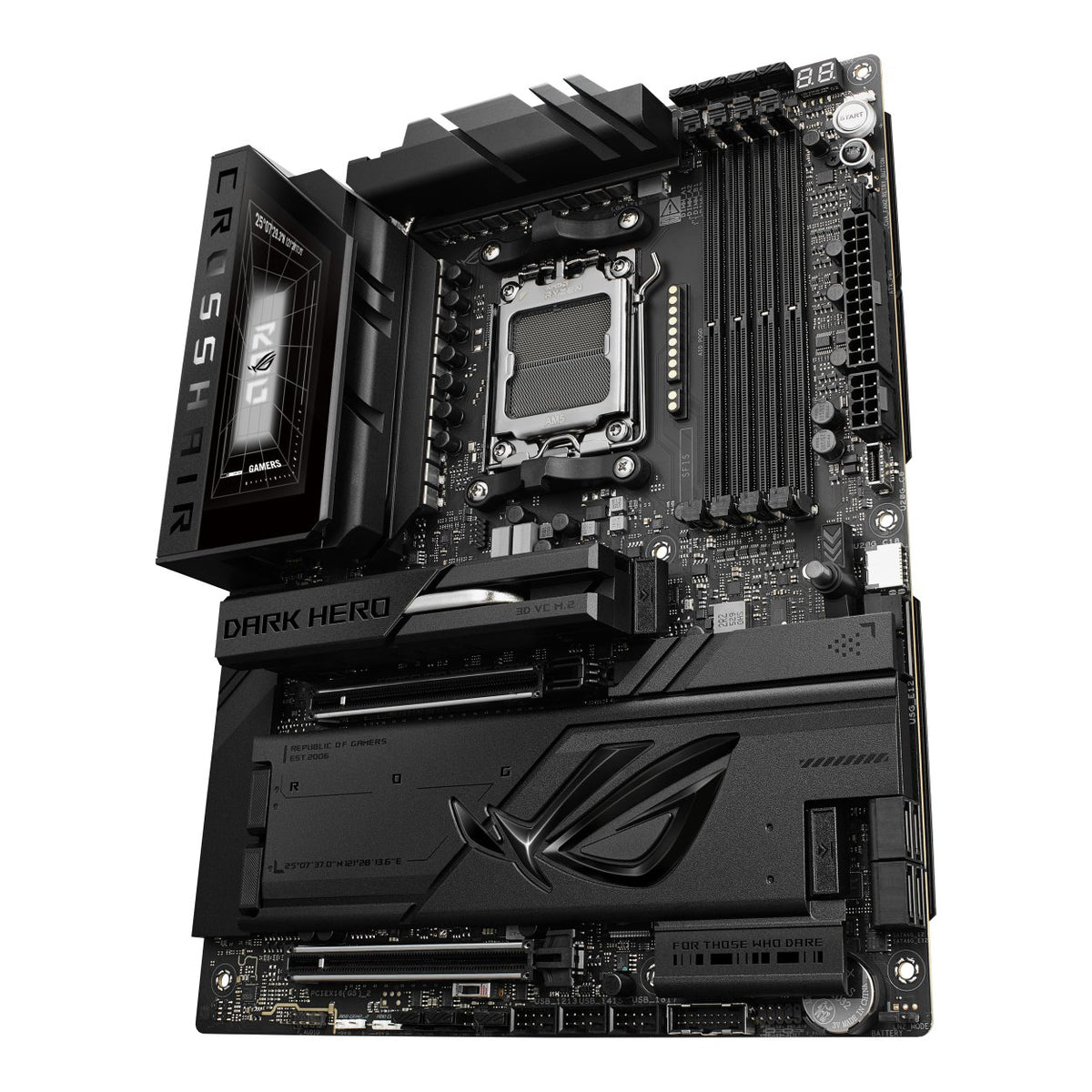

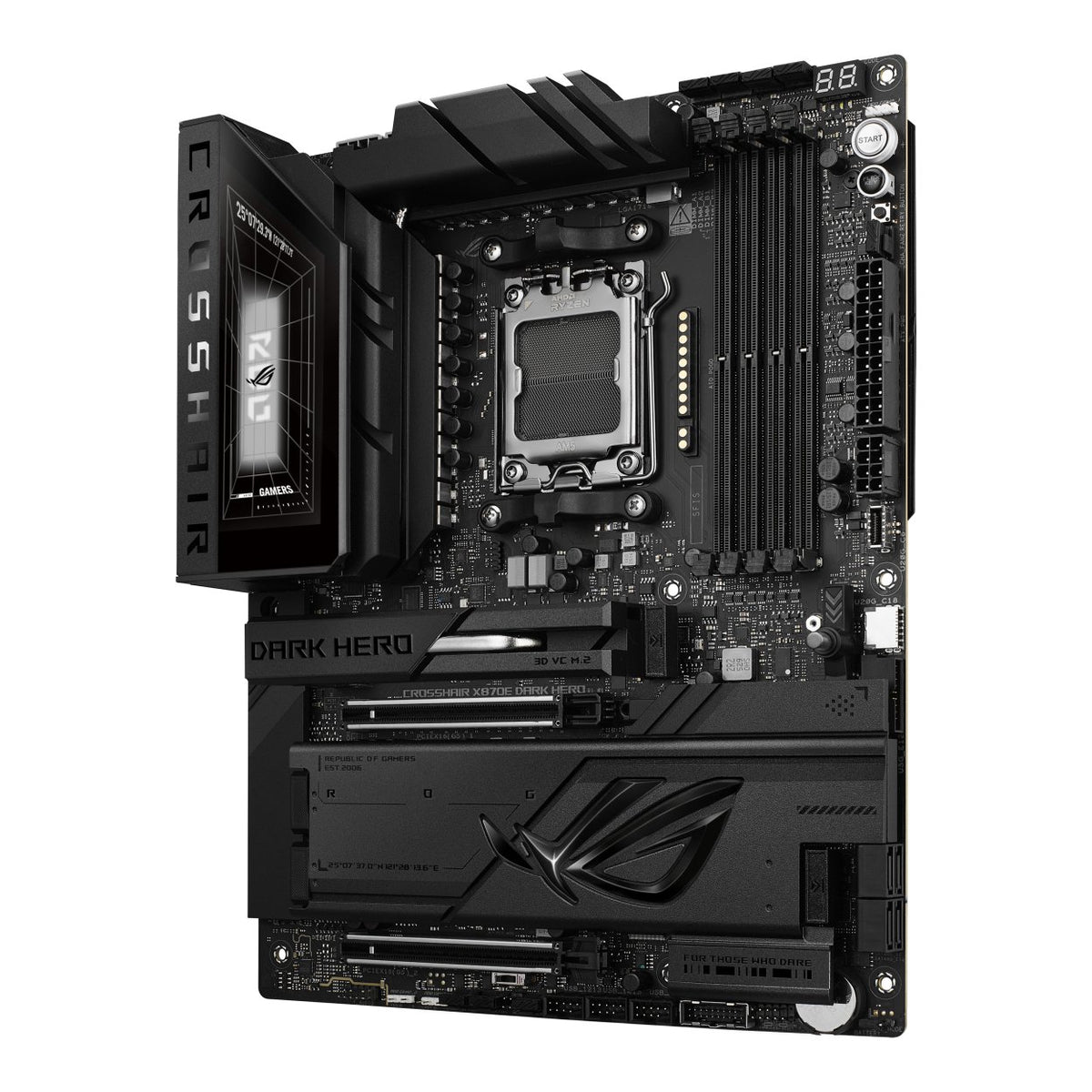

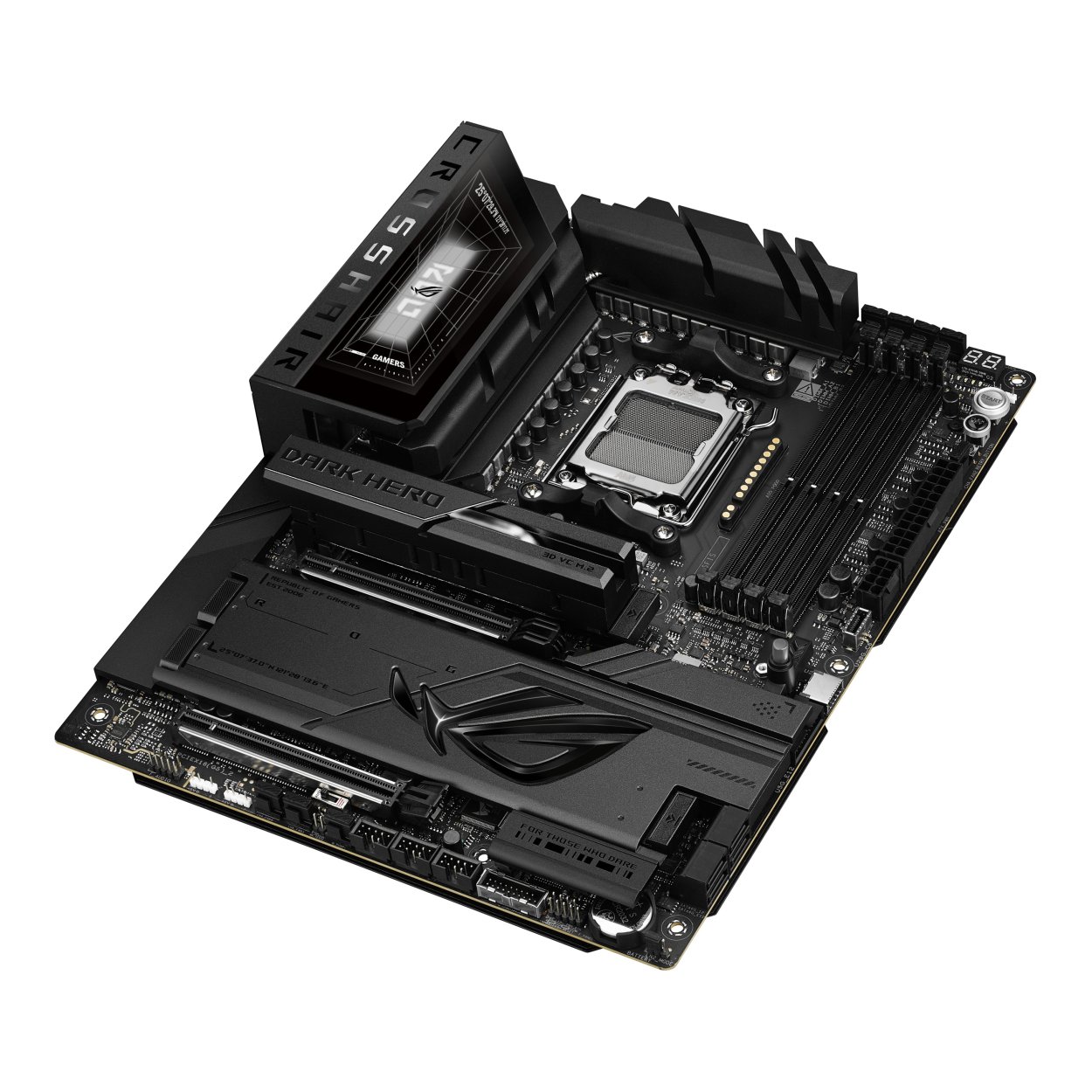

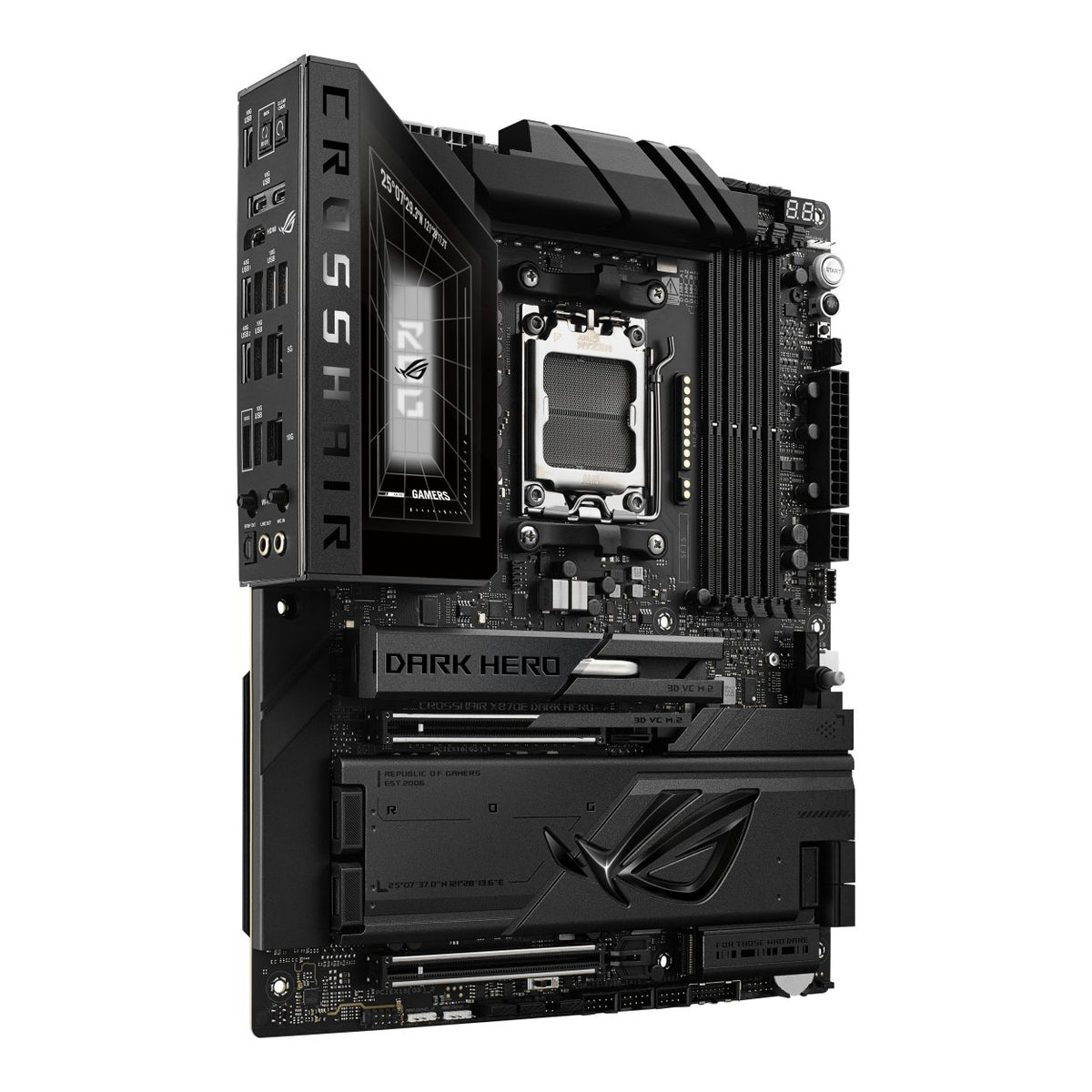

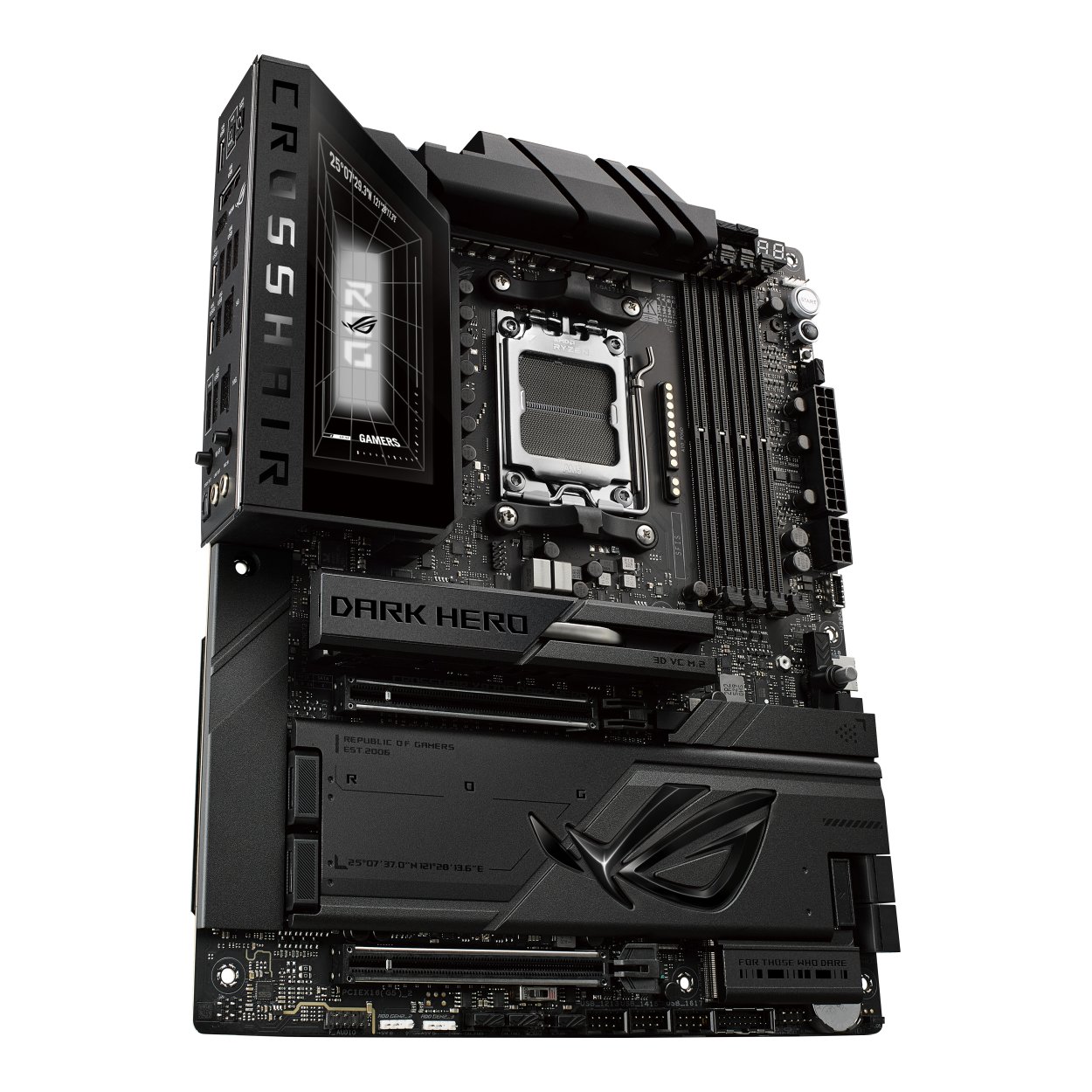

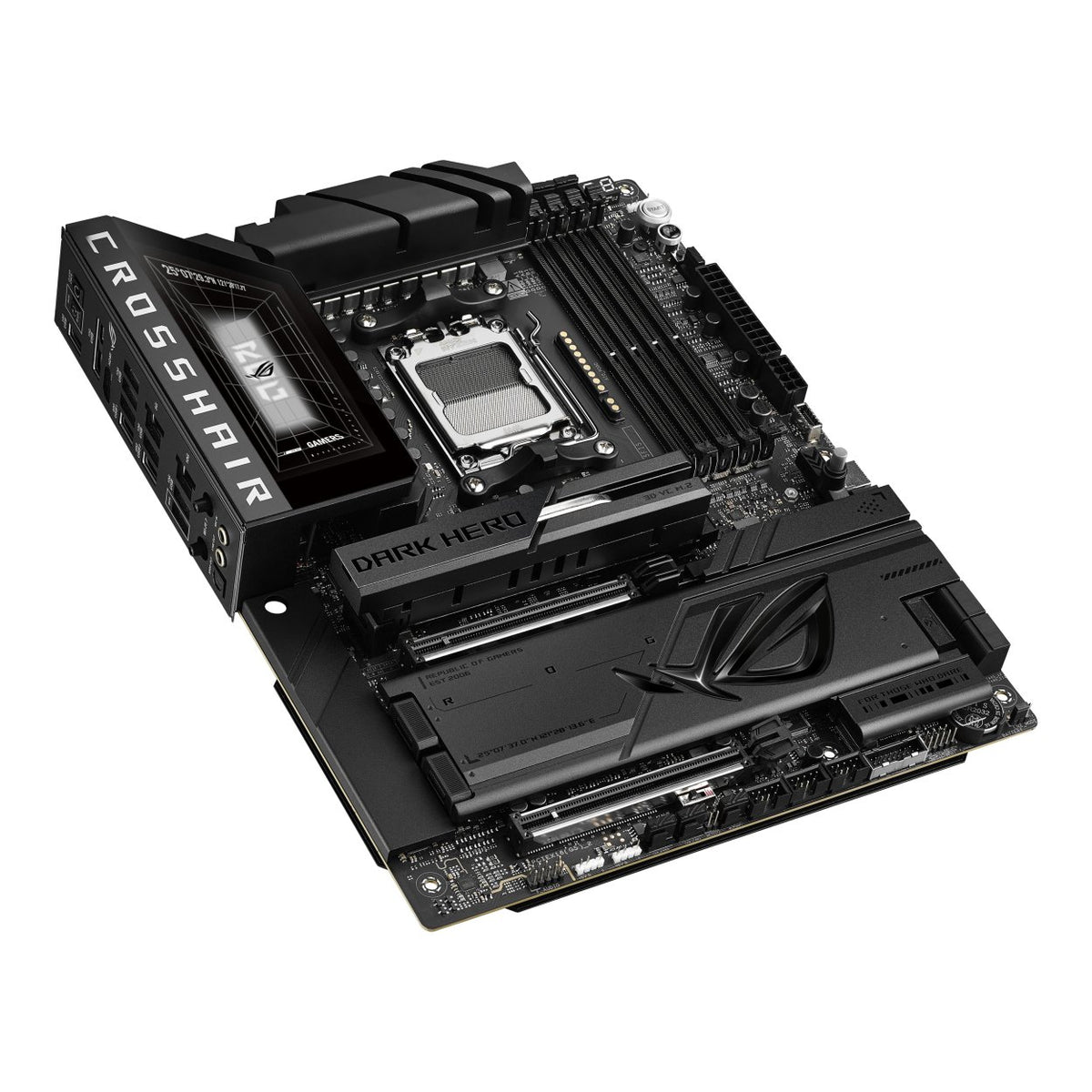

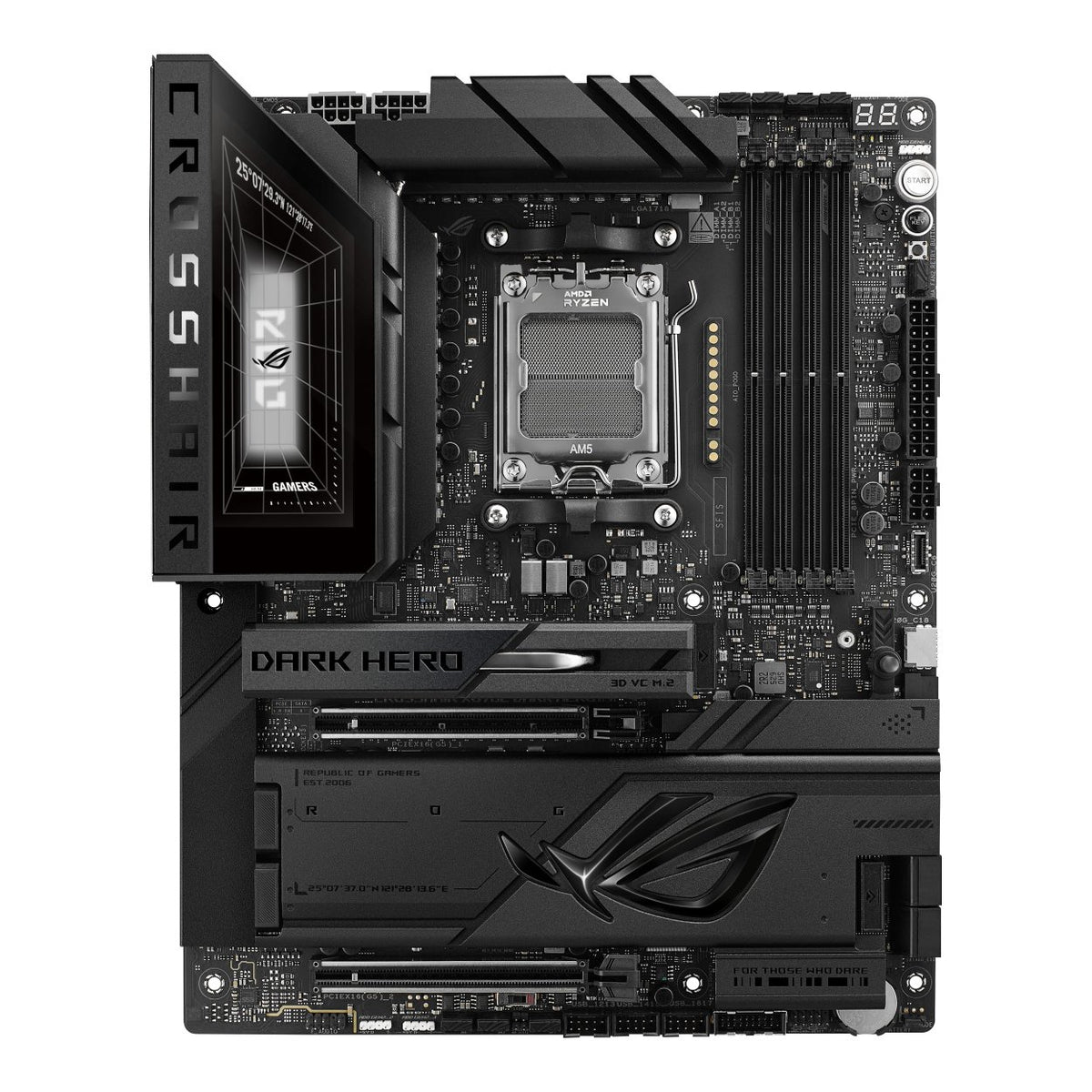

ASUS ROG CROSSHAIR X870E DARK HERO AMD Socket AM5 ATX Motherboard 90MB1NT0-M0EAY0
The ASUS ROG Crosshair X870E Dark Hero is a premium AMD AM5 gaming motherboard designed for high-performance Ryzen systems, enthusiast tuning and extensive expansion. Built around the AMD X870E chipset, it combines DDR5 memory support, PCIe 5.0 expansion, five M.2 slots, Wi-Fi 7, dual 10Gb and 5Gb Ethernet, USB4 connectivity and ROG SupremeFX audio in an ATX platform.
Key Features
- AMD X870E chipset and AM5 socket supporting AMD Ryzen 9000, 8000 and 7000 Series desktop processors.
- Four DDR5 DIMM slots support up to 256GB with AMD EXPO, ASUS AEMP, DIMM Fit and NitroPath DRAM Technology.
- Dual PCIe 5.0 x16 slots with compatible Ryzen 9000 and 7000 Series processors.
- Five M.2 slots provide extensive NVMe storage expansion, including PCIe 5.0 x4 support with compatible processors.
- High-speed networking with Realtek 10Gb Ethernet, Realtek 5Gb Ethernet and 2×2 Wi-Fi 7.
- Dual USB4 40Gbps Type-C ports plus extensive USB 10Gbps and front-panel USB 20Gbps connectivity.
- ROG SupremeFX ALC4082 audio with ESS ES9219 Quad DAC for high-quality gaming and entertainment audio.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS ROG |
| Model | ROG Crosshair X870E Dark Hero |
| Manufacturer Part Number | 90MB1NT0-M0EAY0 |
| EAN | 4711636398671 |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 9000, 8000 and 7000 Series Desktop Processors |
| Chipset | AMD X870E |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 256GB |
| Memory Architecture | Dual Channel |
| Memory Support | ECC and Non-ECC Unbuffered DDR5, AMD EXPO, ASUS AEMP, DIMM Fit, DIMM Fit Pro and NitroPath DRAM Technology |
| Maximum Memory Speed | Up to 8600+ MT/s Manual OC with Ryzen 9000; 9600+ MT/s Manual OC with Ryzen 8000; 8000+ MT/s Manual OC with Ryzen 7000 |
| Expansion Slots | 2 × PCIe 5.0 x16 with Ryzen 9000/7000 Series Processors; Configuration Varies by CPU |
| M.2 Storage | 5 × M.2 Slots |
| PCIe 5.0 M.2 | Up to 2 × PCIe 5.0 x4 with Compatible Ryzen 9000/7000 Series Processors |
| Chipset M.2 | 2 × PCIe 4.0 x4 + 1 × PCIe 4.0 x2 |
| SATA | 4 × SATA 6Gb/s |
| RAID | AMD RAIDXpert2 RAID 0, 1, 5 and 10 with Ryzen 9000/8000/7000 Series Processors |
| 10Gb Ethernet | 1 × Realtek 10Gb Ethernet |
| 5Gb Ethernet | 1 × Realtek 5Gb Ethernet with ASUS LANGuard |
| Wi-Fi | 2×2 Wi-Fi 7 (802.11be), 2.4GHz / 5GHz / 6GHz, Up to 320MHz Bandwidth |
| Bluetooth | Bluetooth 5.4 with LE Audio Support |

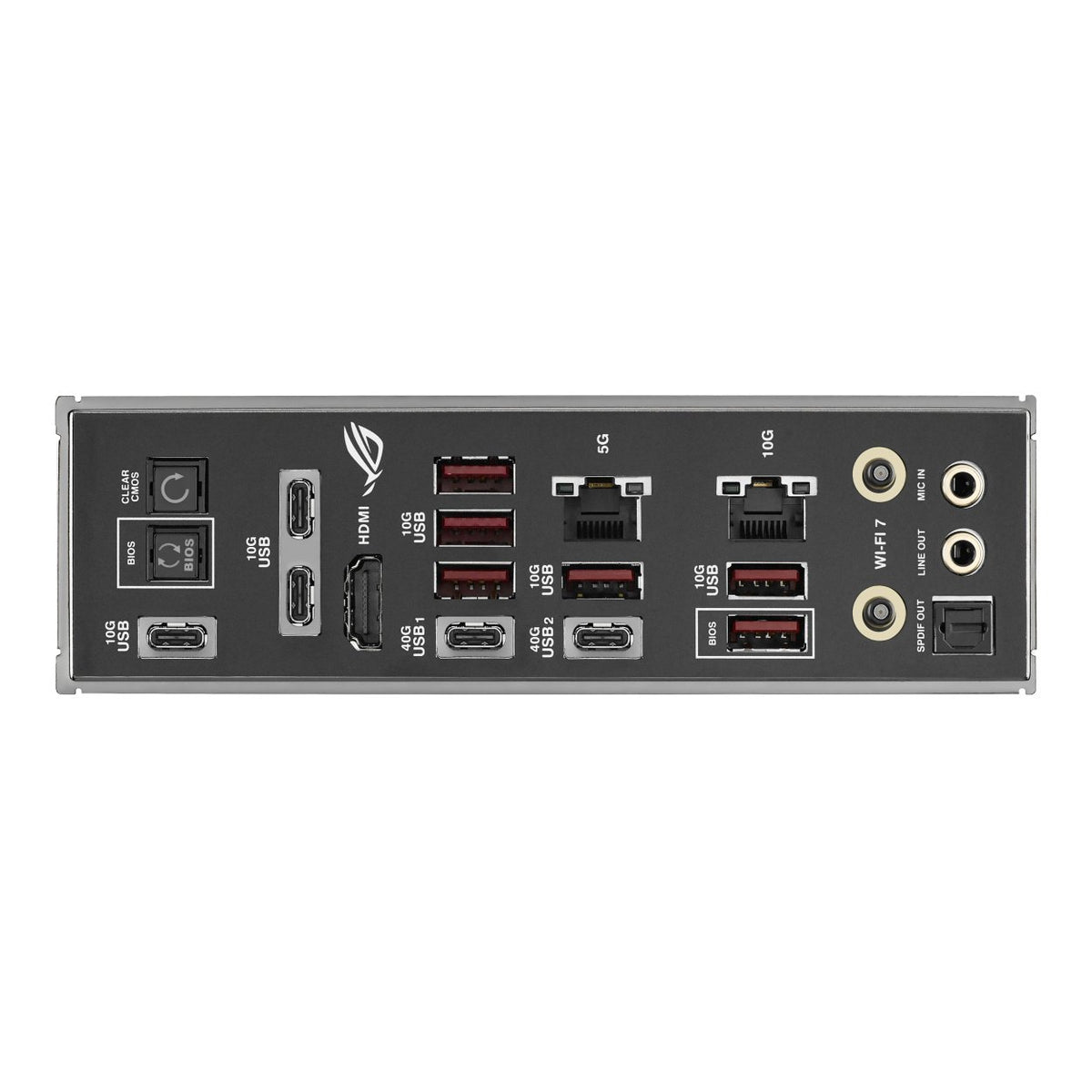

| Rear USB4 | 2 × USB4 40Gbps Type-C |
| Rear USB 10Gbps | 9 × USB 10Gbps (6 × Type-A + 3 × Type-C) |
| Front USB-C | 2 × USB 20Gbps Type-C Connectors, One Supporting Up to 60W PD/QC4+ |
| Display Output | 1 × HDMI 2.1 + 2 × USB4 Type-C Display Outputs |
| HDMI Maximum Resolution | Up to 4K at 60Hz with Compatible Processor Graphics |
| Audio Codec | ROG SupremeFX ALC4082 7.1 Surround Sound High Definition Audio |
| Audio DAC | ESS ES9219 Quad DAC |
| Audio Playback | Up to 32-Bit / 384kHz via Front Panel |
| ARGB Headers | 3 × Addressable Gen 2 Headers |
| BIOS | 64MB (512Mb) Flash ROM, UEFI AMI BIOS |
| Operating System | Windows 11 |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4 cm |

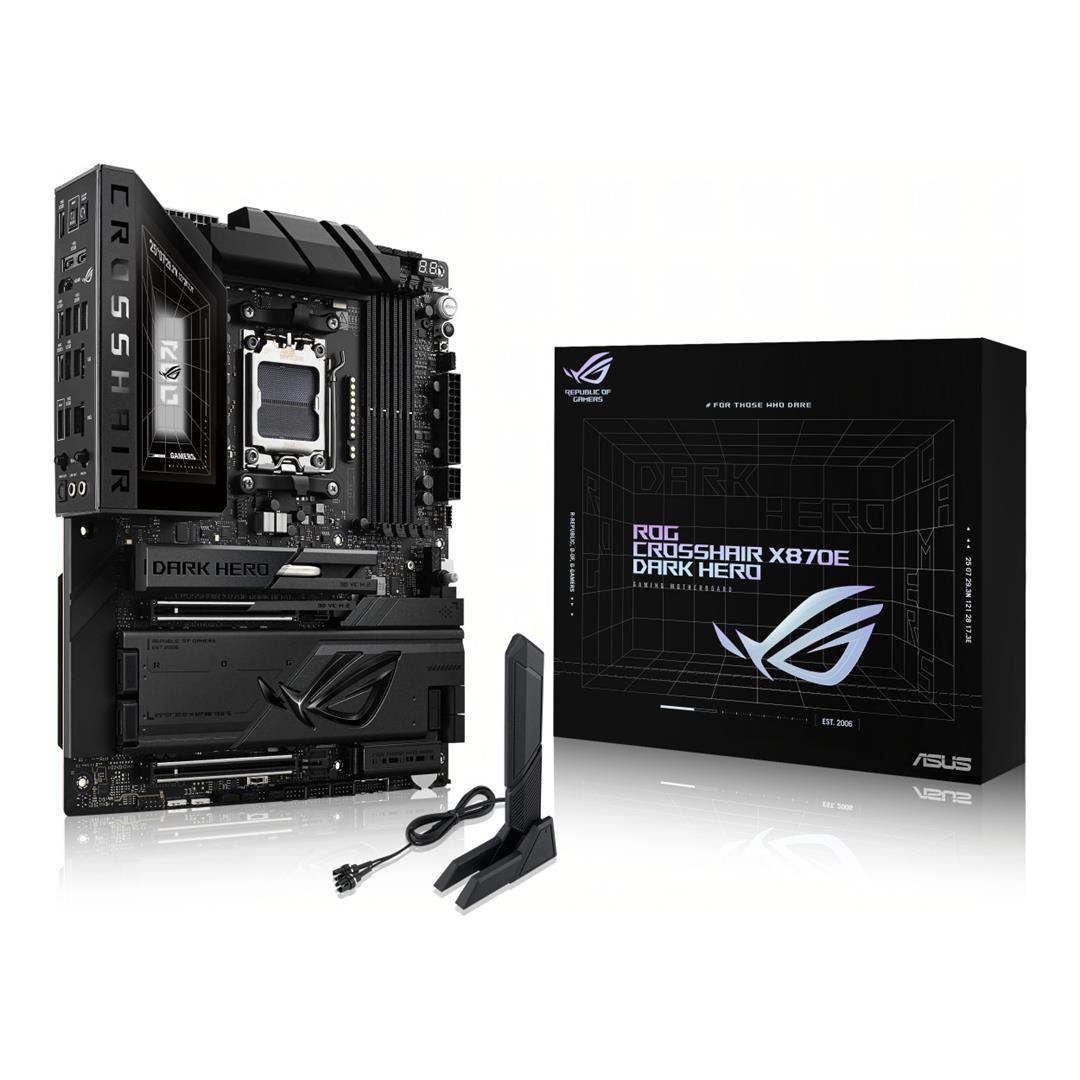

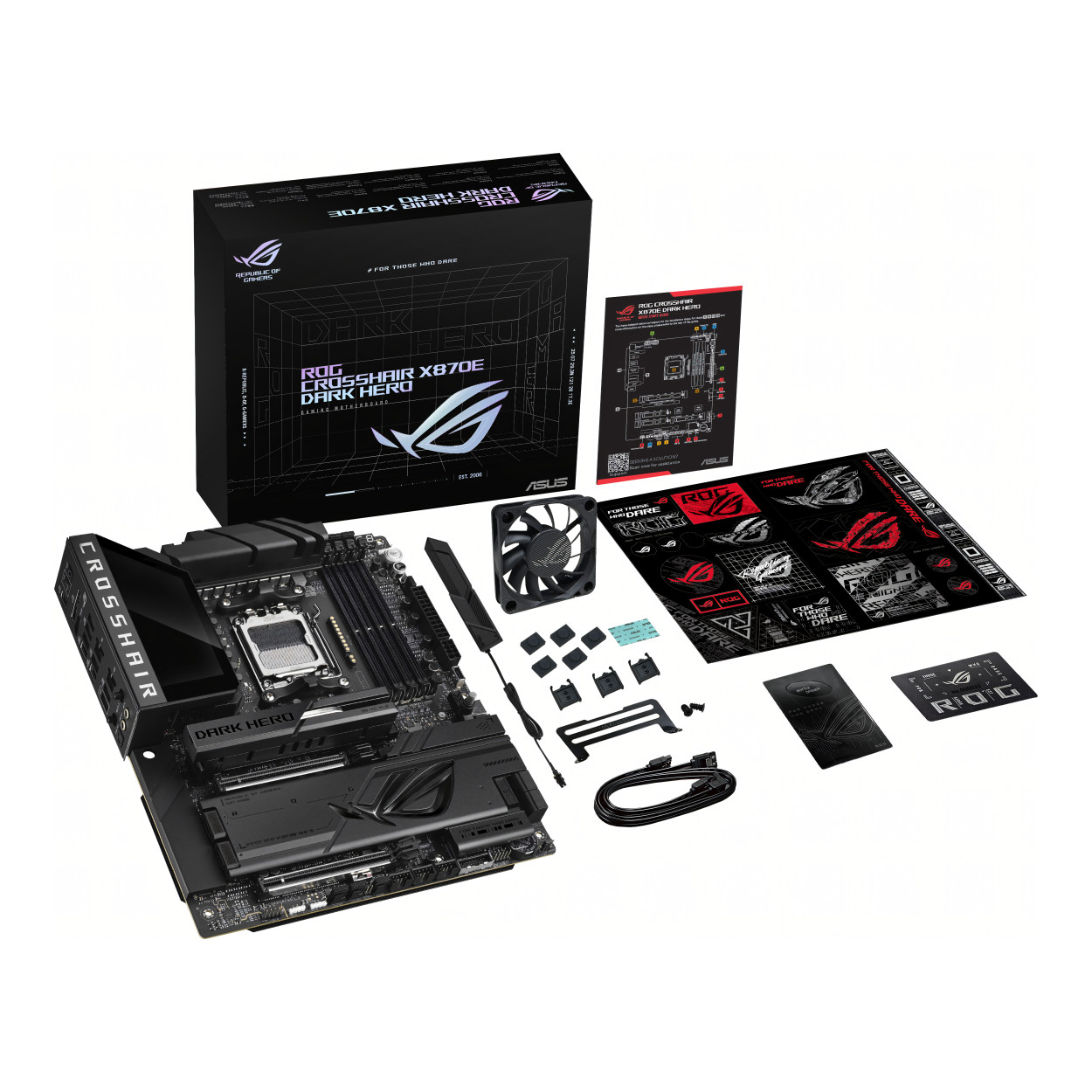

What's in the Box:
|
|
Build a premium AMD Ryzen gaming or enthusiast system with PCIe 5.0 expansion, extensive high-speed storage, Wi-Fi 7 and dual high-speed Ethernet connectivity.
