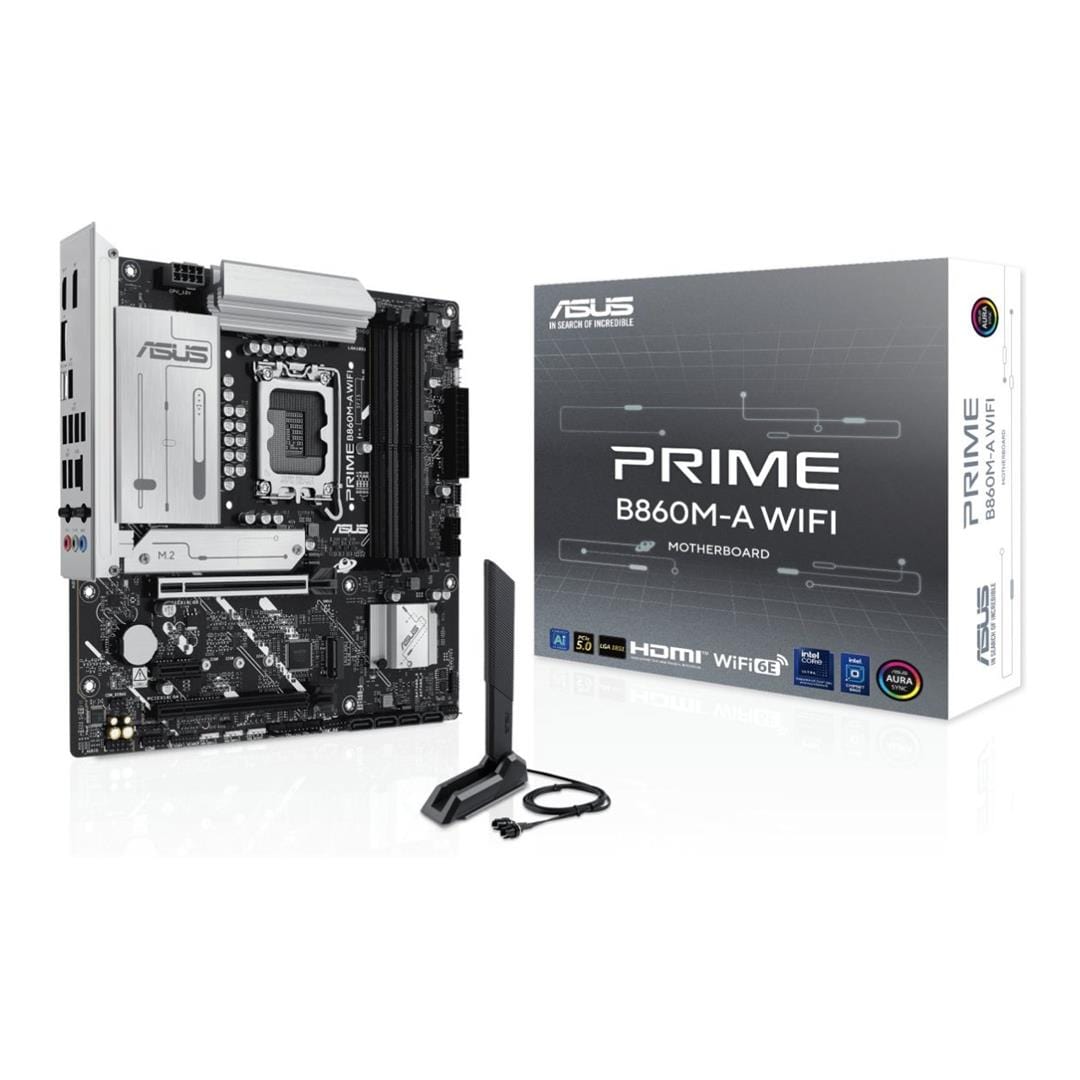

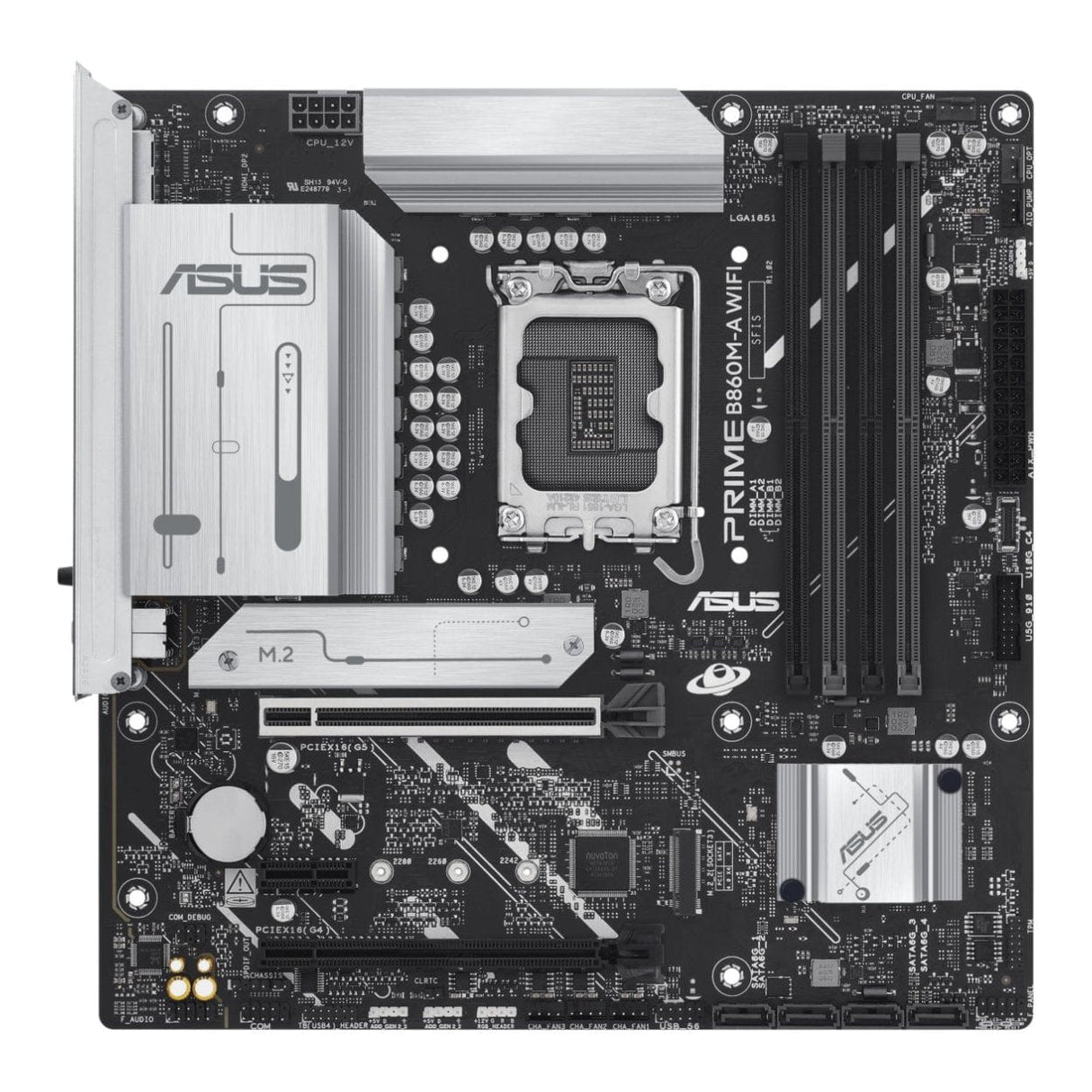

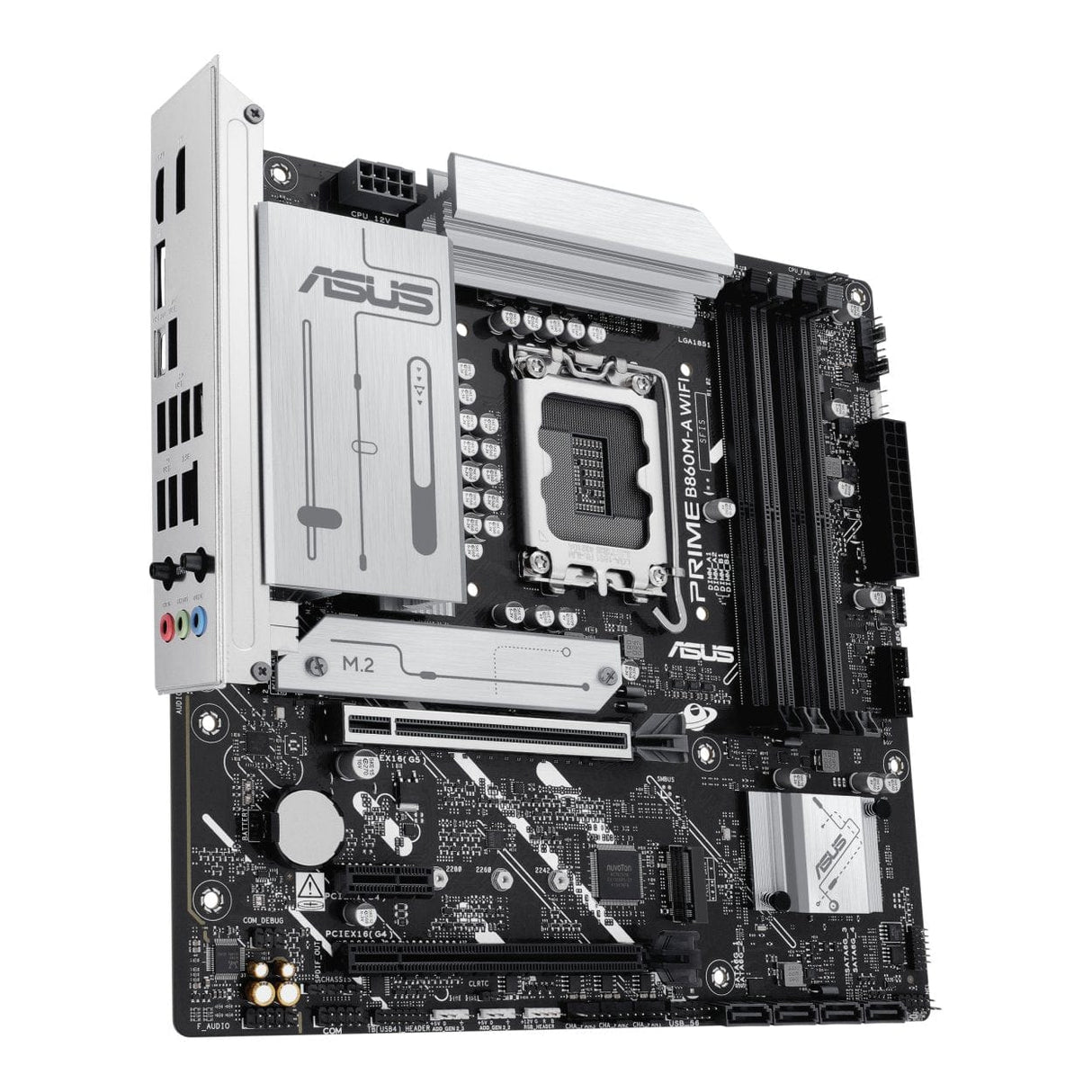

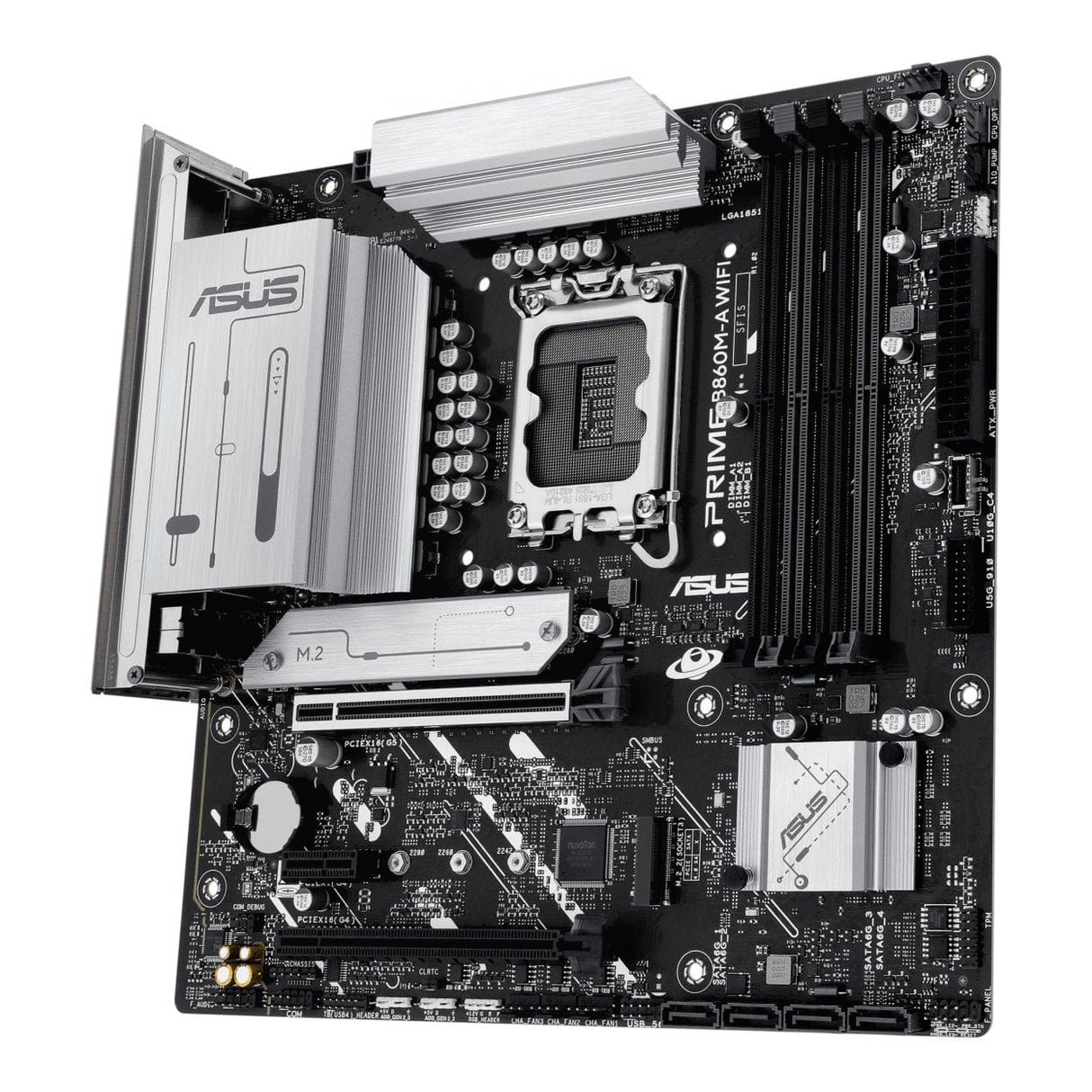

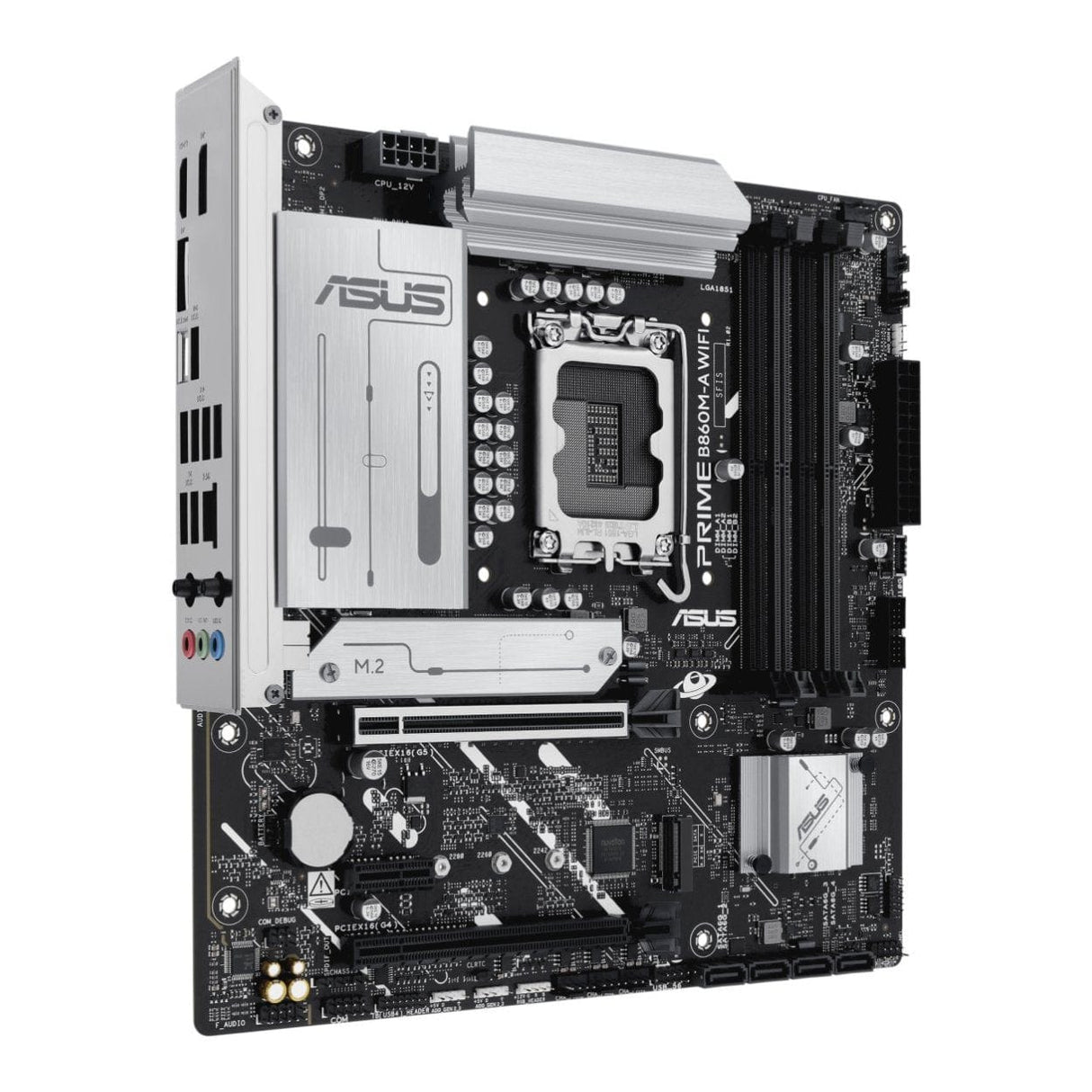

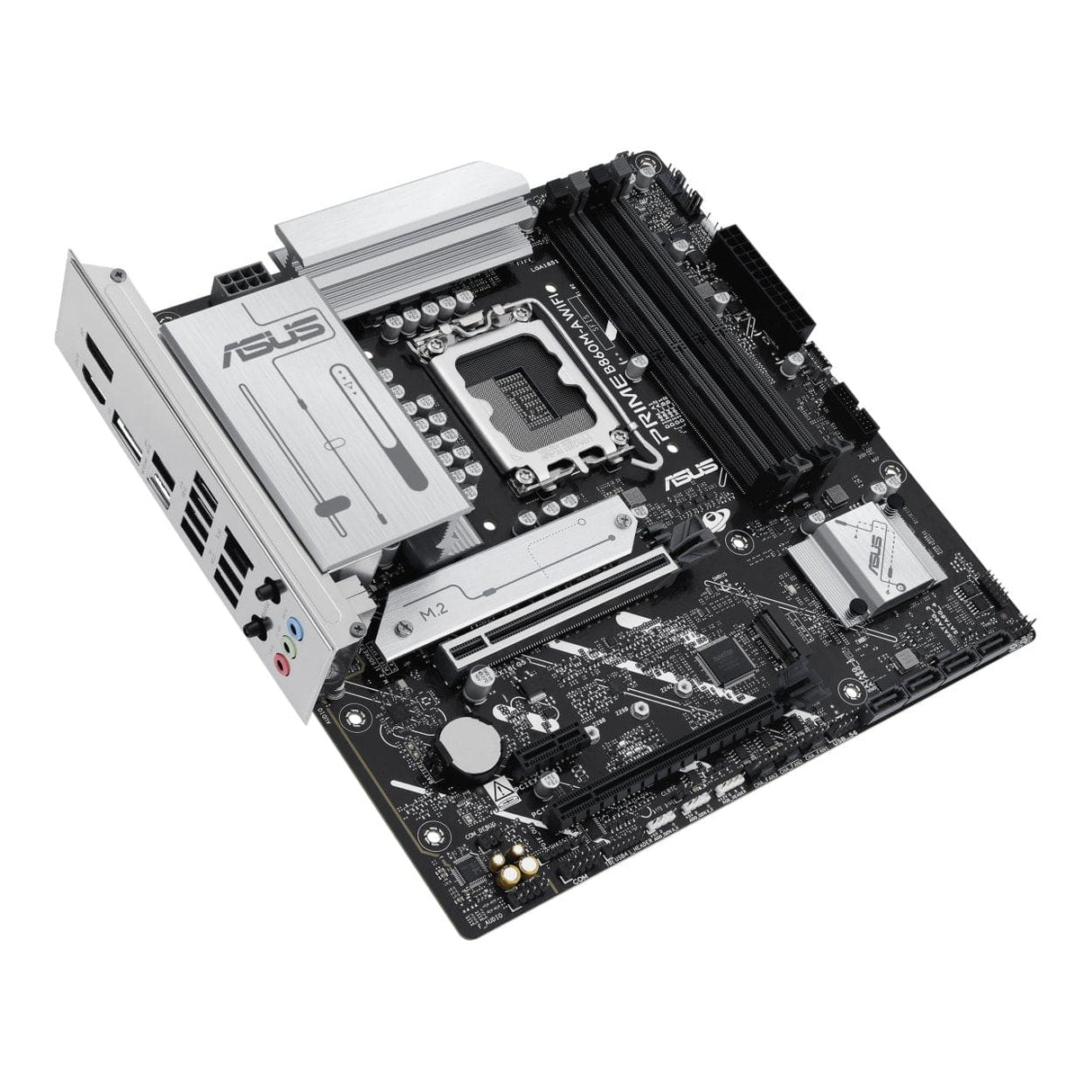

ASUS Prime B860M-A Wi-Fi Intel LGA 1851 micro ATX Motherboard 90MB1JY0-M0EAY0

ASUS Prime B860M-A Wi-Fi Intel LGA 1851 micro ATX Motherboard 90MB1JY0-M0EAY0

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Features:

• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications.
• Intel LGA 1851 Socket: Support Intel® Core™ Ultra Processors (Series 2).
• Enhanced Power Solution: 7+1+1+1 80A DrMOS power stages, 6-layer PCB, 8 pin ProCool power connectors, alloy chokes and durable capacitors for stable power delivery.
• Latest M.2 Support: One onboard PCIe 5.0 M.2 slot equipped with one M.2 heatsink and one PCIe 4.0 M.2 slot.
• Ultrafast Connectivity: Wi-Fi 6E, PCIe 5.0 x16 slot, Realtek 2.5Gb Ethernet, rear USB 20Gbps Type-C® port, front USB 10Gbps Type-C® connector.
• Comprehensive Cooling: VRM heatsink, one M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
• DIY Friendly Design: Q-Dashboard, Q-DIMM, Q-LED, Q-slot and Pre-mounted I/O shield.
• Unmatched Personalization: Three Addressable Gen 2 headers, all configurable with ASUS-exclusive Aura Sync.
• Renowned Software: ASUS DriverHub, ASUS GlideX, ASUS MyHotkey, Aura Sync.

Performance

Robust power design

Stable power is crucial for maximizing the performance of Intel^® Core^™ Ultra Processors (Series 2). The PRIME B860M-A WIFI is designed to meet the needs of high-core-count CPUs. It features 7(80A) + 1(80A) + 1(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel^® processors.

AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-7600 or higher.

DIMM Fit / DIMM Fit Pro

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. DIMM Fit Pro gives advanced PC builders more extensive customizability for memory tuning. It allows users to control up to twenty overclocking parameters, define testing ranges, and prioritize stability or performance, offering a more flexible and granular approach to memory optimization.

Two M.2 slots (up to 128Gbps)

The PRIME B860M-A WIFI offers a total of two M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, one that supports 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.

Cooling

Cooler by design

The PRIME B860M-A WIFI motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

Smart cooling precision

ASUS Fan Xpert 2+

ASUS Fan Xpert 2+ software provides comprehensive control over fans. An Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans can also be controlled via the UEFI BIOS.

Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.

Empowering connections

The PRIME B860M-A WIFI motherboard offers a versatile range of connectivity, including support for WiFi 6E, the latest version of PCI Express and an arsenal of USB ports which includes Type-C connections.

WiFi 6E

Built-in WiFi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. With triple the bandwidth of the 2.4/5/6 GHz band, WiFi 6E delivers ultrafast wireless networking speeds with improved capacity and better performance in dense wireless environments.

USB 20Gbps port

A batch of USB ports supports high-end rigs loaded with peripherals, including a rear USB Type-C port with transmission speeds of up to 20Gbps.

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Personalization

The PRIME B860M-A WIFI enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

DIY friendly

The PRIME B860M-A WIFI motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

Technical Specifications:

Processor manufacturer: Intel

Processor socket: LGA 1851 (Socket V1)

Compatible processor series: Intel Core Ultra (Series 2)

Supported memory types: DDR5-SDRAM

Maximum internal memory: 256 GB

Memory slots type: DIMM

Supported storage drive interfaces: M.2, SATA III

Supported storage drive types: HDD & SSD

RAID levels: 0, 1, 5, 10

Ethernet interface type: 2.5 Gigabit Ethernet

Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: Wi-Fi 6E (802.11ax)

Component for: PC

Motherboard form factor: micro ATX

Motherboard chipset family: Intel
