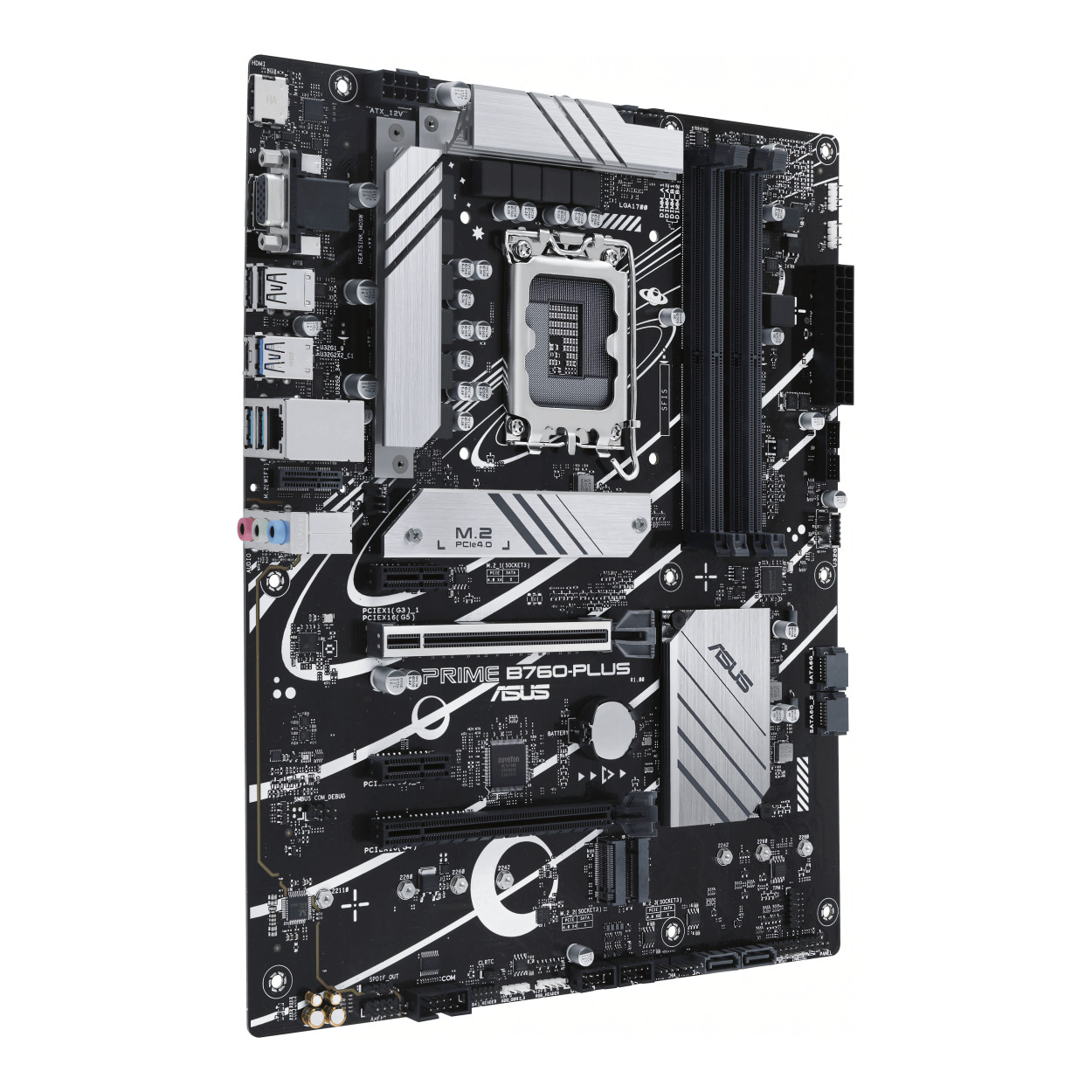

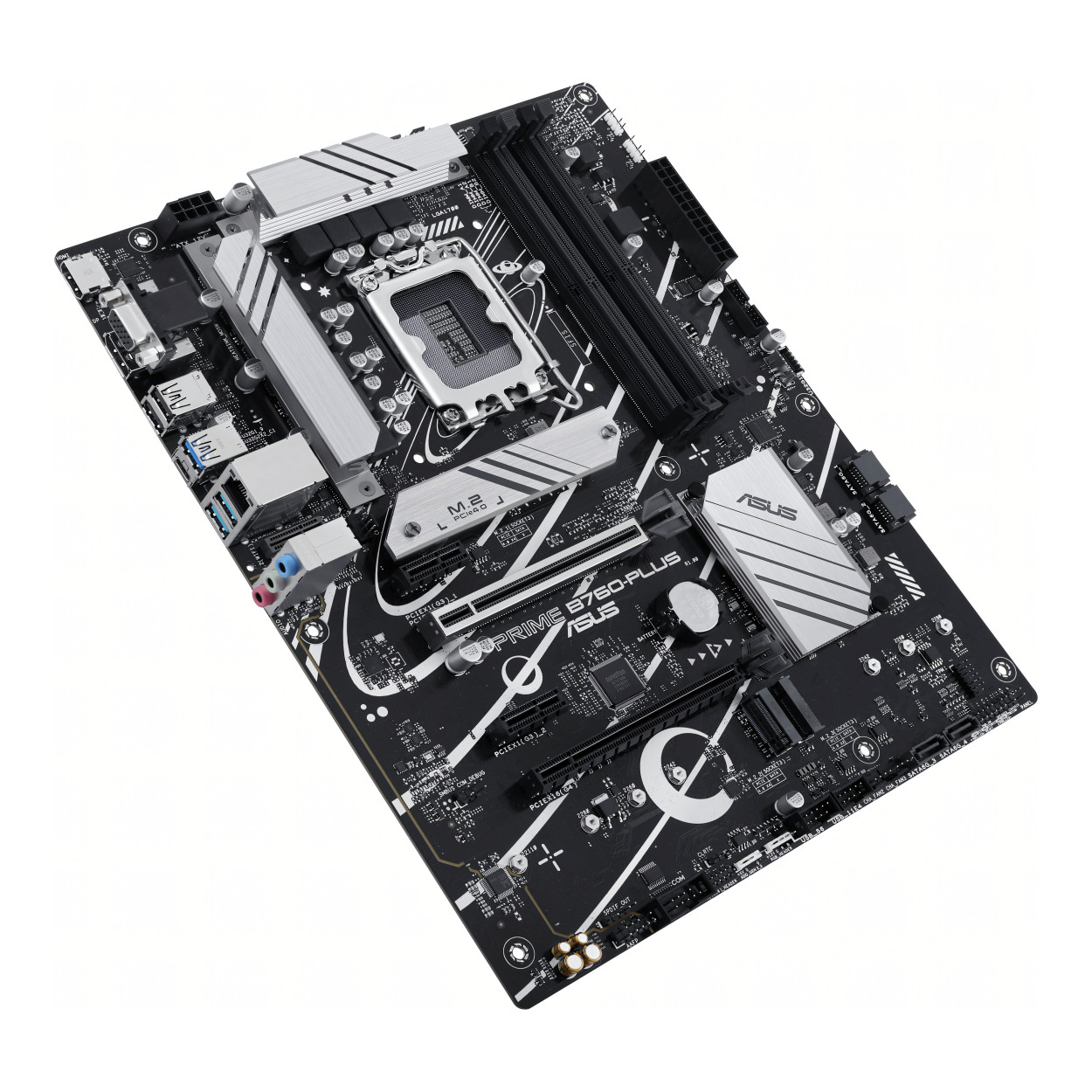

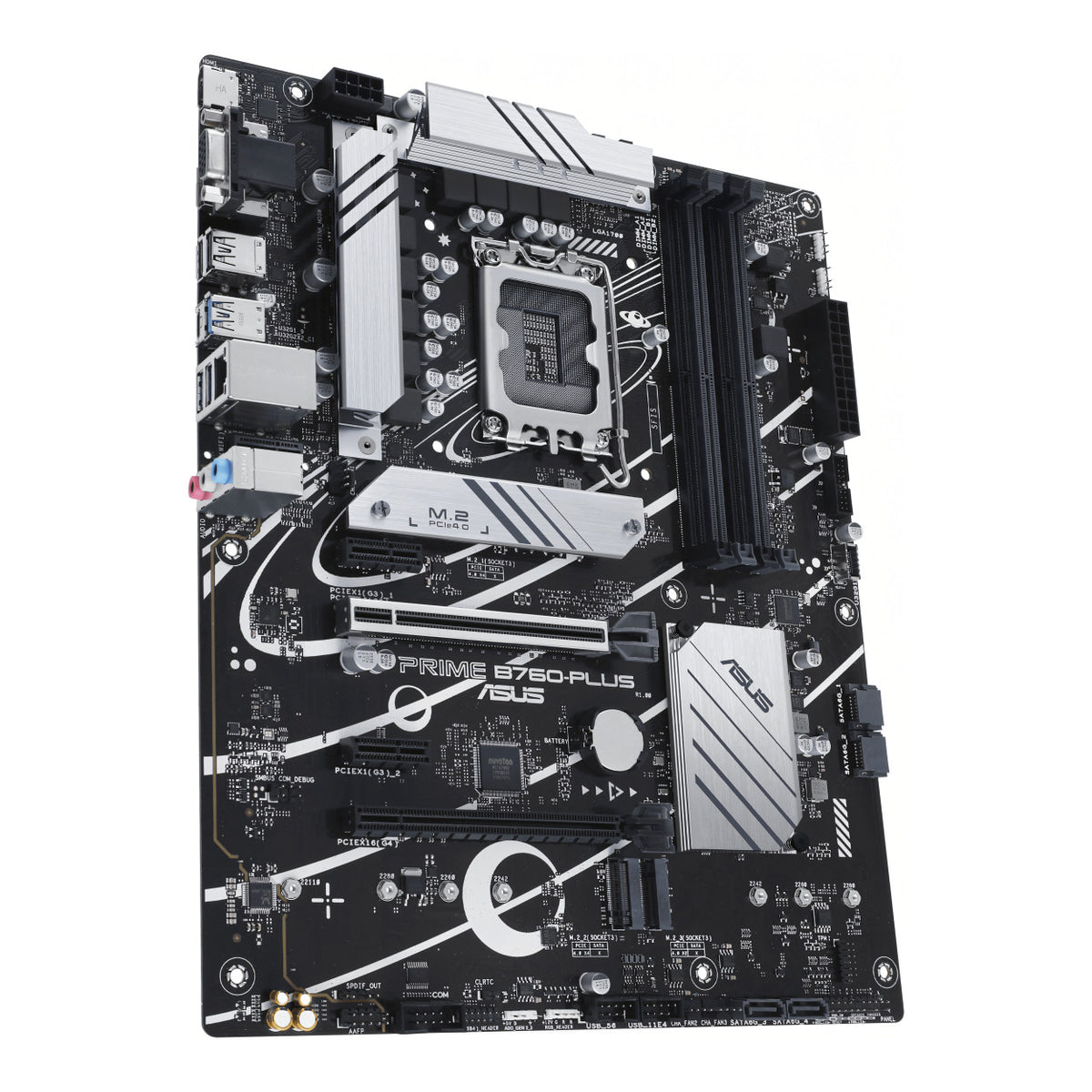

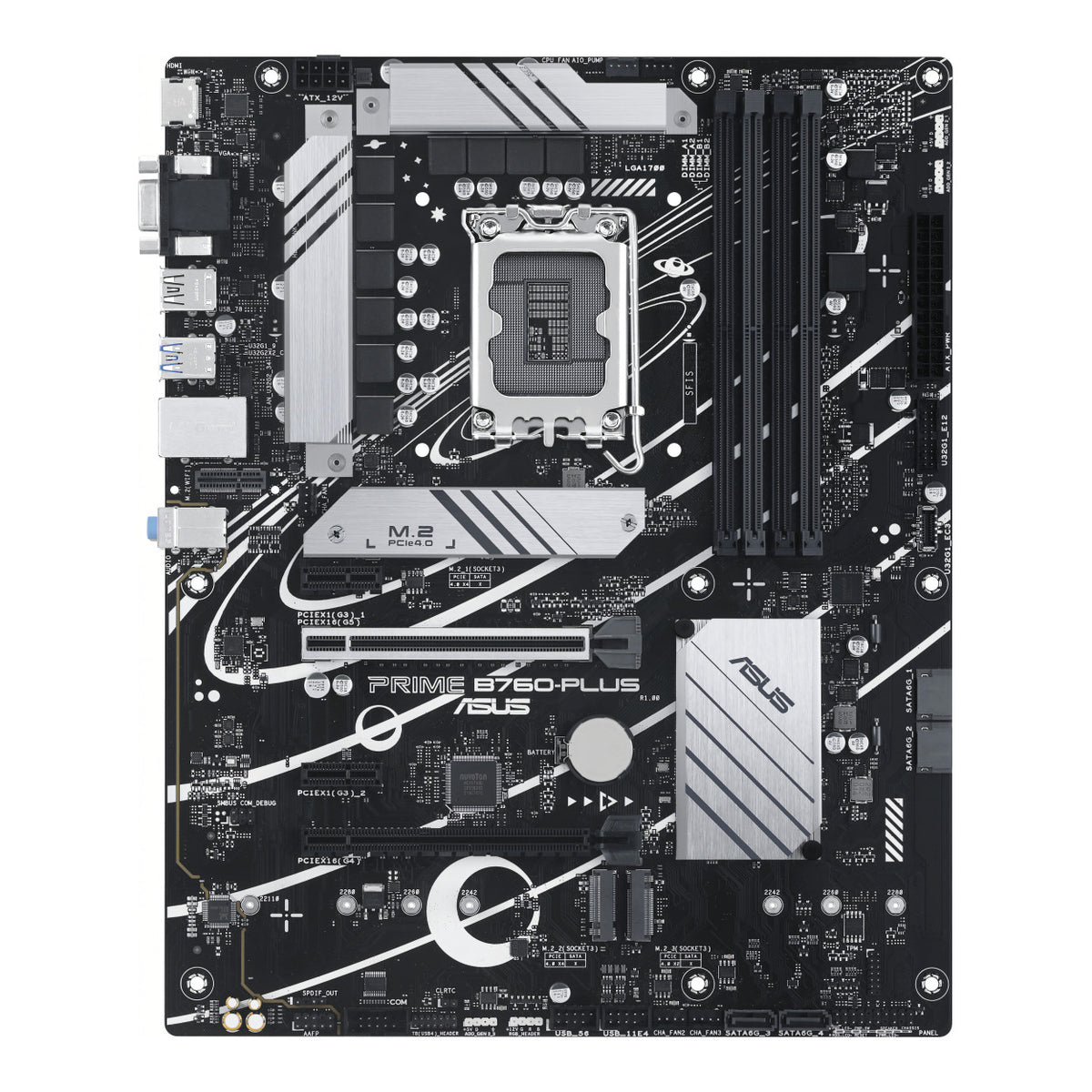

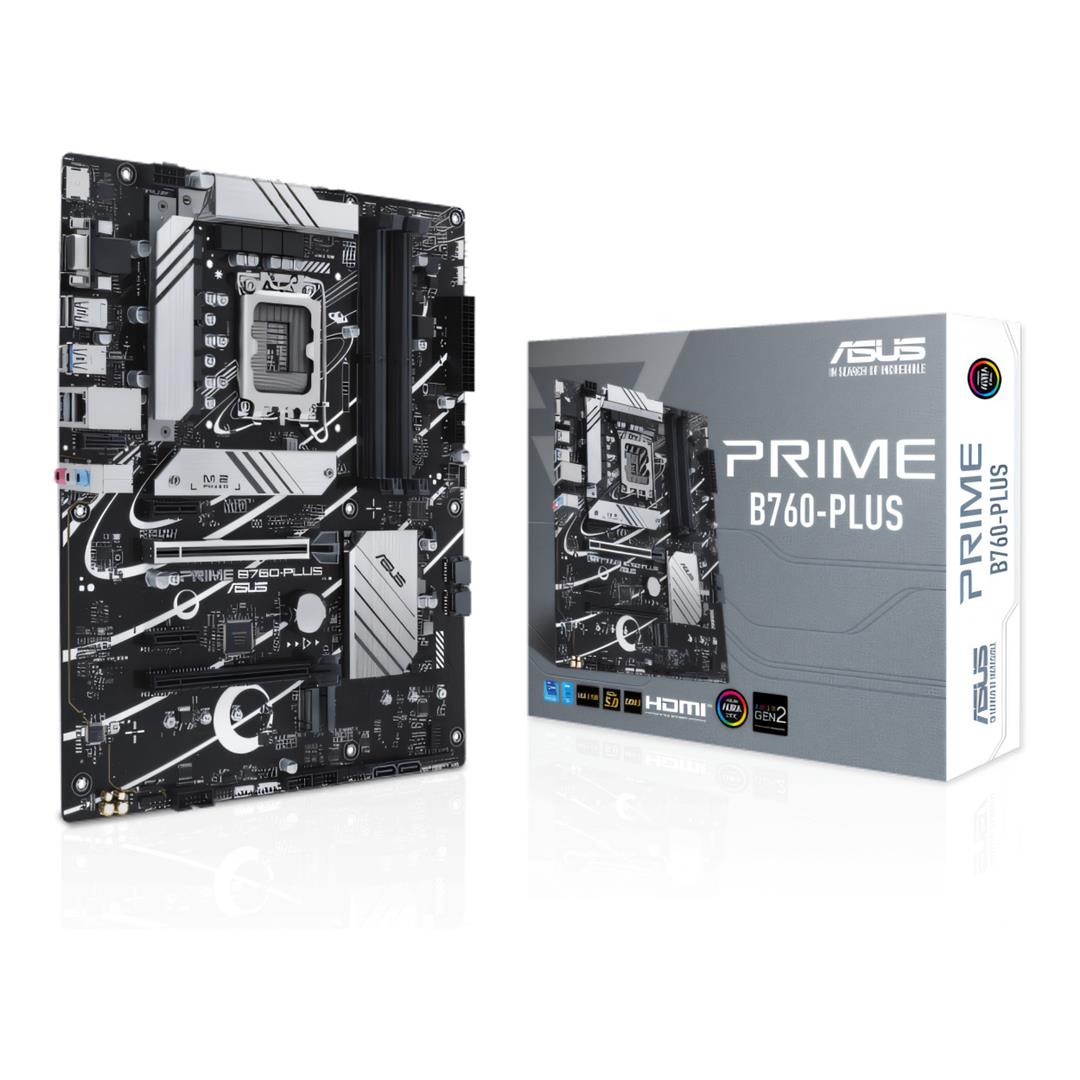

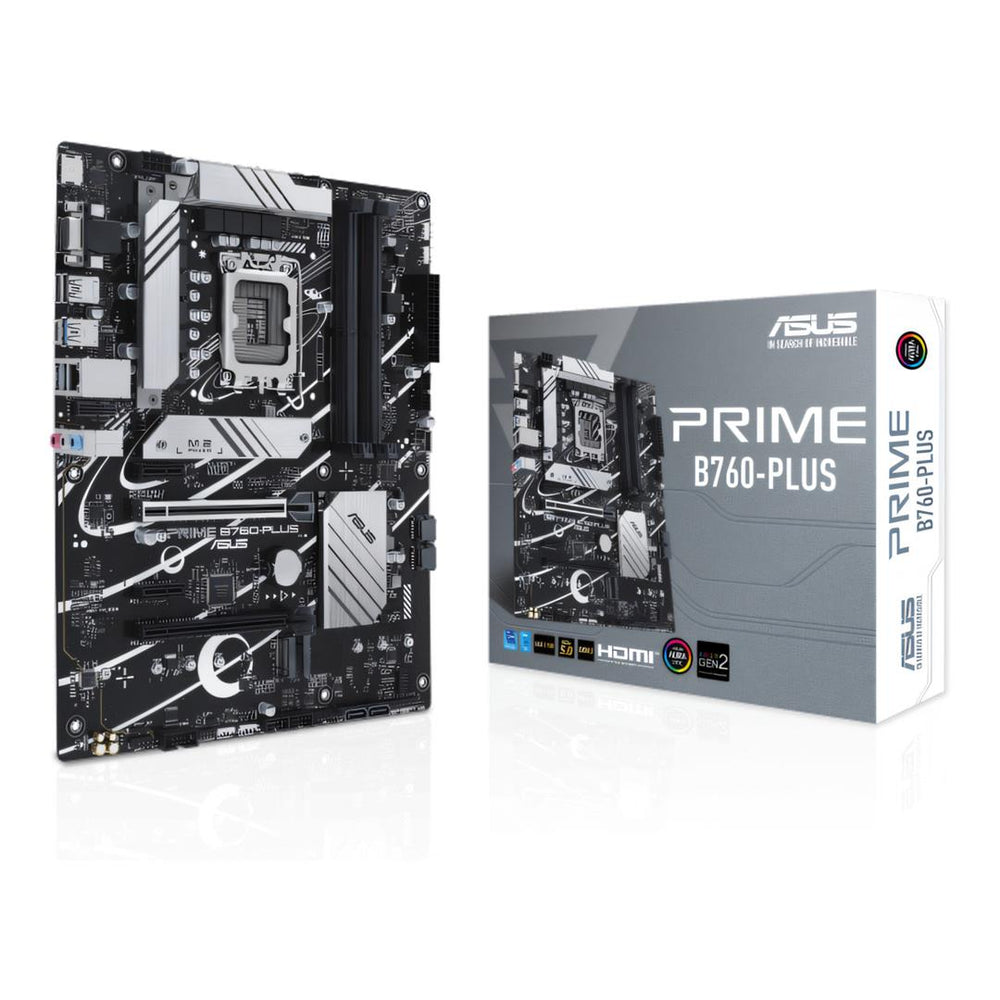

ASUS PRIME B760-PLUS Intel LGA 1700 ATX Motherboard 90MB1EF0-M0EAY0
The ASUS PRIME B760-PLUS is an ATX motherboard designed around the Intel B760 chipset and LGA1700 socket, providing a versatile foundation for compatible Intel Core processors. It combines DDR5 memory support, a PCIe 5.0 x16 expansion slot, three M.2 storage slots, 2.5Gb Ethernet and extensive USB connectivity with ASUS cooling, protection and DIY-friendly features.
Key Features
- Intel LGA1700 socket supports compatible 14th, 13th and 12th Gen Intel Core processors.
- Four DDR5 DIMM slots support up to 192GB of dual-channel memory and Intel XMP.
- PCIe 5.0 x16 slot provides high-bandwidth expansion for compatible graphics cards.
- Three M.2 slots and four SATA 6Gb/s ports provide flexible high-speed storage options.
- Realtek 2.5Gb Ethernet provides high-speed wired network connectivity.
- USB 3.2 Gen 2x2 Type-C connectivity supports data transfer speeds of up to 20Gbps.
- ASUS 5X Protection III, VRM and M.2 heatsinks provide enhanced system protection and cooling.
- Aura Sync support includes three Addressable Gen 2 headers and one Aura RGB header.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | PRIME B760-PLUS |
| Manufacturer Part Number | 90MB1EF0-M0EAY0 |
| Chipset | Intel B760 |
| CPU Socket | Intel LGA1700 |
| CPU Support | 14th, 13th & 12th Gen Intel Core, Intel Pentium Gold and Celeron Processors |
| Memory Slots | 4 × DDR5 DIMM |
| Maximum Memory | 192GB |
| Memory Architecture | Dual Channel |
| Memory Speed | Up to DDR5-7200+ (OC) |
| Memory Features | Intel XMP, ASUS OptiMem II |
| Primary Expansion Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion Slots | 1 × PCIe 4.0 x16 (x4 Mode), 2 × PCIe 3.0 x1 |
| M.2 Storage | 3 × M.2 Slots |
| SATA | 4 × SATA 6Gb/s |
| RAID Support | Intel Rapid Storage Technology SATA RAID 0, 1, 5 and 10 |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless Expansion | 1 × Vertical M.2 Key E Slot (Wi-Fi Module Sold Separately) |

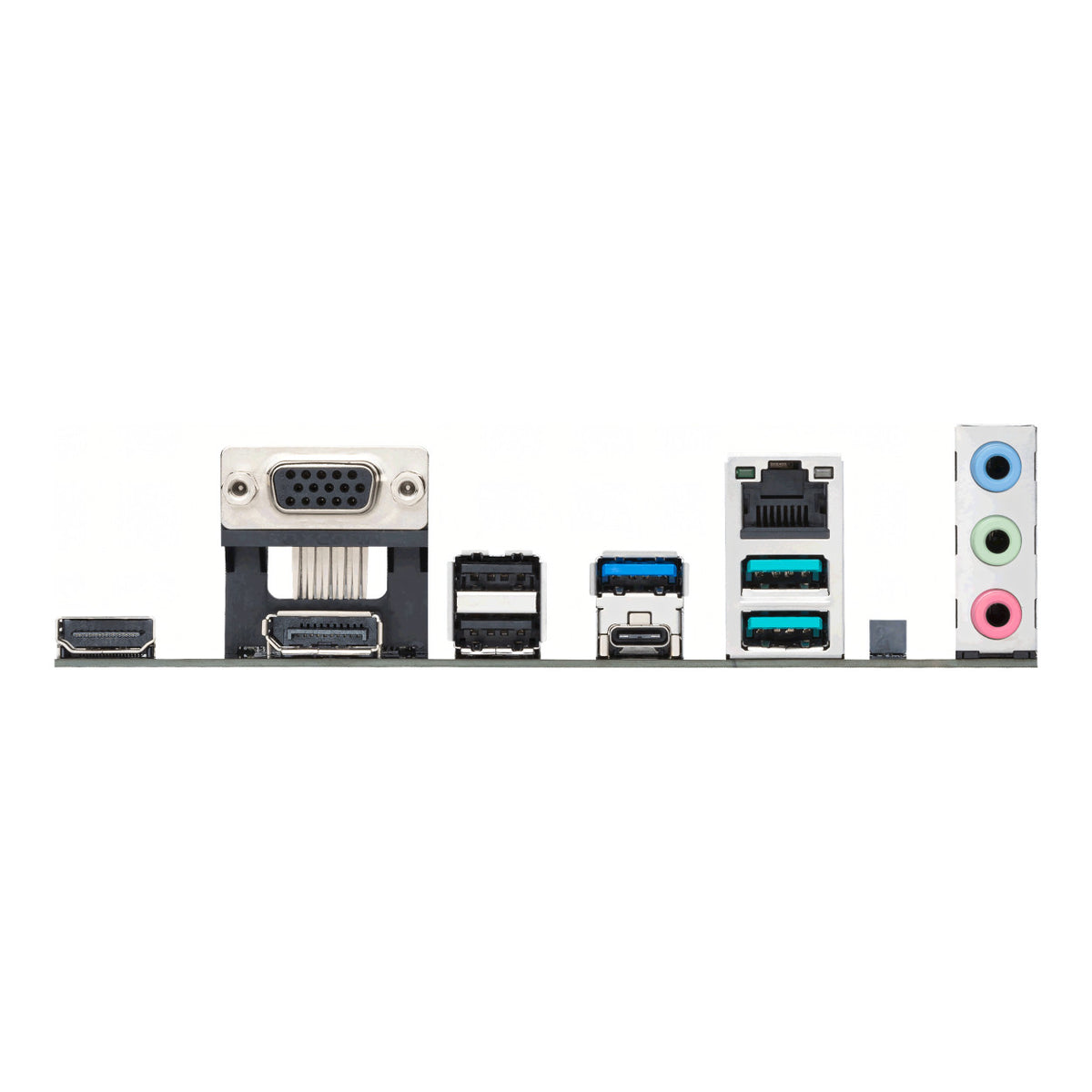

| Rear USB | 1 × USB 3.2 Gen 2x2 Type-C, 2 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0 Type-A |
| Front USB Support | 1 × USB 3.2 Gen 1 Type-C, 2 × USB 3.2 Gen 1, 4 × USB 2.0 |
| Display Outputs | 1 × DisplayPort, 1 × HDMI, 1 × VGA |
| Maximum DisplayPort Resolution | 4K at 60Hz |
| Maximum HDMI Resolution | 4K at 60Hz |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Playback | Up to 24-bit / 192kHz |
| RGB Connectivity | 3 × Addressable Gen 2 Headers, 1 × Aura RGB Header |
| Cooling Headers | 1 × CPU Fan, 1 × AIO Pump, 3 × Chassis Fan |
| BIOS | 128Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support | Windows 11, Windows 10 64-bit |
| Form Factor | ATX |
| Dimensions | 30.5 × 24.4cm |
What's in the Box:
|
|
Build a capable Intel DDR5 system with the ASUS PRIME B760-PLUS, offering PCIe 5.0 expansion, versatile M.2 storage, 2.5Gb Ethernet and extensive connectivity.
